TASEP-Smarticles

Overview

The SmartTasep package implements a Totally Asymmetric Simple Exclusion Process (TASEP) using reinforcement learning (RL) agents. In this simulation, particles perceive their environment at each time step, and a neural network decides their next action (move forward, up, or down) to maximize the total current. The repository employs Double Deep Q Learning (DDQN) with a policy network and a target network that is updated using a soft update mechanism. Experience replay is used to sample from a buffer of past experiences, facilitating learning.

Features

• TASEP simulation with RL agents
• Double Deep Q Learning (dDQN)
• Policy network and target network with soft updates
• (Prioritized) Experience replay for improved learning
• Real-time training visualization with pygame and matplotlib
• Saving trained networks
• Loading and running pretrained simulations
• Testing learned policies interactively
• Customizable reward functions

Files

Classes in TASEP-Smarticles:

• DQN.py: Neural network RL agent class
• GridEnvironment.py: Environment class that computes states, transitions, and rewards
• Trainer.py: Wrapper class for training the network, saving, loading and running simulations
• Playground.py: Class for testing learned policies interactively

Setup

1. Install the package using pip:

   pip install smarttasep


Using the package

1. Import the package:

   from smarttasep import Trainer, EnvParams, Hyperparams, Playground


2. Run a training session:

   envParams = EnvParams(render_mode="human",
                          length=128,
                          width=24,
                          moves_per_timestep=200,
                          window_height=200,
                          observation_distance=3,
                          distinguishable_particles=True,
                          initial_state_template="checkerboard",
                          social_reward=True,
                          use_speeds=True,
                          sigma=10,
                          allow_wait=True,
                          invert_speed_observation=True)
    hyperparams = Hyperparams(BATCH_SIZE=32,
                              GAMMA=0.85,
                              EPS_START=0.9,
                              EPS_END=0.05,
                              EPS_DECAY=100_000,
                              TAU=0.005,
                              LR=0.001,
                              MEMORY_SIZE=500_000)

    trainer = Trainer(envParams,
                        hyperparams,
                        reset_interval=100_000, fl
                        total_steps=500_000,
                        plot_interval=4000,
                        new_model=True)

    trainer.train_and_save()


3. Load a pretrained model and run a simulation:

   trainer = trainer.load() # shows a list of available models and prompts the user to choose one
   trainer.run()

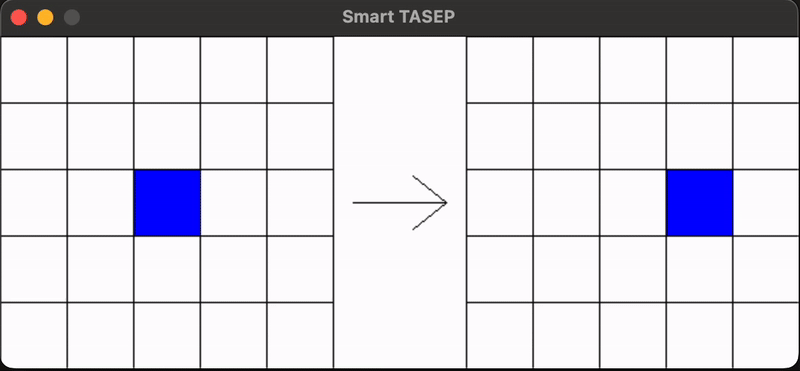

4. Test a learned policy interactively:

   Playground() # shows a list of available models and prompts the user to choose one




Author

Jonas Märtens

GitHub: https://github.com/jonasmaertens

Version

Current Version: 0.1.0

License

This project is licensed under the MIT License - see the LICENSE.md file for details
