som-multimodal-datareduction

Self-organizing maps (SOMs) and k-means for multimodal materials data: high-dimensional, mixed-source measurements reduced to maps that can be read and compared.

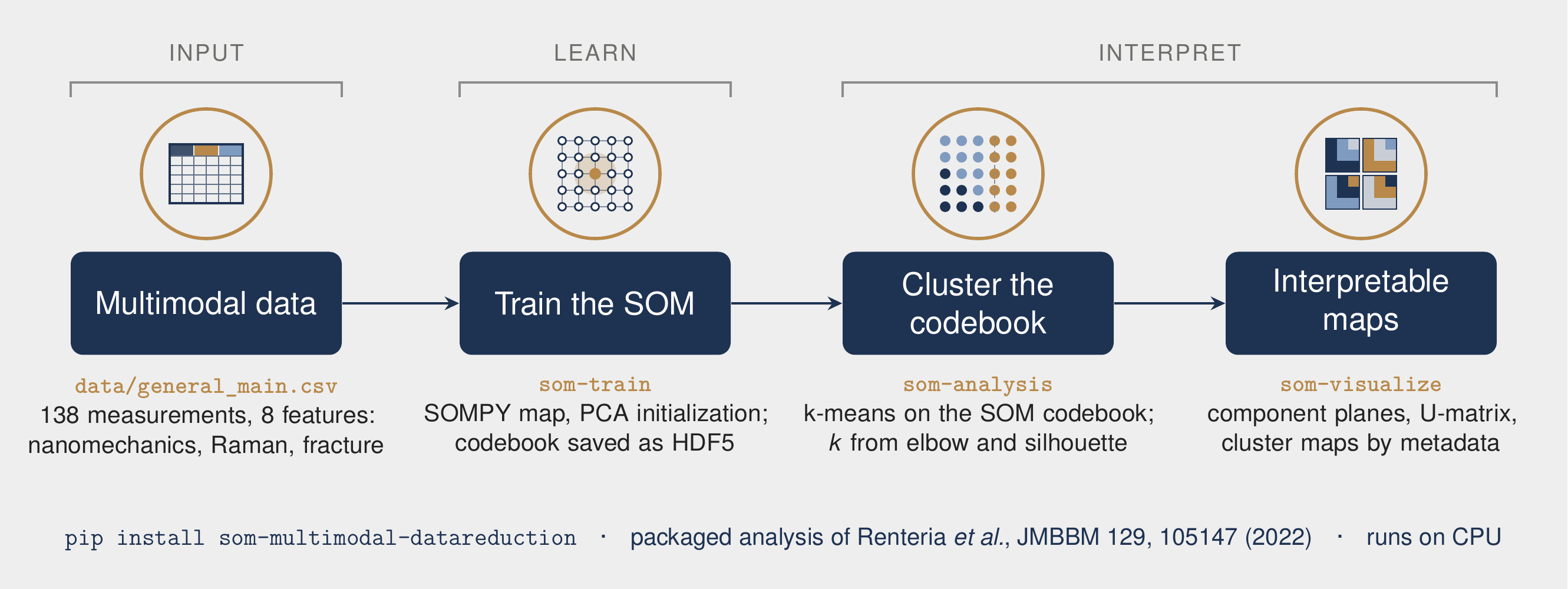

A reproducible command-line pipeline, and the packaged version of the analysis behind the paper below, in which nanomechanical, Raman, and fracture measurements of tooth enamel are fused to map structure-property relationships with aging across species. Vector schematic: docs/som_pipeline.pdf.

Associated publication (dataset and method): C. Renteria, W. Yan, Y. L. Huang, D. D. Arola, "Contributions to enamel durability with aging: An application of data science tools," Journal of the Mechanical Behavior of Biomedical Materials 129, 105147 (2022), doi:10.1016/j.jmbbm.2022.105147.

Data

The shipped dataset, data/general_main.csv (138 measurements), carries eight features: modulus, hardness, carbonate, crystallinity, fluorescence, depth, fracture toughness (kc), and a crack-resistance parameter (b), plus tooth, mammal, and position metadata.

Outputs

Installation

From PyPI:

pip install som-multimodal-datareduction

As a signed container image:

docker pull ghcr.io/crentb/som-multimodal-datareduction:v0.2.0

From source, for development (the bundled dataset lives in the repository):

git clone https://github.com/crentb/som-multimodal-datareduction.git
cd som-multimodal-datareduction
pip install -e ".[dev]"      # core + pytest, ruff, black, mypy, pre-commit

No GPU or deep-learning stack is required, only the standard scientific Python libraries. The SOM core (SOMPY) is vendored, so nothing extra is fetched at install.

Quick start

End to end (train, then figures) on the bundled data:

som-pipeline --data-csv data/general_main.csv --n-clusters 6 --output-dir outputs

Or step by step:

som-train     --data-csv data/general_main.csv --mapsize 25 25 --output-dir outputs
som-analysis  --output-dir outputs --k-min 2 --k-max 12      # choose k (elbow, silhouette)
som-visualize --output-dir outputs --n-clusters 6 --label-column mammal

Every entry point shares the same flags (--features, --mapsize, --normalization, --n-clusters, --label-column, ...); run any with -h for the full list. Use --features to point the same pipeline at a different column set or dataset.

How it works

CSV --> train --> som_codebook.h5 --> visualize --> PNG figures
        (SOMPY build + train,          (rebuild SOM, k-means
         topographic and quantization   over the codebook, render)
         error, save codebook)

• config.RunConfig: one dataclass holding every parameter, shared by all command-line tools.
• train.py: builds a SOMPY map (var normalization, PCA initialization), trains it, reports topographic and quantization error, and writes the codebook and data to HDF5.
• io.py: the HDF5 schema (codebook, data, map size, feature names, specimen IDs), interchangeable with the original notebooks.
• visualize.py: reloads the codebook, clusters it with k-means, and renders the figures through the engine.
• analysis.py: elbow and silhouette diagnostics for choosing k.

Repository layout

som_multimodal/
  config.py  train.py  visualize.py  analysis.py  pipeline.py  io.py
  engine/          modified tfprop_sompy visualization layer (credited)
  _vendor/sompy/   vendored SOMPY core (Apache-2.0, verbatim)
data/              general_main.csv and its data dictionary
docs/              overview figure (PNG, PDF, LaTeX source), performance profile, flame graph
scripts/           profiling utility
tests/             fast, synthetic, CPU tests

Testing and continuous integration

pytest -m "not slow"    # fast, synthetic, CPU-only suite (what CI runs)
pytest                  # everything

Every push and pull request runs one gate, defined in ci.yml. Lint, format, and type checks cover the original pipeline and tests; the vendored SOMPY and the modified engine are excluded.

• Quality: ruff, black, mypy (advisory), and pytest with coverage on Python 3.10 to 3.14.
• Security (blocking): gitleaks secret detection over the full history, bandit static analysis at medium severity and above, and pip-audit against known vulnerabilities.
• Container: image build, a trivy scan that blocks on fixable critical and high findings, the test suite run inside the image, and an SPDX software bill of materials signed keylessly with cosign.

The same gate re-runs weekly on main (scheduled-scan.yml), so a newly published vulnerability surfaces without a code change. A version tag re-runs it on the tagged commit before release.yml publishes to PyPI through Trusted Publishing (no stored tokens) and pushes a scanned, cosign-signed image with SLSA build provenance to the GitHub Container Registry. To verify a published image:

cosign verify ghcr.io/crentb/som-multimodal-datareduction:v0.2.0 \
  --certificate-identity-regexp 'github.com/crentb/' \
  --certificate-oidc-issuer https://token.actions.githubusercontent.com
gh attestation verify oci://ghcr.io/crentb/som-multimodal-datareduction:v0.2.0 --owner crentb

To report a vulnerability, see SECURITY.md.

Attribution

This project builds on, and contains modified copies of, prior open-source work. Only the overall pipeline, the HDF5 schema, the command-line tools, the enamel feature set, and the dataset are original here.

• SOMPY: Vahid Moosavi (@sevamoo) et al., Apache-2.0. The SOM core, vendored.
• tfprop_sompy: Gota Kikugawa and Yuta Nishimura (Tohoku University). The visualization layer, used here in modified form.
• Notebook and template lineage: Tim Letz (UW SOM lab) and the Huang group (UW) MSESOM.

Full details and per-file modification notes: NOTICE and som_multimodal/engine/ACKNOWLEDGMENTS.md.

Citation

Please cite the JMBBM 2022 paper above (the dataset and method) and this software. GitHub's "Cite this repository" button reads CITATION.cff.

@software{renteria_som_multimodal_datareduction,
  author    = {Renteria, Cameron B.},
  title     = {som-multimodal-datareduction},
  version   = {0.2.0},
  year      = {2026},
  publisher = {Zenodo},
  doi       = {10.5281/zenodo.21148597},
  url       = {https://github.com/crentb/som-multimodal-datareduction}
}

License

Apache-2.0. Vendored and modified upstream code is redistributed under its original Apache-2.0 terms, with attribution preserved.
