Space Avocado X12 Parser

A simple X12 file parser, allowing to parse X12 loops and segment based on schema.

Credit: Inspired by Maven Central X12 Parser.

X12 is a message formatting standard used with Electronic Data Interchange (EDI) documents for trading partners to share electronic business documents in an agreed-upon and standard format. It is the most common EDI standard used in the United States.

X12 Document List: https://en.wikipedia.org/wiki/X12_Document_List

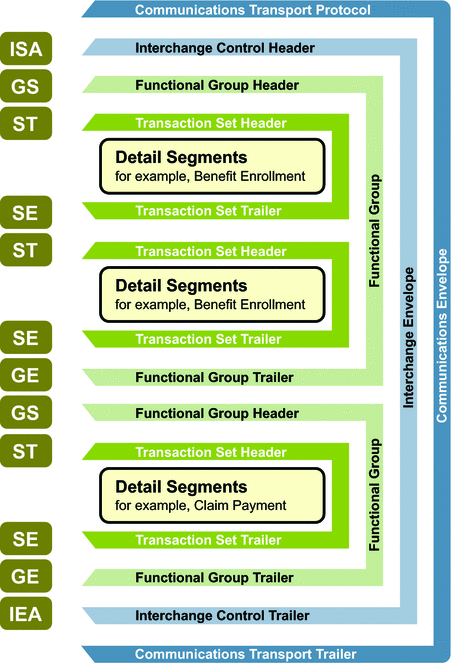

X12 Schematic:

See more details at https://x12.org/.

---

Table of Content

• Space Avocado X12 Parser
  • Installation
  • How to use
    • 1. Define a schema for the x12 file to be parsed.
      • Loop/Segment Matcher Predicate
      • Loop schema could be decorated with segment schemas
    • 2. Parse
      • Loop Operations
      • Segment Operations
    • 3. Optional: Analyze parsed loop.
  • Contributing
  • License

---

Installation

You can install the Space Avocado X12 Parser from PyPI:

python -m pip install spaceavocado-x12

The reader is supported on Python 3.7 and above.

How to use

1. Define a schema for the x12 file to be parsed.

from x12.schema.schema import Schema, Usage, by_segment, by_segment_element

def schema() -> Schema:
    x12 = Schema('X12')
    isa = x12.add_child('ISA', Usage.REQUIRED, by_segment('ISA'))
    gs = isa.add_child('GS', Usage.REQUIRED, by_segment('GS'))
    st = gs.add_child('ST', Usage.REQUIRED, by_segment_element('ST', 1, ['835']))

    st.add_child('1000A', Usage.REQUIRED, by_segment_element('N1', 1, ['PR']))
    st.add_child('1000B', Usage.REQUIRED, by_segment_element('N1', 1, ['PE']))

    mm = st.add_child('2000', Usage.REQUIRED, by_segment('LX'))
    mmc = mm.add_child('2100', Usage.REQUIRED, by_segment('CLP'))
    mmc.add_child('2110', Usage.REQUIRED, by_segment('SVC'))

    gs.add_child('SE', Usage.REQUIRED, by_segment('SE'))
    isa.add_child('GE', Usage.REQUIRED, by_segment('GE'))
    x12.add_child('IEA', Usage.REQUIRED, by_segment('IEA'))

    return x12

To see the structure of the schema: print(schema()).

+--X12
|  +--ISA
|  |  +--GS
|  |  |  +--ST
|  |  |  |  +--1000A
|  |  |  |  +--1000B
|  |  |  |  +--2000
|  |  |  |  |  +--2100
|  |  |  |  |  |  +--2110
|  |  |  +--SE
|  |  +--GE
|  +--IEA

The above is an example of true nested structure of x12 835 document schema but schema could be defied in any, i.e. you can get flat structure if needed, e.g.:

from x12.schema.schema import Schema, Usage, by_segment, by_segment_element

def schema() -> Schema:
    x12 = Schema('X12')

    x12.add_child('1000A', Usage.REQUIRED, by_segment_element('N1', 1, ['PR']))
    x12.add_child('1000B', Usage.REQUIRED, by_segment_element('N1', 1, ['PE']))

    x12.add_child('2000', Usage.REQUIRED, by_segment('LX'))
    x12.add_child('2100', Usage.REQUIRED, by_segment('CLP'))
    x12.add_child('2110', Usage.REQUIRED, by_segment('SVC'))

    return x12

+--X12
|  +--1000A
|  +--1000B
|  +--2000
|  +--2100
|  +--2110

Loop/Segment Matcher Predicate

There are 2 build-in predicates, for the most commonly used situations:

by_segment

• Used to determine a loop by segment ID.
• E.g.: by_segment('LX') matches this segment LX*DATA_1*DATA_N~.

by_segment_element

• Used to determine a loop by segment ID and element value(s) at given element index.
• In many situations loop could start with the same segment id but differing the element values.
• E.g.: by_segment_element('N1', 1, ['PR', 'PE']) matches this segment N1*PR*DATA_N~ or N1*PE*DATA_N~ but not N1*QE*DATA_N~.

A custom predicate function could be used:

• x12.add_child('2000', Usage.REQUIRED, lambda tokens: tokens[0] == "LX").
• The above is an equivalent of x12.add_child('2000', Usage.REQUIRED, by_segment('LX')).

Loop schema could be decorated with segment schemas

This is useful of Analyze parsed loop.

Example:

from x12.schema.schema import Segment

gs.add_child('ST', Usage.REQUIRED, by_segment_element('ST', 1, ['835'])).with_segments(
    Segment('ST', Usage.REQUIRED, by_segment('ST')),
    Segment('BPR', Usage.REQUIRED, by_segment('BPR')),
    Segment('TRN', Usage.REQUIRED, by_segment('TRN')),
    Segment('REF', Usage.REQUIRED, by_segment('REF')),
    Segment('DTM', Usage.REQUIRED, by_segment('DTM'))
)

• Uses the same Usage and predicates as Loop schema.
• The segment schemas are in sequential order of anticipated segments within the given loop.

2. Parse

from x12.schema.schema import Schema, Usage
from x12.parser.parse import parse

# Real schema here
schema = Schema("X12")

loop = parse(filepath_to_x12_file, schema)

Note: if the x12 file does use the standard segment, element and composite separators, you can provide custom definition:

from x12.parser.context import Context

loop = parse(filepath_to_x12_file, schema, Context("~", "*", ":"))

Loop Operations

Serialization: Loop could be serialized to:

• XML: loop.to_xml()
• original x12 format str(loop)
• Debug view: loop.to_debug(). This provides visual distinction for loops and segments.

Find Child Loops:

# find loop by loop schema name

# Non recursive, search only within loop's direct children loops
loops = loop.find_loops("ST")

# Recursive, find loops anywhere in the downstream tree structure.
loops = loop.find_loops("NM1", True)

Find Segments:

# find segment by segment ID

# Non recursive, search only within loop's segments
segments = loop.find_segments("ST")

# Recursive, find segments anywhere in the downstream tree structure.
segments = loop.find_segments("NM1", True)

Other operations:

• To access loop parent: loop.parent
• Direct access to children loops: loop.loops
• Direct access to segments: loop.segments

Segment Operations

Serialization: Segment could be serialized to:

• XML: segment.to_xml()
• original x12 format str(segment)
• Debug view: segment.to_debug(). This provides visual distinction for segments.

Access segment elements segment.elements

3. Optional: Analyze parsed loop.

This is an optional step to analyze the parsed document to see missing and unexpected loops/segments based on the schema.

from x12.schema.schema import Schema, Usage
from x12.parser.parse import parse
from x12.parser.analyze import analyze

# Real schema here
schema = Schema("X12")

loop = parse(filepath_to_x12_file, schema)

print(analyze(loop))

Example:

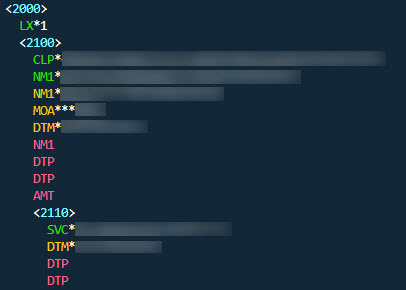

• Red indicates missing loops / segments.
• Yellow indicates unexpected segments.

---

Contributing

See contributing.md.

License

Space Avocado X12 Parser is released under the MIT license. See LICENSE.md.
