spheresmooth 0.1.2

Geometry-aware spline smoothing and geodesic modeling for spherical data in Python

spheresmooth (Python)

A Python port of the spheresmooth R package for spherical geometry and spline smoothing on the unit sphere.
The library provides utilities for coordinate transforms, geodesics, and penalized spherical smoothing using piecewise geodesic splines.

This project is a Python implementation of the original R package, with core components rewritten in a clean, modular, and extensible Python design.

---

Documentation

Full documentation is available at:

https://seyoung-230.github.io/spheresmooth-python/

Authors

• Se-Young Lee, Sungshin Women’s University
  Email: [e-mail]

• Kwan-Young Bak, Sungshin Women’s University
  Email: [e-mail]

Motivation

Spherical data arise naturally in many scientific fields, including geophysics, meteorology, biomechanics, computer vision, and robotics. Standard Euclidean smoothing methods often fail to respect the intrinsic geometry of the sphere, leading to distorted trajectories and inaccurate inference.

spheresmooth aims to provide geometry-aware tools for analyzing spherical data directly on the unit sphere, avoiding ad hoc projections to Euclidean space.

---

License

GPL-3

---

Installation

pip install spheresmooth

---

Requirements

spheresmooth requires the following dependencies:

Core dependencies

Package	Version (recommended)	Description
Python	3.9+	Core language requirement
NumPy	>= 1.24	Numerical computations
pandas	>= 1.5	Internal data loading and handling (import pandas as pd)
importlib.resources	stdlib (Python ≥ 3.9)	Access to packaged data files

Optional dependencies (examples and visualization)

Package	Version (recommended)	Description
matplotlib	>= 3.7	Plotting and visualization in example scripts (import matplotlib.pyplot as plt)
geopandas	>= 0.13	Geographic data handling and map-based examples (import geopandas as gpd)

The core library uses pandas and importlib.resources solely for internal data loading.
importlib.resources is part of the Python standard library (Python ≥ 3.9) and does not need to be installed separately.

Visualization-related dependencies (matplotlib, geopandas) are required only for running example scripts and generating figures. They are not needed for using the core functionality of the library.

If you install spheresmooth via pip, the core dependencies will be installed automatically:

pip install spheresmooth

To install the optional dependencies for examples and visualization, use:

pip install spheresmooth[viz]

---

Source code structure

The source code of the package is contained in the spheresmooth/ directory, following standard Python packaging conventions.

Features

Coordinate Transformations

• Convert Cartesian ↔ Spherical coordinates
• Batch processing with NumPy
• Consistent handling of row-wise/column-wise inputs

Geometry Utilities

• Compute geodesics on the sphere
• Normalize vectors
• Spherical distance functions
• Projection and gradient operators

Smoothing Functions (In Progress)

• Penalized piecewise geodesic spline smoothing
• Python implementation of the structure of the R function penalized_linear_spherical_spline()
• Full Riemannian optimization is currently under development

Example

import numpy as np
from spheresmooth import cartesian_to_spherical

points = np.array([
    [1/np.sqrt(3), 1/np.sqrt(3), 1/np.sqrt(3)],
    [-1/np.sqrt(3), 1/np.sqrt(3), -1/np.sqrt(3)],
])

theta_phi = cartesian_to_spherical(points)
print(theta_phi)

---

APW Spherical Spline Example

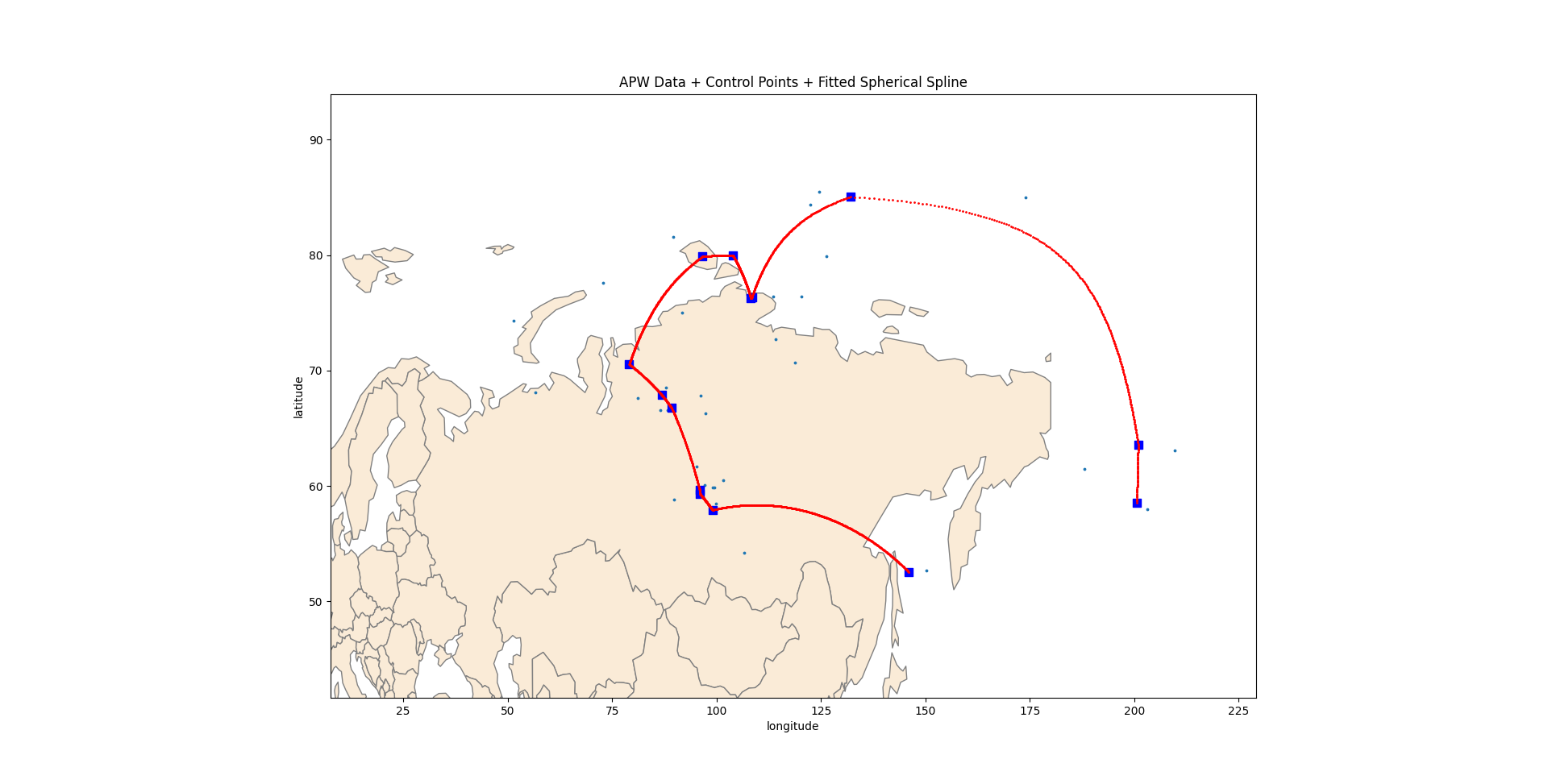

The following example demonstrates how to fit a penalized spherical spline to the Apparent Polar Wander (APW) path and visualize the result on a world map.

The APW dataset consists of time-indexed observations on the unit sphere, represented in spherical coordinates ((theta, phi)).

Workflow Overview

1. Load spherical APW data ((theta, phi))
2. Convert spherical coordinates to Cartesian coordinates on the unit sphere
3. Select knot locations using quantiles of the time variable
4. Fit a penalized piecewise geodesic spline using BIC-based model selection
5. Convert fitted control points back to spherical coordinates
6. Evaluate the fitted geodesic curve and visualize it on a world map

Example Code (Simplified)

import spheresmooth as ss
import numpy as np

# Load APW data: columns = (t, theta, phi)
apw = ss.load_apw()
t = apw.iloc[:, 0].values
spherical = apw.iloc[:, 1:3].values

# Spherical → Cartesian
y = ss.spherical_to_cartesian(spherical)

# Knot selection
dimension = 15
knots = ss.knots_quantile(t, dimension)
lambdas = np.exp(np.linspace(np.log(1e-7), np.log(1), 40))

# Penalized spherical spline fit
fit = ss.penalized_linear_spherical_spline(
    t=t,
    y=y,
    dimension=dimension,
    initial_knots=knots,
    lambdas=lambdas
)

APW Spherical Spline Example

Interpretation

The fitted model represents the APW trajectory as a sequence of connected great-circle segments on the unit sphere. A sparsity-inducing penalty controls changes in velocity between segments, resulting in a smooth yet geometry-respecting trajectory.

The smoothing parameter lambda is selected using the Bayesian Information Criterion (BIC), balancing goodness-of-fit and model complexity.

This example illustrates how spheresmooth performs intrinsic smoothing directly on the sphere, avoiding ad hoc Euclidean projections.
