Complete documentation: http://sphinx-needs.readthedocs.io/en/latest/
Attention: sphinxcontrib-needs got renamed to sphinx-needs. This affects also the URLs for documentation and repository:
Introduction
Sphinx-Needs allows the definition, linking and filtering of class-like need-objects, which are by default:
requirements
specifications
implementations
test cases.
This list can be easily customized via configuration (for instance to support bugs or user stories).

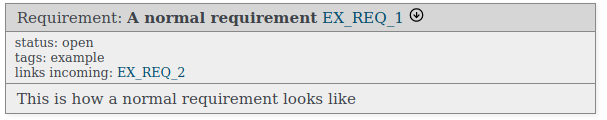

A default requirement need looks like:

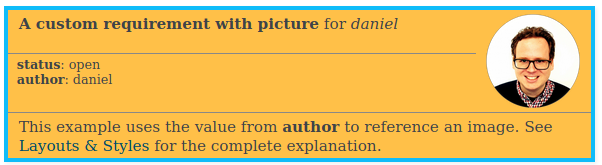

Layout and style of needs can be highly customized, so that a need can also look like:
Take a look into our tutorial for more pictures and ideas how to use Sphinx-Needs.

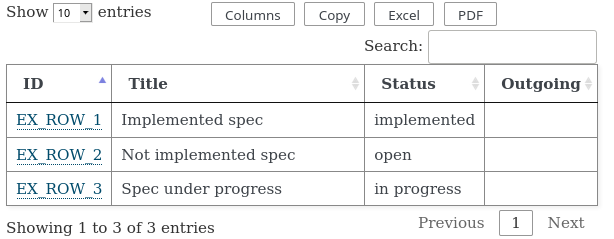

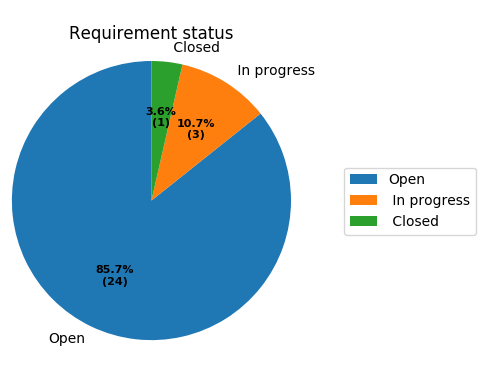

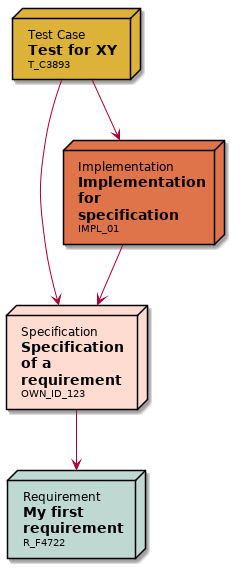

For filtering and analyzing needs, Sphinx-Needs provides different, powerful possibilities:
|
|
|
Installation
Using pip
pip install sphinx-needsIf you wish to also use the plotting features of sphinx-needs (see needbar and needpie), you need to also install matplotlib, which is available via the plotting extra:
pip install sphinx-needs[plotting]Using sources
git clone https://github.com/useblocks/sphinx-needs
cd sphinx-needs
pip install .Activation
For final activation, please add sphinx_needs to the project’s extension list of your conf.py file.
extensions = ["sphinx_needs",]
Release files for sphinx-needs 9.0.0
For a detailed explanation of source distributions (sdists) and built distributions (wheels), please see the package formats documentation.
Source distribution (sdist)
| File | Size | Uploaded | |
|---|---|---|---|
| sphinx_needs-9.0.0.tar.gz | 5.8 MB | Details |
Built distribution (wheel)
| File | Interpreter | ABI | Platform | Reset |
|---|---|---|---|---|
| sphinx_needs-9.0.0-py3-none-any.whl | Python 3 | none | any | Details |
Total release size: 6.6 MB
