splatreg 1.2.0

Composable geometry-first SE(3)/Sim(3) registration for 3D Gaussian Splatting — the inverse of gsplat.

splatreg

Register Gaussian splats — align & merge two 3DGS scans into one SE(3)/Sim(3) frame.

---

Is this for you?

• Two 3DGS scans of the same scene / object that need to be merged — register + merge finds the rigid or similarity transform and fuses them into one deduped .ply, no manual gizmo needed.
• Object pose estimation against a known splat — estimate_object_pose recovers the SE(3) pose between a reference model splat and a new observation (ADD / ADD-S / AUC out of the box).
• Camera localization inside a known splat — localize_camera places a new camera into a scene splat without retraining; coarse_localize_camera seeds it prior-free from a silhouette sweep.

Works with any 3DGS framework — gsplat, Nerfstudio, INRIA, custom — as long as you can pass Gaussian means and covariances as PyTorch tensors. Pure PyTorch — no meshing, no CUDA extension, no point-cloud detour.

---

What's new in v1.2

• Spherical harmonics rotate WITH the splat — when a recovered transform is baked in (apply_transform, merge, the align CLI), the higher-order SH bands (f_rest) are now mixed by the real-basis Wigner-D matrix (Ivanic–Ruedenberg recurrence, 1996 + the 1998 erratum, built directly in the 3DGS sign convention — splatreg.sh). Every other splat tool we know of leaves the view-dependent lobes stuck in the old capture frame after a registration, so glossy highlights point the wrong way; splatreg is, to our knowledge, the only splat registrar that rotates view-dependent colour correctly. Evidence (renderer-free math tests vs an independent hand-coded 3DGS basis evaluator, tests/test_sh_rotation.py): rotated coefficients evaluated at d equal the originals at R⁻¹d to < 1e-5 over random rotations up to degree 3; degree-1 equals its signed-permutation closed form; D(R₁R₂) = D(R₁)D(R₂); rotated stacks round-trip PLY exactly.
• Photometric exposure compensation (default ON) — independently-captured pairs disagree on exposure/white balance; the refine stage now alternates a bounded per-channel gain/bias fit on the rendered source (gain ∈ [0.5, 2.0]) with the pose LM. Measured: a ×1.3 + 0.05 source tint absorbs into the Sim(3) scale without it (scale err 0.10% → 3.99%); with it the tinted pair recovers 0.47% and the fitted gain lands at ≈ 1/1.3 — harmless on clean pairs (0.01%). Details.
• Coarse-to-fine render ladder — refine_kwargs=dict(ladder=(96, 160, 256)) breaks the fixed-resolution accuracy floor; each rung warm-starts the next. Measured: from a 6° offset a cold 96 px rung stalls at 5.61°, the 32→64→96 ladder lands 2.55° at equal per-stage budget.
• Pose covariance for pose graphs — builtin-LM results now expose info["information"] (the undamped JᵀWJ at the final accepted linearisation; 6×6 SE(3) / 7×7 Sim(3)) and info["covariance"] (σ̂²(JᵀWJ)⁻¹; None if singular — never faked). Tested: symmetry/SPD on well-constrained solves, 2× noise → looser covariance, singular → None (tests/test_pose_covariance.py).
• validate_recovery.py --fast — a CPU smoke preset of the recovery harness (same protocol/gates, smaller budget: 1 seed × the grid corners, 400 anchors, 30 iters). Measured (CPU, OMP_NUM_THREADS=2): 6/6 cells within gate in 41 s wall — worst rot err 0.16°, worst scale err 0.14%.

What's new in v1.1

• refine="photometric" — opt-in PhotoReg-style (arXiv 2410.05044) splat-to-splat photometric stage after the geometric solve, for the poses geometry can't see (symmetry / texture-only DoF) — no real images needed. Measured: on a rotation-symmetric colored sphere, geometric registration worsens 6.0°→11.2° while the photometric stage lands 2.2° (real gsplat rasterizer: 5°/7 mm → 0.36°/0.5 mm in ~1.1 s); on a dense-overlap real 103k-Gaussian pair it is neutral (+1.7 s) because geometry already pins the pose — so it ships opt-in. 21 tests + bench: when & why · recorded runs.
• splatreg CLI — align / merge / info from the shell, standard 3DGS PLY in/out (the SplatTransform-style workflow: 3DGS practitioners are CLI-first). Measured: the recorded align run takes a source from 154 mm Chamfer off the target to 0.05 mm with no Python written. 10 end-to-end tests: CLI guide.
• DC-only PLY round-trip fix — load_ply used to return raw SH-DC values in the RGB slot, so a following save_ply double-encoded them and colors drifted every load→save cycle; DC-only loads now return true RGB and round-trip losslessly (full-SH round-trip stays bit-exact). Regression-locked in tests/test_io_roundtrip_dc.py.

---

Install

pip install splatreg

# editable / dev
git clone https://github.com/Archerkattri/splatreg.git
cd splatreg
pip install -e ".[test]"

Quickstart

From the shell — pip install puts a splatreg command on your PATH (standard 3DGS PLY in/out, so it composes with SuperSplat / gsplat / Nerfstudio exports; see the CLI guide):

splatreg align target.ply source.ply -o aligned.ply    # register + write the aligned source
splatreg merge a.ply b.ply -o fused.ply                # register + fuse + dedupe N splats
splatreg info x.ply                                    # count / bounds / SH degree / stats

In Python:

from splatreg.api import register, merge

# Align `source` onto `target` (both are Gaussians objects: .means, .covs, .opacities tensors).
result = register(target, source, transform="sim3")   # init="fast" by default (~17 ms)
# Real metre-scale scans: init="robust" (FPFH+RANSAC) or init="learned" (GeoTransformer, best accuracy)
print(result.T)          # recovered 4×4 similarity [[s·R, t], [0, 1]] — maps source → target
print(result.scale)      # recovered scale s  (1.0 for transform="se3")
print(result.converged)  # solver convergence flag

# Merge + dedupe a list of splats into one fused splat
fused = merge([source, target], transform="sim3")

Object pose and camera localization:

from splatreg import estimate_object_pose, localize_camera, coarse_localize_camera

# Object pose: recover T_SO between a model splat and an observation
result = estimate_object_pose(model_splat, observation_splat)

# Camera localization: refine camera pose through gsplat's differentiable rasteriser
result = localize_camera(scene_splat, frame, init_T_WC=T_init)
# Wide-baseline / prior-free: coarse seed from silhouette sweep (CPU-only, no rasteriser)
T_coarse = coarse_localize_camera(scene_splat, frame)

The Gaussian-SDF field standalone:

from splatreg.geometry.gaussian_sdf import gaussian_sdf, gaussian_sdf_grad
sdf, normal = gaussian_sdf(target, query_points, sigma=0.02)       # signed distance + surface normal
sdf, grad   = gaussian_sdf_grad(target, query_points, sigma=0.02)  # signed distance + exact ∇_p d

---

Results

	splatreg	reference
Real-splat merge (real 103k-Gaussian capture)	Chamfer 10.3→2.0 mm (5.1×) · overlap 0.03→0.67 (22×)	naive concat
vs splat competitors (real splat, known GT Sim3)	5.2° (SE3) · recovers scale (Sim3)	splatalign 15.3° · GaussianSplattingRegistration 36.3°
Sim(3) scale estimation	✅ native	✗ none of these do it
Object pose (YCB-CAD, 14 models × 4 poses)	ADD-S AUC 0.995, 100% < 2 cm	—
Camera localization (real splat, known perturbation)	median 5°/10 mm → 0.11°/1.35 mm, 11/12 converged	—

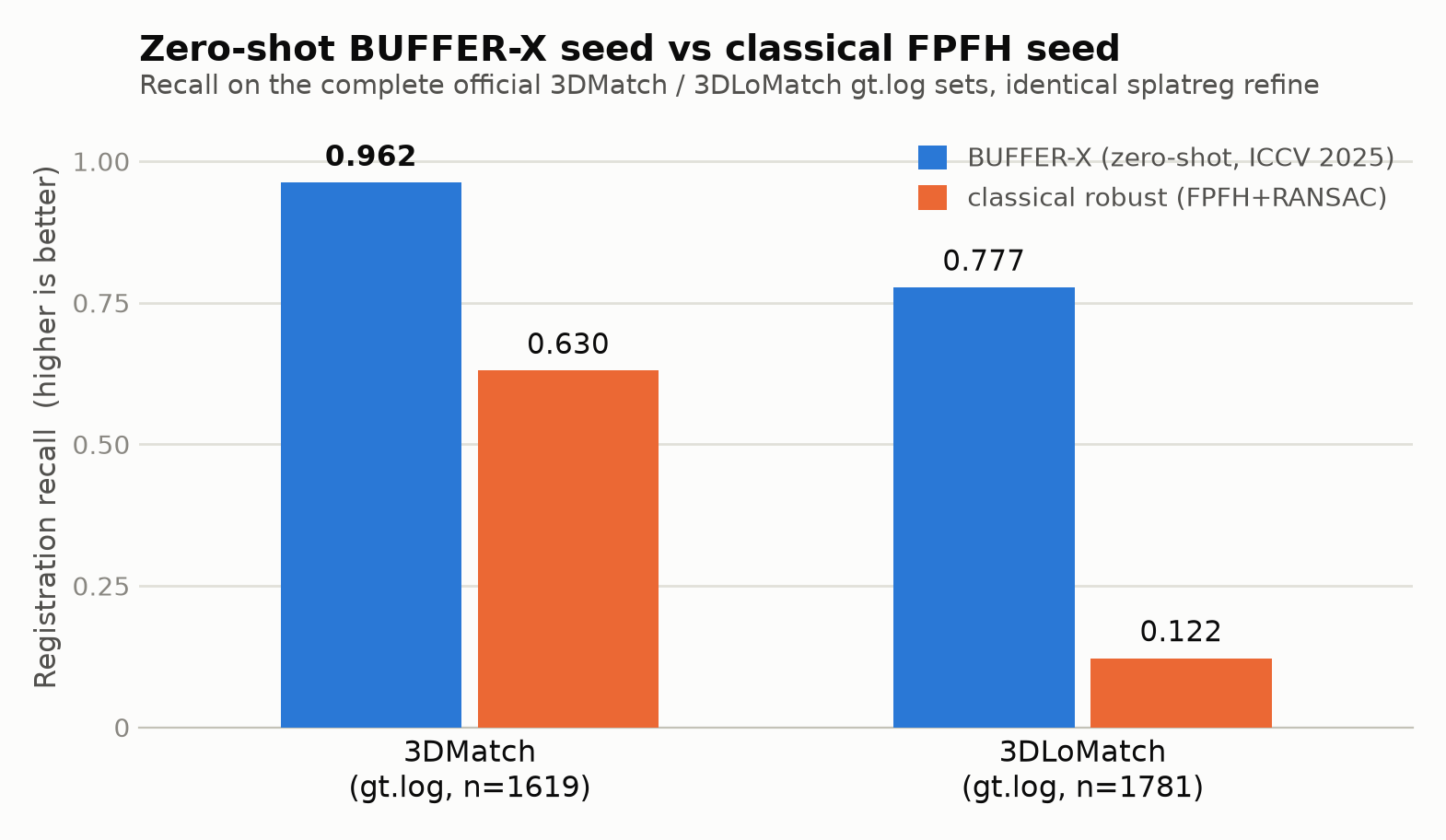

Official 3DMatch recall (1279 pairs, Choi/Zeng protocol)	91.5% mean · 93.5% pooled	GeoTransformer ~92% · Open3D ~77%

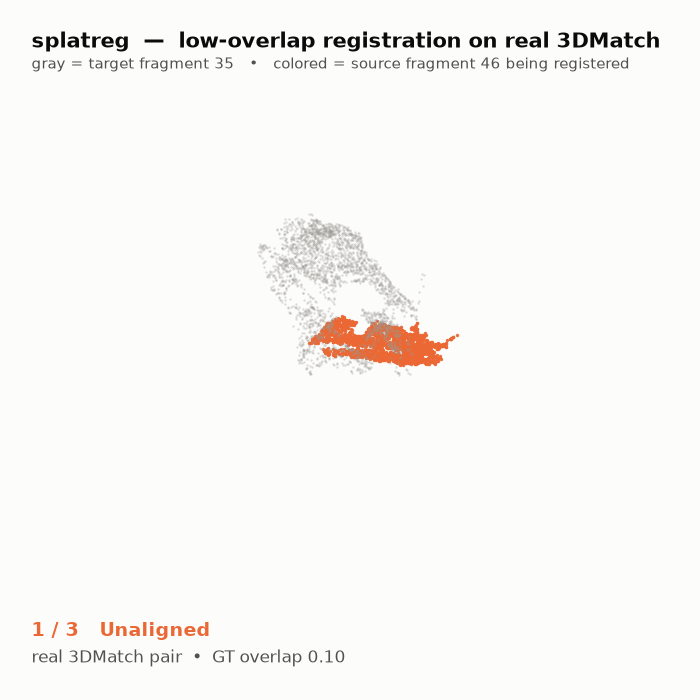

Official 3DLoMatch (hard, 10–30% overlap)	72.5% mean · 74.4% pooled	GeoTransformer ~74% · Open3D ~20%
Registration speed	~17 ms (fast) · 104 ms (learned)	GeoTransformer ~50 ms · Open3D 142 ms

splatreg is the only library that registers native Gaussian splats with SE(3)+Sim(3) behind a closed-form-Jacobian Gaussian-SDF. It beats both splat-specific tools outright (5.2° vs 15.3° / 36.3°) and matches GeoTransformer on official 3DMatch while adding the Sim(3) scale DoF they lack.

Init modes — trade speed ↔ robustness

init=	what	when
"fast" (default)	FPFH + GPU-batched RANSAC seed → closed-form LM	objects / full-overlap, ~17 ms
"robust"	Open3D FPFH+RANSAC seed → splatreg refine + scale	real metre-scale scans
"learned"	pretrained GeoTransformer seed → splatreg refine + scale	best accuracy on real scans
"global"	blind super-Fibonacci SO(3) sweep	robust fallback, any rotation

---

How it works

splatreg takes two splats and finds the rigid (SE(3)) or similarity (Sim(3), +scale) transform that aligns them — then optionally merges + dedupes them into one. It is the missing registration half of the Gaussian-splatting toolchain — the splat-to-splat alignment SuperSplat / INRIA / geospatial users keep asking for, where today's tooling punts to a manual gizmo.

The pipeline is two stages:

flowchart LR
    A["splat A<br/>(target)"]:::s --> G
    B["splat B<br/>(source)"]:::s --> G
    G["<b>Global aligner</b><br/>super-Fibonacci SO(3) seeds<br/>+ batched trimmed ICP<br/><i>(or FPFH / learned)</i>"]:::g --> L
    L["<b>Levenberg–Marquardt</b><br/>multi-residual:<br/>ICP + Gaussian-SDF<br/>SE(3) / Sim(3)"]:::l --> T["T*  (4×4)<br/>+ merge / dedupe"]:::o
    classDef s fill:#e8f6f8,stroke:#17becf,color:#0b3d44;
    classDef g fill:#fff1ee,stroke:#ff6b5b,color:#5a1a12;
    classDef l fill:#eef7ee,stroke:#2e8b57,color:#143d22;
    classDef o fill:#f3eefc,stroke:#7d52c7,color:#2c1654;

1. Global init — a coarse pose from a dense super-Fibonacci rotation sweep + batched trimmed ICP (no local-minimum trap), with optional FPFH+RANSAC and learned (GeoTransformer) seeds for harder real scans.
2. Refinement — a from-scratch Levenberg–Marquardt core over ICP (point-to-point / point-to-plane) and splatreg's flagship Gaussian-SDF residual, solving the full SE(3) or Sim(3) tangent.

The Gaussian-SDF residual

No competitor packages this. splatreg derives a smooth signed-distance field directly from the target Gaussians — no mesh, no marching cubes — and drives registration by it:

w_i(p) = exp(−‖p − q_i‖² / 2σ²)              # Gaussian kernel weight per anchor
q̃(p)   = Σ w_i q_i / Σ w_i                    # kernel-weighted centroid
ñ(p)   = Σ w_i n_i / ‖Σ w_i n_i‖              # kernel-weighted surface normal
d(p)   = (p − q̃(p)) · ñ(p)                    # signed distance — the residual

d(p) vanishes exactly when source points land on the target surface. It has a closed-form, audited Jacobian and is a reusable primitive: gaussian_sdf(splat, points, sigma=...) → (sdf, normal).

---

Validation

Every number is reproducible; full record in RESULTS.md.

python -m pytest tests/ -q                        # 126 passing
python tests/test_jacobians.py                    # analytic vs numerical Jacobian audit
python examples/validate_recovery.py --fast       # CPU smoke: 6/6 recovery in ~41 s
SPLATREG_DEVICE=cuda python examples/validate_recovery.py --device cuda   # 36/36 recovery
SPLATREG_DEVICE=cuda python benchmarks/robustness_bench.py --device cuda
python examples/merge_demo.py                     # real-splat merge demo

---

Limitations

splatreg is honest about its edges (full detail in RESULTS.md):

• Heavy overlap (≤ 40%) is genuinely ambiguous. At keep ≤ 40% the rotation-disambiguating geometry is physically absent — even the true pose doesn't seat cleanly. The aligner flags these honestly (result.info['ambiguous'] / ['confidence']) and never silently wrong-poses. merge and track are designed for high-overlap captures.
• Scale is unobservable under thin overlap. Under ~20% shared geometry the Sim(3) scale residual valley is flat — the golden-section line-search tightens scale on its own objective but cannot recover what the geometry doesn't carry. merge is reliable for high-overlap captures.
• Cost on rigid SE(3). Plain ICP reaches the same SE(3) success and is far faster; the SDF residual buys scale + implicit-field robustness at a real compute cost. Use track() (~17 ms/frame) for the warm-start real-time path.

Documentation

Full docs at https://archerkattri.github.io/splatreg/ — quickstart, CLI guide, init modes, photometric refinement (when & why, with the measured three-case table), PLY interop (splatfacto/INRIA/SuperSplat round-trip + the SH-under-rotation detail), benchmarks, and the API reference. Or run the Colab quickstart (CPU-only, no assets needed).

Citation

If splatreg is useful in your research, please cite it (see CITATION.cff — GitHub's "Cite this repository" button gives BibTeX/APA):

@software{attri_splatreg,
  author  = {Attri, Krishi},
  title   = {splatreg: composable SE(3)/Sim(3) registration for 3D Gaussian Splatting},
  url     = {https://github.com/Archerkattri/splatreg},
  version = {1.2.0},
  year    = {2026}
}

License & layout

BSD 3-Clause — permissive, composes with the gsplat / Theseus / GTSAM ecosystem. splatreg/ — library (api, align, align_features, bundle, spatial_index, core/lie, geometry/gaussian_sdf, residuals/, solvers/lm, cli). tests/ · benchmarks/ · examples/ · docs_site/. Full validation record: RESULTS.md.
