Spotilyzer - AWS Spot Fleet Analyzer

Spotilyzer is a tool that defines AWS spot fleet pools for EKS. It uses spot fleet price data to select instance types for your pools. While there are many excellent articles which describe the architecture (such as this one), the task of selecting instance types is generally glossed over. This tool fills that gap by making the selection process a data-driven one.

Requirements

To run spotilyzer you need the following:

• Python 3.6 or later; and
• an AWS account with ec2:Describe* privileges.

Installation

If you just want to use the tool, you can install it with pip:

pip install spotilyzer

If you want to work on the code you can download and install it in developer mode like so:

git clone https://github.com/conrad-mukai/spotilyzer
cd spotilyzer
python setup.py develop

Background

The goal of spotilyzer is to provide a selection of spot fleet pools that can be used for EKS worker nodes, where the worker nodes are autoscaled with the Cluster Autoscaler. The autoscaler requires that all instance types in the spot fleet are approximately the same size (i.e., they have the same vCPU and memory). In addition, to optimize resource allocation several groups of spot fleets are provided where each instance type in a group has a similar memory to core ratio. Pods are assigned into groups based upon the ratio of the pod's memory to the pod's core.

Usage

The process of generating recommendations for spot fleets is done as follows:

1. spotilyzer init (optional);
2. edit ~/.spotilyzer/seeds.json (optional);
3. spotilyzer create-candidates candidates.json;
4. spotilyzer group-requests candidates.json requests.csv grouped-requests.json; and
5. spotilyzer size-fleets candidates.json grouped-requests.json

Help

To get a list of subcommands use the -h option like so:

spotilyzer -h

To get details for a specific subcommand use the -h option again:

spotilyzer create-candidates -h

Setup

To satisfy the memory to core and similar size requirements, instance types are grouped in a JSON file called seeds.json. These groupings are used throughout spotilyzer calculations. The file has the following structure:

{
  "seeds": [
    {
      "group": "compute",
      "candidates": [
        {
          "candidate-name": "large",
          "instance-types": [
            "c3.large", "c4.large", "c5.large", "c5d.large", "c5a.large",
            "c5ad.large", "c5n.large", "c6g.large", "c6gd.large", "c6gn.large"
          ]
        },
        {
          "candidate-name": "xlarge",
          "instance-types": [
            "c3.xlarge", "c4.xlarge", "c5.xlarge", "c5d.xlarge", "c5a.xlarge",
            "c5ad.xlarge", "c5n.xlarge", "c6g.xlarge", "c6gd.xlarge",
            "c6gn.xlarge"
          ]
        },
        ...
      ]
    },
    {
      "group": "general",
      "candidates": [
        {
          "candidate-name": "large",
          "instance-types": [
            "m3.large", "m4.large", "m5.large", "m5d.large", "m5a.large",
            "m5ad.large", "m5n.large", "m5dn.large", "m5zn.large", "m6g.large",
            "m6gd.large"
          ]
        },
        ...
      ]
    },
    {
      "group": "memory",
      "candidates": [
        {
          "candidate-name": "large",
          "instance-types": [
            "r3.large", "r4.large", "r5.large", "r5d.large", "r5a.large",
            "r5ad.large", "r5b.large", "r5n.large", "r5dn.large", "r6g.large",
            "r6gd.large"
          ]
        },
        ...
      ]
    },
    ...
  ]
}

The seeds array has 3 objects which describe groups. A group is a collection of instance types that have similar memory to core ratios, which AWS refers to as a family. The seeds.json uses 3 families: c for compute optimized (~2G/core), m for general purpose (~4G/core), and r for memory optimized (~8G/core). Each group contains a candidates array which clusters instance types according to size. For example in the compute group the large candidate instance types generally have 4G memory and 2 cores, the xlarge candidate instance types generally have 8G memory and 4 cores, etc.

Spotilyzer is packaged with seeds.json, but the user can get an editable copy of the file in their home directory by running spotilyzer init which copies the file to ~/.spotilyzer/seeds.json. If the user does this, that file takes precedence over the file in the spotilyzer package. The user can also specify an arbitrary seeds file using the create-candidates -s option.

Creating Candidates

The create-candidates subcommand pulls data from AWS to create spot fleet candidates based upon the seeds file. The selection process uses the spot price history for each instance type in every availability zone the instance type is offered. Spotilyzer computes the average and standard deviation for every instance type/availability zone combination. The n-lowest dynamic prices (where dynamic price is average plus standard deviation) determines which instance types are placed in the candidate pools.

The n-lowest calculation is driven by the minimum number of pools in a candidate. This defaults to 20, but can be adjusted using the -m option. The actual number of pools in a candidate can be less than the minimum if instance type availability limits the selection size.

The results of the calculation are stored in a JSON file and summarized in the console like so:

group: compute
+-------------+---------+-----------------+---------------------------------------------+
| Candidate   |   Price | Instance Type   | Availability Zones                          |
+=============+=========+=================+=============================================+
| large       |   0.033 | c5d.large       | us-west-2c,us-west-2d,us-west-2a,us-west-2b |
|             |         | c3.large        | us-west-2a,us-west-2b,us-west-2c            |
|             |         | c5n.large       | us-west-2a,us-west-2c,us-west-2b            |
|             |         | c6g.large       | us-west-2a,us-west-2b,us-west-2c,us-west-2d |
|             |         | c4.large        | us-west-2a,us-west-2b,us-west-2c            |
|             |         | c5.large        | us-west-2a,us-west-2d,us-west-2b,us-west-2c |
+-------------+---------+-----------------+---------------------------------------------+
| xlarge      |   0.068 | c3.xlarge       | us-west-2c,us-west-2a,us-west-2b            |
|             |         | c6g.xlarge      | us-west-2a,us-west-2b,us-west-2c,us-west-2d |
|             |         | c4.xlarge       | us-west-2c,us-west-2b,us-west-2a            |
|             |         | c5n.xlarge      | us-west-2c,us-west-2b,us-west-2a            |
|             |         | c5d.xlarge      | us-west-2b,us-west-2c,us-west-2d,us-west-2a |
|             |         | c5ad.xlarge     | us-west-2a,us-west-2b,us-west-2d            |
+-------------+---------+-----------------+---------------------------------------------+

This shows the candidate name, the average hourly price across the candidate fleet, and the pools (the instance types and all availability zones they are offered). The information stored in the JSON file is difficult to read. To view the contents of the JSON file in the same tabular format as shown above use the show-candidates subcommand.

The create-candidates subcommand can be run against any AWS region and with any subset of availability zones (the default is all availability zones in a region). The candidates should only be used in the specified region since spot prices and instance type availability vary greatly across regions.

Grouping Resources

After creating candidates, pod requests are assigned to node groups. The group-requests subcommand loads a file describing all pods to be deployed onto spot fleets and assigns each pod to a group in the candidates file. This is done by comparing the memory to cores ratio of each pod with the group average memory to cores ratios. The closest match determines the group assignment.

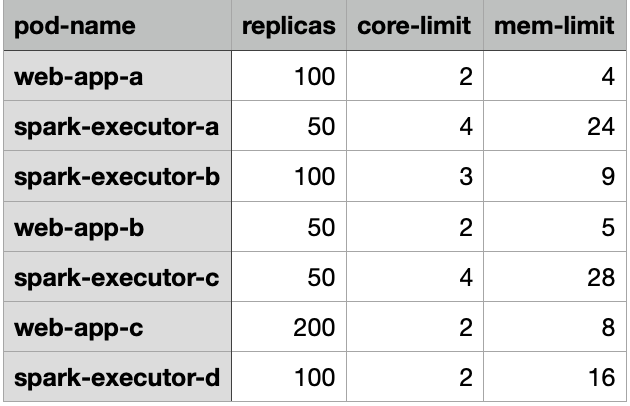

The requests are specified in either CSV or JSON format. The CSV format is intended to load data from a spreadsheet. Generally the cluster administrator does not know the details of all pods deployed, so they can request that development teams fill out a spreadsheet with the relevant data. After collecting all data in a single spreadsheet, it is exported to a CSV file. An example of the spreadsheet is shown below:

The headers are used to set keys in a JSON document, so they must be present in the CSV file.

The group-requests subcommand results are summarized on the console like so:

Pod               Group
----------------  -------
web-app-a         compute
spark-executor-a  memory
spark-executor-b  general
web-app-b         compute
spark-executor-c  memory
web-app-c         general
spark-executor-d  memory

The user can then update the node-selector or node-affinity specs in the Kubernetes manifest to the designated node groups.

Sizing Fleets

The size-fleets subcommand takes the results of create-candidates and group-requests to create an estimate of each spot fleet candidate's size and cost. The results of this analysis is presented on the console like so:

+---------+----------+------------------+--------------+
| Group   | Fleet    |   Instance Count |   Total Cost |
+=========+==========+==================+==============+
| compute | xlarge   |               95 |        6.481 |
|         | 2xlarge  |               50 |        6.821 |
|         | 16xlarge |                6 |        7.010 |
|         | 4xlarge  |               25 |        7.136 |
|         | 8xlarge  |               13 |        7.175 |
|         | 12xlarge |                9 |        7.569 |
|         | 24xlarge |                5 |        8.040 |
+---------+----------+------------------+--------------+
| general | xlarge   |              210 |       14.577 |
|         | 12xlarge |               18 |       15.445 |
|         | 2xlarge  |              105 |       15.543 |
|         | 4xlarge  |               55 |       15.995 |
|         | 8xlarge  |               28 |       16.306 |
|         | 16xlarge |               14 |       17.213 |
|         | 24xlarge |                9 |       17.409 |
+---------+----------+------------------+--------------+
| memory  | 2xlarge  |               90 |       13.320 |
|         | 12xlarge |               15 |       13.629 |
|         | 4xlarge  |               45 |       13.877 |
|         | 8xlarge  |               23 |       14.396 |
|         | 16xlarge |               12 |       14.783 |
|         | 24xlarge |                8 |       15.675 |
+---------+----------+------------------+--------------+

The output shows an estimate of the number of instances and total hourly cost for each spot fleet candidate. The fleets are ordered by cost.

In order to account for overhead and wasted resources due to random packing of pods a buffer is applied to the requests. The default buffer is 20%, but this can be adjusted using the -b option.

A selection of fleets are presented so specific requirements can be applied. For example, too few nodes can result in an adverse blast radius effect where the loss of a single node is overly disruptive. On the other hand if there is a limit on the number of instances available, then too many nodes is undesirable. Given all the choices, the tool provides a data driven rationale for selecting spot fleet pools.

Testing

To run the unit tests download the code and enter the following command in the root directory of the repository:

python -m unittest
