stableX

A Python library for stability analysis of structures

Installation

>> pip install stablex

Usage

# pinned_column.py

import stablex as stx

# column length
l = 3000

# create nodes at quarter lengths
n1 = stx.Node(0, 0)
n2 = stx.Node(0, 0.25*l)
n3 = stx.Node(0, 0.5*l)
n4 = stx.Node(0, 0.75*l)
n5 = stx.Node(0, l)

# create section
section = stx.Rectangle(100, 100)

# create Frame elements and specify node connectivity and geometric non-linearity (Modulus of elasticity = 200000 MPa by default)
e1 = stx.FrameElement(n1, n2, section, True)
e2 = stx.FrameElement(n2, n3, section, True)
e3 = stx.FrameElement(n3, n4, section, True)
e4 = stx.FrameElement(n4, n5, section, True)

# assign boundary conditions (pinned at base, roller at top)
n1.x_dof.restrained = True
n1.y_dof.restrained = True
n5.x_dof.restrained = True

# assign load
p = -1
n5.y_dof.force = p

# create structure assembly of elements
structure = stx.Structure([e1, e2, e3, e4])

# create an Eigenvalue solver
solver = stx.EigenSolver(structure)

# solve for the required mode shape
eigenvalue, eigenvector = solver.solve(mode_shape=1)

# visualize the buckling mode shape
stx.plot_structure(structure, 1000)

Executing this script will open a window displaying the buckling mode and print the associated critical buckling load value.

print(f"Critical Buckling Load: {eigenvalue/1000:.3f} N")

 Output: Critical Buckling Load: 1828.640 kN

Verification with Euler's formula

$$ P_{cr} = \frac{\pi^2 EI}{l^2} = \frac{\pi^2 \times 200 \times 10^3 \times (100)^4/12}{3000^2 \times 1000} = 1827.705 kN $$

With an error = 0.05%

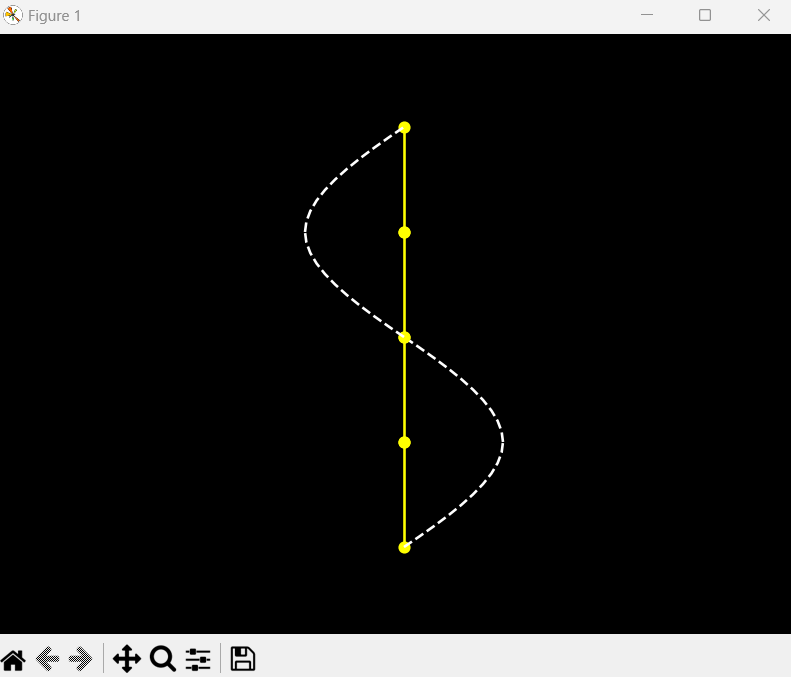

For the second mode:

eigenvalue, eigenvector = solver.solve(mode_shape=2)

stx.plot_structure(structure, 1000)

print(f"Critical Buckling Load: {eigenvalue/1000:.3f} N")

 Output: Critical Buckling Load: 7365.812 kN

Verification with Euler's formula

$$ P_{cr} = n^2 \frac{\pi^2 EI}{l^2} = 2^2 \frac{\pi^2 \times 200 \times 10^3 \times (100)^4/12}{3000^2 \times 1000} = 7310.818 kN $$

With an error = 0.75%

Other Examples:

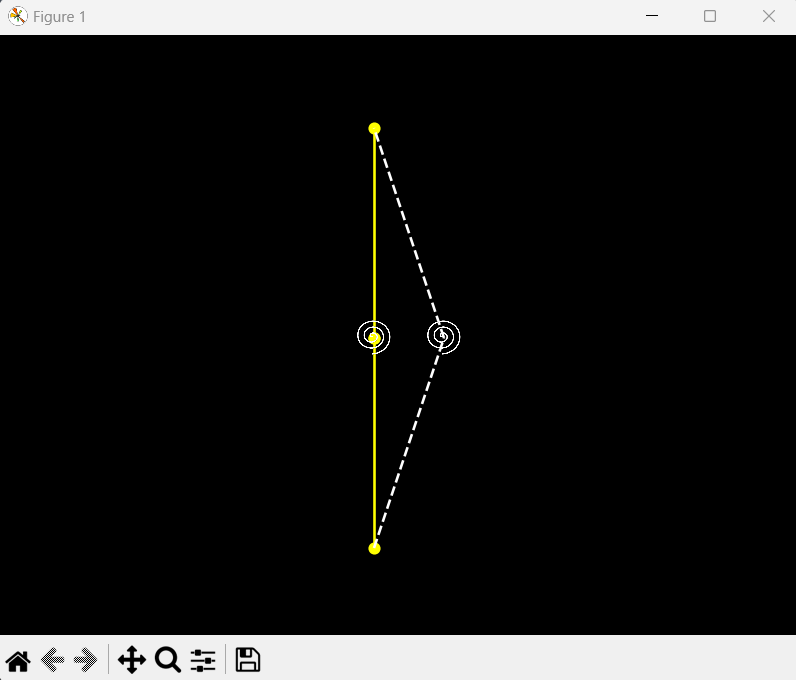

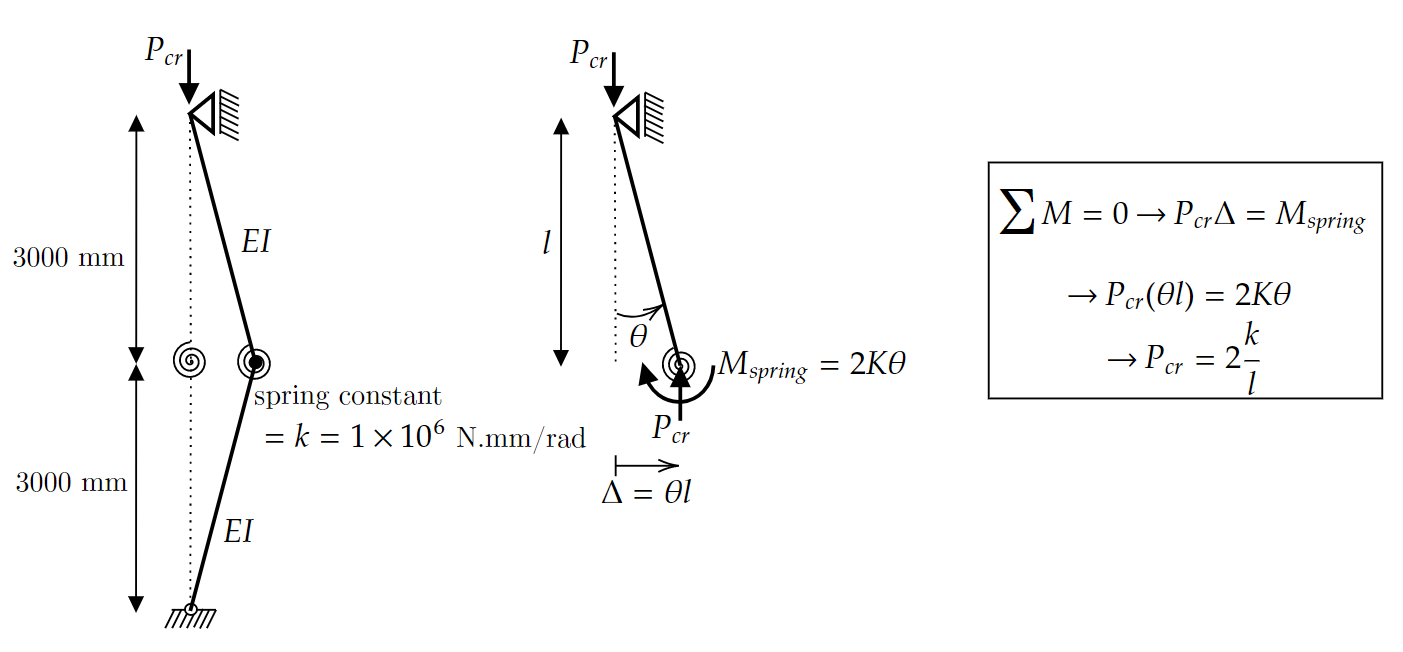

Rigid Bars with Intermediate Spring

 Output: Critical Buckling Load: 666.667 N

$$ P_{cr} = 2 \frac{k}{l} = 2 \frac{1 \times 10^6}{3000} = 666.667 N $$

With an error = 0.75%

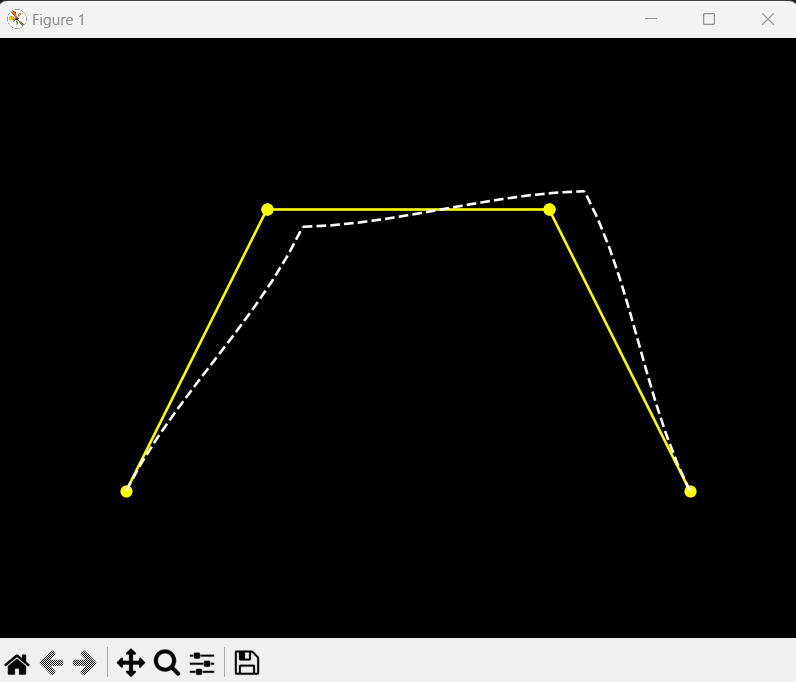

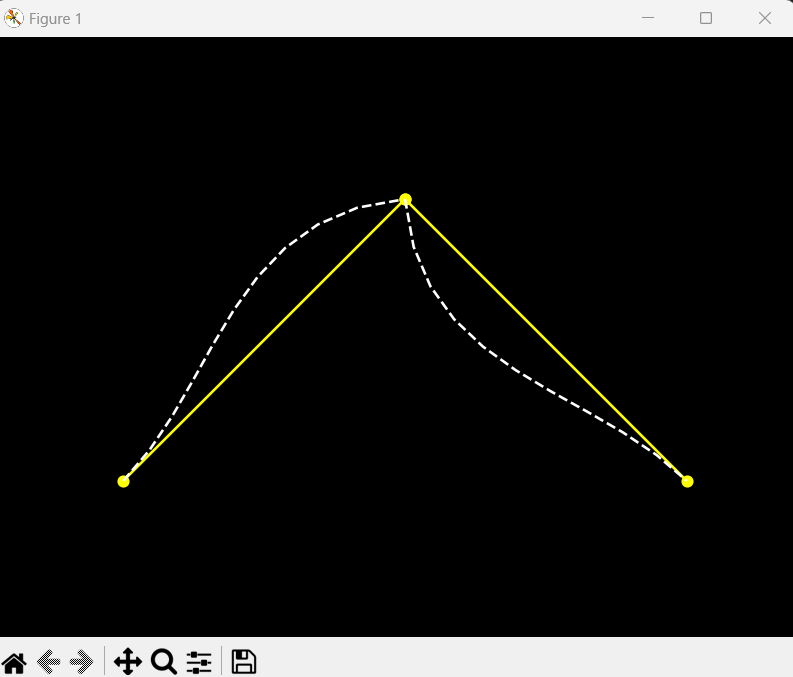

Trapezoidal Frame

Triangulated Frame

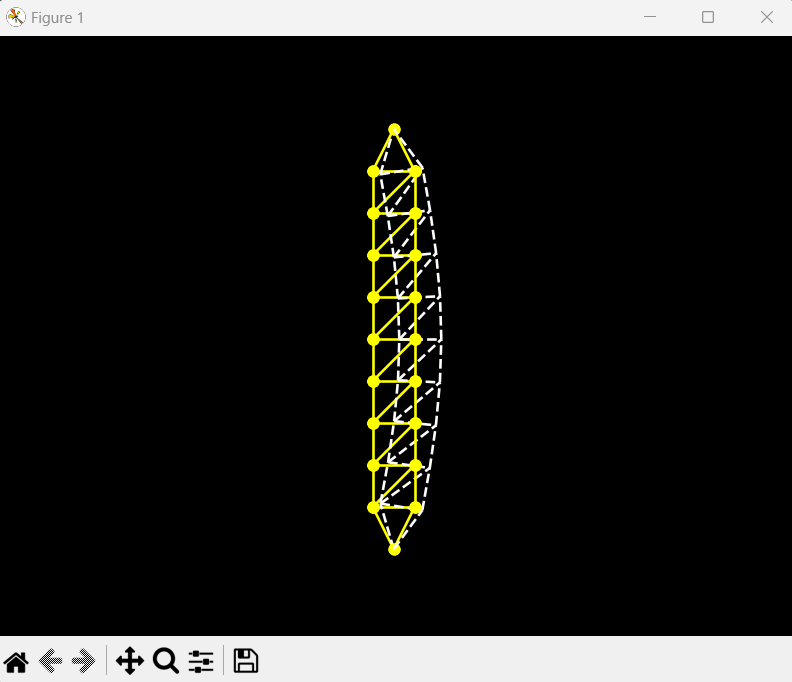

Trussed Column

Arch

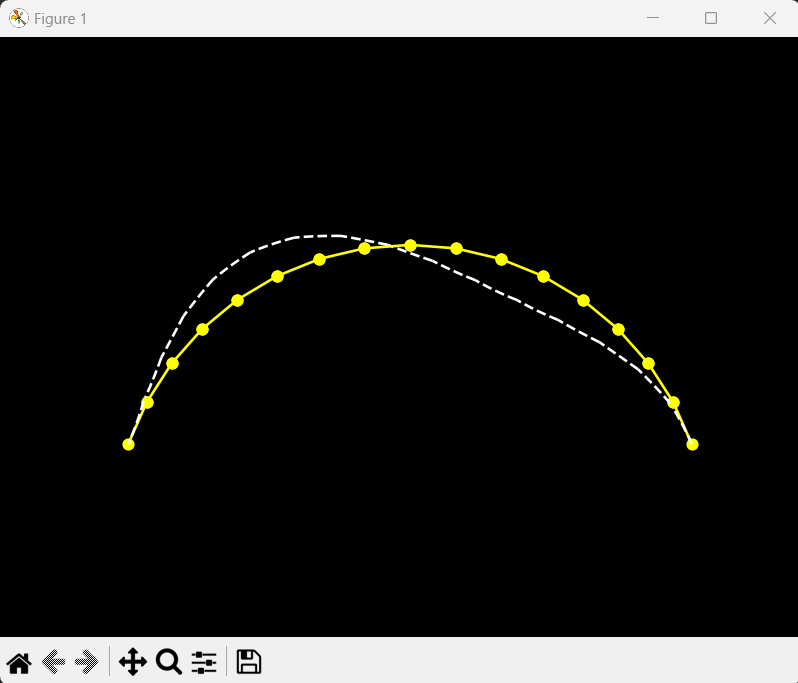

1st mode

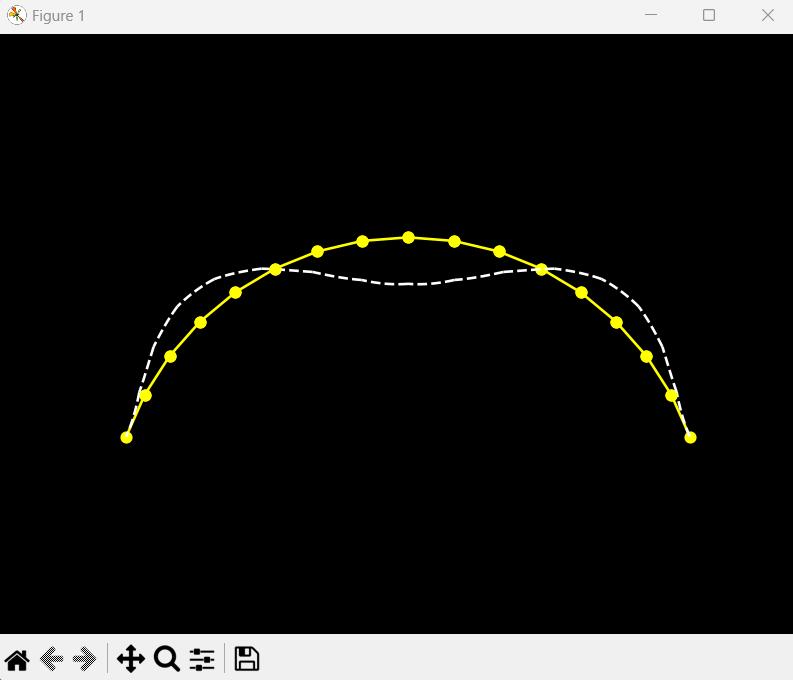

2nd mode

Mult-storey Frame

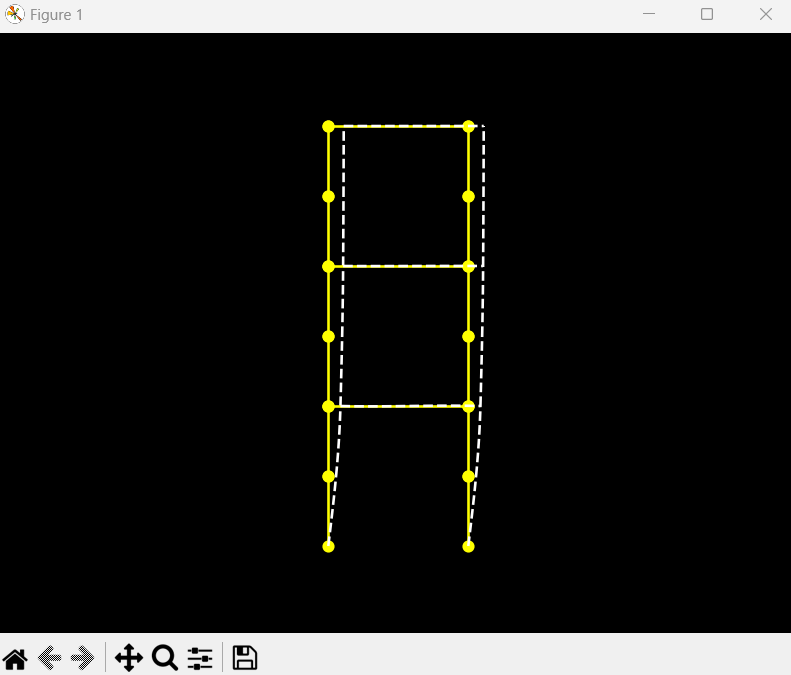

1st mode

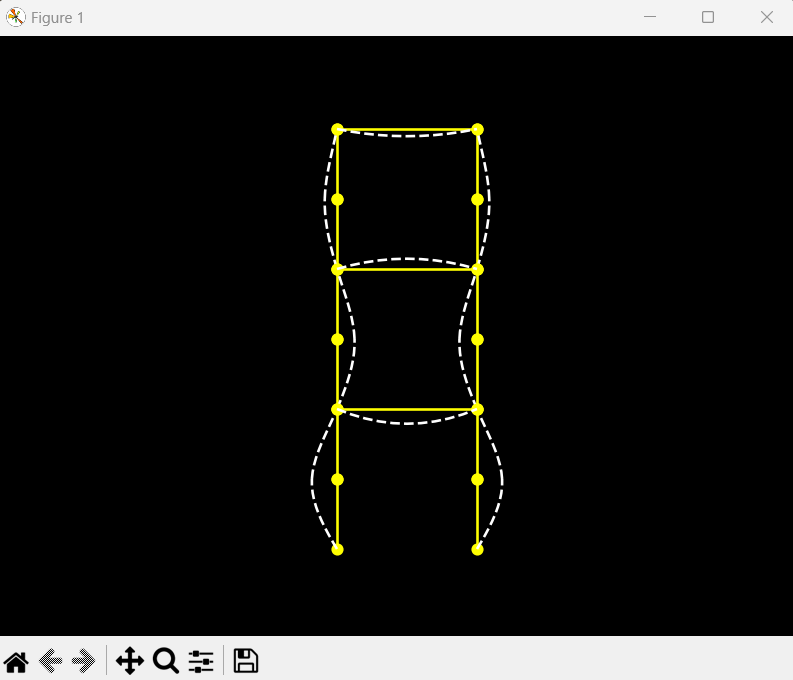

4th mode

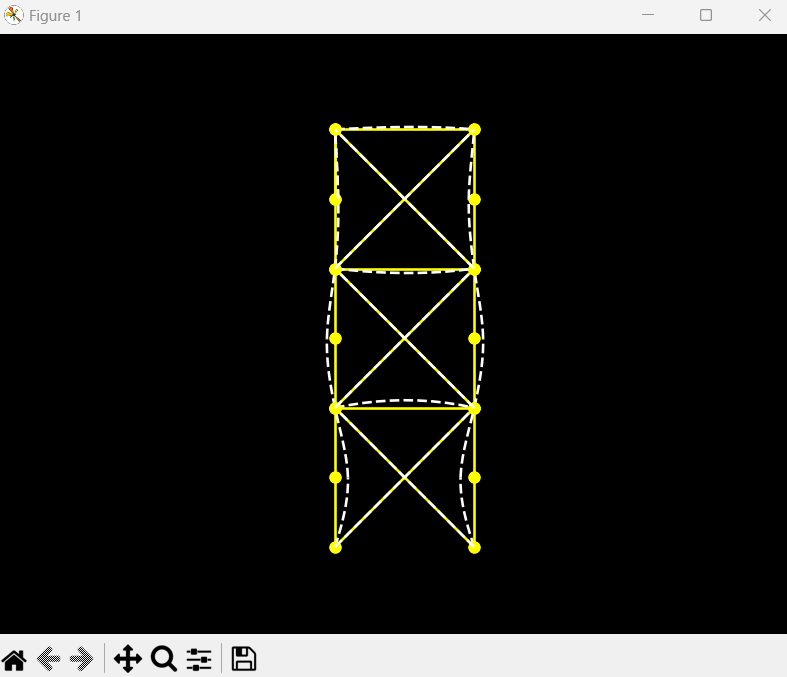

2nd mode (Braced)

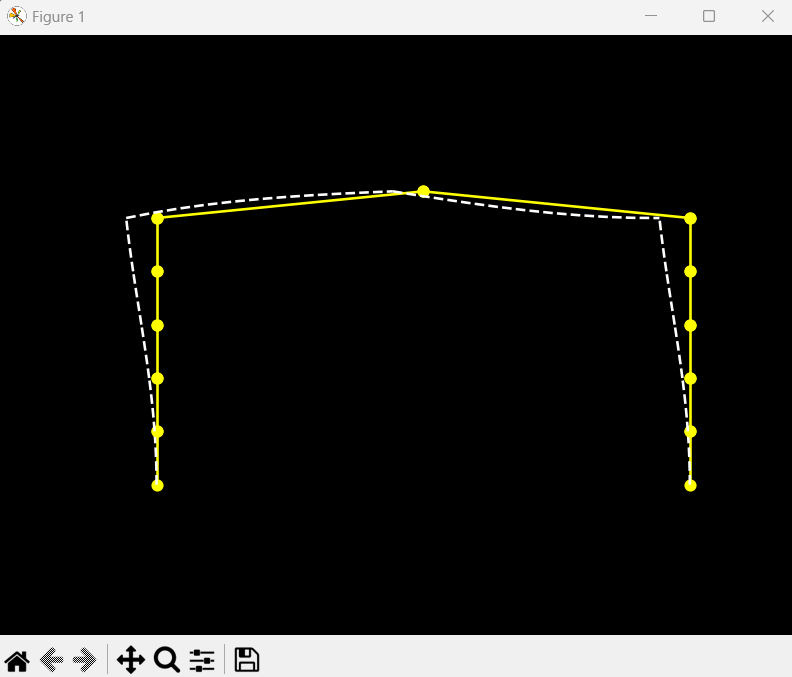

Portal Frame

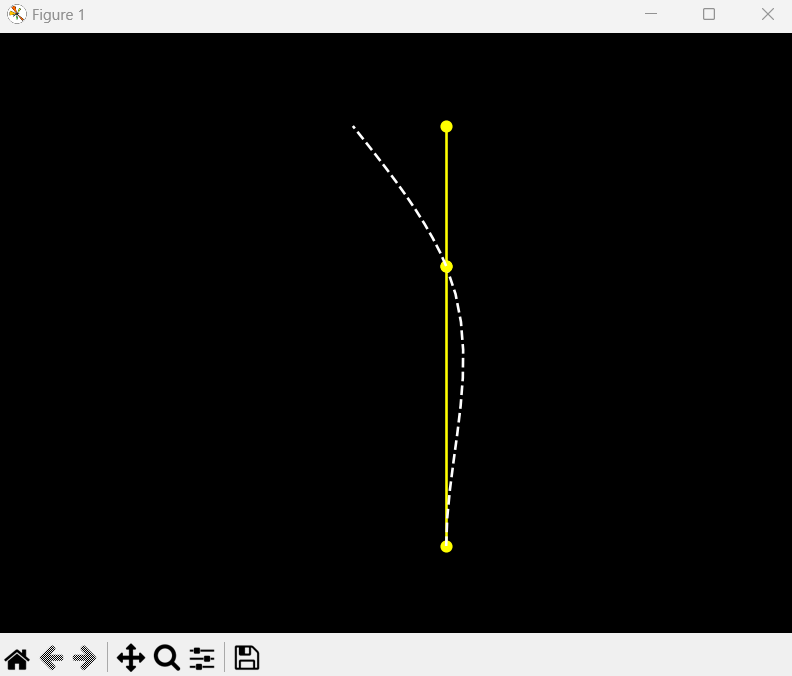

Overhang

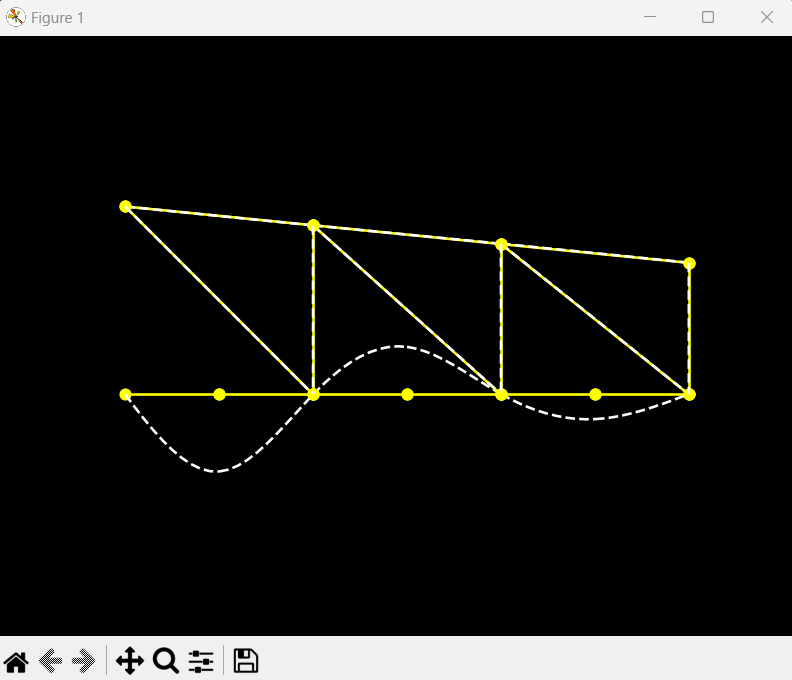

Truss Cantilever

Contributing

Interested in contributing? Check out the contributing guidelines. Please note that this project is released with a Code of Conduct. By contributing to this project, you agree to abide by its terms.

License

stablex was created by Hazem Kassab. It is licensed under the terms of the MIT license.

Credits

stablex was created with cookiecutter and the py-pkgs-cookiecutter template.
