Graphic and text stem-and-leaf plots

Project description

stemgraphic

Overview

John Tukey’s stem-and-leaf plot first appeared in 1970. Although quite useful back then, it cannot handle more than 300 data points and is completely text-based. Stemgraphic is an easy to use python package providing a solution to these limitations (no size limit, graphical tool). It also supports categorical and text as input.

A typical stem_graphic output:

stem_graphic example

For an in depth look at the algorithms and the design of stemgraphic, see

Stemgraphic: A Stem-and-Leaf Plot for the Age of Big Data

Documentation is available as pdf stemgraphic.pdf and online html.

The official website of stemgraphic is: http://stemgraphic.org

A Stem-and-leaf Timeline: timeline pdf on artchiv.es

See also: Are you smarter than a fifth grader?

Installation

Stemgraphic requires docopt, matplotlib and pandas. Optionally, having Scipy installed will give you secondary plots and Dask (see requirements_dev.txt for all needed to run all the functional tests) will allow for out of core, big data visualization. See more python packages that can be installed for more functionality in the section "Optional Requirements".

Installation is simple:

pip3 install -U stemgraphic

or from this cloned repository, in the package root:

python3 setup.py install

If you only have python3, pip3 and python3 are probably going to be pip and python. At this time, we do not have a conda package yet, but you can install everything else with conda, and then pip install stemgraphic.

Optional requirements

You can pip install these modules for additional functionality:

  • dask (for distributed computing)
  • pysixel (for graphics in the text console)
  • python-levenshtein (for distance metric)
  • scipy (for marginal plots)

Command line

stemgraphic comes with a command line tool:

stem -h

Stem.

Stem and leaf plot from a csv or excel spreadsheet using best defaults. Can do text (text and dot) or graphic (kde,
graphic, hist, line).

Usage:
    stem <input> [-c <column>] [-d] [-f] [-k <file>] [-o <file>] [-p <percent>] [-r <random>] [-s <server>] [-t <type>] [-u] [-w]
    stem -h | --help
    stem --version

Options:
    -h --help    Show this screen.
    -c <column>  column index
    -d           describe the data
    -f           force dask
    -k <file>    persist sample to file (.csv, .pkl)
    -o <file>    output file (.txt, .png) or stdout
    -p <percent> trim data on both ends (ex: 0.2)
    -r <random>  random_state seed (ex: 42)
    -s <server>  head node for distributed cluster
    -t <type>    alternate type of distribution plot
    -u           use all data (default: 300 on text, 900 on graphics)
    -w           wide format (horizontal)
    --version

A typical command line output:

text heatmap example

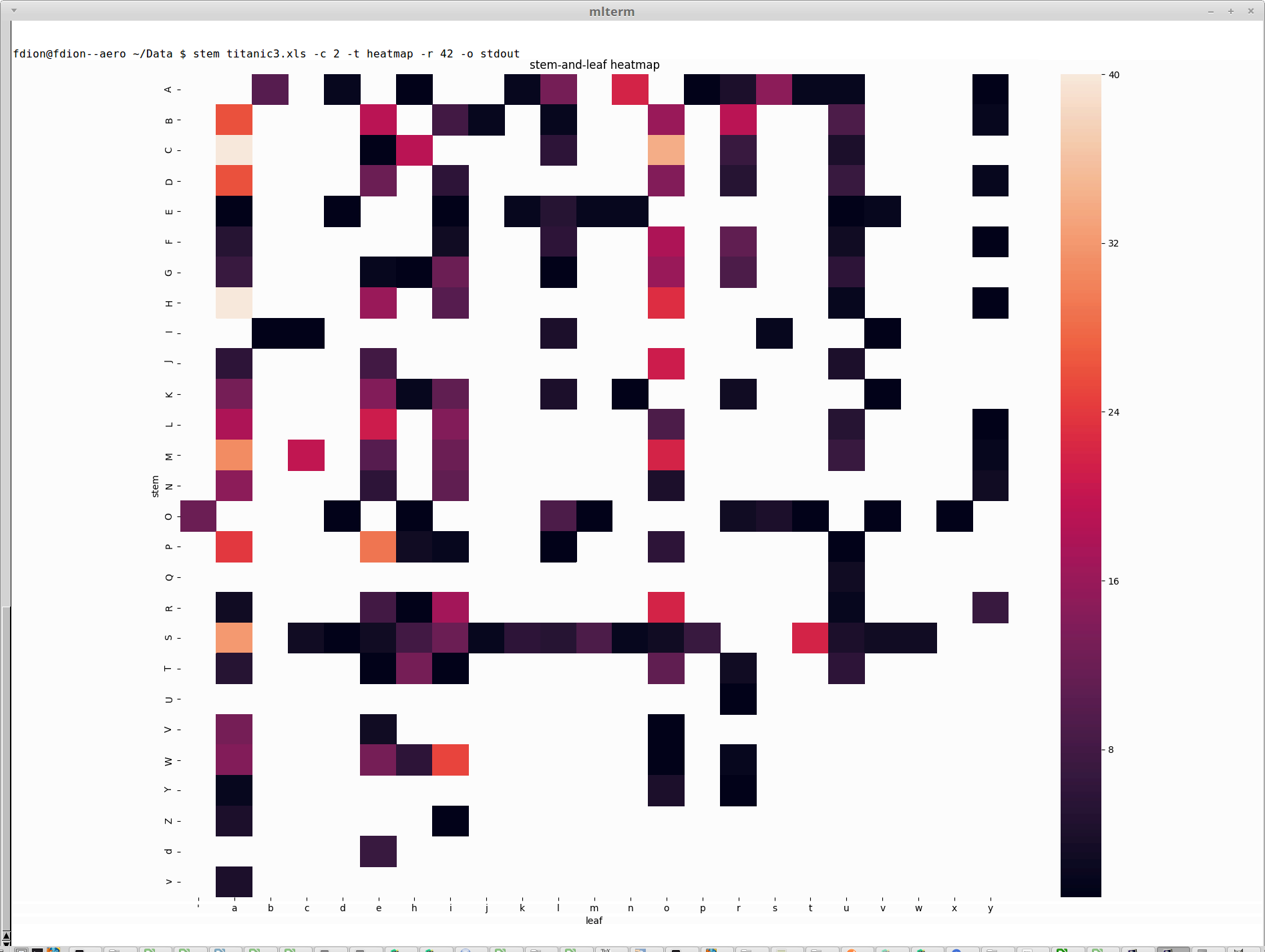

An example Sixel graphics in the terminal:

heatmap example in terminal

The supported graphic chart types (-t):

  • dot
  • graphic (default - stem_graphic plot)
  • heatmap
  • hist
  • kde
  • line

The supported text chart types (-t):

  • heatmatrix
  • text (stem_text plot)
  • text_dot
  • text_hist
  • text_heatmap
  • tally

Latest changes

Version 0.9.1

  • fixes for pandas >= 1.0
  • passing aggregation from small_multiples and default to False
  • handle categorical filtered out on density plots

Version 0.9.0

  • bugfix when no index in translate_representation
  • reformat alpha.py with black (2 changes)
  • added log scale support with cufflinks in 3d (bug was fixed)
  • matplotlib log scale in 3d still not working, however
  • added html renders of all the demo notebooks
  • fixed some warnings (pandas and matplotlib)
  • fixed color palette for interactive plots when comparing 2 sources
  • fixed marker size on default view (5 x increase)
  • bugfix on command line stem

Version 0.8.3

  • text mode heatmatrix
  • text mode heatmap (heatmatrix without 0 values, compact format)
  • symmetric stem_dot option to center the dots
  • stem_symmetric_dot alias
  • improved documentation
  • stem_hist, text histogram
  • stem_tally, text tally chart
  • charset support for stem_text
  • charset support for heatmap, heatmatrix
  • heatmap for alpha
  • heatmatrix for alpha
  • unicode digit charsets added: 'arabic', 'arabic_r', 'bold', 'circled', 'default', 'doublestruck', 'fullwidth', 'gurmukhi', 'mono', 'nko', 'rod', 'roman', 'sans', 'sansbold', 'square', 'subscript', 'tamil'

Version 0.8.2

  • bugfix on min/max values from command line
  • silence warning from matplotlib on tight_layout
  • Alignment issue on title for back to back stem-and-leaf plots
  • bugfix on dot plot number of dots
  • Added symmetric dot plot option and alias since I was working on dot plot

Version 0.8.1

  • command line output improved: description of data more elaborate
  • leaf_scatter plot added
  • stem_text support for flip_axes
  • stem_dot support flip_axes
  • stem_dot defaults marker to unicode circle
  • added support for dot for command line stem (stem -t dot)

Version 0.7.5

  • Bugfix for issue 12, -0 stem not showing in certain cases

Version 0.7.4

  • Bugfix for stem_text with plain list (df and numpy are ok)

Version 0.7.2

  • Bugfix for secondary plot calculation

Version 0.7.0

  • Made Levenshtein module optional
  • Small Multiples support

Version 0.6.2

  • Bugfix for VERSION

Version 0.6.1

  • back-to-back stem-and-leaf plots can use predefined axes (secondary ax added)
  • added quantize function (basically a round trip number->stem-and-leaf->number))
  • density_plot added for numerical values with stem-and-leaf quantization and sampling
  • density_plot also support multiple secondary plots like box, violin, rug, strip
  • notebook demoing density_plot
  • notebook demoing comparison of violin, box and stem-and-leaf for certain distributions

Version 0.6.0

Version bump to 0.6 due to order of params changing. Shouldn't affect using named args

Major code change and expansion for num.stem_graphic including:

  • back-to-back stem-and-leaf plots
  • allows comparison of extremely skewed data
  • bug fix (rounding issue) due to python precision
  • better stem handling
  • alpha down to 10% for bars
  • median alpha can be specified
  • stems can be hidden
  • added title option, besides the legend

Other changes:

  • More notebook examples
  • added leaf_skip, stem_skip to a few functions missing them
  • heatmap_grid bugfix
  • added reverse to a few functions missing it
  • improved documentation
  • matrix_difference ord param added added
  • ngram_data now properly defaults to case insensitive
  • switched magenta to 'C4' - compatible with mpl styles now
  • functions to read/write .npy and .pkl files
  • more unicode typographical glyphs added to the list of non alpha

Version 0.5.3

  • scatter 3d support
  • added 3rd source to compare (in 3d) with scatter plots
  • more scatter plot fixes
  • some warnings added to deal with 3d and log scale issues
  • added fig_xy to scatter - useful to quickly adjust figsize in a notebook
  • added normalize, percentage and whole (integer) to scatter
  • added alpha to scatter

Version 0.5.2

  • added documentation for scatter plots
  • added jitter to scatter plots
  • added log scale to scatter plots
  • more notebooks

Version 0.5.1

  • stem_text legend fix
  • missed adding the code for scatter plots
  • more notebooks

Version 0.5.0

Major new release.

  • All 0.4.0 private changes were merged
  • new module stemgraphic.alpha:
    • n-gram support
    • stem_graphic supporting categorical
    • stem_graphic supporting text
    • stem_text supporting categorical
    • stem_text supporting text
    • stem command line supporting categorical when column specified
    • heatmap for n-grams
    • heatmap grid to compare multiple text sources
    • Frobenius norm on diff matrices
    • radar plot with Levenshtein distance
    • frequency plot (bar, barh, hist, area, pie)
    • sunburst char
    • interactive charts with cufflinks
  • new module stemgraphic.num to match .alpha
  • stop word dictionaries for English, Spanish and French
  • Massively improved documentation of modules and functions
  • Improved HTML documentation
  • Improved PDF documentation

Version 0.4.0

Internal release for customer.

  • Added Heatmap

  • Basic PDF documentation

  • Quickstart notebook

Version 0.3.7

Matploblib 2.0 compatibility

Version 0.3.6

  • Persist sample from command line tool (-k filename.pkl or -k filename.csv).

  • Windows compatible bat file wrapper (stem.bat).

  • Added full command line access to dask distributed server (-d, -s, use file in '' when using glob / wildcard).

  • For operations with dask, performance has been increased by 25% in this latest release, by doing a compute once of min, max and count all at once. Count replaces len(x).

Added the companion PDF as it will be presented at PyData Carolinas 2016.

To do

  • multivariate support
  • provide support for secondary plots with dask
  • automatic dense layout
  • add a way to provide an alternate function to the sampling
  • add unit tests
  • add feather, hdf5 etc support, particularly on sample persistence
  • more charts
  • more examples

Project details


Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Source Distribution

stemgraphic-0.9.1.tar.gz (62.9 kB view hashes)

Uploaded Source

Built Distribution

stemgraphic-0.9.1-py3-none-any.whl (61.9 kB view hashes)

Uploaded Python 3
