🌌 StreamGen

a 🐍 Python framework for generating streams of labelled data

⚗️ Motivation • 💡 Idea • 📦 Installation • 👀 Examples • 📖 Documentation • 🙏 Acknowledgement

⚗️ Motivation

Most machine learning systems rely on stationary, labeled, balanced and large-scale datasets. Incremental learning (IL), also referred to as lifelong learning (LL) or continual learning (CL), extends the traditional paradigm to work in dynamic and evolving environments. This requires such systems to acquire and preserve knowledge continually.

Existing CL frameworks like avalanche¹ or continuum² construct data streams by splitting large datasets into multiple experiences, which has a few disadvantages:

• results in unrealistic scenarios
• offers limited insight into distributions and their evolution
• not extendable to scenarios with fewer constraints on the stream properties

To answer different research questions in the field of CL, researchers need knowledge and control over:

• class distributions
• novelties and outliers
• complexity and evolution of the background domain
• semantics of the unlabeled parts of a domain
• class dependencies
• class composition (for multi-label modelling)

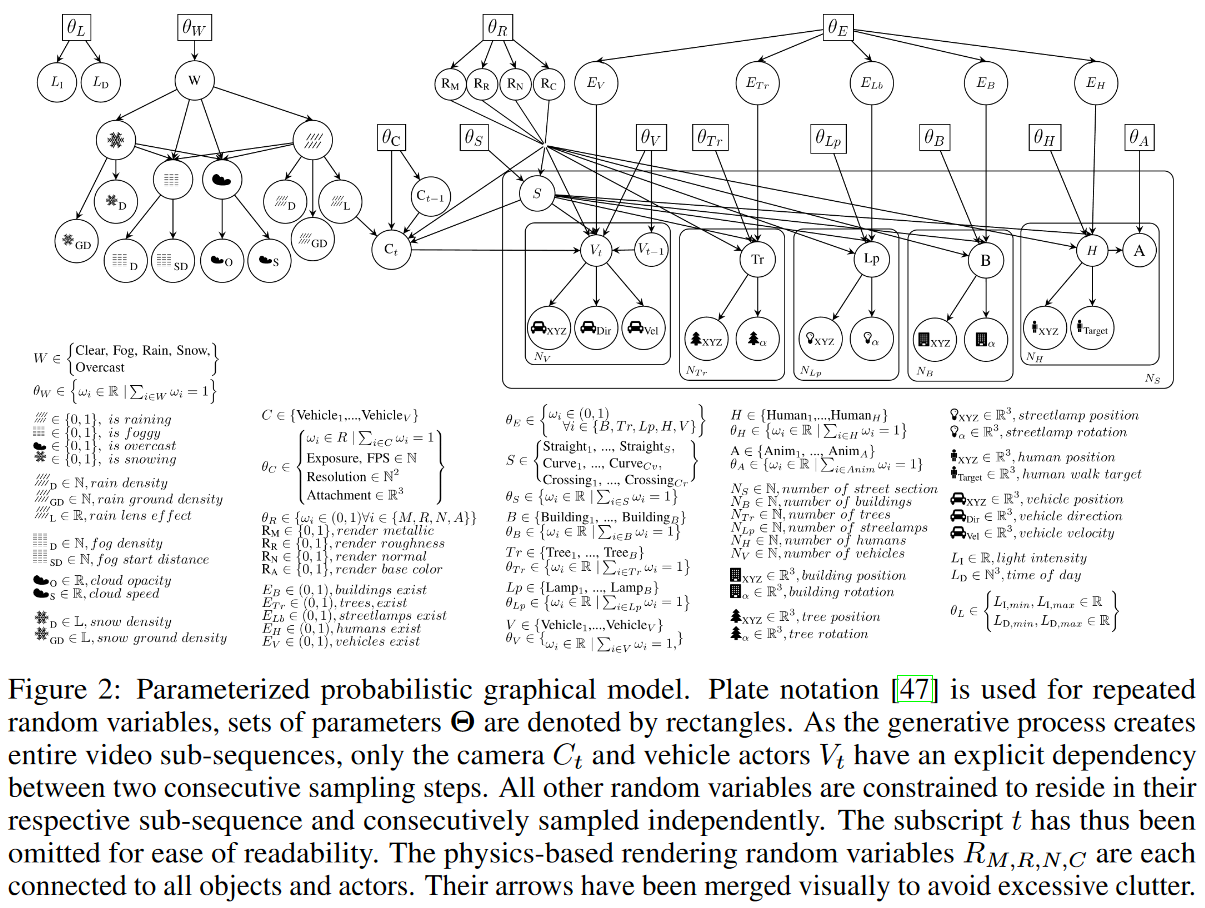

A more economical alternative to collecting and labelling streams with desired properties is the generation of synthetic streams³. Some mentionable efforts in that direction include augmentation based dataset generation like ImageNet-C⁴ or simulation-based approaches like the EndlessCLSim⁵, where semantically labeled street-view images are generated (and labeled) by a game engine, that procedurally generates the city environment and simulates drift by modifying parameters (like the weather and illumination conditions) over time.

ImageNet-C [3]

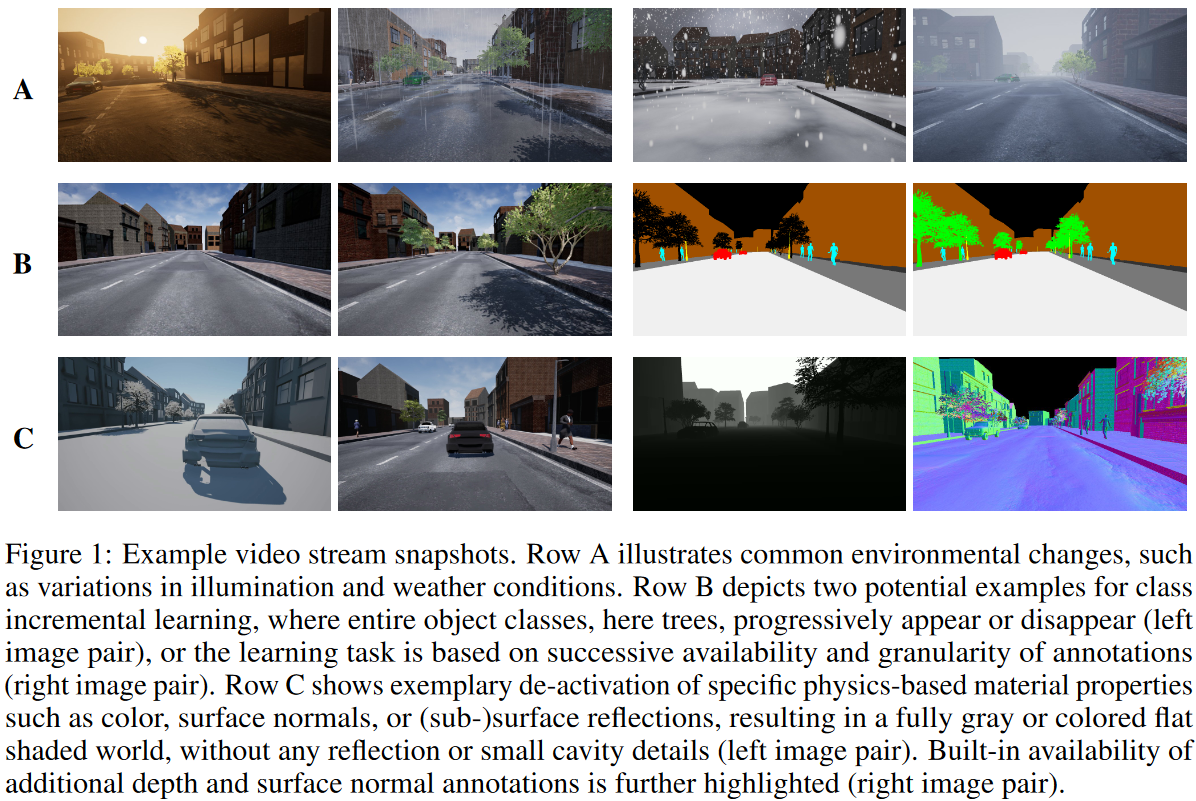

EndlessCLSim [4]

This project builds on these ideas and presents a general framework for generating streams of labeled samples.

💡 Idea

This section introduces the main ideas and building blocks of the streamgen framework.

🎲 Building complex Distributions through random Transformations

There exists only a limited number of distributions one can directly sample from (e.g.: a gaussian distribution).

Instead of generating samples directly from a distribution, researchers often work with collected sets of samples. A common practice to increase the variability of such datasets is the use of stochastic transformations in a sequential augmentation pipeline:

from torchvision.transforms import v2

transforms = v2.Compose([
    v2.RandomResizedCrop(size=(224, 224), antialias=True),
    v2.Normalize(mean=[0.485, 0.456, 0.406], std=[0.229, 0.224, 0.225]),
    # ...
])

while generating_data:
    # option 1 - sample from a dataset
    sample = np.random.choice(dataset)
    # option 2 - sample from a distribution
    sample = np.random.randn(...)

    augmented_sample = transforms(sample)

Combined with an initial sampler, that either samples from a data set or directly from a distribution, these chained transformations can represent complex distributions.

distribution = sample |> filter |> augment
distribution = augment ∘ filter ∘ sample

distribution <- sample %>%
    filter() %>%
    augment()

from functools import reduce
from typing import Callable

def compose(*funcs) -> Callable[[int], int]:
    """Compose a group of functions (f(g(h(...)))) into a single composite func."""
    return reduce(lambda f, g: lambda x: f(g(x)), funcs)

distribution = compose(sample, filter, augment)

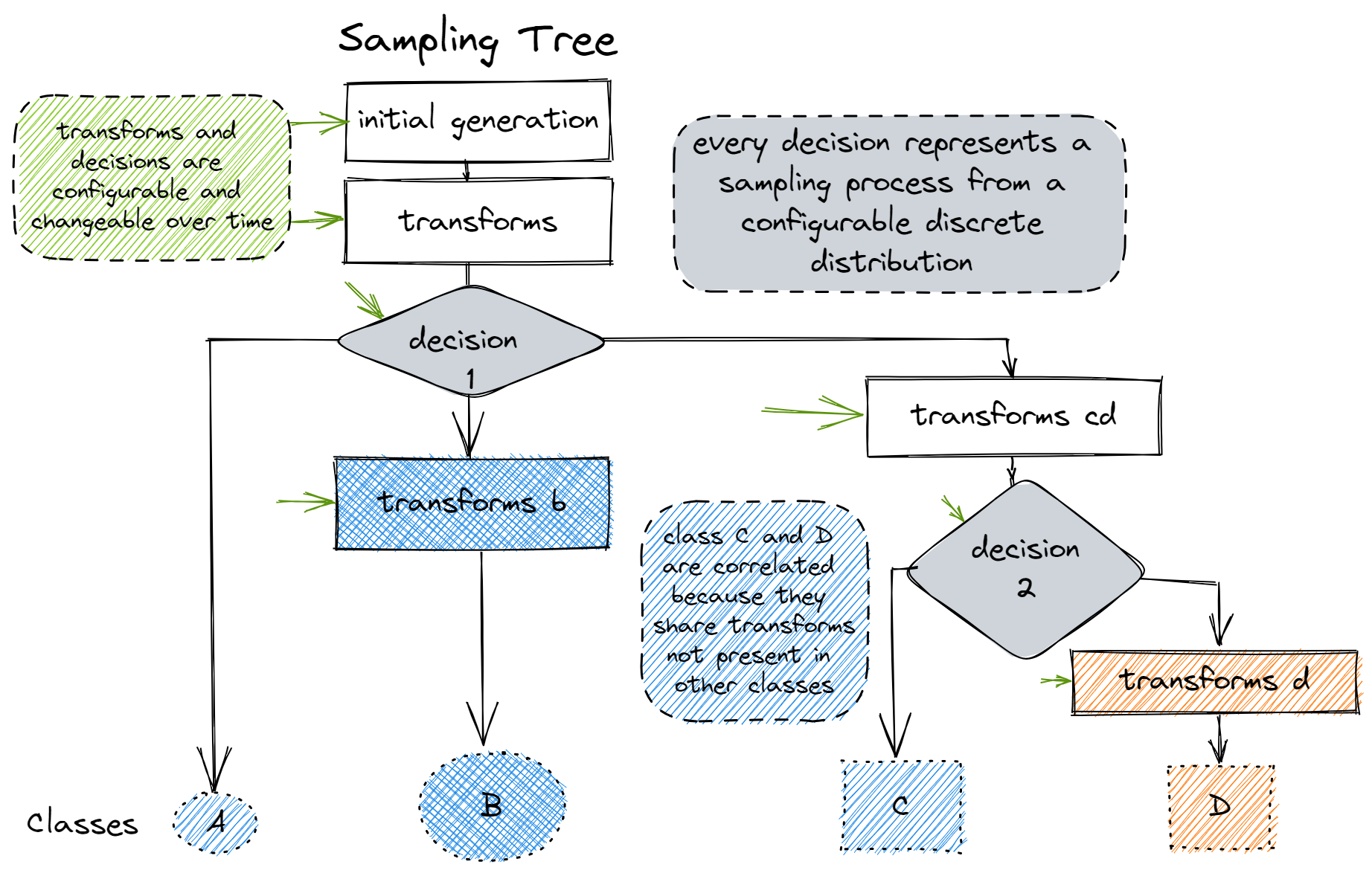

🌳 Sampling Trees

One shortcoming of this approach is that one can only generate samples from a single distribution -> different class distributions are not representable.

One solution to this problem is the use of a tree (or other directed acyclic graph (DAG)) data structure to store the transformations.

• samples are transformed during the traversal of the tree from the root to the leaves.
• each path through the tree represents its own class-conditional distribution.
• each branching point represents a categorical distribution which determines the path to take for a sample during the tree traversal.

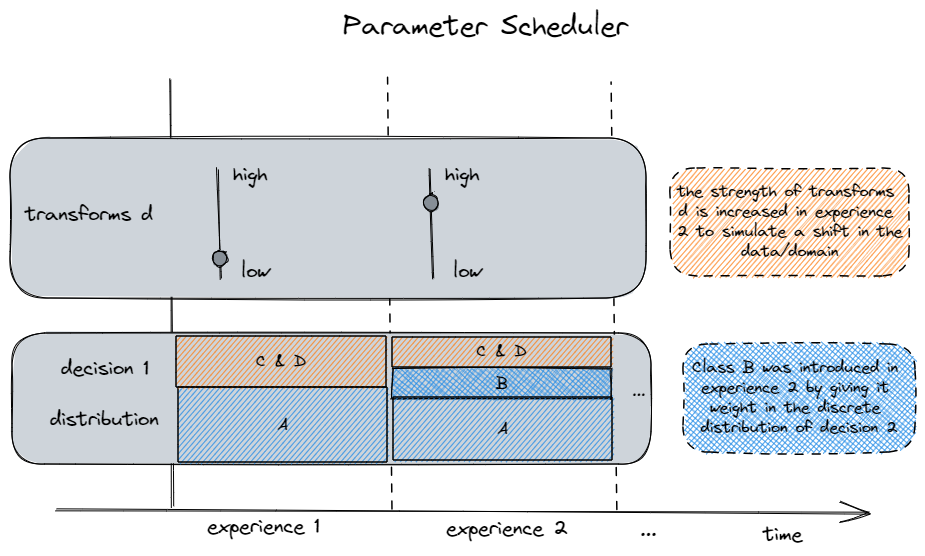

⚙️ Parameter Schedules

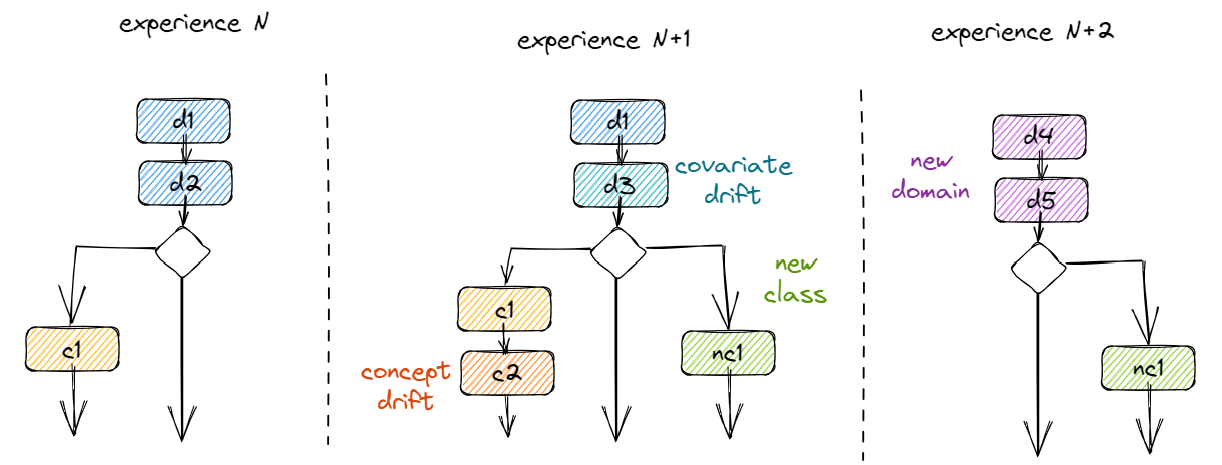

If we want to model evolving distributions (streams), we either need to change the parameters of the stochastic transformations or the topology of the tree over time.

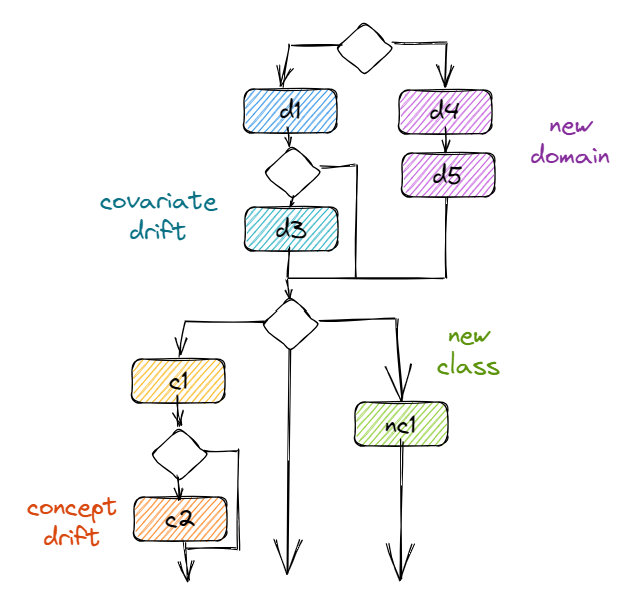

Currently, streamgen does not support scheduling topological changes (like adding branches and nodes), but by unrolling these changes over time into one static tree, topological changes can be modelled purely with branch probabilities.

💡 the directed acyclic graph above is not a tree anymore due to the merging of certain branches. Because these merges are very convenient in certain scenarios, streamgen support the definition of such trees by copying the paths below the merge to every branch before the merge. For an example of this, have a look at examples/time series classification/04-multi-label-generation.ipynb.

📈 Data Drift Scenarios

The proposed tree structure can model all three common data drift scenarios by scheduling the parameters of the transformations at specific nodes.

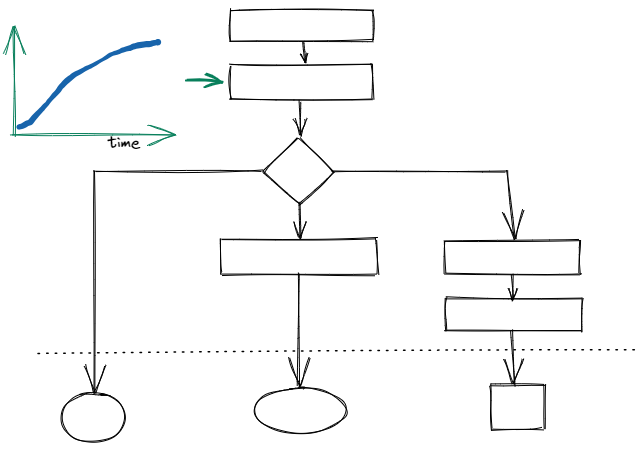

📉 Covariate shift

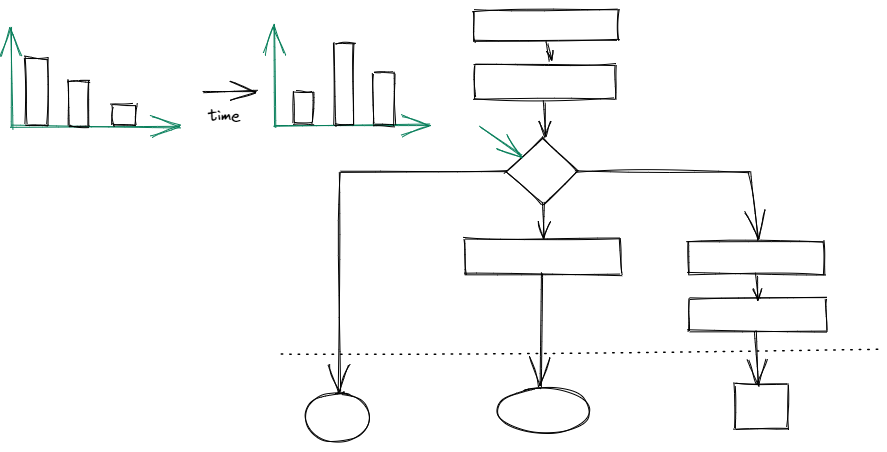

📊 Prior probability shift

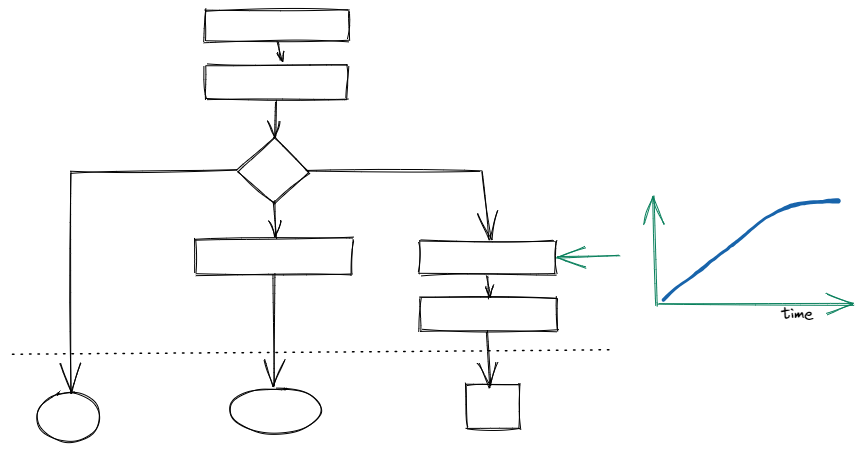

🏷️ Concept shift

📦 Installation

The graph visualizations require Graphviz to be installed on your system. Depending on your operating system and package manager, you might try one of the following options:

• ubuntu: sudo apt-get install graphviz
• windows: choco install graphviz
• macOs: brew install graphviz

The package can be installed from PyPi with:

pip install streamgen

🧑‍💻 to install a development environment (which you need if you want to work on the package, instead of just using the package), cd into the project's root directory and call:

poetry install --sync --compile --all-extras

👀 Examples

There are example notebooks 🪐📓 showcasing and explaining streamgen features:

• 📈 time series
  • 🎲 sampling from static distributions
  • 🌌 creating data streams
  • 📊 data drift scenarios
  • 🏷️ multi-label generation
• 🖼️ analog wafer map streams based on the wm811k dataset⁷ in 🌐 wafer map generation

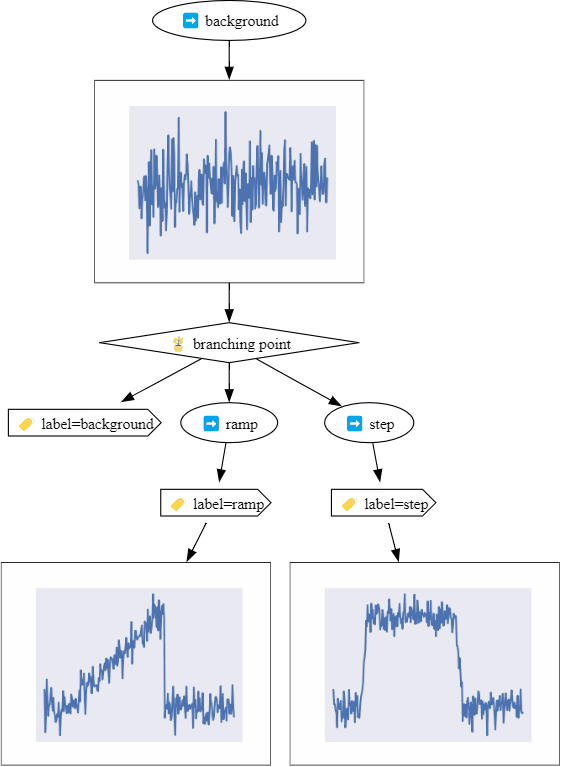

Here is a preview of what we will create in the time series examples:

📖 Documentation

The documentation is hosted through github pages.

To locally build and view it, call poe docs_local.

🙏 Acknowledgement

Made with ❤️ and ☕ by Laurenz Farthofer.

This work was funded by the Austrian Research Promotion Agency (FFG, Project No. 905107).

Special thanks to Benjamin Steinwender, Marius Birkenbach and Nikolaus Neugebauer for their valuable feedback.

I want to thank Infineon and KAI for letting me work on and publish this project.

Finally, I want to thank my university supervisors Thomas Pock and Marc Masana for their guidance.
