📝 simple library to make life easy when deploying superpoint, superglue models

⚙️ Installation

pip install superpoint_superglue_deployment

🎉 TODO

• interface to deploy superpoint, superglue
• testing on real data

🏃 How to Run

Basic usage

import cv2
import numpy as np
from loguru import logger

from superpoint_superglue_deployment import Matcher


def main():
    query_image = cv2.imread("./data/images/one_pillar_pagoda_1.jpg")
    ref_image = cv2.imread("./data/images/one_pillar_pagoda_2.jpg")

    query_gray = cv2.imread("./data/images/one_pillar_pagoda_1.jpg", 0)
    ref_gray = cv2.imread("./data/images/one_pillar_pagoda_2.jpg", 0)

    superglue_matcher = Matcher(
        {
            "superpoint": {
                "input_shape": (-1, -1),
                "keypoint_threshold": 0.003,
            },
            "superglue": {
                "match_threshold": 0.5,
            },
            "use_gpu": True,
        }
    )
    query_kpts, ref_kpts, _, _, matches = superglue_matcher.match(query_gray, ref_gray)
    M, mask = cv2.findHomography(
        np.float64([query_kpts[m.queryIdx].pt for m in matches]).reshape(-1, 1, 2),
        np.float64([ref_kpts[m.trainIdx].pt for m in matches]).reshape(-1, 1, 2),
        method=cv2.USAC_MAGSAC,
        ransacReprojThreshold=5.0,
        maxIters=10000,
        confidence=0.95,
    )
    logger.info(f"number of inliers: {mask.sum()}")
    matches = np.array(matches)[np.all(mask > 0, axis=1)]
    matches = sorted(matches, key=lambda match: match.distance)

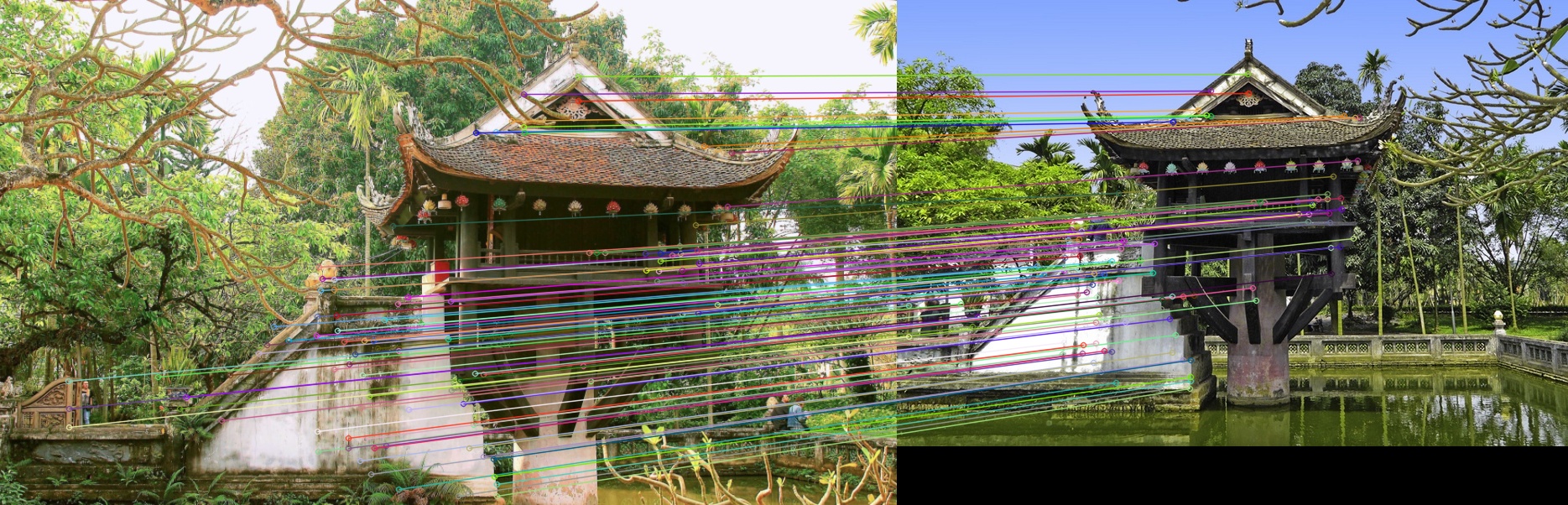

    matched_image = cv2.drawMatches(
        query_image,
        query_kpts,
        ref_image,
        ref_kpts,
        matches[:50],
        None,
        flags=2,
    )
    cv2.imwrite("matched_image.jpg", matched_image)


if __name__ == "__main__":
    main()

• Notebook with detailed sample code for SuperPoint

• Notebook with detailed sample code for SuperGlue

• Command line to test matching two images after installing the library

match_two_images --query_path [path/to/query/image] --ref_path [path/to/reference/image] --use_gpu

🎛 Development environment

mamba env create --file environment.yml
mamba activate superpoint_superglue_deployment

💎 References

• SuperPoint: Self-Supervised Interest Point Detection and Description.
• SuperGlue: Learning Feature Matching with Graph Neural Networks
