supertree 1.1.0

Visualize decision tree in Python

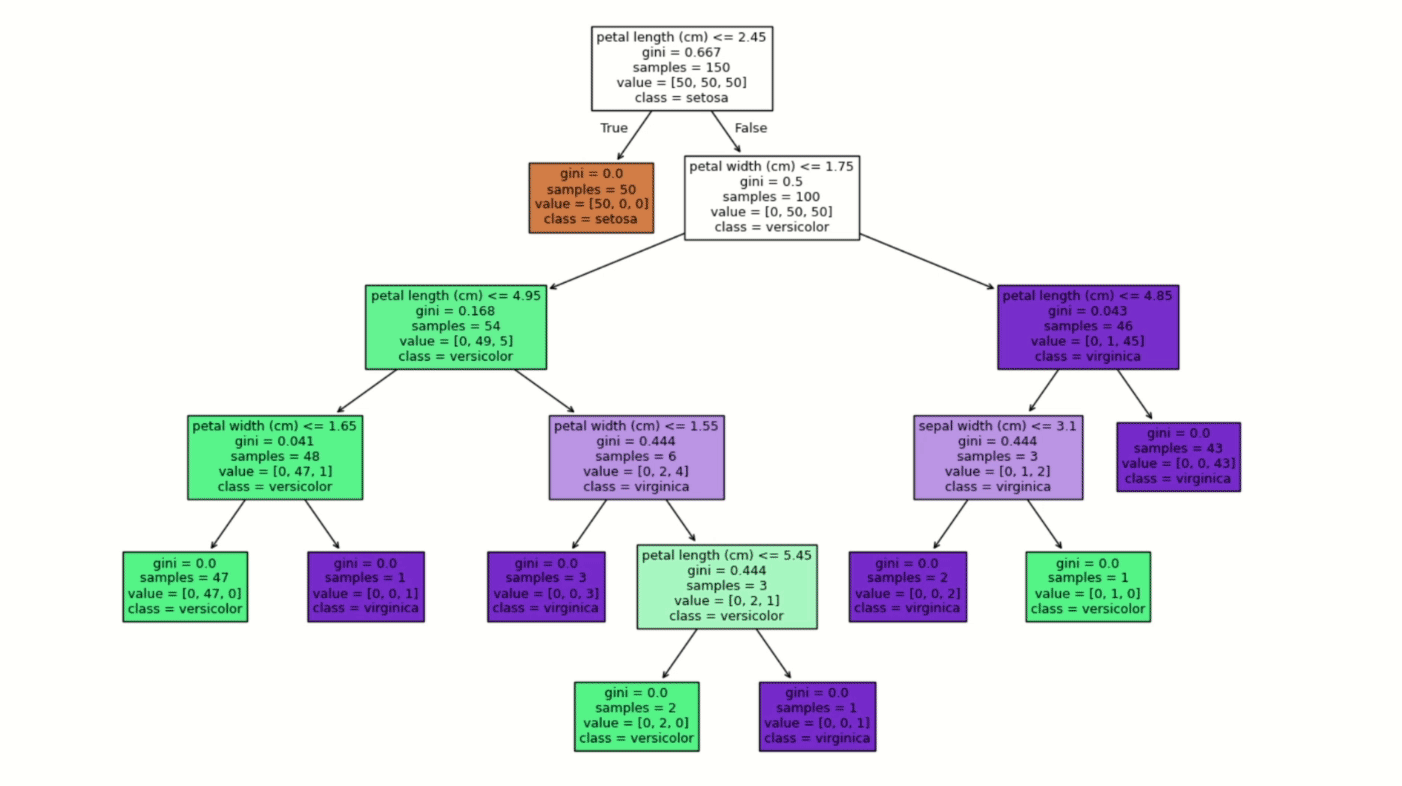

supertree - Interactive Decision Tree Visualization

Visualize decision trees interactively in Jupyter, JupyterLab, and Google Colab. Zoom, pan, collapse nodes, and trace sample paths - all inside your notebook.

Works with scikit-learn, XGBoost, LightGBM, and ONNX.

Installation

pip install supertree

Quick Start

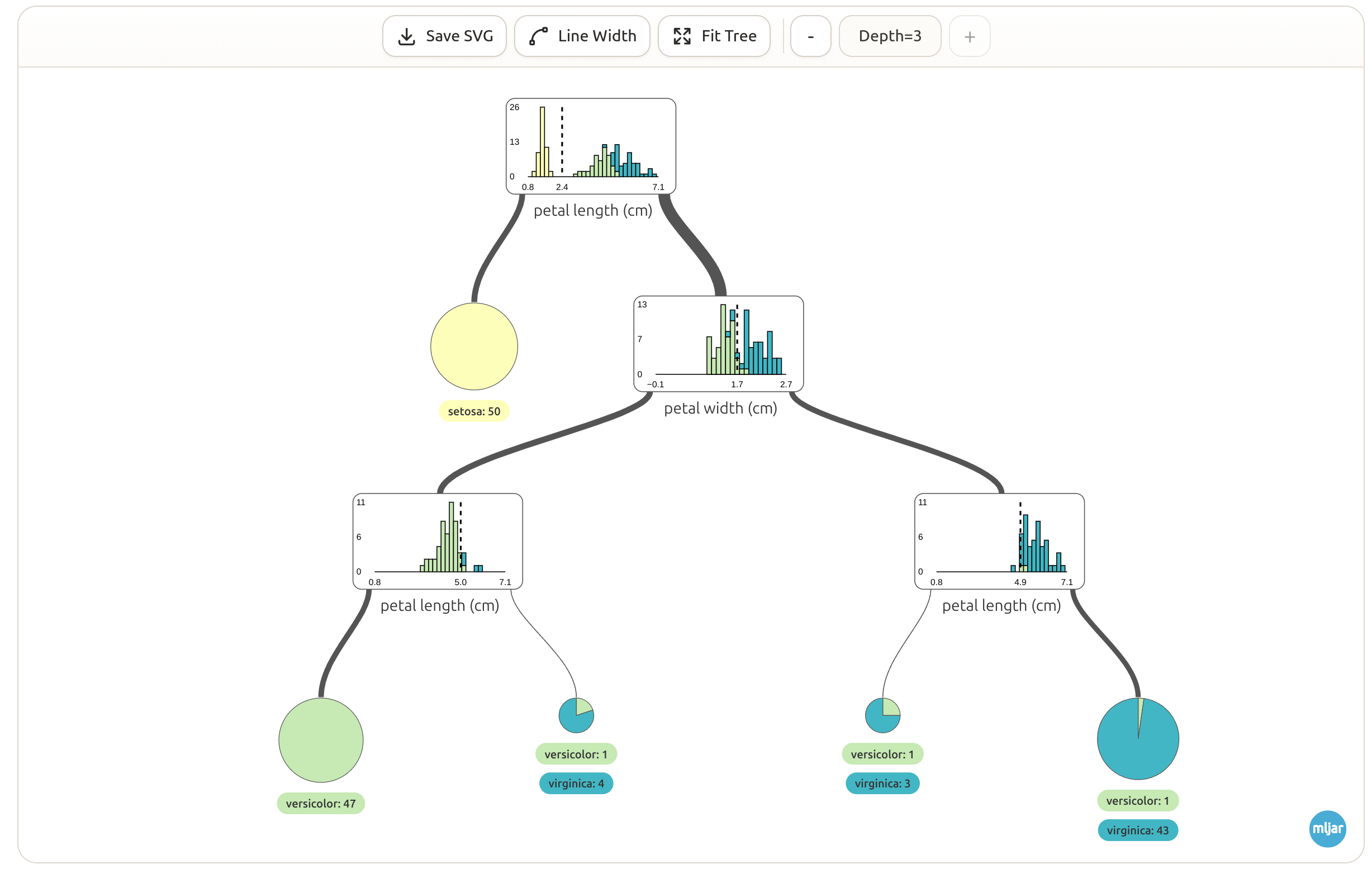

Visualize Decision Tree classifier on iris data

from sklearn.tree import DecisionTreeClassifier
from sklearn.datasets import load_iris
from supertree import SuperTree

# Load the iris dataset
iris = load_iris()

# Train model
model = DecisionTreeClassifier(max_depth=3)
model.fit(iris.data, iris.target)

# Initialize supertree
super_tree = SuperTree(model, iris.data, iris.target, iris.feature_names, iris.target_names)

# show tree in your notebook
super_tree.show_tree()

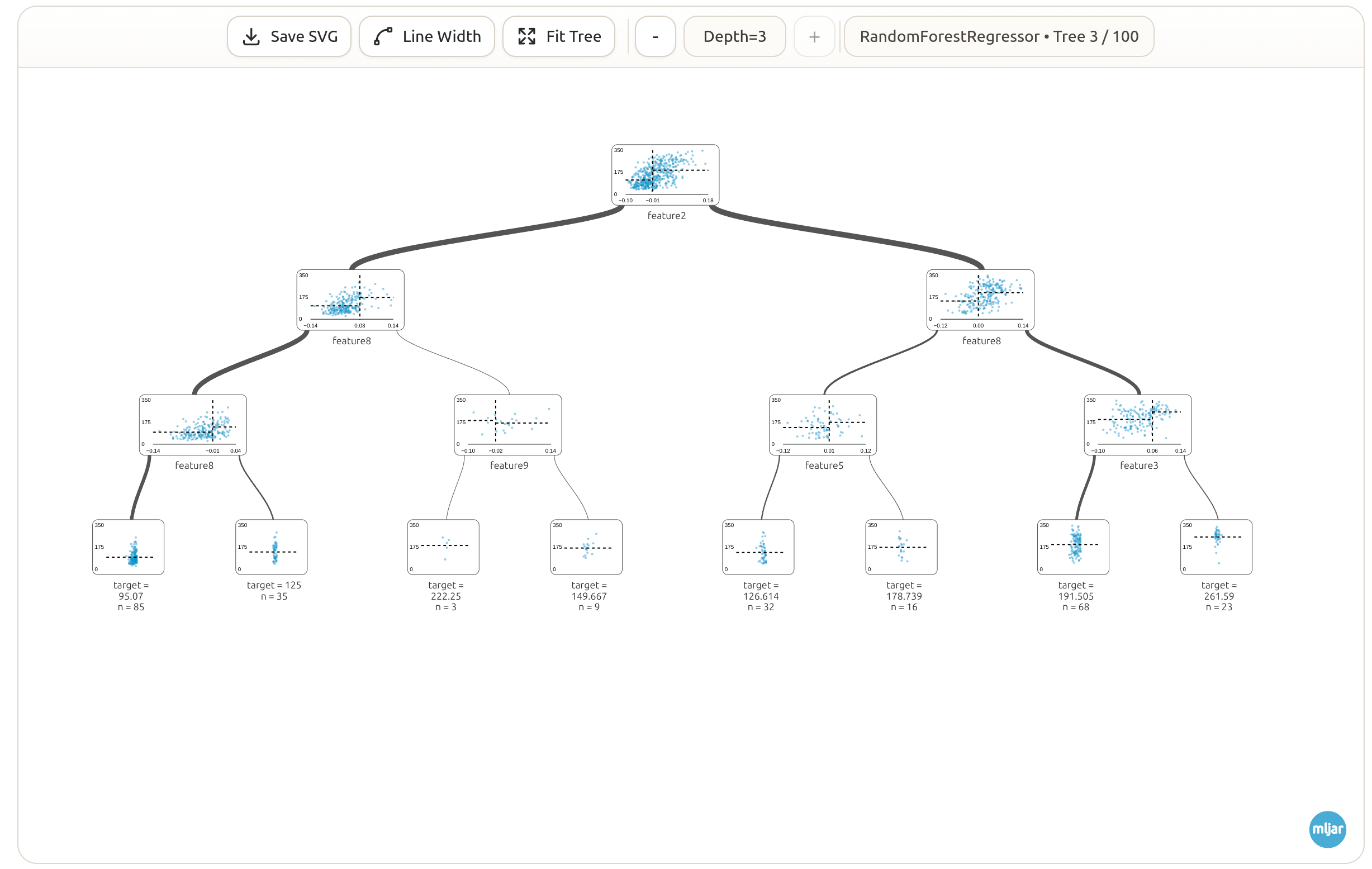

It works with trees ensembles too - Random Forest Regressor Example

from sklearn.ensemble import RandomForestRegressor
from sklearn.datasets import load_diabetes
from supertree import SuperTree  # <- import supertree :)

# Load the diabetes dataset
diabetes = load_diabetes()
X = diabetes.data
y = diabetes.target

# Train model
model = RandomForestRegressor(n_estimators=100, max_depth=3, random_state=42)
model.fit(X, y)

# Initialize supertree
super_tree = SuperTree(model,X, y)
# show tree with index 2 in your notebook
super_tree.show_tree(2)

There are more code snippets in the examples directory.

Supported Libraries

• scikit-learn (sklearn)
• LightGBM
• XGBoost
• ONNX:

Supported Algorithms

The package is compatible with a wide range of classifiers and regressors from these libraries, specifically:

Scikit-learn

• DecisionTreeClassifier
• ExtraTreeClassifier
• ExtraTreesClassifier
• RandomForestClassifier
• GradientBoostingClassifier
• HistGradientBoostingClassifier
• DecisionTreeRegressor
• ExtraTreeRegressor
• ExtraTreesRegressor
• RandomForestRegressor
• GradientBoostingRegressor
• HistGradientBoostingRegressor

LightGBM

• LGBMClassifier
• LGBMRegressor
• Booster

XGBoost

• XGBClassifier
• XGBRFClassifier
• XGBRegressor
• XGBRFRegressor
• Booster

If we do not support the model you want to use, please let us know.

Articles

• Visualize decision tree from scikit-learn package
• 4 ways to vizualize decision tree from LightGBM
• How to visualize decision tree from Xgboost

Support

If you encounter any issues, find a bug, or have a feature request, we would love to hear from you! Please don't hesitate to reach out to us at supertree/issues. We are committed to improving this package and appreciate any feedback or suggestions you may have.

License

supertree is open source under the Apache License 2.0.
