swe-forge 0.2.3

Multi-agent LangGraph framework for autonomous software development

swe-forge

Multi-agent LangGraph framework for autonomous software development.

swe-forge takes a one-line prompt and runs it through a 10-node graph (clarification → spec → plan → fan-out tasks → parallel quality gates → issue triage → ship), commits artifacts to a brand-new GitHub repo, filed issues for every finding, opens a pull request on a feature branch, and pushes a tagged release when the quality gates pass.

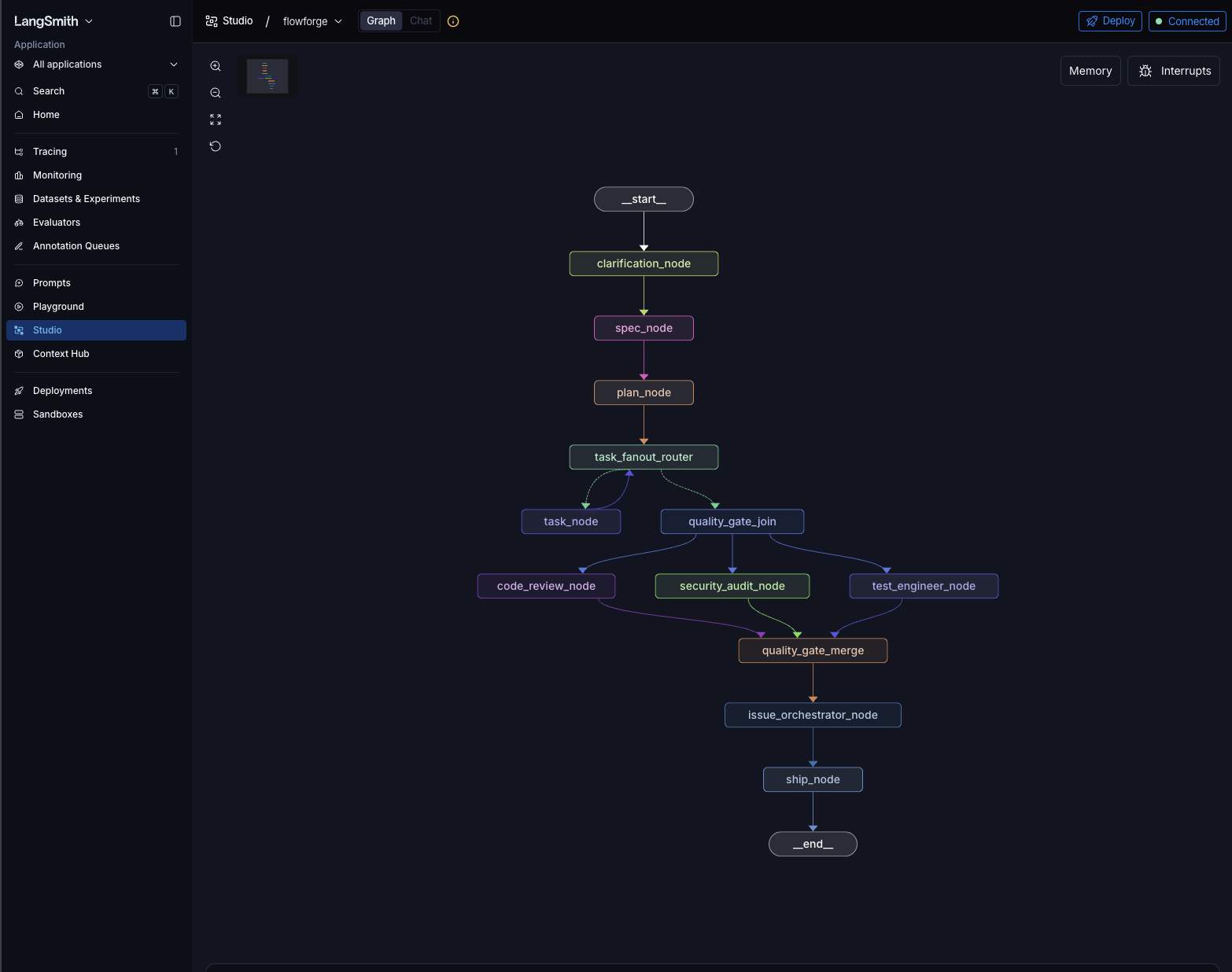

Live view of the FlowForge graph executing in LangGraph Studio.

The PyPI distribution is swe-forge; the Python module is flowforge. Use the swe-forge command after installing.

Quick start

# 1. install from PyPI
pip install swe-forge

# 2. configure provider/model (one-time, interactive)
swe-forge setup

# 3. run a prompt — auto-creates a private GitHub repo and pushes there
swe-forge run "build tic-tac-toe web app"

# common flags
swe-forge run "<prompt>" --repo my-name      # use/create a specific repo
swe-forge run "<prompt>" --skip-github       # local-only, no remote
swe-forge run "<prompt>" --no-studio         # skip LangGraph Studio
swe-forge run "<prompt>" --no-deep-agents    # opt out of Deep Agents (deprecated, removed in v0.4)

Generated projects land in ~/flowforge-workspace/<slug>/ and are pushed to https://github.com/<you>/<slug>. The swe-forge source repo itself is never written to.

Deep Agents (default since v0.2) — every agentic node runs as a LangChain Deep Agent with sub-agents, a virtual filesystem, and per-run resource budgets (recursion 50, timeout 300 s, tool budget 200). The implementer additionally runs a diff-based secret scanner before persisting any file. To opt back into the legacy single-shot executors for one minor version, use --no-deep-agents, set FLOWFORGE_DEEP_AGENTS=0, or edit ~/.flowforge/config.json.

Prerequisites

• Python ≥ 3.12
• gh CLI authenticated (gh auth login) — for repo creation + issue filing
• One provider credential, depending on swe-forge setup choice:
  • GitHub Copilot (default): one-time device-flow login via swe-forge copilot-login
  • OpenAI / Codex: export OPENAI_API_KEY=...
  • Claude Code: export ANTHROPIC_API_KEY=...

swe-forge copilot-login — authorize your Copilot subscription

$ swe-forge copilot-login
  Open https://github.com/login/device in any browser and enter code: ABCD-1234
  Waiting for authorization...
✅ Copilot OAuth token saved to ~/.flowforge/copilot-oauth.json (mode 0600)

Uses GitHub device-flow against the official Copilot OAuth client. The resulting token is cached at ~/.flowforge/copilot-oauth.json (mode 0600) and reused by every subsequent run. Re-run swe-forge copilot-login to refresh.

swe-forge setup — interactive walkthrough

$ swe-forge setup
━━━ FlowForge Setup ━━━

Which AI assistant integration do you use?
  1) GitHub Copilot (uses GitHub Models API)
  2) OpenAI Codex (uses OpenAI API)
  3) Claude Code (uses Anthropic API)
Select provider [1]: 1

  Using GitHub Models API at https://models.inference.ai.azure.com
  Authentication: `gh auth token` (ensure `gh` CLI is logged in)
  Model (gpt-4o-mini, gpt-4o, o1-mini, o1-preview) [gpt-4o-mini]: gpt-4o-mini

  Create repos as private by default? [Y/n]: Y
  LangGraph Studio port [8123]: 8123

✅ Config saved to ~/.flowforge/config.json
   Provider: copilot
   Model: gpt-4o-mini
   Studio port: 8123

Config persists at ~/.flowforge/config.json (mode 0600). Re-run swe-forge setup any time to switch model or provider.

Demo: build tic-tac-toe web app

Real run from pip install swe-forge (v0.1.42) using gpt-4o-mini via GitHub Copilot.

Command

swe-forge run "build tic-tac-toe web app" \
  --repo tic-tac-toe-demo --no-studio

Terminal output

  ✓ Created GitHub repo tic-tac-toe-demo → https://github.com/<you>/tic-tac-toe-demo
  ✓ Created feature branch flowforge/run-20260606-000022
======================================================================
FlowForge — AI-Powered Code Generation Pipeline
======================================================================

  Prompt: build tic-tac-toe web app
  Provider: copilot
  Model: gpt-4o-mini
  Workdir: ~/flowforge-workspace/tic-tac-toe-demo
  Branch:  flowforge/run-20260606-000022

━━━ Running Pipeline via LangGraph API ━━━

  ━━━ Node: clarification_node ━━━
     + docs/spec/tic-tac-toe-web-app.md
     ✓ clarification_node done in 4.9s
  ━━━ Node: spec_node ━━━
     · 5 acceptance criteria | stack: HTML5, CSS3, JavaScript >= ES6, React 17+
     + docs/plans/tic-tac-toe-web-app.md
     ✓ spec_node done in 8.3s
  ━━━ Node: plan_node ━━━
     · 3 phases | 6 tasks | 6 deps
     ✓ plan_node done in 0.0s
  ━━━ Node: task_fanout_router ━━━
     + package.json
     + public/index.html
     + src/GameBoard.js
     + src/GameBoard.test.js
     + src/components/GameControls.js
     + src/components/GameControls.test.js
     + src/index.js
     + src/scoreTracker.js
     + src/styles/responsive.css
     + test/scoreTracker.test.js
     + tests/setup.test.js
     ✓ task_fanout_router done in 59.2s
  ━━━ Node: task_node ━━━
     · 6 tasks: succeeded=4, failed=2 | 12 artifacts
     ✓ task_node done in 0.0s
  ━━━ Node: quality_gate_join ━━━
     + docs/reviews/code-review-checkpoint-1.md
     + docs/security-audits/security-audit-1.md
     + docs/test-reports/test-report-1.md
     ✓ quality_gate_join done in 9.1s
  ━━━ Node: security_audit_node ━━━
     · security: 2 findings (high=1, medium=1)
  ━━━ Node: test_engineer_node ━━━
     · test: 3 findings (critical=1, high=1, medium=1)
  ━━━ Node: code_review_node ━━━
     · review: 5 findings (critical=2, high=1, medium=2)
  ━━━ Node: quality_gate_merge ━━━
     + docs/triage/triage-report-1.md
     ✓ quality_gate_merge done in 25.5s
  ━━━ Node: issue_orchestrator_node ━━━
     · 10 triaged: can_follow_up=8, must_fix_before_ship=2
     ~ README.md
     ✓ issue_orchestrator_node done in 9.5s
  ━━━ Node: ship_node ━━━
     · shipped=False | commit=23f3b926 | push=pushed
     ✓ ship_node done in 0.0s

======================================================================
PIPELINE COMPLETE
======================================================================

⚠️  Pipeline ended with status: blocked
   Local workdir: ~/flowforge-workspace/tic-tac-toe-demo
   PR: https://github.com/<you>/tic-tac-toe-demo/pull/17

End-to-end runtime: ~2m with gpt-4o-mini.

What was produced

Eight commits on a fresh feature branch, all pushed to the new repo:

$ cd ~/flowforge-workspace/tic-tac-toe-demo && git log --oneline
23f3b92 (HEAD -> flowforge/run-20260606-000022) release: v1.0.0 — update README, CHANGELOG, version
ec46dbf docs: add triage report #1
52bee34 docs: add test coverage report #1
aa10a36 docs: add code review checkpoint 1
3dc284a docs: add security audit report #1
35233cb feat: implement 12 task artifact(s)
76322d9 docs: add implementation plan (tic-tac-toe-web-app.md)
e93d330 docs: add specification (tic-tac-toe-web-app.md)
1436664 (origin/main) chore: initial commit

A pull request is opened automatically against main with the triage summary as the PR body — listing must-fix issues, follow-ups, and artifact counts.

GitHub issues are filed for every finding, then the orchestrator dedupes and prioritizes them by severity and source.

Pipeline outcomes

Status	When	Behavior
succeeded	All gates clean	Tagged release pushed, PR opened, ready to merge
blocked	One or more must_fix_before_ship issues	Code still pushed to feature branch, PR still opened with issues called out as must-fix — quality gates inform the PR review, never silently drop work

Either way you get a feature branch, a pushed commit history, and a pull request you can review. The pipeline never blocks delivery of generated work — it just annotates it.

Architecture

START
  └─▶ clarification_node ─▶ spec_node ─▶ plan_node ─▶ task_fanout_router
                                                          │
                                                          ▼
                                                       task_node
                                                          │
                                                          ▼
                                                  quality_gate_join
                                       ┌──────────────────┼──────────────────┐
                                       ▼                  ▼                  ▼
                               code_review_node  security_audit_node  test_engineer_node
                                       └──────────────────┼──────────────────┘
                                                          ▼
                                                  quality_gate_merge
                                                          │
                                                          ▼
                                              issue_orchestrator_node
                                                          │
                                                          ▼
                                                      ship_node ─▶ END

All file writes, git commits, gh issue/label creation, and the final push happen with cwd=workdir, so the source repo of swe-forge is never touched.

Recent successful run

Fresh end-to-end run on v0.2.1 (build tic-tac-toe web app, gpt-4.1 via Copilot, --skip-github --no-studio):

  ━━━ Node: clarification_node ━━━     ✓ done in 18.5s
  ━━━ Node: spec_node ━━━               ✓ done in 34.5s
     · 8 acceptance criteria | stack: HTML5, CSS3, JavaScript (ES2020+)
  ━━━ Node: plan_node ━━━               ✓ done in 0.0s
     · 3 phases | 7 tasks | 7 deps
  ━━━ Node: task_fanout_router ━━━      ✓ done in 39.1s
     + 14 artifacts (package.json, vite.config.js, src/main.js, …)
  ━━━ Node: task_node ━━━               · succeeded=1 | 12 artifacts
  ━━━ Node: task_fanout_router ━━━      ✓ done in 66.7s
  ━━━ Node: task_node ━━━               · failed=1   (graceful — no abort)
  ━━━ Node: task_node × 5 ━━━           · skipped=1 (dependents)
  ━━━ Node: quality_gate_join ━━━       ✓ done in 11.4s
  ━━━ Node: test_engineer_node ━━━      · 0 findings (13.8s)
  ━━━ Node: security_audit_node ━━━     · 0 findings (0.9s)
  ━━━ Node: code_review_node ━━━        · 0 findings (0.0s)
  ━━━ Node: quality_gate_merge ━━━      ✓ done
  ━━━ Node: issue_orchestrator_node ━━━ ✓ done in 10.2s
  ━━━ Node: ship_node ━━━               · shipped=True | commit=d72862dd

======================================================================
PIPELINE COMPLETE — ✅ Success
======================================================================

Deep-agent recursion limits in task_node and code_review_node now degrade gracefully (failed task + trace) instead of aborting the entire run. See CHANGELOG.md [0.2.1] for details.

Development

git clone https://github.com/shashankswe2020-ux/flowforge && cd flowforge
pip install -e ".[dev]"

pytest tests/ -q                # full test suite (441 tests)
ruff check flowforge tests      # lint
mypy flowforge                  # type-check
python -m build                 # build wheel + sdist

Server logs go to ~/.flowforge/langgraph-dev.log. Config lives at ~/.flowforge/config.json. Workspaces at ~/flowforge-workspace/.
