Simple Web-based Interface for Scanner written in Python and JavaScript.

Project description

StaticPIE

Simple Web-based Interface for Scanner

Package version License

This is a simple web-based interface for scanners. It allows sharing the scanner via IP address, making it accessible by the web browser. The frontend interface allows users to crop the image and browse previously scanned images.

From a technical perspective, it is simply a SANE scanimage wrapper. There are quite many things to do to make it production (see TODO section).

Recently, printing and uploading features have been added. The uploading feature allows to upload documents to the server and then print them. This is useful when you want to print documents from your phone or other devices.

Features

  • Scanning to png, jpeg formats with provided DPI and color palette
  • Cropping scanned images
  • Creating PDF documents
  • Browsing scanned documents
  • Printing files
  • Uploading

Requirements

  • Linux
  • SANE (Scanner Access Now Easy) properly configured (scanimage tool)
  • OpenPrinting configured on server (lp tool)
  • convert tool for pdf creation
  • Python >= 3.8
  • [Optionally] NPM (for frontend development purpose)

Install and run (local user)

pip install swis
swis --ip localhost --port 5520

If successfully executed visit the http://localhost:5520 (Note: http (without s))

❗IMPORTANT❗ Change the IP (localhost above) to a proper host IP address if you want to access the scanner from other computers (or other devices).

Install and run (system service)

Prerequisites

This process requires root privileges, and you need to have Python>=3.8 installed. If the root user does't have the the pip installed, you will have to install it by running the below:

  • Fedora (and similar): sudo dnf install python3-pip
  • Ubuntu (and similar): sudo apt-get install python3-pip

Install and start service

sudo pip3 install swis
sudo swis --ip [HOST IP ADDRESS] --port 5520 -u [USER] -g [GROUP] service install
sudo swis service start

You can check the status by running: sudo swis service status

❗IMPORTANT❗ Change the IP ([HOST IP ADDRESS] above) to a proper host IP address, and [USER] and [GROUP] to a proper system user (owner of scanned documents).

Upgrade to new version

To upgrade swis to the new version following steps need to be performed (notice that config needs to be provided):

sudo swis service stop
sudo pip install -U swis
sudo swis --ip [HOST IP ADDRESS] --port 5520 -u [USER] -g [GROUP] service install
sudo swis service start

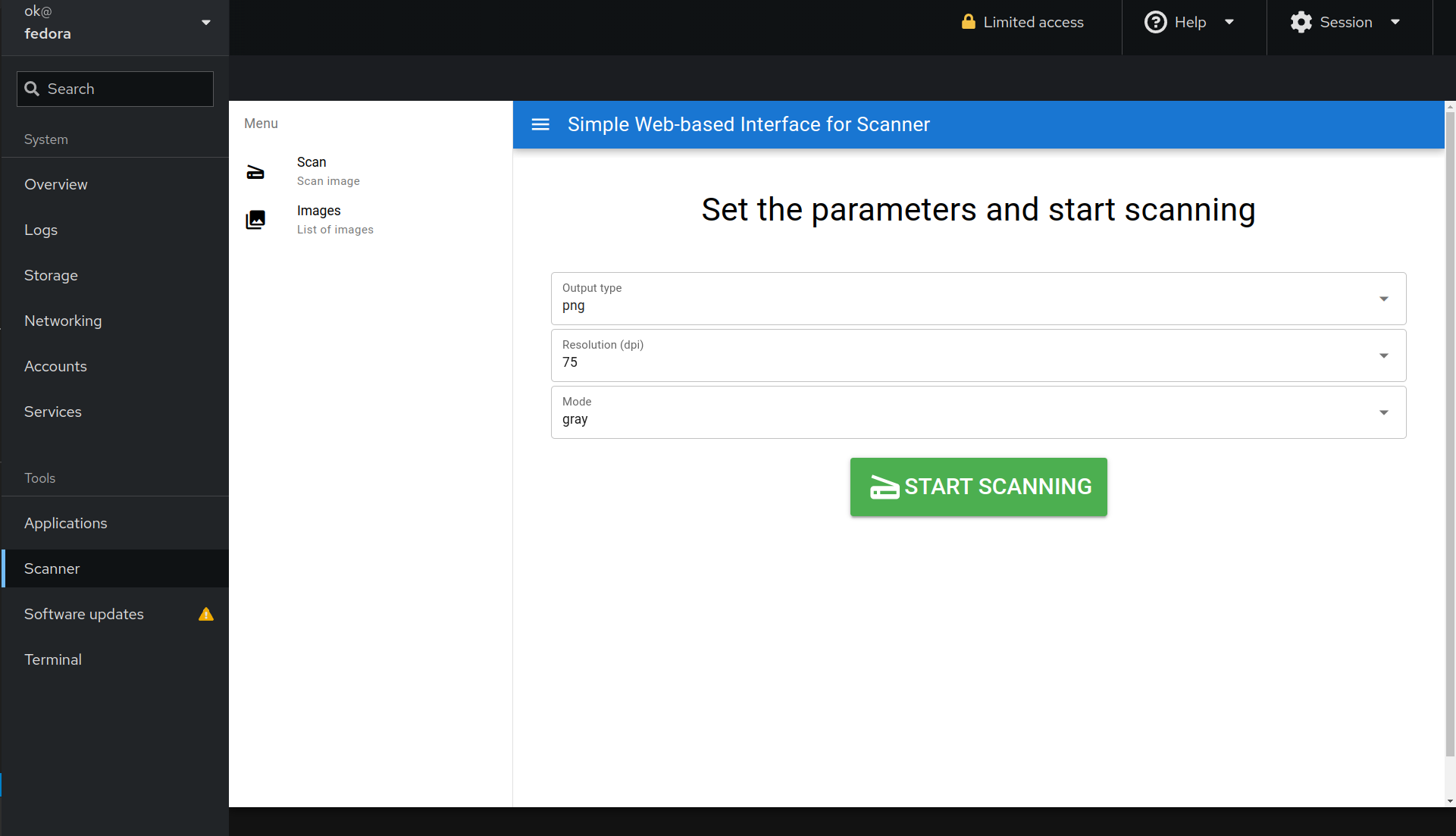

Cockpit

There is option to integrate SWIS with Cockpit. This feature is under early development.

Project is available at: https://github.com/rsusik/swis-cockpit

Screenshots

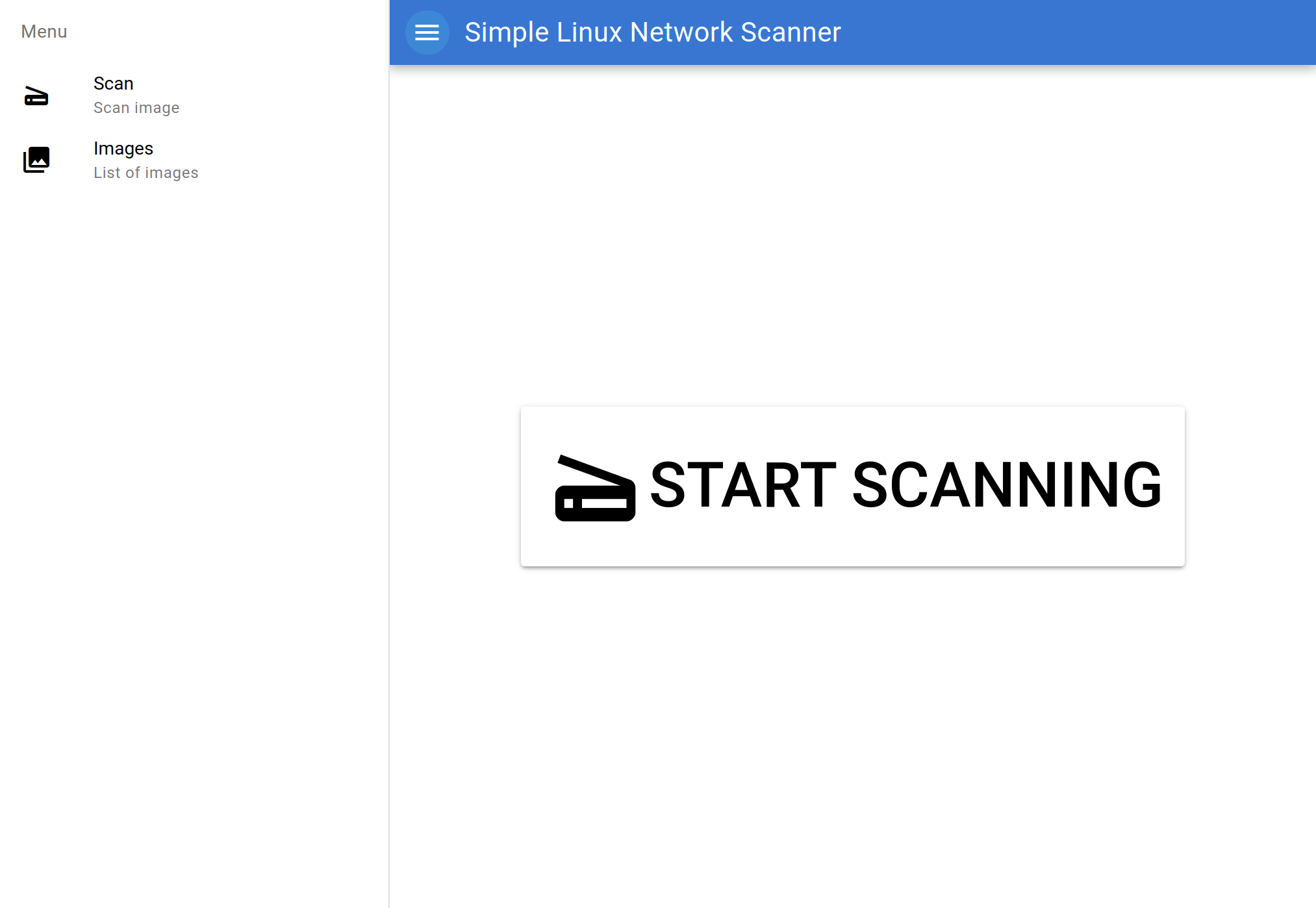

Welcome screen

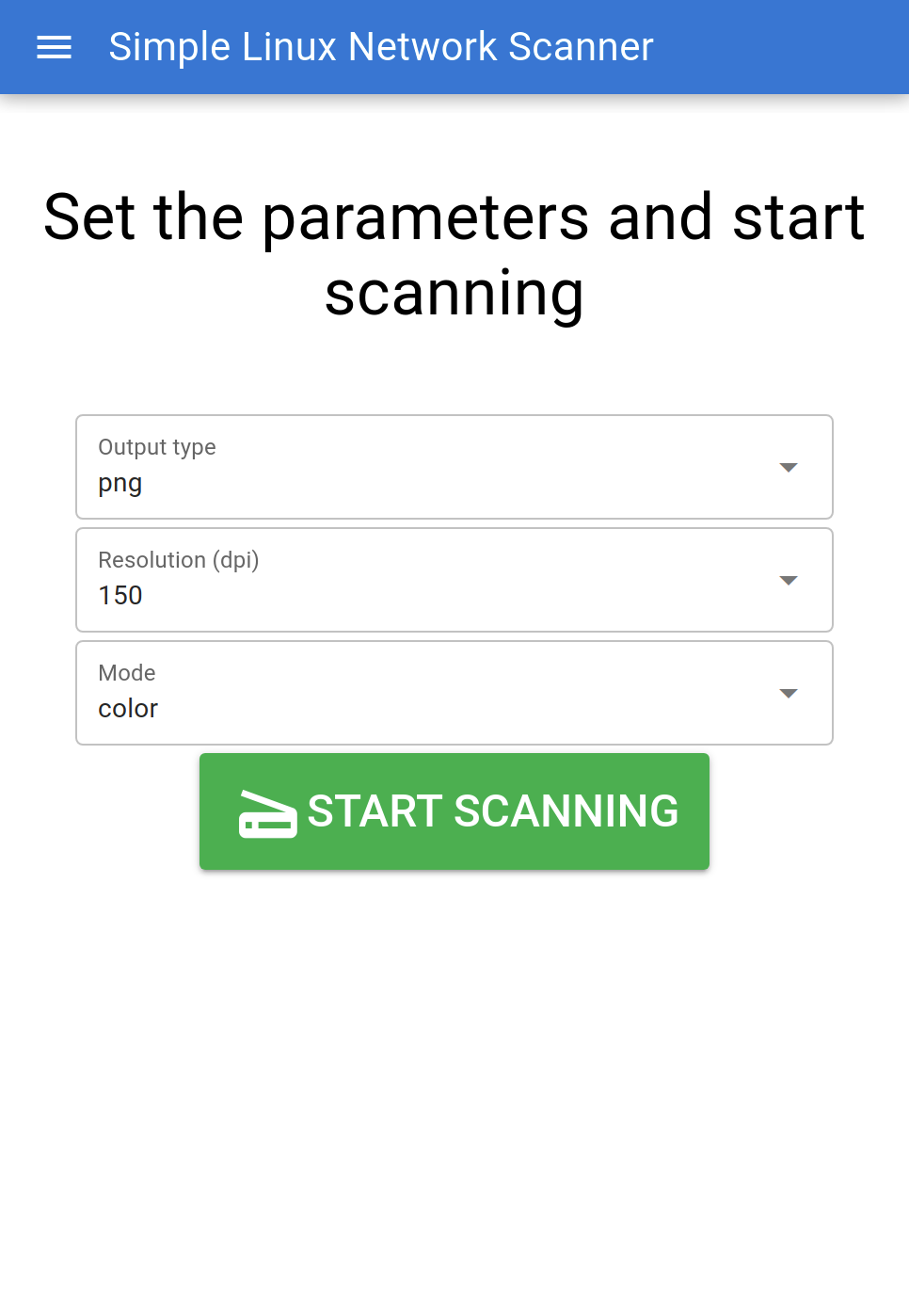

Scanning parameters

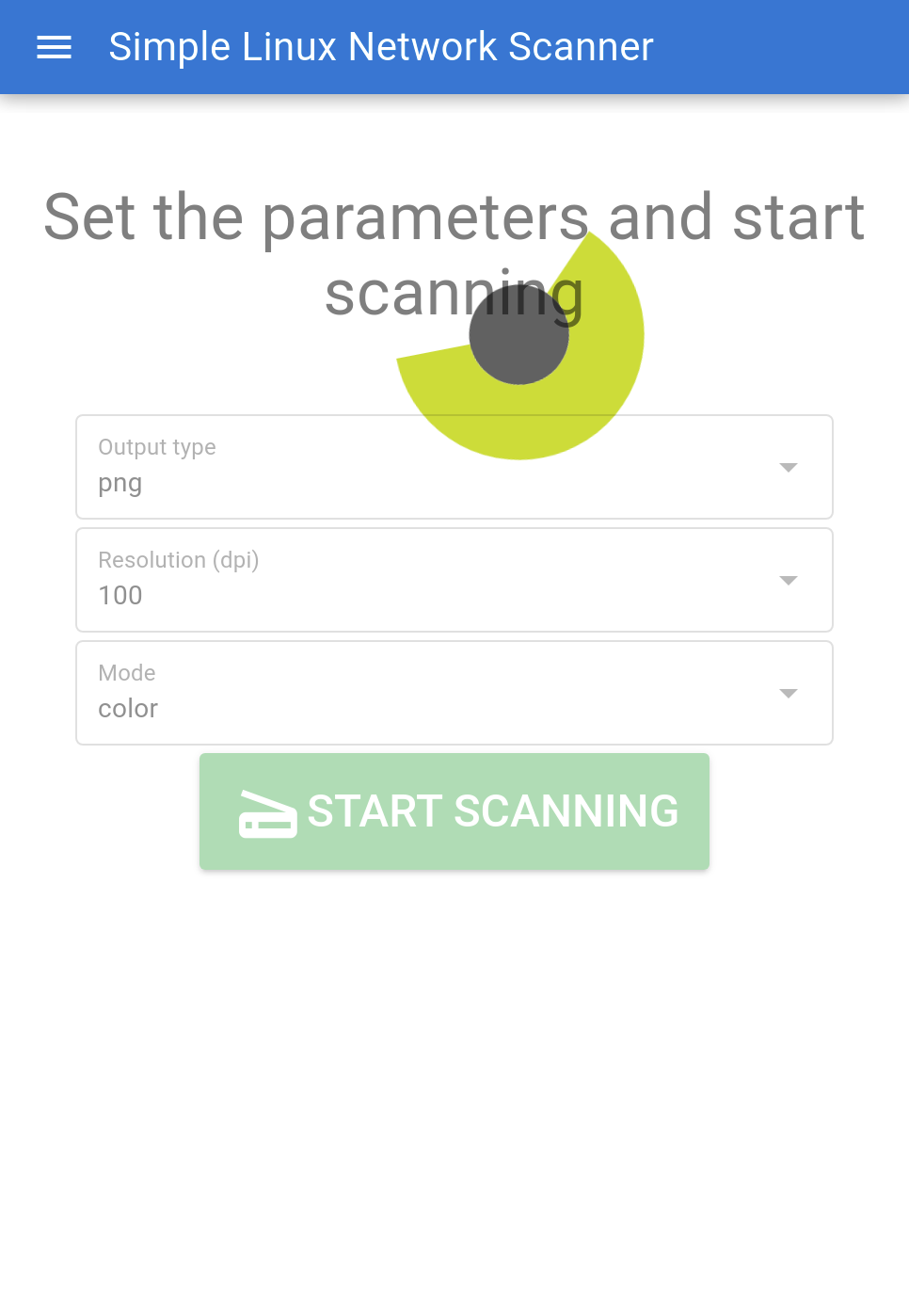

Scanning in progress

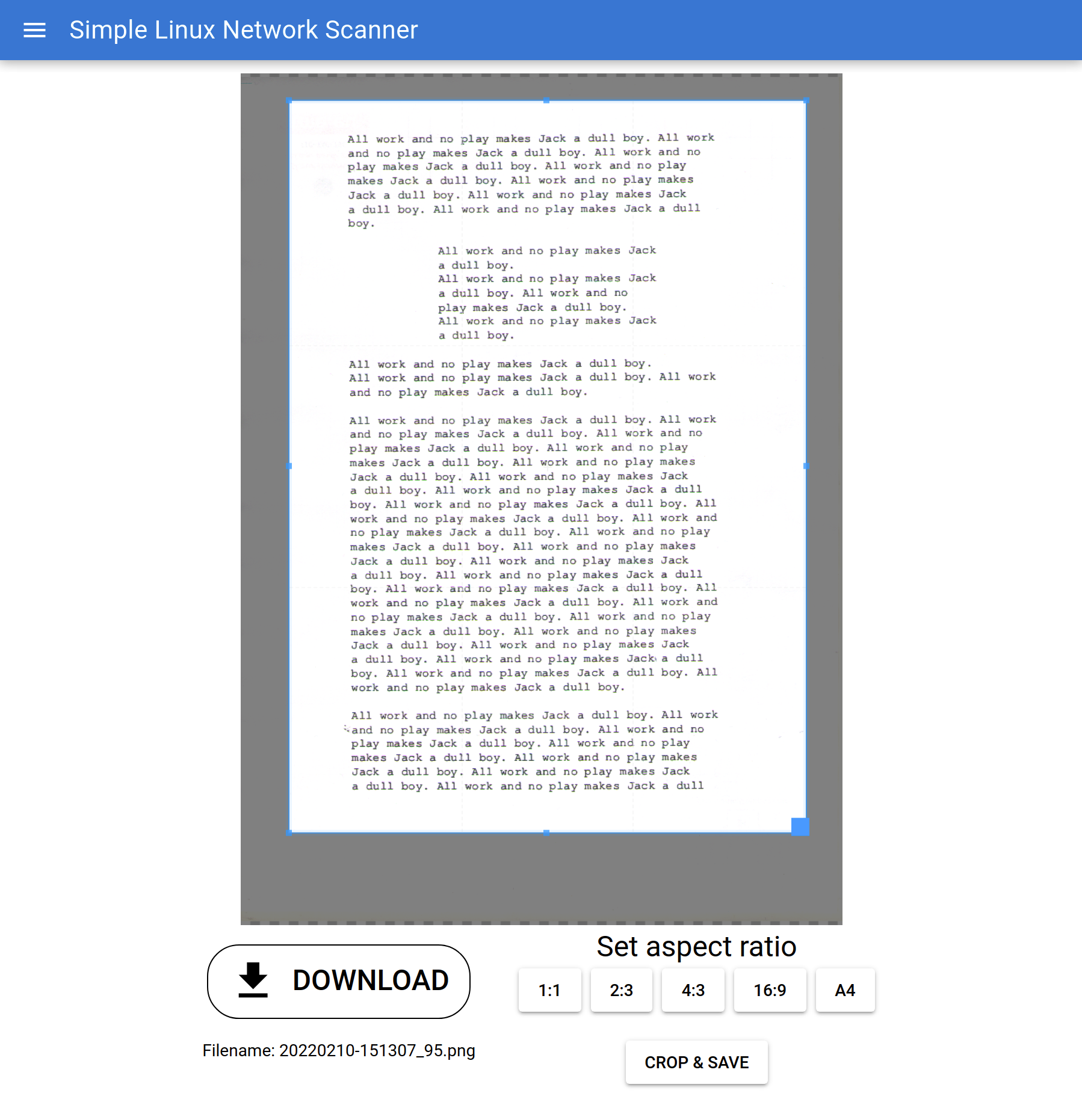

Cropping scanned image

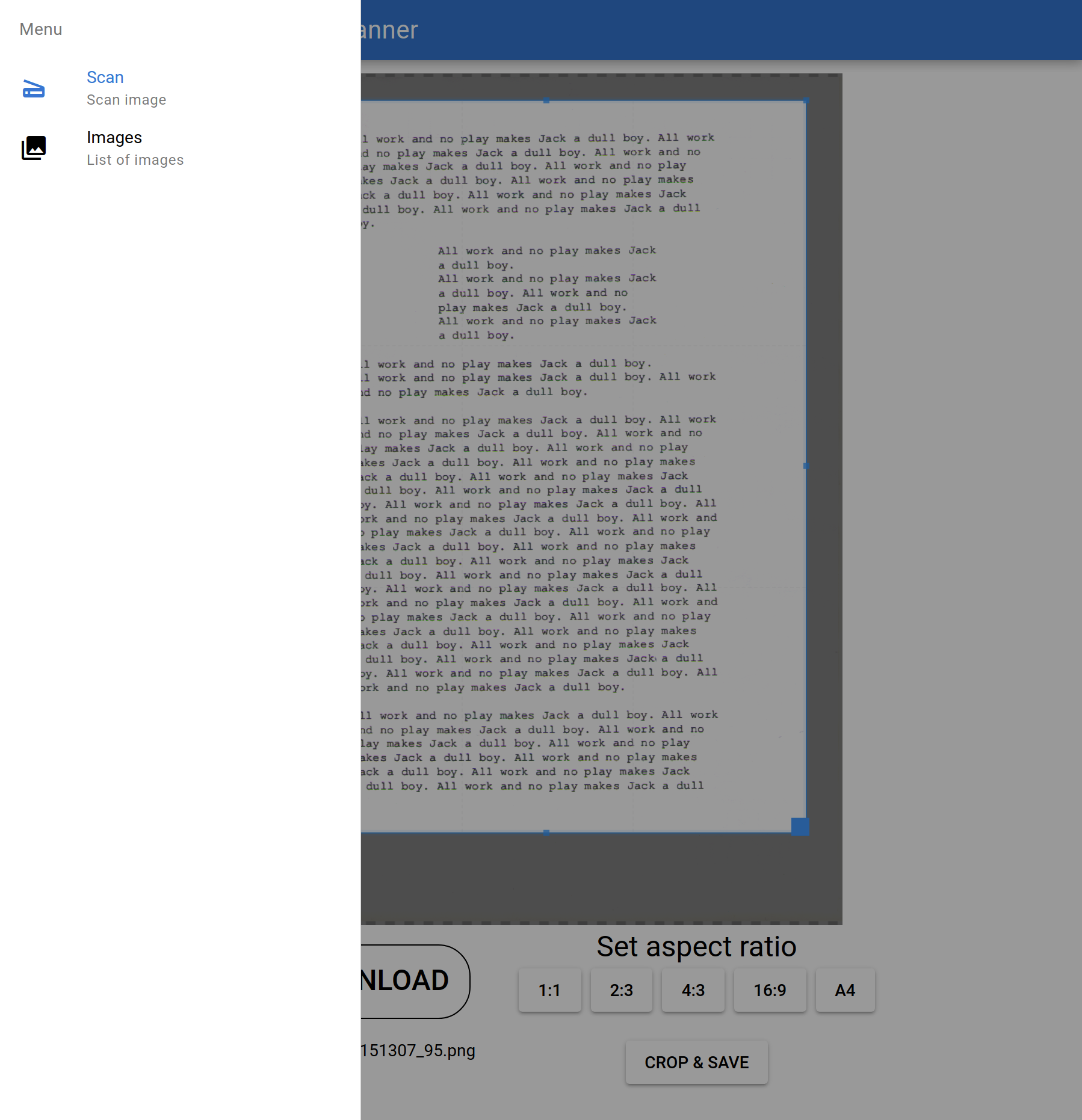

Side menu

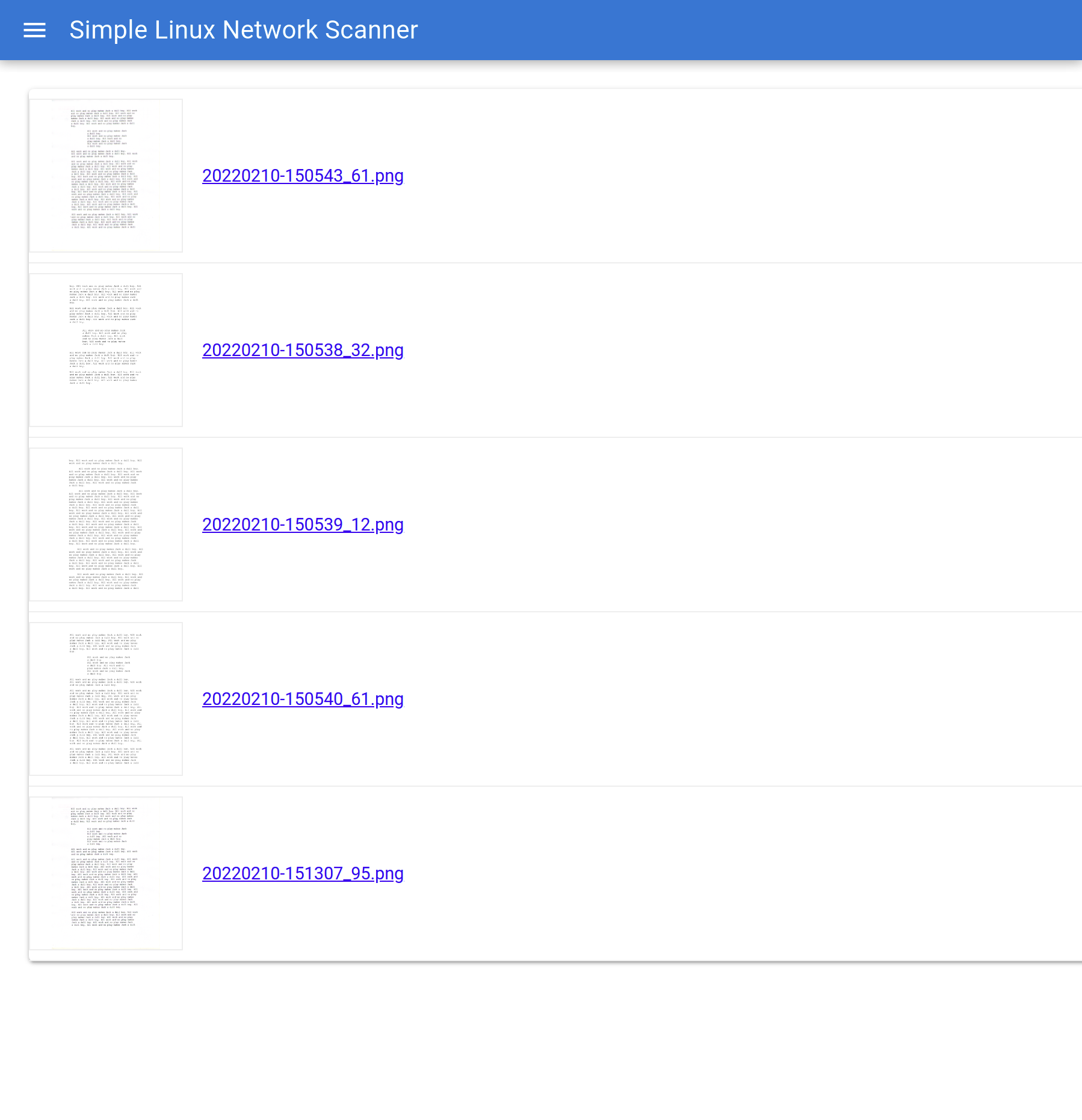

List of scanned images

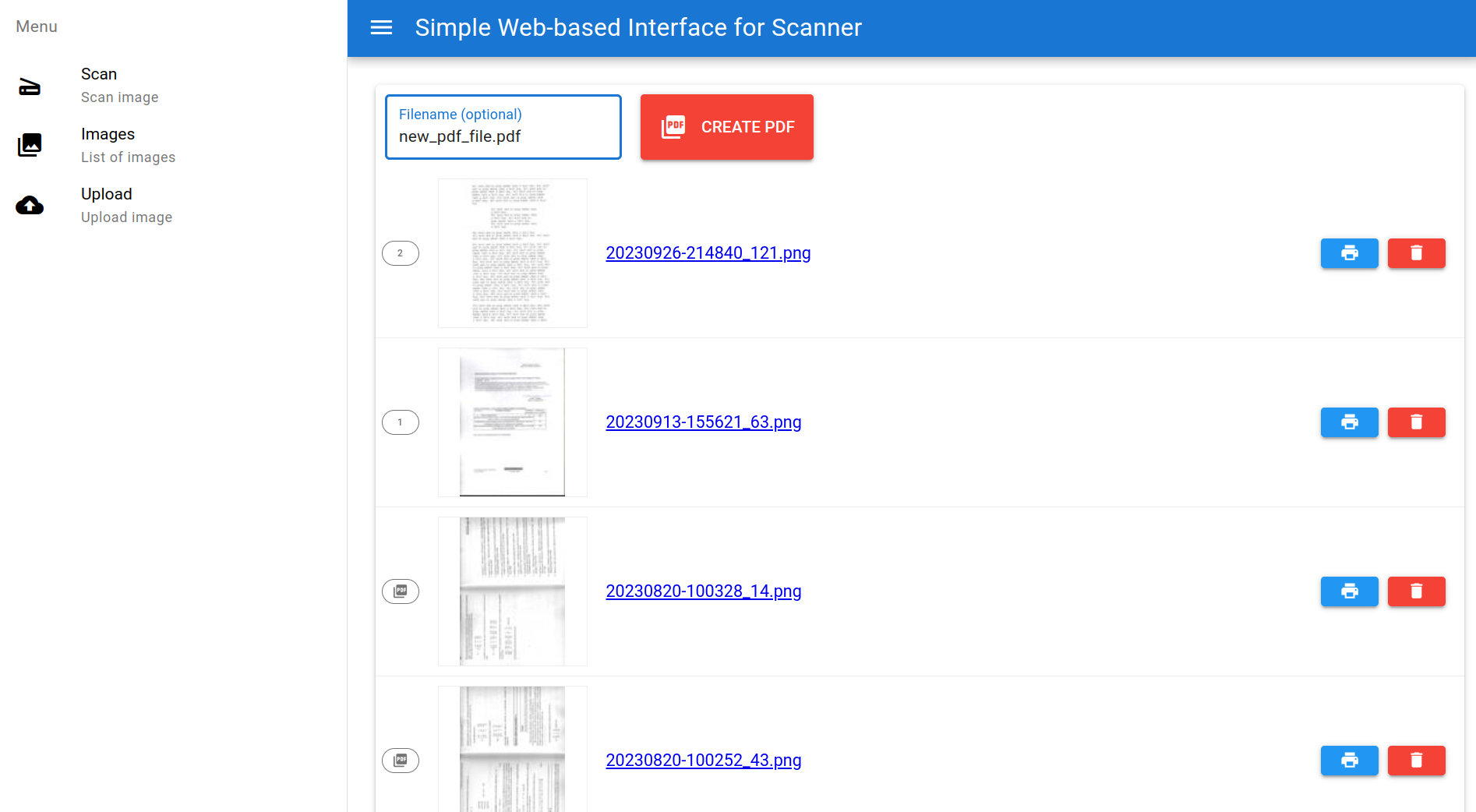

Creating PDF file from scanned documents

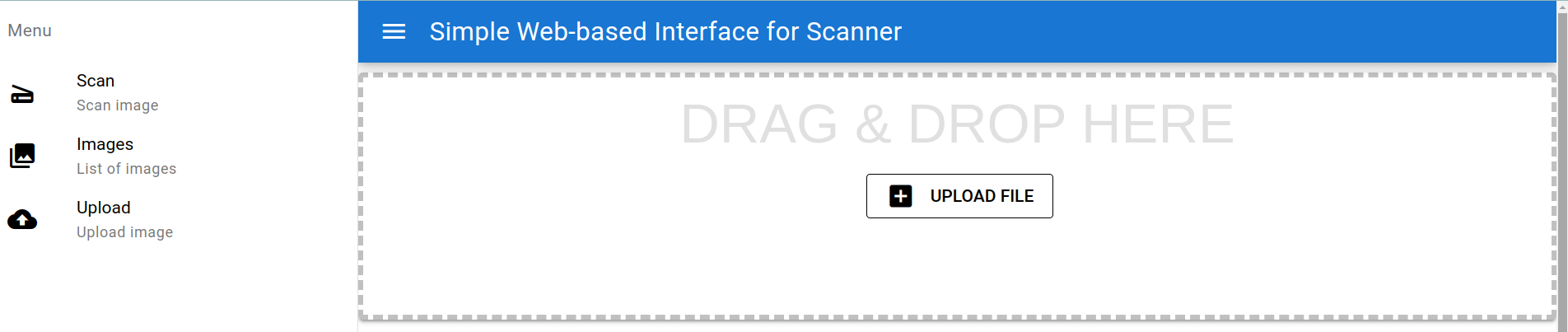

Uploading documents

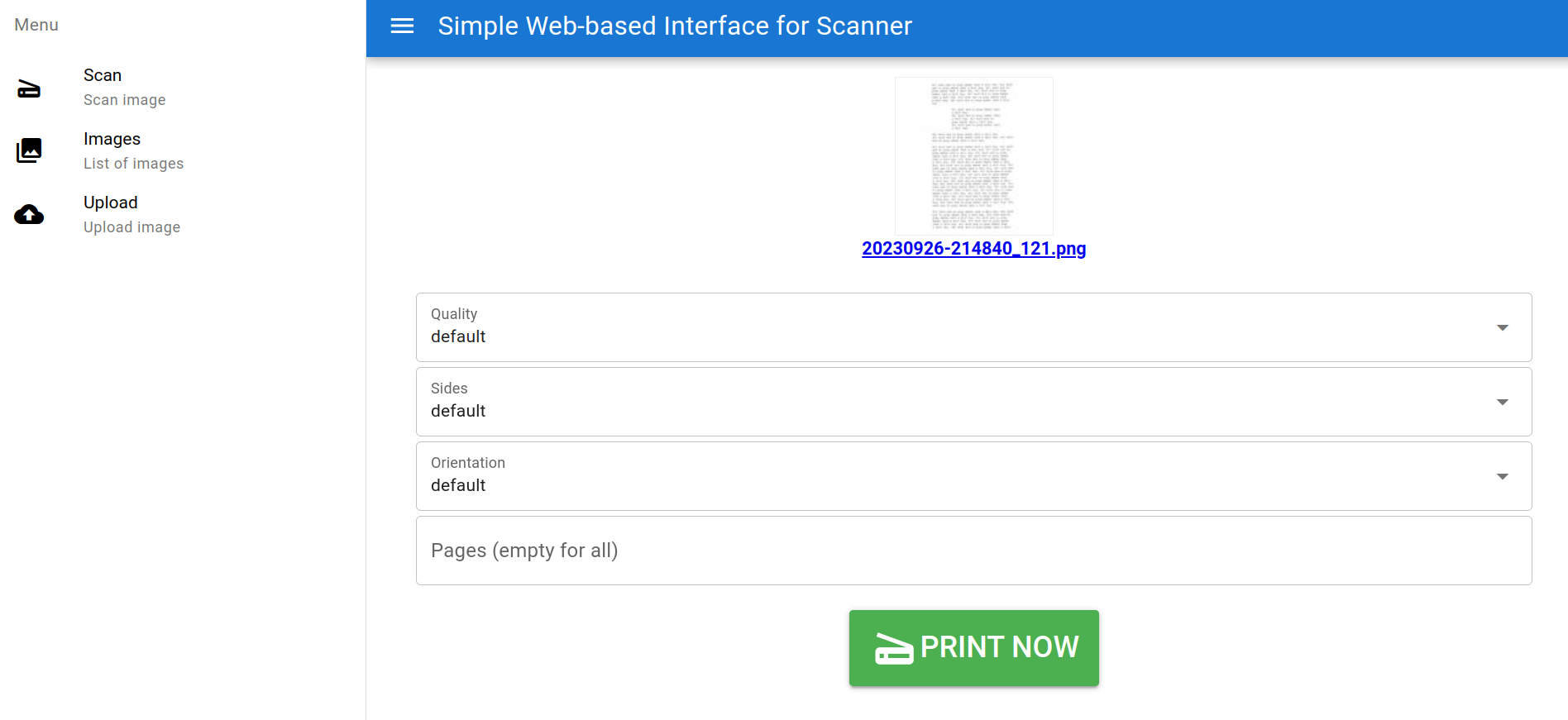

Printing documents
