Syndrilla

A PyTorch-based numerical simulator for decoders in quantum error correction.

Table of contents

• Syndrilla
  • Table of contents
  • Features
  • Installation
    • Option 1: pip installation
    • Option 2: source installation
  • Basic usage
    • 1. Run with command line arguments
    • 2. Input format and configurations
      • 2.1. Error module
      • 2.2. Syndrome module
      • 2.3. Matrix module
      • 2.4. Decoder module
      • 2.5. Logical check module
      • 2.6. Interface module
      • 2.7. Vote module
      • 2.8. Metric module
    • 3. Output format and metrics
      • 3.1. Per-decoder metrics
      • 3.2. Final metrics
    • 4. Resume from checkpoint
    • 5. Sweep configurations
  • Simulation results

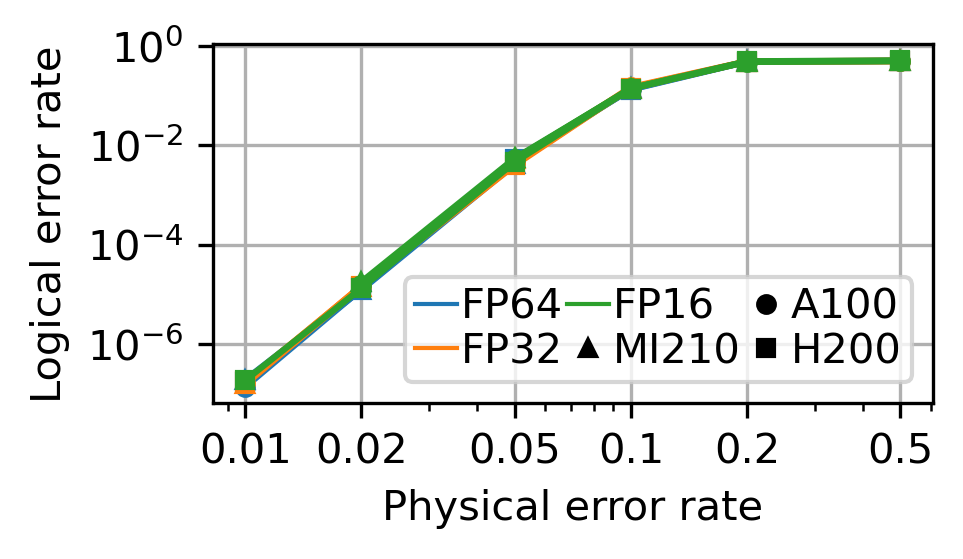

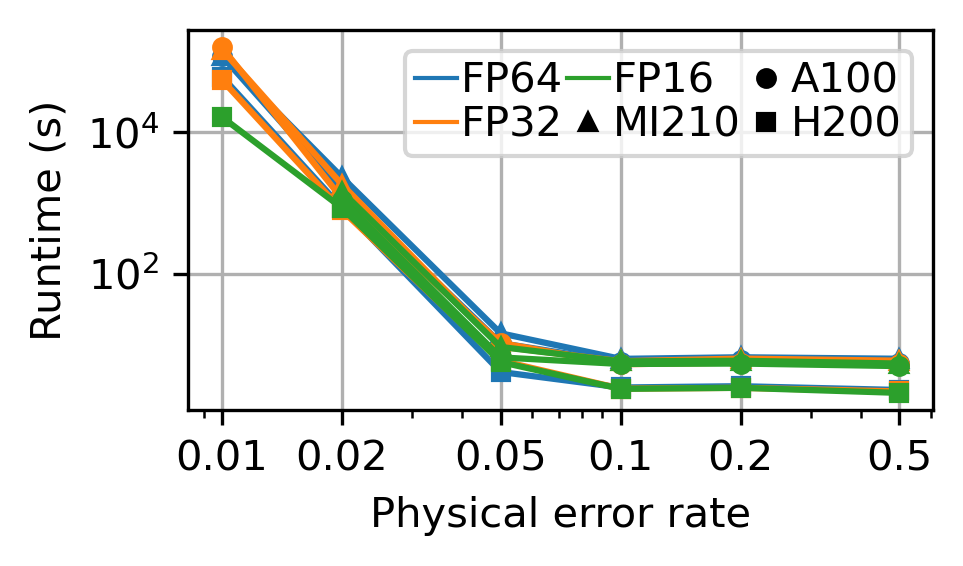

    • Comparison across GPUs

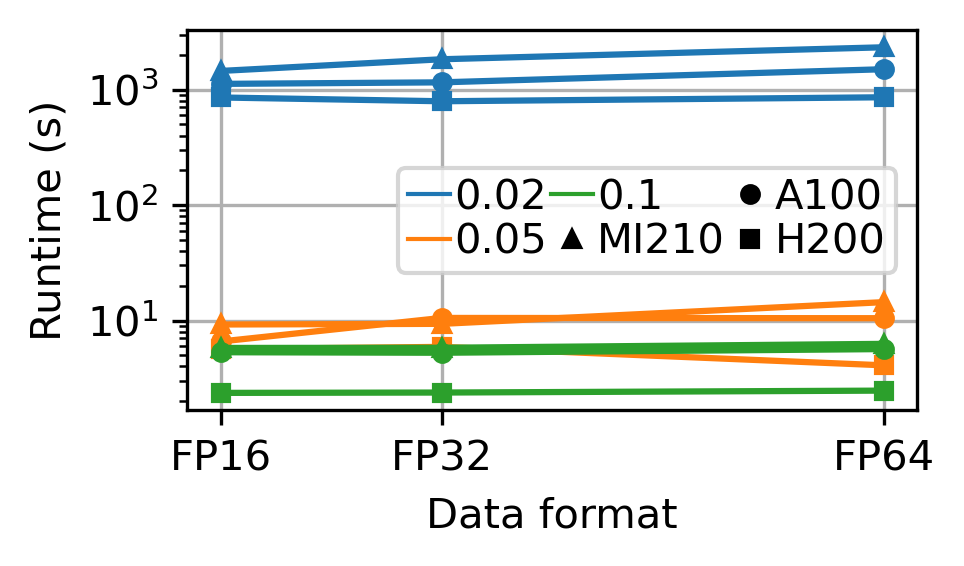

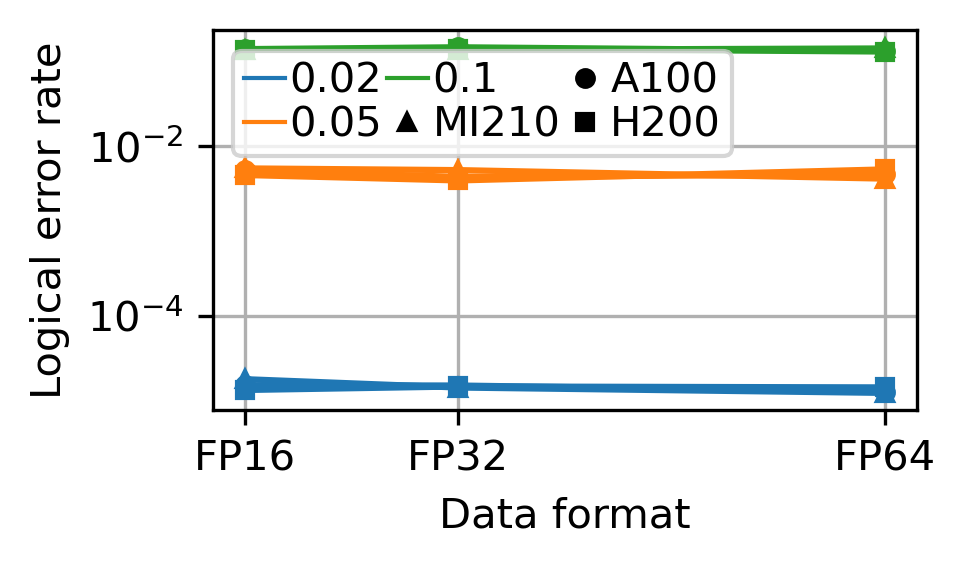

    • Comparison across data formats

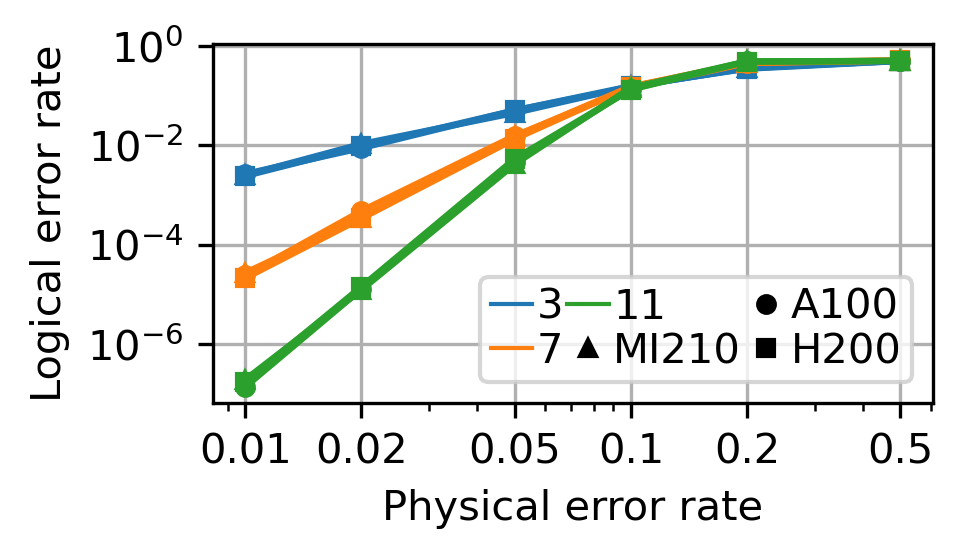

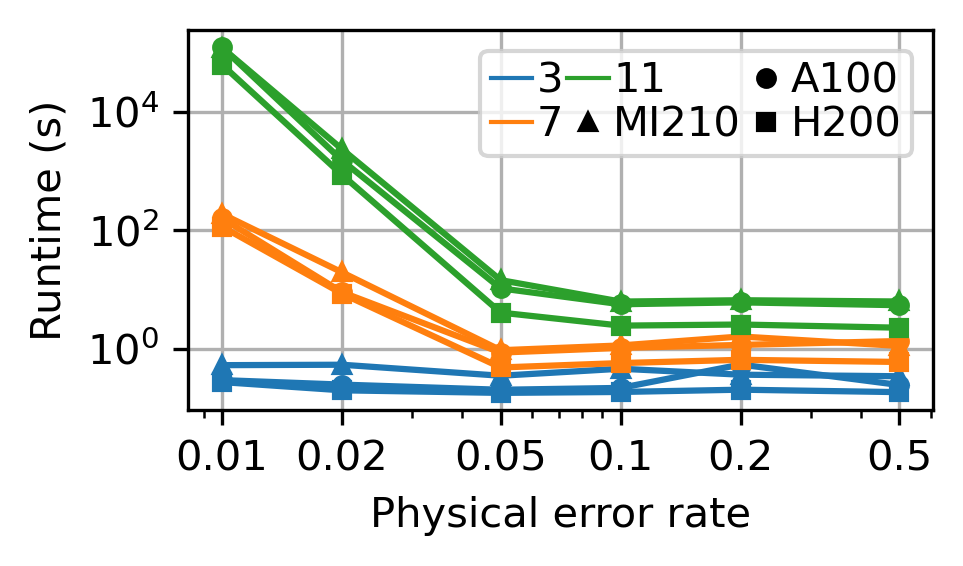

    • Comparison across distances

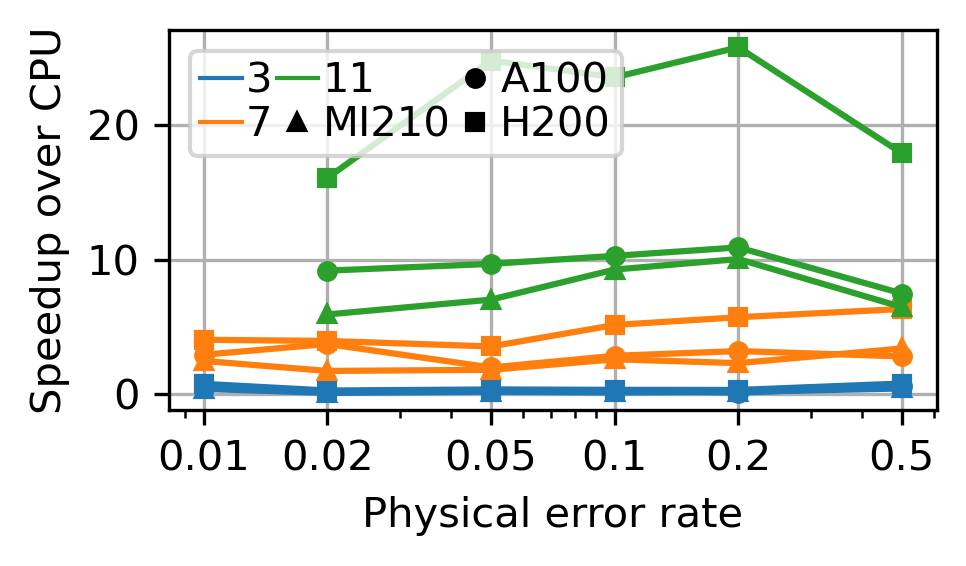

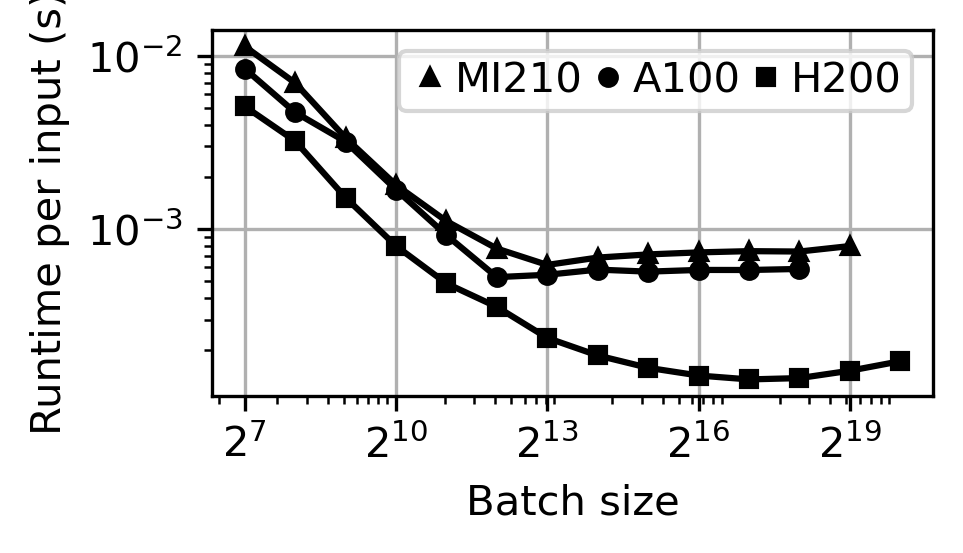

    • Comparison across batch sizes and against CPU
  • Citation
  • Contribution

Features

1. High modularity: easily customizing your own decoding algorithms and error models
2. High compatibility: cross-platform simulation on CPUs, GPUs, and even AI accelerators
3. High performance: showing 10-20X speedup on GPUs over CPUs
4. Community focus: support for standard BPOSD decoder and BP4 decoder
5. Flexible data format: support for FP16/BF16/FP32/FP64 simulation
6. Hardware awareness: support for quantization simulation
7. Fine-grained measurement: support for a broad range of metrics, with degeneracy errors highlighted
8. Multi-purpose: allowing researching new codes, new decoders, new error models, and beyond
9. Circuit-level simulation: support Stim for circuit-level modeling, enabling fair and reproducible benchmarking across different decoders and noise models

Installation

All provided installation methods allow running syndrilla in the command line and import syndrilla as a python module.

Make sure you have Anaconda installed before the steps below.

Option 1: pip installation

1. git clone this repo and cd to the repo dir.
2. conda env create -f environment.yaml
   • The name: syndrilla in evironment.yaml can be updated to a preferred one.
3. conda activate syndrilla
4. pip install syndrilla
5. Validate installation via syndrilla -h in the command line or import syndrilla in python code
   • If you want to validate the simulation results against BPOSD, you need to change python to version 3.10. Then install BPOSD and run python tests/validate_bposd.py

Option 2: source installation

This is the developer mode, where you can edit the source code with live changes reflected for simulation.

1. git clone this repo and cd to the repo dir.
2. conda env create -f environment.yaml
   • The name: syndrilla in evironment.yaml can be updated to a preferred one.
3. conda activate syndrilla
4. python3 -m pip install -e . --no-deps
5. Validate installation via syndrilla -h in the command line or import syndrilla in python code

Basic usage

1. Run with command line arguments

Syndrilla simulation can be done via command-line arguments. Below is an example command that runs a simulation using the BPOSD decoder:

syndrilla -r=tests/test_outputs
          -d=examples/alist/bposd_hx.decoder.yaml
          -e=examples/alist/bsc.error.yaml
          -c=examples/alist/lx.check.yaml
          -s=examples/alist/perfect.syndrome.yaml
          -bs=10000
          -te=1000

Following is a table for detailed explaination on each command line arguments:

Argument	Description	Example
-r	Path to store outputs	-r=tests/test_outputs
-d	Path to decoder YAML file	-d=examples/alist/bposd_hx.decoder.yaml
-e	Path to error model YAML file	-e=examples/alist/bsc.error.yaml
-c	Path to check matrix YAML file	-c=examples/alist/lx.check.yaml
-s	Path to syndrome extraction YAML file	-s=examples/alist/perfect.syndrome.yaml
-ckpt	Path to checkpoint YAML file to resume	-ch=result_phy_err.yaml
-bs	Number of samples in each batch	-bs=10000
-te	Total number of errors to stop decoding	-te=1000
-l	Level of logger	-l=SUCCESS

2. Input format and configurations

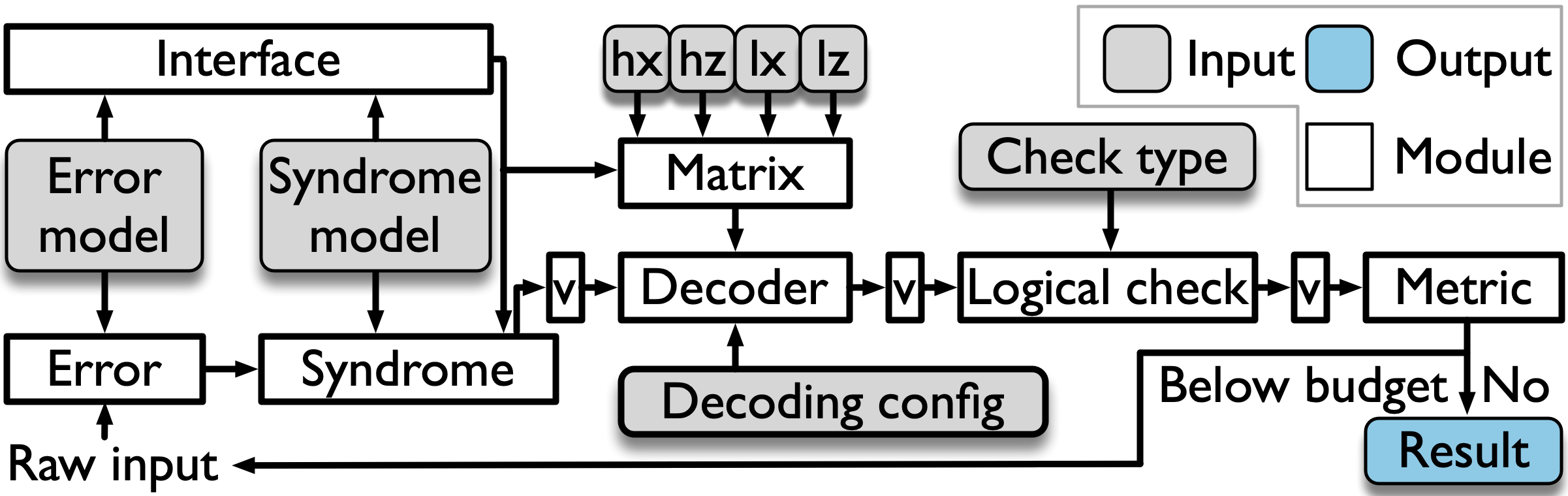

Syndrilla virtualizes the full decoder pipeline of data encoding, syndrome measurement, error decoding into five modules: error, syndrome, decoder, logical check, and metric, as shown in the figure above. All configurations are defined through YAML files. Each module requires its own dedicated YAML configuration file, with the exception of the metric module.

2.1. Error module

The error YAML file defines all configuration parameters associated with the error model. It currently supports a 1-channel Binary Symmetric Channel (BSC) error model, as well as 2-channel error models for both depolarizing noise and BSC. An example error configuration file using the Binary Symmetric Channel (BSC) model is provided in bsc.error.yaml:

error:
  model: bsc
  number_channel: 1
  device:
    device_type: cpu
    device_idx: 0
  rate: 0.05

The following table details the configuration parameters used in the error YAML file.

Key	Description	Example
error.model	Type of quantum error model applied to data qubits	bsc or depol
error.number_channel	The number of error channel applied to quantum circuit	1 or 2
error.device.device_type	Type of the device where the error injection will happen	cpu or cuda
error.device.device_idx	Index of the device where the error injection will happen. This option only works when device_type = cuda.	0
error.rate	Physical error rate	0.05

The following table details all types of error model Syndrilla supports. (Using different error model may need different configuration format, which will be shown on Error module.)

Error Model	Number of channels	Example
Binary Symmetric Channel (BSC)	Both 1 and 2	bsc
Depolarizing Channel	2	depol

2.2. Syndrome module

The syndrome YAML file defines all configuration parameters associated with the syndrome measurement. An example configuration file that assumes ideal (error-free) syndrome measurements is provided in perfect.syndrome.yaml:

syndrome:
  measure: perfect

The following table details the configuration parameters used in the syndrome module YAML file.

Key	Description	Example
syndrome.measure	Model for syndrome measurement	perfect, phenomenological, or stim

The following table details all types of syndrome measurement Syndrilla supports. (Using different syndrome measurement model may need different configuration format, which will be shown on Syndrome module.)

Syndrome model	Description	Example
Perfect	Ideal (error-free) syndrome measurement: returns H * e mod 2	perfect
Phenomenological	Replicates the true syndrome over rounds and flips each bit with probability measurement_error_rate	phenomenological
Stim	Circuit-level syndrome sampler driven by a stim circuit (used with the stim interface)	stim

2.3. Matrix module

The matrix YAML file defines all configuration parameters associated with the matrix processing. Syndrilla accepts matrix from:

1. .alist format introduced by David MacKay, Matthew Davey, and John Lafferty, which contains a sparse matrix.
2. .npz format from NumPy, which contains a sparse matrix.
3. .txt format containing a dense 2D matrix. Each row represents a check node of the H matrix, in which each 1 entry denotes a connecting variable node to that check node.

An example matrix configuration file that loads a matrix from a alist file is provided in hx.matrix.yaml:

matrix:
  file_type: alist
  path: examples/alist/surface/surface_10_hx.alist

The following table details the configuration parameters used in the matrix module YAML file.

Key	Description	Example
matrix.file_type	Format of the parity-check matrix file	alist, npz, txt, or stim
matrix.path	Path to the parity-check matrix file (file-based formats)	examples/alist/surface/surface_10_hx.alist

The following table details all matrix formats Syndrilla supports. (Using different matrix formats may need different configuration format, which will be shown on Matrix module.)

Matrix format	Description	Example
alist	Sparse format from MacKay/Davey/Lafferty; lists nonzero neighbor indices per check node	alist
npz	NumPy/SciPy compressed archive containing a sparse parity-check matrix	npz
txt	Plain-text dense 2D matrix; each row is a check node with 1s marking connected variable nodes	txt
stim	Built directly from a stim circuit's detector error model; selects either the check (H) or observable (L) matrix	stim

2.4. Decoder module

The decoder YAML file defines all configuration parameters associated with the decoder. An example decoder configuration file is provided in bposd_hx.decoder.yaml:

decoder:
  algorithm: [bp_norm_min_sum, osd_0]
  check_type: hx
  max_iter: 131
  parity_matrix_hx: examples/alist/hx.matrix.yaml
  parity_matrix_hz: examples/alist/hz.matrix.yaml
  dtype: float64
  device:
    device_type: cuda
    device_idx: 0
  logical_check_matrix: True
  logical_check_lx: examples/alist/lx.matrix.yaml
  logical_check_lz: examples/alist/lz.matrix.yaml

The following table details the configuration parameters used in the decoder module YAML file.

Key	Description	Example
decoder.algorithm	List of decoding algorithms used	[bp_norm_min_sum, osd_0]
decoder.check_type	Type of parity-check matrix used	hx or hz
decoder.device.device_type	Type of the device where the decoding will happen	cpu or cuda
decoder.device.device_idx	Index of the device where the decoding will happen. This option only works when device_type = cuda.	0
decoder.max_iter	Maximum number of decoding iterations for iterative algorithms	131
decoder.parity_matrix_hx	Path to the X-type parity-check matrix in YAML format	examples/alist/hx.matrix.yaml
decoder.parity_matrix_hz	Path to the Z-type parity-check matrix in YAML format	examples/alist/hz.matrix.yaml
decoder.dtype	Data type for decoding computations	float32, float64
decoder.logical_check_matrix	Whether logical check matrices are provided. If not provided, the decoder is supposed to compute these logical check matrices based from parity-check matrices.	True or False
decoder.logical_check_lx	Path to the X-type logical check matrix in YAML format	examples/alist/lx.matrix.yaml
decoder.logical_check_lz	Path to the Z-type logical check matrix in YAML format	examples/alist/lz.matrix.yaml

The following table details the different types of decoding algorithms Syndrilla supports. (Using different decoder may need different configuration format, which will be shown on Decoder module.)

Error Model	#Channel	Example	Reference
Min-Sum Belief Propagation (Min-Sum BP)	1	bp_norm_min_sum	Factor Graphs and the Sum-Product Algorithm
Branch-Assisted Sign-Flipping Belief Propagation (BSFBP)	1	bp_branch_assisted	Branch-Assisted Sign-Flipping Belief Propagation Decoding for Topological Quantum Codes Based on Hypergraph Product Structure
Ordered Statistics Decoding (OSD)	1	osd_0	Soft-Decision Decoding of Linear Block Codes Based on Ordered Statistics
Quaternary Belief Propagation (BP4)	2	bp4	Quaternary Neural Belief Propagation Decoding of Quantum LDPC Codes with Overcomplete Check Matrices

2.5. Logical check module

The check YAML file defines all configuration parameters associated with the computation of logical check error rates. An example configuration file for computing the logical check error rate using the lx matrix is provided in lx.check.yaml.

check:
  check_type: lx

The following table provides a detailed explanation of the configuration parameters used in the check module YAML file.

Key	Description	Example
check.check_type	Method used on logical check computation	lx or lz

2.6. Interface module

This module can be used with a quantum circuit simulator such as Stim to generate circuits that include various types of errors. An example configuration file using Stim is provided in stim_generated.interface.yaml. (Using interface will cause other modules having different format, which will be shown on Interface module.)

interface:
  backend: stim
  device:
    device_type: cpu
    device_idx: 0
  dtype: float64

The following table provides a detailed explanation of the configuration parameters used in the check module YAML file.

Key	Description	Example
interface.backend	The quantum circuit simulator is used	stim
interface.device.device_type	Type of the device where the output result will be processed	cpu or cude
interface.device.device_idx	The indice of the device where the output result will be processed	0
interface.dtype	The data type which the output result will be set as	0

2.7. Vote module

This module does not take any YAML file as inputs, it will specified by -vs option. For example, decoder_0 will do the majority voting on the output result of first decoder.

2.8. Metric module

This module does not take any YAML file as inputs, it will report default metrics as output, which will be described in the output.

3. Output format and metrics

The result YAML file will be saved to the path specified by the -r option. In the example above, the result YAML file can be found in the tests/test_outputs folder. This file includes both the metric results for each decoder and a summary of the full decoding. Additionally, the result YAML file is updated every 100 batches, allowing Syndrilla to resume the simulation from the last checkpoint if the error budget was not reached in the previous run.

Example output of running above code:

decoder_0:
  algorithm: bp_norm_min_sum
  decoder invoke rate: 1.00000000000000000e+00
  average iteration: 1.79144704761904791e+02
  distribution: [1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4,
    4, 5, 6, 7, 14, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242,
    242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242,
    242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242,
    242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242,
    242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242, 242]
  total time (s): '1.53461852073669434e+01'
  average time per batch (s): '7.30770724160330620e-01'
  average time per sample (s): '7.30770724160330684e-05'
  average time per iteration (s): '4.07948710925328149e-07'
  hx:
    data qubit accuracy: 9.81257221566312232e-01
    data qubit correction accuracy: 6.69583968602863844e-01
    data frame error rate: 7.78004761904761977e-01
    syndrome frame error rate: 7.36490476190476140e-01
    logical error rate: 7.36661904761904740e-01
    converge failure rate: 1.71428571428571425e-04
    converge success rate: 2.63338095238095149e-01
decoder_1:
  algorithm: osd_0
  decoder invoke rate: 7.36490476190476140e-01
  average iteration: 2.36568818167190017e+02
  distribution: [1, 227, 229, 230, 230, 231, 231, 232, 232, 233, 233, 233, 233, 234,
    234, 234, 234, 234, 234, 235, 235, 235, 235, 235, 235, 235, 236, 236, 236, 236,
    236, 236, 236, 236, 236, 236, 236, 236, 236, 237, 237, 237, 237, 237, 237, 237,
    237, 237, 237, 237, 237, 237, 237, 238, 238, 238, 238, 238, 238, 238, 238, 238,
    238, 238, 238, 238, 238, 239, 239, 239, 239, 239, 239, 239, 239, 239, 239, 239,
    239, 239, 239, 239, 239, 239, 239, 239, 239, 239, 239, 239, 239, 239, 239, 239,
    239, 239, 239, 239, 239, 239, 239]
  total time (s): '1.02458470344543457e+02'
  average time per batch (s): '4.87897477831159332e+00'
  average time per sample (s): '4.87897477831159237e-04'
  average time per iteration (s): '2.06239091821614230e-06'
  hx:
    data qubit accuracy: 9.83180617866981299e-01
    data qubit correction accuracy: 7.11704897881009879e-01
    data frame error rate: 5.94433333333333369e-01
    syndrome frame error rate: 0.00000000000000000e+00
    logical error rate: 4.87619047619047580e-03
    converge failure rate: 4.87619047619047580e-03
    converge success rate: 9.95123809523809744e-01
decoder_full:
  batch size: 10000
  batch count: 21
  target error: 1000
  target error reached: 1024
  data type: torch.float64
  physical error rate: 5.00000000000000028e-02
  total time (s): '1.17804655551910400e+02'
  H matrix: /home/ya212494/code/syndrilla/examples/alist/toric/toric_11_hx.alist
  hx:
    logical error rate: 7.36661904761904740e-01

3.1. Per-decoder metrics

Since Syndrilla supports a sequence of decoding algorithms, there are two types of output metrics: (1) per-decoder metrics for each individual decoder, and (2) final metrics after all decoders.

The following table provides a detailed explanation of the metrics in the output YAML file for per-decoder metrics:

Metric	Description
algorithm	Name of the decoding algorithm used (e.g., bp_norm_min_sum, osd_0)
data qubit accuracy	Ratio of correctly matched data qubits over all data qubits
data qubit correction accuracy	Ratio of correctly identified data qubit errors
data frame error rate	Ratio of samples with any data qubit mismatched
syndrome frame error rate	Ratio of samples with any syndrome mismatched
logical error rate	Ratio of samples that have a logical error
converge failure rate	Ratio of samples that successfully converge with a logical error
converge success rate	Ratio of samples that successfully converge without a logical error
decoder invoke rate	Ratio of samples for which the decoder is invoked
average iteration	Average number of iterations per sample
distribution	Distribution of iterations at 1% interval
total time (s)	Total time taken by the decoder in seconds
average time per batch (s)	Average time taken per batch in seconds
average time per sample (s)	Average time taken per sample in seconds
average time per iteration (s)	Average time per iteration per sample in seconds

3.2. Final metrics

The following table provides a detailed explanation of the metrics in the output YAML file for final metrics:

Metric	Description
H matrix	Path to the parity-check matrix used
batch size	Number of samples in each batch
batch count	Total number of batches
target error	Total number of errors to stop decoding
target error reached	Actual number of logical errors observed
data type	Floating point data used
physical error rate	Physical error rate
logical error rate	Logical error rate across all samples
total time (s)	Total simulation time across all batches in seconds

Note that the time metric here only considers the decoding time.

To change the configuration of the simulator, user need to update the YAML files. For example, if you want to use a different physical error rate, you need to find the input error YAML (e.g., examples/alist/bsc.error.yaml) and update the rate field.

4. Resume from checkpoint

If previous run is terminated by accident, the simulation can resume by setting -ckpt to the checkpoint YAML file, the results of a previous run (e.g., tests/test_outputs=result_phy_err_0.01.yaml).

syndrilla -r=tests/test_outputs
          -d=examples/alist/bposd_hx.decoder.yaml
          -e=examples/alist/bsc.error.yaml
          -c=examples/alist/lx.check.yaml
          -s=examples/alist/perfect.syndrome.yaml
          -bs=10000
          -te=1000
          -ckpt=tests/test_outputs=result_phy_err_0.01.yaml

5. Sweep configurations

Syndrilla also allows sweeping configurations during simulation, which is done in the zoo folder. To generate all the configurations in the zoo directory, user can use the generate_sweeping_configs.py script.

python zoo/script/generate_sweeping_configs.py

The configurations to sweep are specified in the sweeping_configs.yaml file. It allows specifying decoder (decoder algorithm), code (code type), probability (physical error rate), check_type (check type), distance (code distance), and dtype (data type). Below is an example:

decoder: [bposd]
code: [surface, toric]
probability: [0.001, 0.002, 0.005, 0.01, 0.02, 0.05, 0.1, 0.2, 0.5]
check_type: [hx, hz]
distance: [3, 5, 7, 9, 11, 13]
dtype: ['bfloat16', 'float16', 'float32', 'float64']

Note that currently supported data format includes ['bfloat16', 'float16', 'float32', 'float64'].

Once all configurations are prepared, you can see the corresponding folders in the zoo, and you can now sweep the simulation using the run_sweeping.py script. This command will generate a corresponding result YAML file within each configuration folder. Moreover, if a result YAML file already exists and simulation is terminated by accident, running the script again will, by default, automatically resume from the checkpoint, where the simulated is terminated.

python zoo/script/run_sweeping.py -r=zoo/bposd_sweeping/ -d=bposd

There are command line arguments to control the script, allowing you to specify the configuration path, select the decoder, define batch sizes, and adjust logging verbosity.

Argument	Description	Example
-r	Path to configuration folder	-r=zoo/bposd_sweeping/
-d	Decoder algorithm to run	-d=bposd
-bs	Number of samples run each batch	-bs=10000
-l	Level of logger	-l=SUCCESS

Simulation results

We show some of the simulation results as below. These results show the impact of data format, code distance, physical error rate, and hardware on logical error rate and runtime.

GPUs: AMD Insticnt MI210, NVIDIA A100, NVIDIA H200

CPU: Intel i9-13900K

Comparison across GPUs

Accuracy

Time

Comparison across data formats

Accuracy

Time

Comparison across distances

Accuracy

Time

Comparison across batch sizes and against CPU

Time	Speedup over CPU

Citation

If you use Syndrilla in your research, please cite the following papers:

@article{2026_arxiv_lottery_bp,
	title={{Lottery BP: Unlocking Quantum Error Decoding at Scale}},
	author={Yanzhang Zhu and Chen-Yu Peng and Yun Hao Chen and Yeong-Luh Ueng and Di Wu},
	year={2026},
	eprint={2605.00038},
	archivePrefix={arXiv},
	url={https://arxiv.org/abs/2605.00038}
}

@article{2025_qce_syndrilla,
	title={{Syndrilla: Simulating Decoders for Quantum Error Correction using PyTorch}},
	author={Yanzhang Zhu and Chen-Yu Peng and Yun Hao Chen and Siyuan Niu and Yeong-Luh Ueng and Di Wu},
	booktitle={International Conference on Quantum Computing and Engineering},
	year={2025}
}

Contribution

We warmly welcome contributions to Syndrilla — just open a pull request!
