SynRXN

SynRXN is an open reaction benchmark repository for reproducible reaction-informatics evaluation.

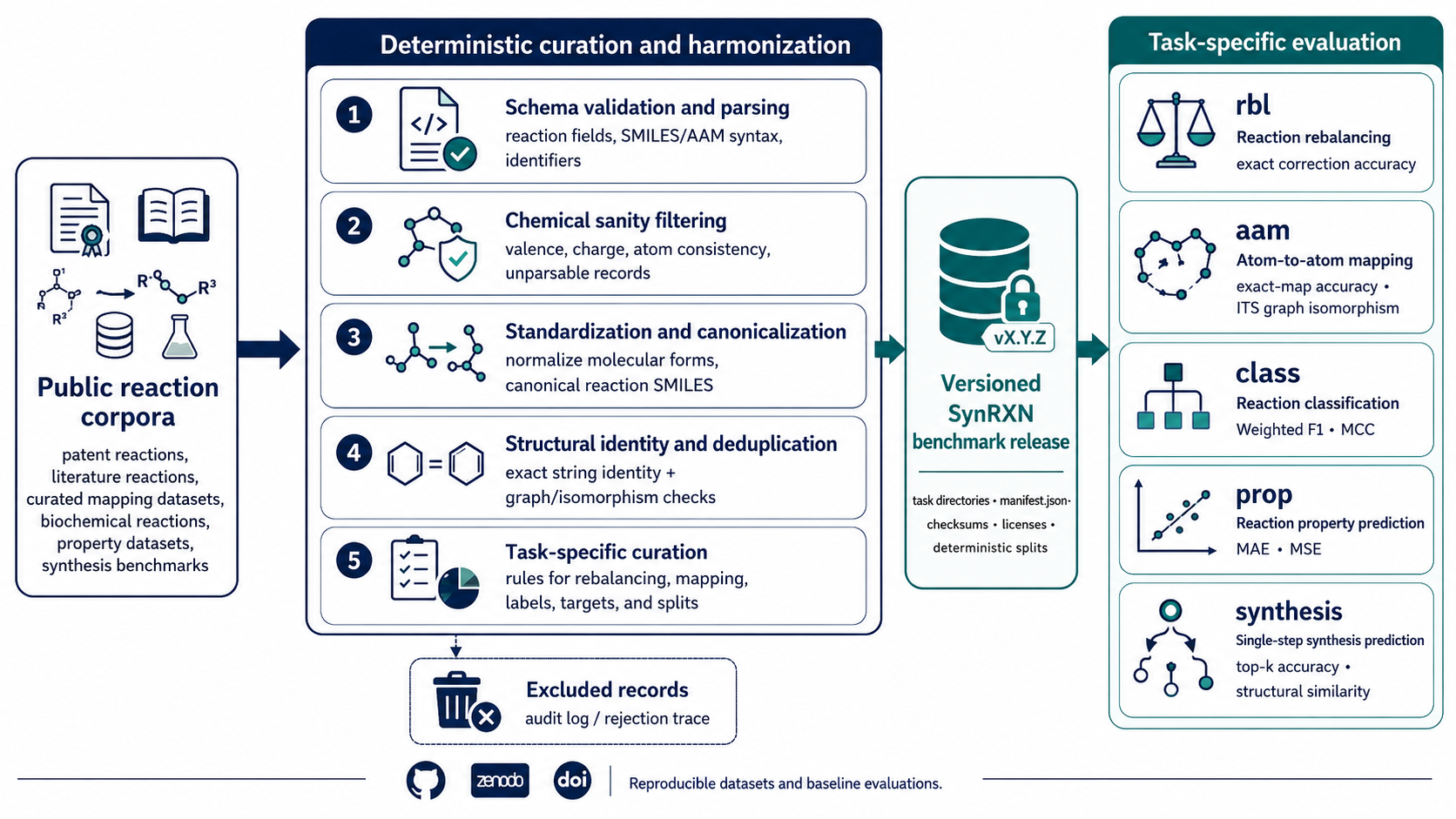

SynRXN collects curated reaction datasets, canonical task folders, versioned data releases, and lightweight loading utilities for benchmarking atom-atom mapping, reaction classification, property prediction, reaction balancing, and synthesis/retrosynthesis workflows.

Highlights

• Five task families: aam, classification, property, rbl, and synthesis.
• Consistent tabular format: each dataset is a compressed CSV under Data/<task>/<name>.csv.gz.
• Stable identifiers: most curated rows use r_id; task-specific columns store reactions, labels, targets, splits, mappings, or references.
• Version-aware access: load data from Zenodo releases, GitHub tags, or exact Git commits.
• Reproducible benchmarking: use published splits when present, or generate deterministic repeated k-fold splits through synrxn.split.

Installation

SynRXN requires Python 3.11 or later.

pip install synrxn

Install optional dependencies when you need the broader tooling stack:

pip install "synrxn[all]"
pip install "synrxn[query]"    # PyArrow + embedded DuckDB
pip install "synrxn[service]"  # optional read-only HTTP API

For development:

git clone https://github.com/TieuLongPhan/SynRXN.git
cd SynRXN
python -m venv .venv
source .venv/bin/activate
pip install -e ".[dev]"

Quick Start

from pathlib import Path
from synrxn.data import DataLoader

dl = DataLoader(
    task="classification",
    source="zenodo",
    version="1.2.1",
    cache_dir=Path("~/.cache/synrxn").expanduser(),
)

print(dl.available_names())
df = dl.load("schneider_b")
print(df.shape)
print(df.columns.tolist())

Browse the interactive Dataset Catalog to compare task, split, target, provenance, and reaction previews. It opens with the split-bearing classification/schneider_b benchmark as a concrete example. The same metadata is available in Python, including when working from a local checkout without a network request:

from synrxn import DataLoader, DatasetCatalog

catalog = DatasetCatalog()
print([item.name for item in catalog.list(task="property", has_split=True)])

local = DataLoader(task="classification", source="local", data_dir="Data")
sample = local.load(
    "schneider_b",
    columns=["r_id", "label", "split"],
    filters={"split": "test"},
    nrows=1_000,
)

Use an exact commit for development snapshots you want to reproduce later:

from pathlib import Path
from synrxn.data import DataLoader

dl = DataLoader(
    task="property",
    source="commit",
    version="3e1612e2199e8b0e369fce3ed9aff3dda68e4c32",
    cache_dir=Path("~/.cache/synrxn").expanduser(),
    gh_enable=True,
)

df = dl.load("b97xd3")
print(df[["r_id", "ea", "dh"]].head())

Data Concept

The public data lives in Data/ and is grouped by benchmark task:

Reproducible Splits

from pathlib import Path
from synrxn.data import DataLoader
from synrxn.split.repeated_kfold import RepeatedKFoldsSplitter

dl = DataLoader(
    task="property",
    source="zenodo",
    version="1.2.1",
    cache_dir=Path("~/.cache/synrxn").expanduser(),
)
df = dl.load("b97xd3")

splitter = RepeatedKFoldsSplitter(
    n_splits=5,
    n_repeats=2,
    ratio=(8, 1, 1),
    shuffle=True,
    random_state=1,
)
splitter.prepare_splits(df, stratify=None)
train_df, val_df, test_df = splitter.get_split(0, 0, as_frame=True)
print(len(train_df), len(val_df), len(test_df))

Validate a Checkout

Release integrity and catalog metadata can be checked through the installed CLI:

synrxn verify-manifest --manifest manifest.json --root Data
synrxn validate --data-dir Data --metadata Data/metadata.yaml --manifest manifest.json
synrxn datasets list --task property --has-split
synrxn datasets describe property rgd1

The first command verifies every declared size and SHA-256 checksum. The second checks catalog coverage, observed schemas, row identifiers, published split values, and manifest row counts.

Query Layer and Optional Service

SynRXN does not migrate its immutable benchmark records to a relational database. Compressed CSV remains the canonical release format. Deterministic Parquet derivatives add typed, projected access, and embedded DuckDB provides SQL execution behind an allowlisted Python API without operating a database server.

synrxn parquet build --data-dir Data --output-dir Parquet
synrxn parquet verify --data-dir Data --parquet-dir Parquet

loader = DataLoader(
    task="classification",
    source="local",
    data_dir="Data",
    parquet_dir="Parquet",
)
with loader.scan("schneider_b") as scan:
    page = scan.collect(
        columns=["r_id", "label", "split"],
        filters={"split": "test"},
        limit=100,
    )

Run synrxn-service only when a deployed client needs remote, record-level pagination. It validates the derived release index before startup and exposes a bounded read-only API with OpenAPI documentation. PostgreSQL becomes useful only for future mutable shared state such as user accounts, annotations, curation workflows, or benchmark submissions—not for the release datasets.

pip install "synrxn[service]"
SYNRXN_PARQUET_DIR=Parquet SYNRXN_MANIFEST=manifest.json synrxn-service

# In a second terminal: inspect a bounded, projected page of the benchmark.
curl 'http://127.0.0.1:8000/v1/datasets/classification/schneider_b/rows?columns=r_id,label,split&filter=split%3Dtest&limit=5'

The interactive OpenAPI interface is available at http://127.0.0.1:8000/docs. The service is read-only and rejects releases whose Parquet index does not match the canonical manifest.

AAM Validation

SynRXN now requires synkit>=1.5.0,<1.6.0, and acc_aam uses SynKit's 1.5 AAMValidator. Keep its default strip_unbalanced_maps=True to reproduce the historical SynRXN metric. A full RC and ITS comparison across 5,904 reactions and four mapper outputs produced zero differences in 47,232 row-level decisions.

python script/compare_aam_validators.py --methods RC ITS --n-jobs -1

Documentation

• Documentation: https://synrxn.readthedocs.io/en/latest/
• Data release: https://doi.org/10.5281/zenodo.17297258
• Source code: https://github.com/TieuLongPhan/SynRXN
• Issues: https://github.com/TieuLongPhan/SynRXN/issues

Citation

If you use SynRXN in your research, please cite:

Tieu-Long Phan, Nhu-Ngoc Nguyen Song, and Peter F. Stadler. SynRXN: An Open Benchmark and Curated Dataset for Computational Reaction Modeling. Scientific Data 13, 625 (2026). https://doi.org/10.1038/s41597-026-07260-w

@article{phan2026synrxn,
  title = {SynRXN: An Open Benchmark and Curated Dataset for Computational Reaction Modeling},
  author = {Phan, Tieu-Long and Nguyen Song, Nhu-Ngoc and Stadler, Peter F.},
  journal = {Scientific Data},
  volume = {13},
  pages = {625},
  year = {2026},
  doi = {10.1038/s41597-026-07260-w},
  url = {https://www.nature.com/articles/s41597-026-07260-w}
}

License

This project is licensed under the MIT License. Dataset-specific terms are summarized in Data/LICENSE when applicable.

Acknowledgments

This project has received funding from the European Union's Horizon Europe Doctoral Network programme under the Marie Sklodowska-Curie grant agreement No. 101072930 (TACsy).
