synthline 0.3.0

Feature Model–Guided Synthetic Data Generator

Generate synthetic text classification datasets whose structure is governed by a FeatureIDE feature model. Domain constraints are formalized, validated, and enforced — before any text is produced.

---

What Can You Do

• Generate constrained synthetic data from a feature model that defines valid attribute combinations for your domain — no real data required.
• Optimize prompts with PACE (Prompt Actor-Critic Editing) to maximize diversity and text-attribute alignment before generation.
• Verify alignment with an NLI-based quality gate that checks each instance against its conditioning attributes, with automatic retry on mismatch.
• Use compatible LLMs through OpenAI, OpenRouter, Ollama (local), or Hugging Face Inference API.
• Export results as CSV, pandas DataFrames, or artifact directories.

---

Architecture

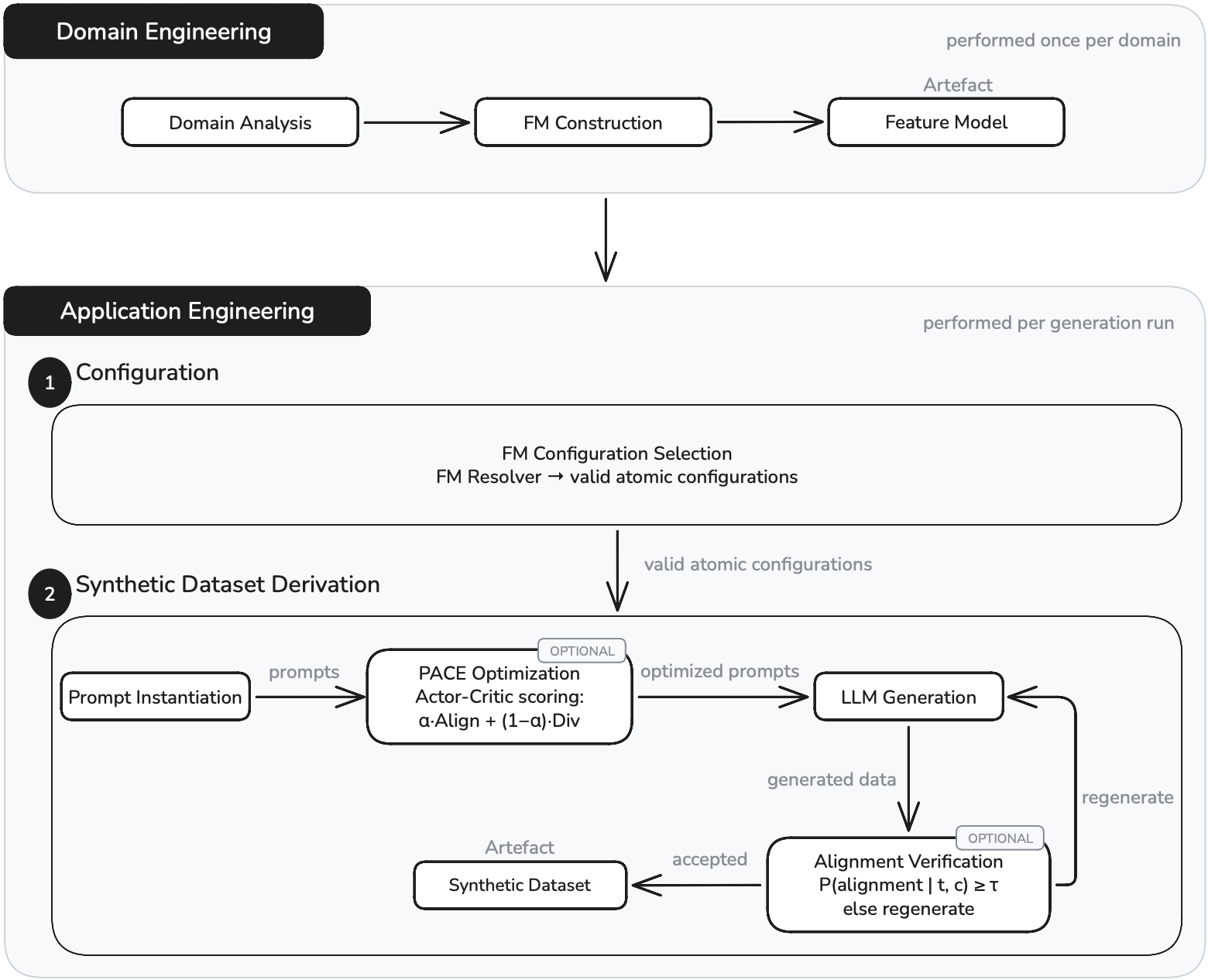

Synthline follows the two-phase paradigm of Software Product Line Engineering. A feature model is built once per domain; datasets are derived per generation run.

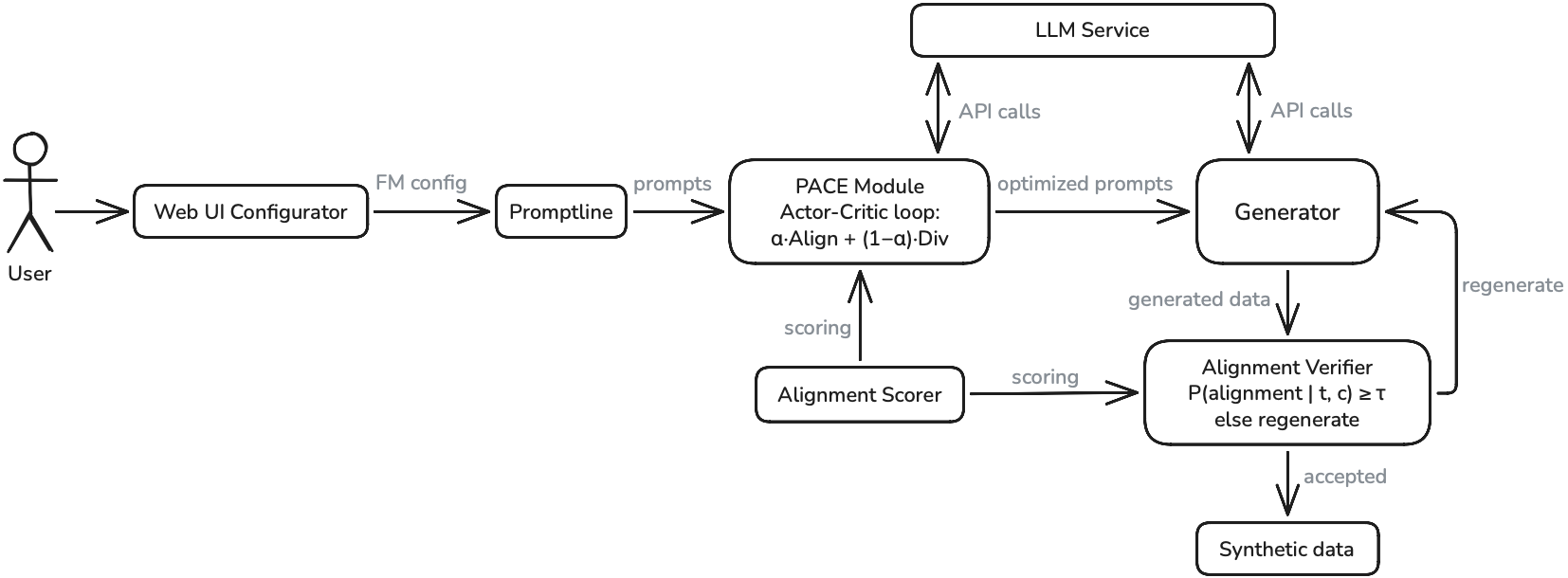

The generation pipeline translates valid FM configurations into prompts, optionally optimizes them via PACE, generates text through an LLM, and optionally verifies alignment with an NLI scorer.

---

Installation

pip install synthline

From source:

git clone https://github.com/abdelkarim-elhajjami/Synthline.git
cd Synthline
pip install -e .

Quick Start

from synthline import Synthline

sl = Synthline(
    fm="path/to/fm.xml",
    llm="openrouter/meta-llama/llama-3.3-70b-instruct",
    glossary="path/to/glossary.yaml",  # optional
)

# 1. Build prompts from feature selection (no LLM call)
prompts = sl.build_prompts(
    label="Security",
    label_definition="Degree to which a product protects information and data.",
    samples_per_prompt=50,
    features={
        "RequirementType": ["Quality"],
        "Domain": ["Healthcare Information System"],
        "AbstractionLevel": ["HighLevel", "DetailedLevel"],
        "DescriptionType": ["ProseNL"],
        "Context": ["Usage", "ITSystem"],
        "Language": ["EN"],
    },
)

# 2. Generate
output = await sl.generate(prompts=prompts, samples=1000)

# 3. Export
output.save("output/")       # data.csv, metadata.json
df = output.to_dataframe()   # pandas DataFrame

With PACE Optimization

optimized = await sl.optimize(prompts, alpha=0.5, iterations=1, actors=4, candidates=2)
output = await sl.generate(prompts=optimized, samples=1000)

With Alignment Verification

output = await sl.generate(prompts=prompts, samples=1000, verify=True, verify_threshold=0.6)

All SDK methods are async except build_prompts (no LLM call).

---

CLI

# Validate a feature model
synthline validate --fm fm.xml

# Build and inspect prompts
synthline build-prompts --fm fm.xml --label Security --label-def "..." --features features.yaml

# Optimize prompts with PACE
synthline optimize --fm fm.xml --llm openrouter/... --label Security --features features.yaml --output optimized/

# Generate synthetic data
synthline generate --fm fm.xml --llm openrouter/... --samples 1000 --verify --output out/

# Generate from a config file
synthline generate --config run.yaml --output out/

---

LLM Providers

Provider	Prefix	Environment variable
OpenAI	openai/...	OPENAI_API_KEY
OpenRouter	openrouter/...	OPENROUTER_API_KEY
Ollama	ollama/...	OLLAMA_BASE_URL (local)
HuggingFace	huggingface/...	HF_TOKEN

Keys can also be passed directly via api_keys={"openrouter": "sk-or-..."}. For Ollama, set OLLAMA_BASE_URL to the server root, such as http://localhost:11434; Synthline automatically uses its OpenAI-compatible /v1 API.

Reasoning models are not supported. Synthline is designed for predictable, high-throughput synthetic data sampling. Reasoning models are generally slower and costlier, and many reject the temperature and top_p controls Synthline uses. Select a standard chat or instruct model; known reasoning families and explicit reasoning options fail immediately with an actionable error.

Required: The selected LLM must support strict structured outputs with JSON Schema (response_format.type = "json_schema"). JSON mode alone is not sufficient. Synthline does not fall back to plaintext or suppress provider/schema errors. Choosing a compatible model is the user's responsibility.

Alignment verification also fails loudly if its NLI scorer cannot run. Infrastructure failures are never treated as low-scoring samples.

Compatibility is determined by the model + provider + endpoint combination. The same model can support structured outputs through one serving stack and not through another.

The Web UI lists only OpenRouter models that advertise strict structured outputs and every standard sampling parameter Synthline sends, and removes known reasoning-model families. Generation requests require OpenRouter to route only through providers that support the requested parameters. OpenAI, Hugging Face, Ollama, and other model catalogs do not expose an equally reliable per-model capability flag through the endpoints Synthline uses, so verify those models against the provider documentation before selecting them:

• OpenRouter structured outputs
• OpenAI structured outputs
• Ollama structured outputs
• Mistral structured outputs

---

Web UI

A browser-based interface is available on Hugging Face Spaces or self-hosted with Docker.

git clone https://github.com/abdelkarim-elhajjami/Synthline.git && cd Synthline && ./dev.sh

---

Project Structure

synthline/          SDK package (pip install synthline)
  core/             FM parser, resolver, generator, PACE, alignment verifier
  utils/            Logger, parsing, progress tracking
  client.py         Synthline class — build_prompts(), optimize(), generate()
  types.py          PromptSet, Dataset
  cli.py            CLI entry point
server/             FastAPI + WebSocket server for the Web UI
tests/              Unit and integration tests
web/                Next.js frontend

Citation

@software{synthline,
  author = {El Hajjami, Abdelkarim},
  title = {Synthline: Feature Model–Guided Synthetic Data Generator},
  url = {https://github.com/abdelkarim-elhajjami/Synthline},
  year = {2025},
}

License

Apache License 2.0
