taskp5 2.1.2

Log file parser CLI and library (v.2)

Work with various DBMS in Python.

Module 2: Python. Task 5.



Preface

This project contains a solution to one of the tasks of the EPAM DevOps Initial Internal Training Course #7 in 2023. Detailed information about the course, as well as reports on each of the completed tasks (including this one) can be found here .
This project builds upon task #4 with some modifications specific to this task condition. Please review the documentation to familiarize yourself with these changes. Below you will find additional information on the new features in task #5.

Table of Contents

• Conditions
• Implementation
  • Structure
• Installation
• Usage
  • Library
  • CLI
  • Pipes and files
  • Showcase
• General Provisions

Conditions

Please review main conditions from the task #4.

Additional ones:

• Use a database to store the log.
• Install databases MySQL, PostgreSQL, Mongo DB.
• Import log data from a file into the database.
• Export log data from the database to a file in log format.
• Implement 10 requests to the database (subtasks from task 4).

Implementation

Log_Parser2 is a Python package that could be added to your global or virtual environment by preferable package manager pip, pipenv, poetry, etc. The project itself was managed and built using the Poetry library, so if you intend to clone this repo and make some changes for your own purposes, please install Poetry or migrate to your preferred package management library.

Based on the need to build and the possibility of using both the library and the CLI, the code was split into a library for importing and a script for execution via the command line. Additionally, the package contains a showcase that demonstrates all use cases when run through the command line.

To enhance the command line's functionality and expand showcase capabilities, the Questionary library is used and will be installed through a dependency link upon package installation.

Structure

task5/
├── README.md (You are here now)
├── pyproject.toml # Poetry package management file
└── log_parser2/
    ├── __init__.py # library entry point
    ├── __main__.py # CLI entry point
    ├── __version__.py
    ├── db_provider.py # implementation of work with various databases
    ├── logging.py # logging implementation
    ├── log_parser2.py # library implementation
    ├── cli/
    │   ├── __init__.py
    │   ├── __main__.py
    │   └── cli.py # CLI code implementation
    └── showcase/
            ├── __init__.py
            ├── __main__.py # showcase entry point when using python -m log_parser2.showcase
            ├── access.log # a sample CSV file
            └── showcase.py # showcase implementation

Installation

Use your preferred installation method via different package installation managers to install Log_Parser2.

Pip

To install Log_Parser2 packet to your environment using pip manager invoke pip install taskp5.

$ pip install taskp5
Collecting taskp5
  Using cached taskp5-2.1.N-py3-none-any.whl (62 kB)
Collecting questionary<2.0.0,>=2.0.0 (from taskp5)
  Downloading questionary-2.0.0-py3-none-any.whl (31 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 31.1/31.1 kB N.N MB/s eta 0:00:00
Collecting prompt_toolkit<4.0,>=2.0 (from questionary<2.0.0,>=1.10.0->taskp5)
  Downloading prompt_toolkit-3.0.39-py3-none-any.whl (385 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 385.2/385.2 kB N.N MB/s eta 0:00:00
Collecting wcwidth (from prompt_toolkit<4.0,>=2.0->questionary<2.0.0,>=1.10.0->taskp5)
  Downloading wcwidth-0.2.6-py2.py3-none-any.whl (29 kB)
     ━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━ 29.2/29.2 kB N.N MB/s eta 0:00:00
Installing collected packages: wcwidth, prompt_toolkit, questionary, taskp5
Successfully installed prompt_toolkit-3.0.39 questionary-1.10.0 taskp5-2.1.N wcwidth-0.2.6

To uninstall Log Parser from your environment invoke pip uninstall taskp5. It's important to note that the pip manager does not uninstall dependent packages. Therefore, if you wish to remove them, you'll need to take the initiative and perform the task yourself. You can do this by using the commands pip uninstall questionary prompt-toolkit wcwidth.

Poetry

To install Log Parser packet to your environment using poetry manager invoke poetry add taskp5.

$ poetry add taskp5
Using version ^2.1.N for taskp5

Updating dependencies
Resolving dependencies...

Package operations: 6 installs, 0 updates, 0 removals

  • Installing wcwidth (0.2.6)
  • Installing prompt-toolkit (3.0.39)
  • Installing questionary (1.10.0)

Writing lock file

By taking this action, a new dependency line will be added to your pyproject.toml file.

[tool.poetry.dependencies]
taskp5 = "^2.1.N"

To uninstall Log Parser from your environment invoke poetry remove taskp5. One of the benefits of utilizing Poetry is that it allows for the removal of all dependent packages with a single command.

Usage

There are various ways to use this library, as mentioned earlier.

• Utilize it like a library you can just import it into your .py file and use LogHelper class within your code.
• Utilize CLI via the command shell, either as a Python module or as a standalone command.
• Utilize CLI command in a pipe by passing stdout of other commands to the stdin of the log_parser2 command, writing stdout and stderr to files, or passing them to following commands.
• The library also contains rich showcase command that allows you to test all the use cases and even perform them in batches.

Library

Below is a code snippet that demonstrates how to be able to use the log_parser2 library in your code.

from log_parser2.log_parser2 import logger, LogHandler
import re

with open('access.log', 'r') as f:
  db_config = dict(host='3.12.77.55',
                   user='awesome_user',
                   password='*********',
                   database='some_database_name')

  dbase = DBTypes.MYSQL.value(db_config, **provider_param)

  handler = LogHandler(log=f,
                       extractor=re.compile(extractor, flags=re.I | re.X),
                       selection=selection,
                       aggregation=aggregation,
                       filter_str=filter_str,
                       database=dbase)

print(handler.output)
dbase.close()

CLI

The CLI interface has a single command called "log_parser2". It can be invoked using two methods: python3 -m log_parser2 or simply log_parser2. Log_parser2 accepts various arguments, which are described below.

log_parser2 [-h] [--version] -d  -c  [-C] -e  [-s] [-a] [-f] [-r [INDEXES ...]] [-v] [file_name]

positional arguments:
  file_name             An input filename

options:
  -h, --help            show this help message and exit
  --version             show program's version number and exit
  -d , --database-type  Specify a database type that you intend to use (default: MYSQL).
                        Possible values could be: MYSQL, PostgresSQL, MongoDB
  -c , --credentials    Specify a file with credentials used to connect to the database.
  -C, --create-db       Whether create a new database to store parsed log data or not.
  -e , --extractor      Specify a regular expression for extracting certain data from each log line.
                        The following expression patterns can be used to make
                        writing an expression easier and reduce its size.
                        For instance, "IP4\ \((?P<IP4_LIST>(?:(?:IP4|.*?),\ )*)(?:IP4|.*?)\)\ -\ -\
                        \[DATE_TIME_SEC\]\ \"(?:REQUEST|-)\""

                        IP4_OCTET, MASK_OCTET, IP4, IP4_CIDR, MASK, IP6, IP6_CIDR, MAC_PART, MAC, VERSION, AGENT_AGENT,
                        AGENT_OS, AGENT_DEVICE, AGENT_BROWSER, USER_AGENT, DOMAIN, EMAIL_NAME_CHARSET, EMAIL, URI, URL,
                        REQUEST_TYPES, REQUEST, DATE_TIME_SEC, UUID
  -s , --selection      Specify a regular expression template to output selected data. To add previously extracted data
                        via regular expression groups use template group naming like \g<group_name>.
                        It is allowed to use various transformation functions for substitution, extracting and even
                        splitting data.
                        For instance,
                        "TO_MIN(\g<DATE_TIME>) \g<URL>" or "SPLIT(RE('(?<=\().+?(?=\))', \g<IP4>), ',\ ')"

                        The list of possible functions: MIN, MAX, SPLIT, SUB, INTERVAL, SUM, COUNT, RE
  -a , --aggregation    The aggregate to be calculated during log parsing. It is used for sorting or summation.
                        For instance, "MAX(\g<STATUS>,5)" or .....

                        The list of possible functions: MIN, MAX, SPLIT, SUB, INTERVAL, SUM, COUNT, RE
  -f , --filter         Specify a regular expression for filtering each line. It is supposed to used RE functions
                        and group naming like \g<group_name>. If the result of using regular expression return None
                        the line will be omitted.

                        For instance,
                        "RE('50\d', \g<STATUS>)" or "RE((?:/+[a-z\d\-._~%&\'()*+,;=:@{\'}{\'}]+){2}, \g<REQUEST_PATH>)"
  -r [INDEXES ...], --rows [INDEXES ...]
                        The row range from the log file to be parsed. You can pass values in the following formats: particular indexes: index1 index2 ...
                        indexN range of indexes: index1-index2 from the beginning up to index: -index from index to the end: index-
  -v                    Increase verbosity level (add more v)

It's mandatory to create a file with credential information to connect to a database and pass it via the -c flag. Also, it's allowed to choose database type from MYSQL, PostgreSQL, and MongoDB.

To handle the arguments, the argparse module is used. If you are already acquainted with it, you will have no difficulty in passing the arguments along with their values and comprehending their behavior.

The examples in a more convenient form you could find in the showcase.

Pipes and files

The log_parser2 command could be used inside the pipe of the BASH commands. It can be used in various ways within a pipeline:

• receiving input
• direct output to a file
• direct logging also to a file

This command isn't intended for use in pipe sequence due to the table output format but is allowed.

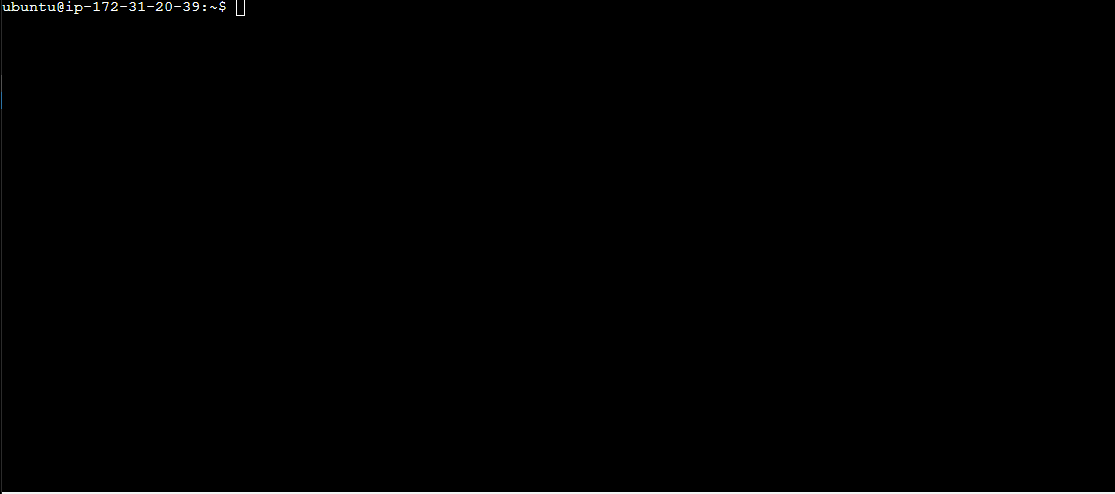

Showcase

To showcase the behavior of the log_parser2 library, an interactive command called "log_parser2_showcase" has been created. This command utilizes both the log_parser2 CLI and the log_parser2 library. It's an interactive command you can invoke via log_parser2_showcase or python3 -m log_parser2.showcase. It has an optional flag that allows you to view all use cases at once without any interaction. You can use the command log_parser2_showcase --all to activate this feature. There are also a ready-made Apache Tomcat log file presents - access.log. You can use the showcase to test your own regular expressions and regular expression templates.
