Advanced benchmarking tool
An advanced benchmarking tool written in python3 that supports binary randomization and the generation of visually appealing reports.
It runs on sufficiently new Linux systems and (rudimentarily) on Apple’s OS X systems.
The development started as part of my bachelor thesis in October 2015. The bachelor thesis (written in German) can be found here.
Why should you use temci?
temci allows you to easily measure the execution time (and other things) of programs and compare them against each other resulting in a pretty HTML5 based report. Furthermore it sets up the environment to ensure benchmarking results with a low variance and use some kind of assembly randomisation to reduce the effect of caching.
The simplest way to install temci and its dependencies on either Linux or macOS is to use the Nix package manager. After installing Nix, execute
nix-env -f https://github.com/parttimenerd/temci/archive/master.tar.gz -i
Alternatively, installing temci on Linux systems should be possible by just installing it via pip3:
pip3 install temci
If this results in any problems or you’re on an Apple system, visit the Installation page.
Installing a version with minimal dependencies and without support for temci init and the HTML report generation is possible by setting the enviroment variable MINIMAL_TEMCI to 1 prior to the installation. This is currently done by the Nix installation and requires at least python 3.6.
Open an issue in the issue tracker if you experience any weird errors.
To simplify using temci, enable tab completion for your favorite shell (bash and zsh are supported) by adding the following line to your bash or zsh configuration file
source `temci_completion [bash|zsh]`
If you can’t install temci via pip3, using it to benchmark programs is possible by using temci/scripts/run instead of temci (execute this file with your favorite python3 interpreter directly if this interpreter isn’t located at /usr/bin/python3).
Side note: This tool needs root privileges for some benchmarking features (using the `–sudo` flag is preferred over calling temci with sudo directly). If you’re not root, it will not fail, but it will warn you and disable the features.
There are currently two good ways to explore the features of temci: 1. Play around with temci using the provided tab completion for zsh (preferred) and bash 2. Look into the annotated settings file (it can be generated via temci init settings).
A user guide is planned. Until it’s finished consider reading the code documentation.
A documentation of all command line commands and options is given in the documentation for the cli module.
A documentation for all available run drivers, runners and run driver plugins is given in the documentation for the run module
The status of the documentation is given in the section Status of the documentation.
Getting started with simple benchmarking
Or: How to benchmarking a simple program called ls (a program is every valid shell code that is executable by /bin/sh)
There are two ways to benchmark a program: A short and a long one.
The short one first: Just type:
temci short exec "ls" --runs 100 --out out.yaml
- short is the category of small helper subprograms that allow to use some temci features without config files
- ls is the executed program
- this is equivalent to -wd "ls"
- where -wd is the short option for --without_description an tells temci to use the program as its own description
- --runs 100 is short for --min_runs 100 --max_runs 100
- --min_runs 100 tells temci to benchmark ls at least 100 times (the default value is currently 20)
- --max_runs 100 tells temci to benchmark ls at most 100 times (the default value is currently 100)
- setting min and max runs non equal makes only sense when comparing two or more programs via temci
- --out out.yaml tells temci to store the YAML result file as out.yaml (default is result.yaml)
The long one now: Just type
temci init run_config
This let’s you create a temci run config file by using a textual interface (if you don’t want to create it entirely by hand). To actually run the configuration type:
temci exec [file you stored the run config in] --out out.yaml
- exec is the sub program that takes a run config an benchmarks all the included program blocks
- --out out.yaml tells temci where to store the YAML file containing the benchmarking results
- the measured __ov-time property is just a time information used by temci internally
Now you have a YAML result file that has the following structure:
- attributes: description: ls data: … task-clock: - [first measurement for property task-clock] - … …
You can either create a report by parsing the YAML file yourself or by using the temci report tool. To use the latter type:
temci report out.yaml --reporter html2 --html2_out ls_report
- out.yaml is the previously generated benchmarking result file

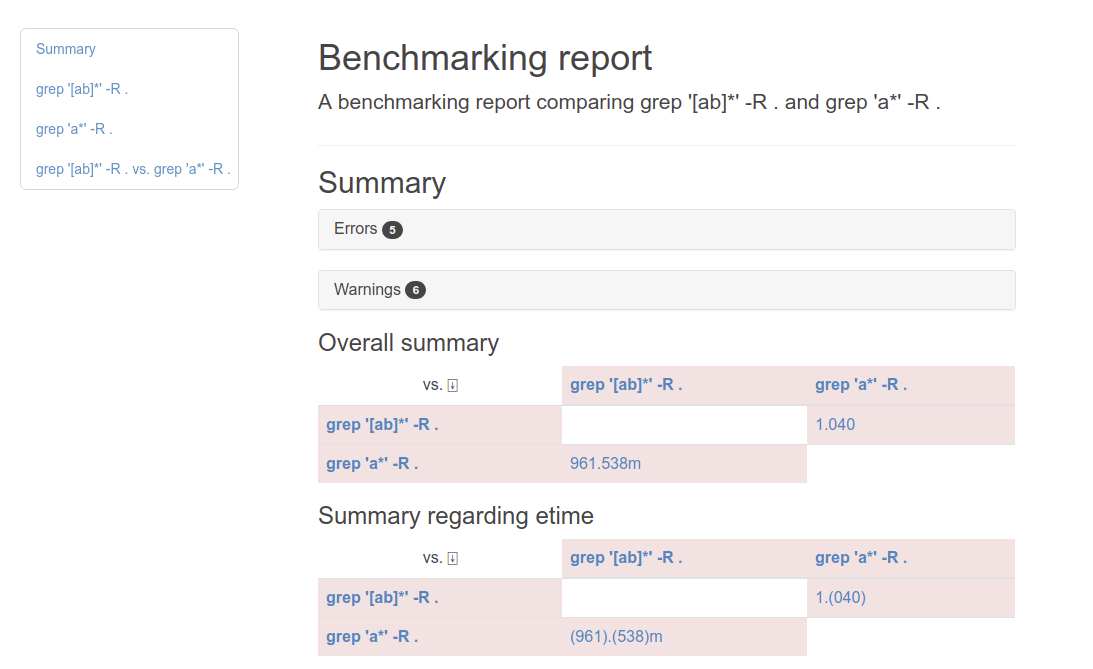

- --reporter html2 tells temci to use the HTML2Reporter. This reporter creates a fancy HTML5 based report in the folder ls_report. The main HTML file is named report.html. Other possible reporters are html and console. The default reporter is html2
- --html2_out tells the HTML2Reporter the folder in which to place the report.
Now you have a report on the performance of ls.
How to go further from here
- Benchmark two programs against each other either by adding a -wd [other program] to the command line or appending the run config file (also possible via temci init run_config)
- If using temci short exec
- add a better description for the benchmarked program by using -d [DESCRIPTION] [PROGRAM] instead -wd. -d is short for --with_description
- If using temci init run_config:
- Choose another set of measured properties (e.g. to measure the L1 cache misses)
- Change the used runner. The default runner is time and uses
time (gnu time, not shell builtin) to actually measure the
program. Other possible runners are for example perf_stat,
rusage and spec:
- The perf_stat runner that uses the perf tool (especially perf stat) to measure the performance and read performance counters.
- The rusage runner uses a small C wrapper around the getrusage(2) system call to measure things like the maximum resource usage (it’s comparable to time)
- The spec runner gets its measurements by parsing a SPEC benchmark like result file. This allows using the SPEC benchmark with temci.
- Append --send_mail [your email adress] to get a mail after the benchmarking finished. This mail has the benchmarking result file in it’s appendix
- Try to benchmark a failing program (e.g. “lsabc”). temci will create a new run config file (with the ending “.erroneous.yaml” that contains all failing run program blocks. Try to append the benchmarking result via “–append” to the original benchmarking result file.
Use temci as a library
This is useful for example for processing the benchmarking results. Before importing other parts of the library the module temci.utils.library_init has to be loaded, which runs the necessary setup code (reading the settings file, …).
Use temci to setup a benchmarking environment
Use temci short shell COMMAND to run a command (sh by default) in a shell that is inside the benchmarking environment. Most options (like –preset) of temci short exec are supported.
Why is temci called temci?
The problem in naming programs is that most good program names are already taken. A good program or project name has (in my opinion) the following properties: - it shouldn’t be used on the relevant platforms (in this case: github and pypi) - it should be short (no one want’s to type long program names) - it should be pronounceable - it should have at least something to do with the program temci is such a name. It’s lojban for time (i.e. the time duration between to moments or events).
