tensormesh-fem 0.1.1

Differentiable Finite Element Method Library for PyTorch

A fast, differentiable, JIT-free, debugging-friendly finite element library for PyTorch.

Documentation  |  Installation  |  Quickstart  |  Examples  |  Citation

---

TensorMesh is a finite element method (FEM) library built natively on PyTorch. It is designed to solve partial differential equations (PDEs) with the ergonomics of modern deep learning frameworks — automatic differentiation, GPU acceleration, eager execution — without sacrificing the rigour of classical FEM. Custom weak forms are written in pure Python; the library takes care of tensorized assembly, sparse linear algebra, boundary conditions, and time integration.

Core strengths

• GPU-native & differentiable. Built on PyTorch from the ground up. Moving an entire FEM workflow to the GPU takes a single line of code — every downstream assembly, solve, and gradient inherits the device automatically, with no separate backend or data-marshalling step. Native autograd flows seamlessly through assembly and solve, enabling end-to-end differentiable PDE pipelines.
• High-performance tensorized assembly. A fully tensorized Map-Reduce algorithm powered by TensorGalerkin, which fuses element-wise operations into monolithic GPU kernels, eliminating Python-level loops and delivering order-of-magnitude speedups over CPU-based FEM stacks.
• JIT-free & debugging-friendly. Eager execution with no compilation overhead. Dynamic meshes, adaptive refinement, and interactive workflows just work — no recompilation latency, no opaque traces.
• Comprehensive element & mesh support. Triangular, tetrahedral, pyramid, and prismatic elements with automated mesh generation for common geometries and seamless Gmsh / VTKHDF5 I/O.
• Flexible Solvers. Powered by torch-sla, our companion library for differentiable sparse linear algebra. Linear, nonlinear, and eigenvalue solvers run across multiple backends on CPU and GPU, with full autograd support, batched solves, and distributed multi-GPU scaling.
• Pythonic API. Custom weak forms in pure Python — no separate DSL, no form compiler. If you can write PyTorch, you can write FEM.

Installation

Requirements: Python ≥ 3.10, PyTorch ≥ 2.0.

pip install tensormesh-fem             # CPU only
pip install "tensormesh-fem[gpu]"      # + CUDA sparse solvers (CuPy + cuDSS)

The base install ships only the CPU sparse stack (SciPy / native PyTorch via torch-sla). The [gpu] extra pulls in both CUDA backends; if you only want one, use [cupy] or [cudss] instead:

pip install "tensormesh-fem[cupy]"     # CuPy CUDA backend (iterative + SuperLU)
pip install "tensormesh-fem[cudss]"    # cuDSS CUDA backend (fastest GPU direct)

The quotes are needed because [...] is a shell glob character.

Install from source (for development)

git clone https://github.com/camlab-ethz/TensorMesh.git
cd TensorMesh
pip install -e ".[test]"

After installing, sanity-check the install:

python -m tensormesh.verify_install

To see which sparse-solver backends are usable on your machine — and a one-line install hint for any that are not — run:

import torch_sla
torch_sla.show_backends()

Quickstart

Solve $-\Delta u = f$ on the unit square with homogeneous Dirichlet boundary conditions, where $f(x, y) = 2\pi^2\sin(\pi x)\sin(\pi y)$ so the exact solution is $u(x, y) = \sin(\pi x)\sin(\pi y)$:

import math
import torch
from tensormesh import ElementAssembler, NodeAssembler, Mesh, Condenser

# 1. Generate a triangular mesh of the unit square.
mesh = Mesh.gen_rectangle(chara_length=0.05)

# 2. Stiffness weak form:  a(u, v) = ∫ ∇u · ∇v dΩ
class LaplaceAssembler(ElementAssembler):
    def forward(self, gradu, gradv):
        return gradu @ gradv

# 3. Load weak form:  l(v) = ∫ f v dΩ
class SourceAssembler(NodeAssembler):
    def forward(self, v, f):
        return f * v

# 4. Source term, evaluated at every mesh node.
x, y = mesh.points[:, 0], mesh.points[:, 1]
f_vals = 2 * math.pi**2 * torch.sin(math.pi * x) * torch.sin(math.pi * y)

# 5. Assemble the stiffness matrix and load vector.
K = LaplaceAssembler.from_mesh(mesh)()
b = SourceAssembler.from_mesh(mesh)(point_data={"f": f_vals})

# 6. Apply Dirichlet BCs by static condensation, then solve.
condenser = Condenser(mesh.boundary_mask)
K_, b_ = condenser(K, b)
u_ = K_.solve(b_, verbose = True)
u = condenser.recover(u_)

# 7. Compare against the analytical solution.
u_exact = torch.sin(math.pi * x) * torch.sin(math.pi * y)
print(f"L2 error: {(u - u_exact).norm() / u_exact.norm():.3e}")

[torch-sla] solve: n=431, nnz=2859, dtype=float64, device=cpu, symmetric=True, spd=False, backend=scipy, method=lu
L2 error: 3.135e-03

The workflow is Mesh → Assembler → SparseMatrix → Condenser → Solve. Move everything to GPU with a single mesh = mesh.cuda(); enable gradients with mesh.points.requires_grad_(True) and the same script becomes an inverse problem.

See the full walkthrough in the Quickstart.

Examples

A small selection from the example gallery:

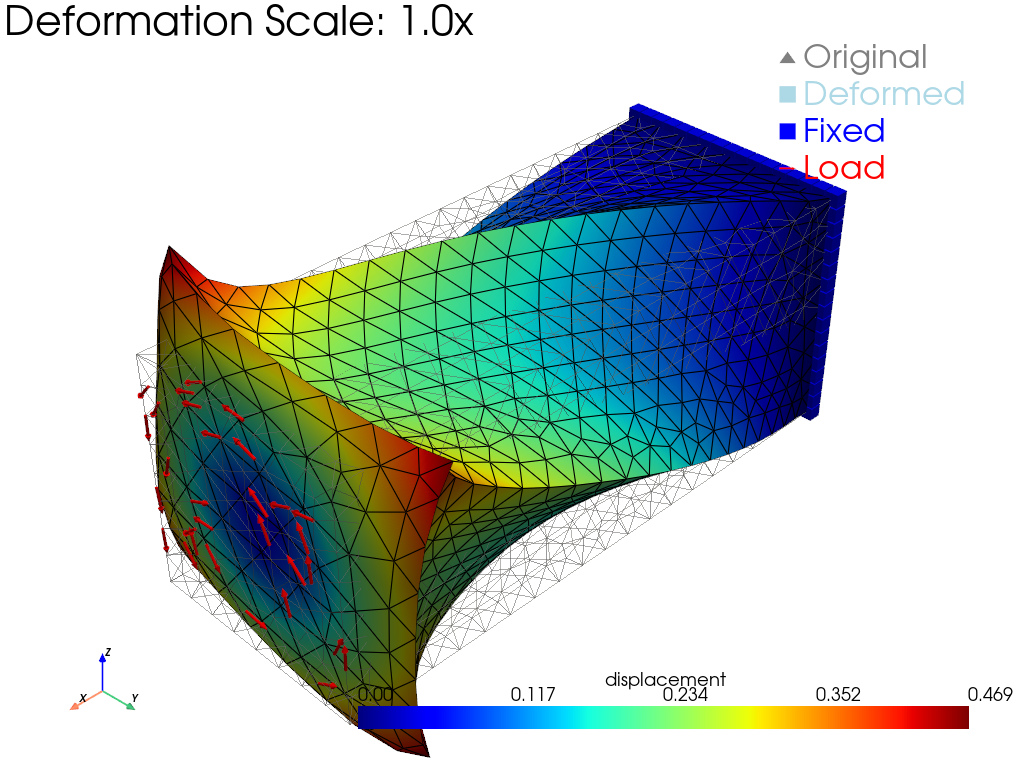

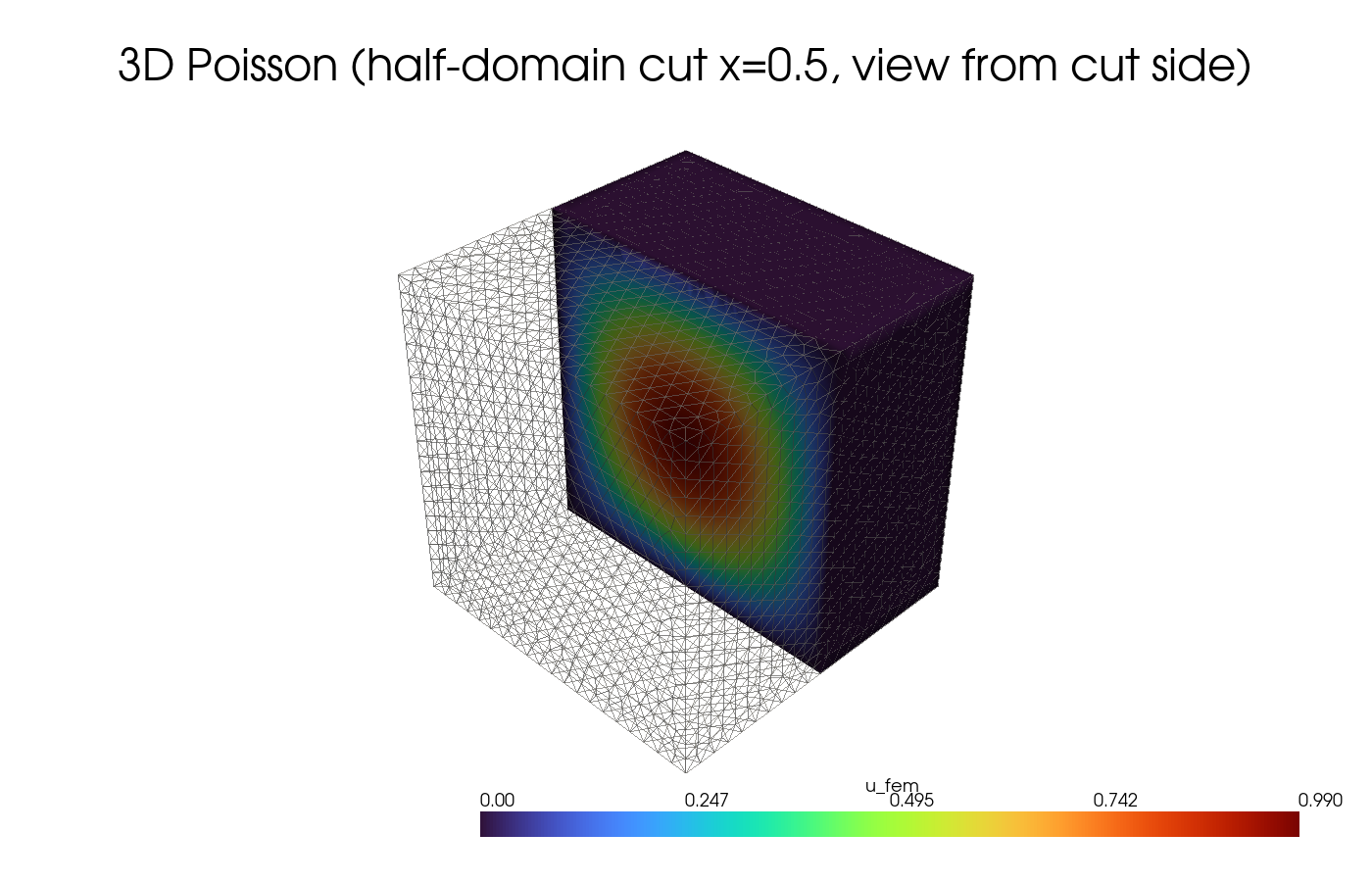

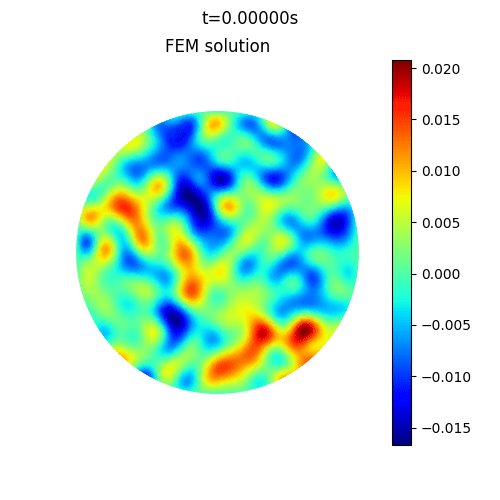

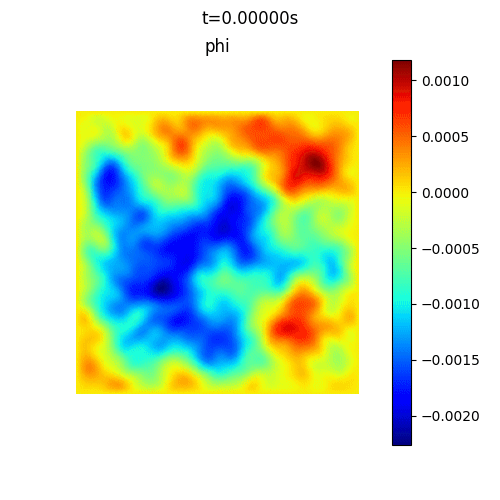

3D Poisson — tetrahedral mesh, cut view of the scalar field.	Allen–Cahn phase field — nonlinear time evolution with Newton iteration per step.	Wave equation — explicit central-difference time integration.	Hyperelastic rubber — large-deformation solid mechanics with a Newton solver.

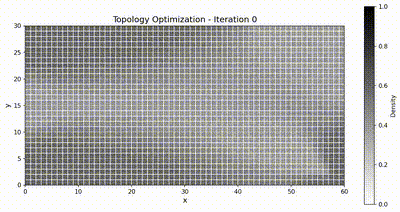

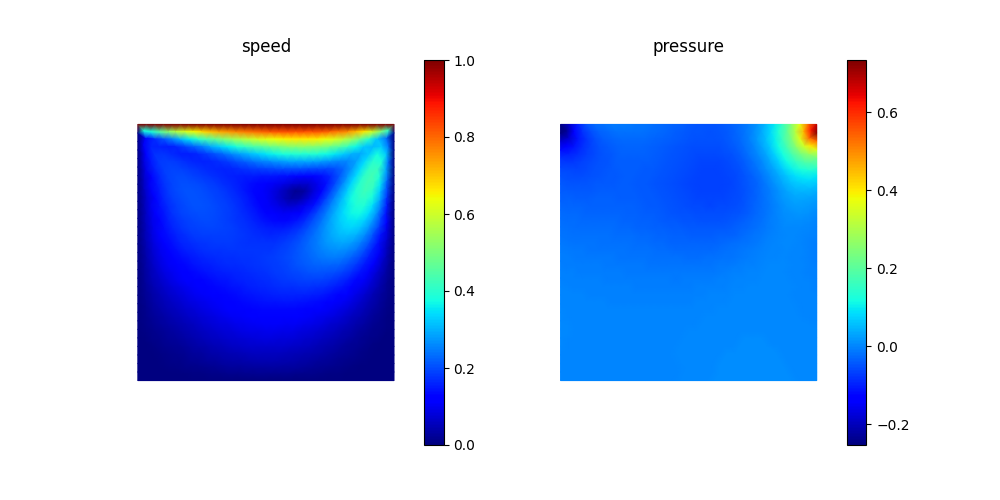

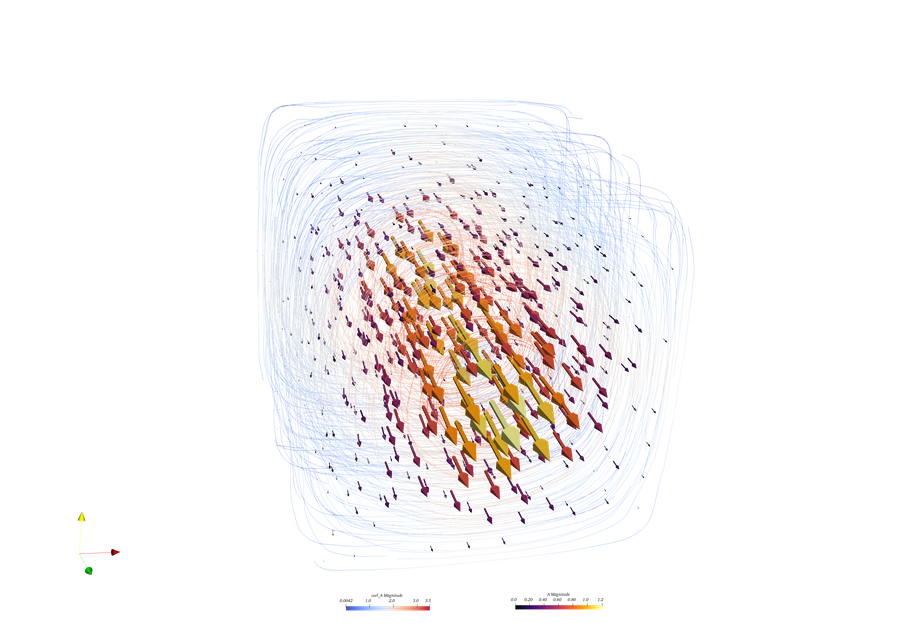

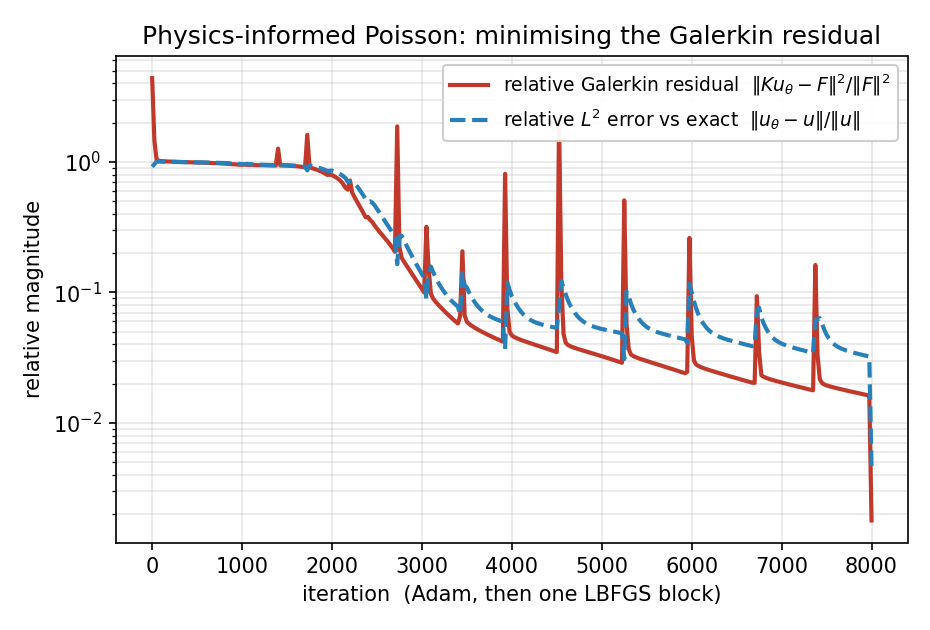

Lid-driven cavity — incompressible Navier–Stokes; velocity field and streamlines.	Magnetostatics — 3D magnetic field around a current-carrying wire (stabilized nodal curl-curl).	Topology optimization — compliance minimization via the Optimality Criteria method.	Physics-informed learning — a network trained to minimize the assembled Galerkin residual.

Category	Path	Description
Basics	examples/basics/	Mesh visualization, basis functions, element gallery
Poisson	examples/poisson/	2D / 3D Poisson, batched RHS, h-adaptivity
Diffusion	examples/diffusion/	Heat equation, Allen-Cahn phase field
Wave	examples/wave/	Wave equation with central-difference scheme
Solid	examples/solid/	Cantilever beam, hyperelasticity, contact, plasticity
Fluid	examples/fluid/	Lid-driven cavity, cylinder flow, flow past obstacles, Rayleigh-Bénard, Taylor-Green
Magnetostatics	examples/maxwell/	3D Maxwell: magnetic field around a current-carrying wire via a stabilized nodal curl-curl formulation
Inverse design	examples/inverse_design/	Coefficient-field identification and density-based topology optimization, all via autograd
Physics-informed	examples/physics_informed/	Train a neural network to minimize the assembled Galerkin residual
Dataset	examples/dataset/	Batch dataset generation for ML (heat, wave, Poisson)
Distributed	examples/distributed/	Graph coloring, mesh partitioning, multi-GPU assembly

Feature comparison

Feature	FEniCS	scikit-fem	JAX-FEM	torch-fem	TensorMesh
Custom weak forms (Pythonic)	⚠️	✅	❌	❌	✅
Easy install	❌	✅	⚠️	✅	✅
Easy debug	❌	✅	❌	✅	✅
Easy I/O	❌	❌	❌	❌	✅
Large meshes	✅	✅	❌	❌	✅
GPU support	✅	❌	✅	✅	✅
Efficiency	✅	❌	✅	⚠️	✅
End-to-end autograd	⚠️	❌	✅	✅	✅
Deep-learning integration	❌	❌	⚠️	✅	✅
Maturity	✅	✅	⚠️	⚠️	⚠️

Custom Weak Forms (Pythonic) — user-defined bilinear / linear forms directly in Python, without a separate DSL such as UFL. End-to-End Autograd — gradients flow natively through the entire pipeline; FEniCS supports this via the external dolfin-adjoint package. Maturity — reflects project age, ecosystem size, and production deployments.

Architecture

The core workflow: Mesh → Assembler → SparseMatrix → Condenser → Solve.

Module	Description
tensormesh.mesh	Mesh data structure; built-in generators (gen_rectangle, gen_circle, gen_cube, gen_L, …); Gmsh / VTK-HDF5 I/O
tensormesh.element	Shape functions, quadrature rules, element transformations (geometric order 1–4)
tensormesh.assemble	ElementAssembler, NodeAssembler, FacetAssembler for matrix and vector assembly
tensormesh.sparse	SparseMatrix (subclass of torch_sla.SparseTensor); linear & nonlinear sparse solves via torch-sla backends (SciPy / Eigen / native PyTorch / CuPy / cuDSS)
tensormesh.operator	Condenser for Dirichlet boundary conditions via static condensation
tensormesh.ode	Time integrators: explicit / implicit Euler, midpoint, Runge–Kutta
tensormesh.dataset	Parametric PDE dataset generation (Poisson, Heat, Wave, linear elasticity)
tensormesh.visualization	Matplotlib and PyVista plotting backends
tensormesh.functional	Tensor utilities for FEM (elasticity, Voigt notation, common ops)
tensormesh.material	Material property definitions for solid mechanics
tensormesh.optimizer	Optimization algorithms (e.g. OC for topology optimization)

Documentation

Full documentation, including a user guide, an example gallery, the API reference, and performance benchmarks, lives at docs.tensor-mesh.com.

Key entry points:

• Getting started — installation, quickstart, and an install smoke-test.
• User guide — meshes, weak forms, boundary conditions, linear solvers, time integration, differentiability.
• Example gallery — runnable examples from Poisson to Navier–Stokes and topology optimization.
• API reference — module-by-module signatures and docstrings.
• Performance — benchmarks against FEniCS / Firedrake / MFEM / scikit-fem / JAX-FEM / torch-fem.

Community

• Discord — real-time chat, help channels, and showcase.
• GitHub Discussions — announcements, Q&A, ideas & RFCs.
• GitHub Issues — bug reports and feature requests.
• Email to Shizheng Wen at [e-mail] — collaborations and partnerships.

Contributing

Contributions are welcome — see CONTRIBUTING.md for the development setup, test workflow, documentation build, and PR conventions.

Citation

TensorMesh is the FEM solver component of the TensorGalerkin framework. If you use TensorMesh in your research, please cite the TensorGalerkin paper:

@article{wen2026tensorgalerkin,
  title   = {Learning, Solving and Optimizing PDEs with {TensorGalerkin}:
             an Efficient High-Performance Galerkin Assembly Algorithm},
  author  = {Wen, Shizheng and Chi, Mingyuan and Yu, Tianwei and
             Moseley, Ben and Michelis, Mike Yan and Ren, Pu and
             Sun, Hao and Mishra, Siddhartha},
  journal = {arXiv preprint arXiv:2602.05052},
  year    = {2026}
}

If your work also relies on torch-sla (TensorMesh's solver backend), please additionally cite:

@article{chi2026torchsla,
  title   = {torch-sla: Differentiable Sparse Linear Algebra with Adjoint
             Solvers and Sparse Tensor Parallelism for PyTorch},
  author  = {Chi, Mingyuan and Wen, Shizheng},
  journal = {arXiv preprint arXiv:2601.13994},
  year    = {2026}
}
