texosdf 0.1.0

Generate 3D meshes from signed distance functions with a simple Python API.

texosdf

texosdf is a lightweight Python package for generating 3D meshes from signed distance functions (SDFs).

It is a modernized fork of fogleman/sdf, published as texosdf with proper packaging, curated exports, typed modules, and clearer optional dependency handling.

Installation

Install the core package:

pip install texosdf

Optional extras:

pip install texosdf[plot]
pip install texosdf[mesh]
pip install texosdf[all]

Notes:

• plot installs matplotlib for show_slice()
• mesh installs meshio for mesh loading and non-STL export
• Mesh.sdf() also requires OpenVDB and pyopenvdb
• pyopenvdb is intentionally not included in package requirements because it is platform-specific and only needed for the advanced mesh-to-SDF workflow

Quickstart

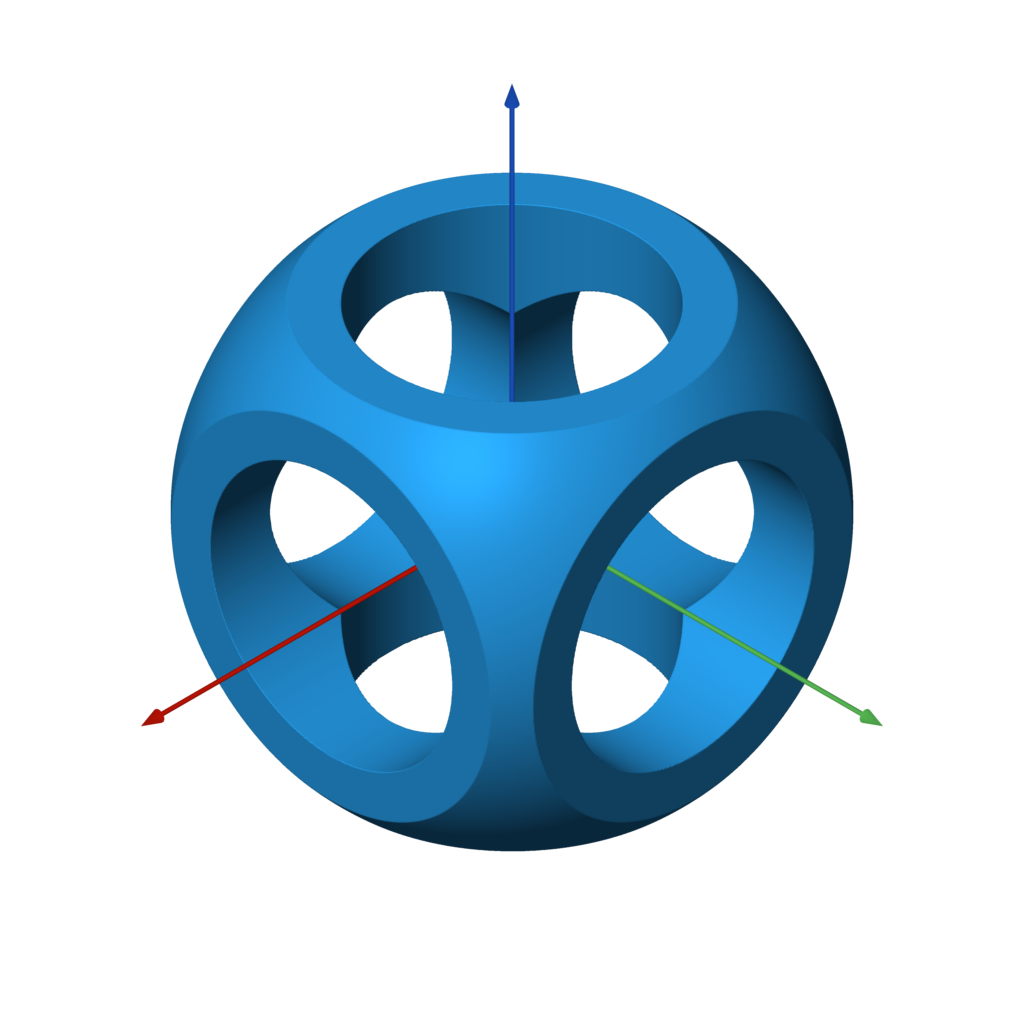

from texosdf import *

shape = sphere(1) & box(1.5)

cutout = cylinder(0.5)
shape -= cutout.orient(X) | cutout.orient(Y) | cutout.orient(Z)

shape.save("out.stl")

Why import *?

While import * is usually not ideal in general Python code, CAD and geometry scripting has broadly moved in that direction because it makes modeling scripts shorter and easier to read. texosdf keeps that convenience on purpose.

If you use Ruff in scripts written that way, add:

# ruff: noqa: F403, F405
from texosdf import *

Features

• 2D and 3D analytic SDF primitives
• boolean operators such as union, difference, and intersection
• transforms and deformations such as translate, rotate, twist, bend, and shell
• 2D-to-3D operations such as extrude, revolve, and profile blending
• text and image-based masks
• optional plotting and mesh loading/export helpers
• custom SDF authoring with decorators such as @sdf2, @sdf3, @op2, and @op3

Full Documentation

• GitHub repository: torayeff/texosdf
• Full documentation and examples: README on GitHub
• Example scripts: examples folder
