Thermal-facial-alignment network (TFAN) trained on the T-FAKE dataset

Using the landmarker

Install and run:

pip install thermal-face-alignment

import cv2
from tfan import ThermalLandmarks

# Read a thermal image (grayscale)
image = cv2.imread("thermal.png", cv2.IMREAD_GRAYSCALE)

# Initialize landmarker (downloads weights on first use)
landmarker = ThermalLandmarks(device="cpu", n_landmarks=70)

landmarks, confidences = landmarker.process(image)

Predicted 70 and 478 point landmarks on an example from the TFW Dataset.

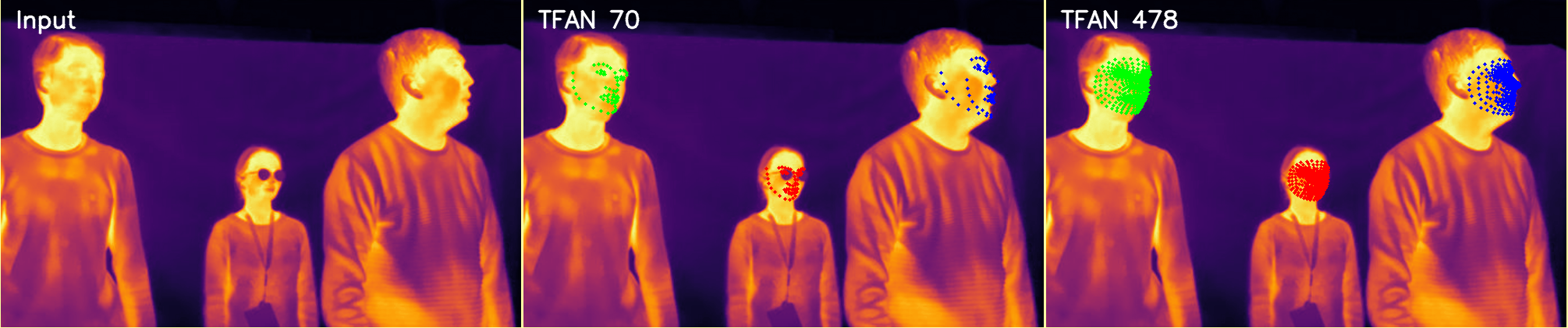

Predicted 70 and 478 point landmarks on an example from the BU-TIV Benchmark.

Practical Usage

The ThermalLandmarks wraps a landmarker trained on T-FAKE either with sliding window selecting the face with highest confidence or via a bbox computed with a smaller model.

Please note that we trained our network with temperature value range of 20°C to 40°C. While our implementation performs an automatic rescaling, please make sure that you adapt our landmarker options based on the input pixel values.

Initialization options

ThermalLandmarks(
    model_path=None,
    device="cpu",
    gpus=[0, 1],
    eta=0.75,
    max_lvl=0,
    stride=100,
    n_landmarks=478, # 478 or 70 point landmarks are supported
    normalize=True,
)

• model_path (str or Path, optional) Path to a pretrained DMMv2 model (state_dict). If omitted, pretrained weights matching n_landmarks are downloaded automatically.

• device ("cpu" or "cuda", default "cpu") Torch device used for inference. When using "cuda", the model may be wrapped in DataParallel.

• gpus (list[int], default [0, 1]) GPU device IDs used when device="cuda".

• n_landmarks (int, default 478) Number of facial landmarks predicted per face. Choices:

  • 70 — sparse landmarks following the Face Synthetic convention of (Wood et al., 2021).
  • 478 — dense landmarks following the MediaPipe face mesh convention.

• normalize (bool, default True) Apply ImageNet normalization to cropped face patches before inference. Assumes inputs are scaled to [0, 255].

• eta (float, default 0.75) Pyramid scale factor used in sliding-window mode.

• max_lvl (int, default 0) Maximum pyramid level for multi-scale sliding-window inference.

• stride (int, default 100) Pixel stride used during sliding-window scanning.

Inference options

landmarks, confidences = landmarker.process(
    image,
    sliding_window=False,
    multi=False,
    mode="auto",
)

• image (numpy.ndarray) Input frame:

  • H×W: thermal or grayscale image
  • H×W×3: RGB/BGR image

• mode ("auto" | "temperature" | "pixel", default "auto") Controls how numeric values are interpreted:

  • "temperature": 2D thermal image in °C
  • "pixel": pixel intensities in [0, 255] or [0, 1]
  • "auto": inferred from dtype and value range

• multi (bool, default False) If True, return landmarks for all detected faces. If False, only the first face is returned.

• sliding_window (bool, default False) Enable multi-scale sliding-window inference. Note: currently only supported when multi=False.

Outputs

• landmarks Pixel coordinates in the original image:

  • List of (n_landmarks, 2) arrays (multi-face)
  • Single (n_landmarks, 2) array (sliding window)

• confidences Per-landmark confidence scores of shape (n_landmarks,)

Background

This landmarker is an implementation of our work presented in our CVPR paper on thermal landmarking (Main GitHub). We employed the TFW face detector for our inital face detection as it performed very well in our benchmark. Please note that this library is meant for research purposes only.

Landmarker Performance on our Charlotte Benchmark

Training Dataset

We trained our landmarker on our custom-made T-FAKE dataset consisting of synthetic thermal images. To download the original color images, sparse annotations, and segmentation masks for the dataset, please use the links in the FaceSynthetics repository.

Our dataset has been generated for a warm and for a cold condition. Each dataset can be downloaded separately as

• A small sample with 100 images from here warm and here cold
• A medium sample with 1,000 images from here warm and here cold
• The full dataset with 100,000 images from here warm and here cold
• The dense annotations are available from here

Pre-trained models

The models for the thermalization as well as the landmarkers can be downloaded from here.

License

Our landmarking methods and the training dataset are licensed under the Attribution-NonCommercial-ShareAlike 4.0 International license as it is derived from the FaceSynthetics dataset.

Citation

If you use this code for your own work, please cite our paper:

P. Flotho, M. Piening, A. Kukleva and G. Steidl, “T-FAKE: Synthesizing Thermal Images for Facial Landmarking,” Proceedings of the Computer Vision and Pattern Recognition Conference (CVPR), 2025. CVF Open Access

BibTeX entry

@InProceedings{tfake2025_CVPR,
    author    = {Flotho, Philipp and Piening, Moritz and Kukleva, Anna and Steidl, Gabriele},
    title     = {T-FAKE: Synthesizing Thermal Images for Facial Landmarking},
    booktitle = {Proceedings of the Computer Vision and Pattern Recognition Conference (CVPR)},
    month     = {June},
    year      = {2025},
    pages     = {26356-26366}
}

The thermal face bounding box detection in this repo uses the TFW landmarker model, please additionally cite:

Kuzdeuov, A., Aubakirova, D., Koishigarina, D., & Varol, H. A. (2022). TFW: Annotated Thermal Faces in the Wild Dataset. IEEE Transactions on Information Forensics and Security, 17, 2084–2094. https://doi.org/10.1109/TIFS.2022.3177949

@article{9781417,
    author={Kuzdeuov, Askat and Aubakirova, Dana and Koishigarina, Darina and Varol, Huseyin Atakan},
    journal={IEEE Transactions on Information Forensics and Security},
    title={TFW: Annotated Thermal Faces in the Wild Dataset},
    year={2022},
    volume={17},
    pages={2084-2094},
    doi={10.1109/TIFS.2022.3177949}
}
