tidewater

Ocean-forced frontal ablation for glacier models.

tidewater makes the frontal ablation of a marine-terminating glacier depend on the ocean in front of it. It turns an ocean product into a thermal forcing at each calving front, turns that forcing into a frontal ablation flux or a dimensionless ocean factor, and calibrates the calving constant against observed frontal ablation. It is a library for glacier models, not a glacier model: the host model keeps its geometry, its dynamics and its mass budget.

• Host-neutral. The core imports no glacier model. Adapters for OGGM, PyGEM and GloGEM are included, and any other model can couple through a plain-text table or the written spec.
• Global. No region, hemisphere, ocean product, bed product, observation dataset, glacier inventory version or year convention is built in. They are arguments.
• Reproducible across languages. The laws come with a specification and 678 reference vectors, so an implementation in IDL, MATLAB or Fortran can be checked against the Python one.

Contents

• What it does
• Supported glacier models
• Installation
• Quick start
• The laws
• Host integration contract
• Bringing your own data
• Documentation
• Package layout
• Testing
• Project status
• Contributing
• Citing
• References
• Licence and acknowledgements

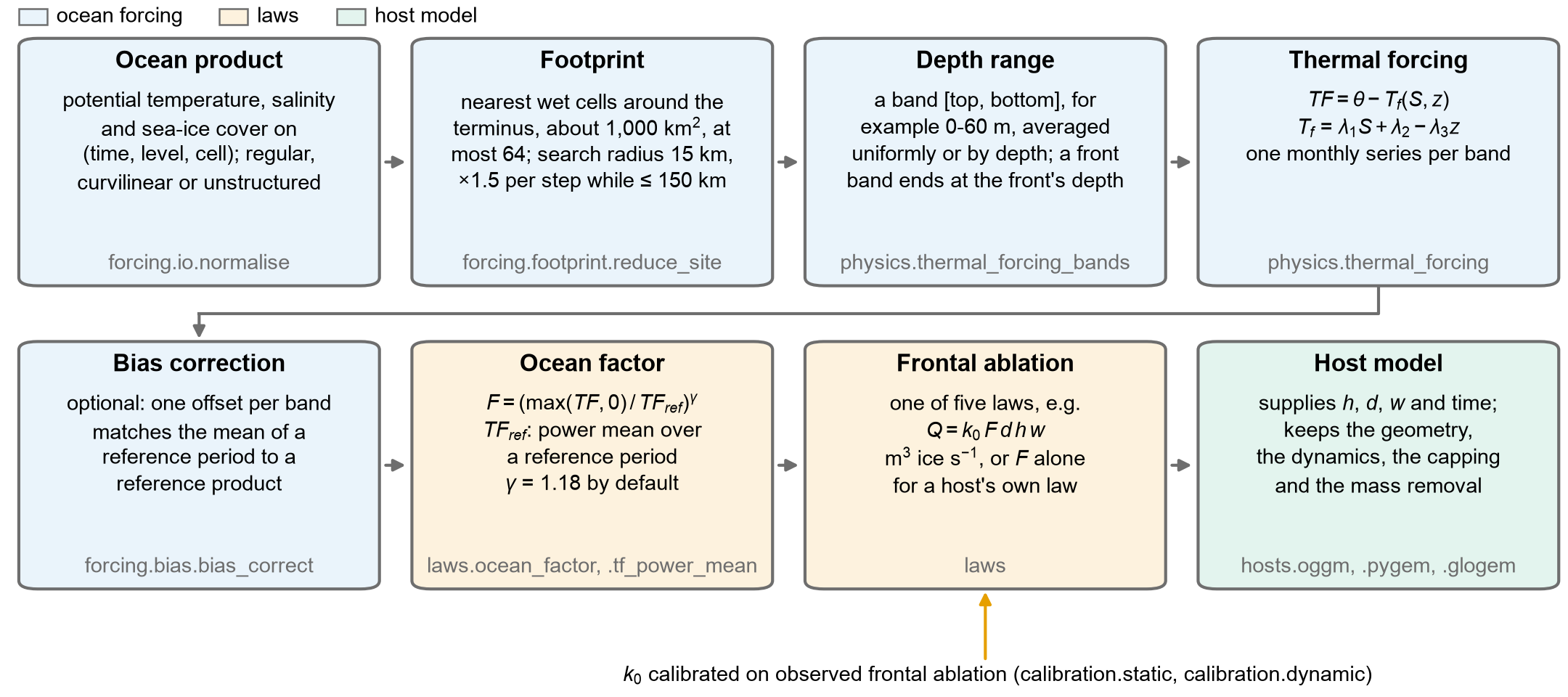

What it does

Supported glacier models

The host branches carry generic hooks only. They contain no ocean code and do not import tidewater, so a user who does not install this package gets the host model's own results.

Installation

tidewater needs Python 3.11 or later:

pip install tidewater            # core
pip install "tidewater[teos10]"  # adds the TEOS-10 freezing point (gsw)
pip install "tidewater[plot]"    # adds matplotlib, for the examples' figures

Core dependencies: numpy, pandas, xarray, netCDF4, cftime, scipy.

The examples and the tests are in the repository, not in the installed package. To run them or to change the code, install from a clone:

git clone https://github.com/MuhammadShafeeque/tidewater.git
pip install -e "tidewater[test,plot]"

A host model is installed separately, into the same environment. For OGGM:

git clone -b oggm-tidewater https://github.com/MuhammadShafeeque/oggmHydro.git
pip install -e "oggmHydro[full]"
pip install tidewater

Released OGGM 1.6.3 and earlier are not supported by the OGGM adapter. PyGEM pins its own OGGM and numpy versions, so give PyGEM an environment of its own.

Quick start

On its own

No glacier model is needed to compute a forcing, a factor or a flux:

import numpy as np
import pandas as pd
from tidewater.laws import TFPower, tf_power_mean
from tidewater.timeconv import yearly_ocean_factor

time = pd.date_range("1995-01-01", "2014-12-01", freq="MS")
tf = pd.Series(3.0 + np.sin(2 * np.pi * time.month / 12), index=time)  # degC
tf_ref = tf_power_mean(tf.to_numpy(), gamma=1.18)                        # degC

# a host with its own calving law: one factor per glacier and model year
factor = yearly_ocean_factor(tf.to_frame("RGI60-05.00001"), tf_ref, start_month=10,
                             incomplete="drop")

# a host that calls the law at each time step
years = time.year + (time.month - 0.5) / 12
law = TFPower(years, tf.to_numpy(), tf_ref=tf_ref, k0=0.6)                # k0 in yr-1
q = law.flux(h=250.0, d=180.0, w=1500.0, yr=2001.5)                       # m3 ice s-1

With OGGM

from oggm import cfg
import tidewater.hosts.oggm
from tidewater.hosts.oggm import tasks as tw_tasks

cfg.initialize()
tidewater.hosts.oggm.register()   # files, parameters, calving inversion
# ... glacier directories, then for example
# tw_tasks.process_ocean_data(gdir, ...)
# tw_tasks.run_with_ocean_forcing(gdir, calving_law='tf_power', ...)
# tw_tasks.run_dynamic_calving_k_calibration(gdir, ref_fa=..., ref_fa_err=...)

Call register() once, before the glacier directories are opened. The tasks and the settings they read are listed in docs/hosts.md.

With PyGEM

import sys
from pygem.bin.run import run_simulation
from tidewater.hosts.pygem import laws_from_forcing
from tidewater.hosts.pygem.dynamics import ocean_dynamics

laws = laws_from_forcing({"1.03622": "ocean/RGI60-01.03622.nc"}, "tf_power")
sys.argv = ["run_simulation", "-rgi_glac_number", "1.03622",
            "-option_dynamics", "OGGM"]
with ocean_dynamics(laws):
    run_simulation.main()

Glaciers without an entry, and land-terminating glaciers, run as before. Details, the two routes and the calibration tables are in docs/hosts-pygem.md.

With GloGEM

from tidewater.hosts import glogem

factor, info = glogem.write_ocean_factor_tables(
    "ocean_factor", tf_monthly, tf_ref, gamma=1.18,
    time_resolution="monthly", incomplete="drop")

This writes one ocean_factor_<region>.dat per RGI region in GloGEM's model years. GloGEM, on the branch glogem-tidewater, is then run as usual with three more lines in its config.pro:

!PATH = !PATH + ':<tidewater>/hosts/glogem/idl'
calving_factor_function = 'tw_table_factor'
calving_factor_dir = 'ocean_factor'

GloGEM keeps its own calving law and calibrated constant and multiplies its frontal ablation by the factor of each glacier and year. Without these lines it gives its stock results. The model-year rules and a note for MATLAB hosts are in docs/hosts-glogem.md.

The laws

Five laws form a nested family around the constant-k law q = k d h w (d water depth, h ice thickness, w width at the front):

Each law reduces to the one before it for a value of its parameters (TF = TF_ref, gamma = 0 or a = 0; lambda = 0; delta = 0), and larger_of reduces to the constant-k law at lambda = 0. A host can therefore switch the ocean on gradually and compare each step with its present results. At gamma = 0, a = 0 or TF = TF_ref, tf_power gives the same floating-point number as the constant-k law, so a host that calls the law at each time step runs exactly as it does with its own law; the other reductions hold to rounding. The thermal forcing is clipped at zero before any power. The freezing point is linear in salinity and depth by default; the TEOS-10 form is available with the teos10 extra.

The equations, their limits and the reference vectors are in src/tidewater/spec/SPEC.md.

Host integration contract

A host model supplies, at the calving front and at each of its time steps:

It gets back one of:

Three points complete the contract:

• One front per glacier. A host whose glacier has several marine fronts calls the law once per front and adds the fluxes.
• The yearly factor is a mean of monthly factors over the model year (tidewater.timeconv.yearly_ocean_factor), not the factor of the yearly mean thermal forcing.
• The host keeps the glacier. Capping the flux by the available ice, removing the mass, moving the front and the accounting of the removed volume stay with the host. tidewater never changes the state of a host glacier outside a host adapter.

The coupling routes for Python hosts and for hosts that cannot import Python are compared in docs/hosts.md.

Bringing your own data

Ocean products on regular, curvilinear and unstructured grids are read into one neutral layout; variable names, units and depth direction are declared or taken from CF metadata. Per-glacier forcing files are built in Python or from the command line:

tidewater-forcing build ocean_*.nc --glaciers glaciers.csv --out forcing/
tidewater-forcing validate forcing/

glaciers.csv holds a glacier id and the terminus longitude and latitude, with an optional front depth. Bed products and frontal-ablation datasets are brought in the same way, through a column mapping and a stated unit. See docs/data.md, and docs/regions.md for the parameters to set per region: the defaults are the values of the Greenland application the package was developed on, and each is marked.

Documentation

The same pages, with an API reference generated from the docstrings, are online at tidewater.readthedocs.io. To build the site locally:

pip install -e ".[docs]"
sphinx-build -W docs docs/_build/html

Package layout

Outside the package: examples/ (the example glacier, a script per host and the result files the figures read) and docs/figures/ (the scripts that draw every figure of the documentation into docs/img/).

Testing

pip install -e ".[test]"
pytest

The core tests need no glacier model and no download. The host tests under tests/hosts/ run when their host is installed and skip otherwise, each with the reason:

• OGGM: installed from the branch above. The tests take OGGM's options (pytest --run-slow). Run them with HOME set to a scratch directory, because OGGM's test helpers delete other directories under their test directory.
• PyGEM: released PyGEM or the branch; the test ids state which route ran.
• GloGEM: the IDL files run when idl or gdl is on the path, or when the environment variable TIDEWATER_IDL names an interpreter. GLOGEM_DIR, a GloGEM checkout with the hook, adds a test of GloGEM's calving routine.

Project status

The package is in alpha: names and signatures may still change.

All three hosts run the example glacier, RGI2000-v7.0-G-05-09345, with and without the ocean term: calibration on 2000-2009, evaluation on 2010-2019 and two scenarios to 2100. The results and their figures are in docs/examples.md.

Known limits of this version: one calving front per glacier; runs on several processes with PyGEM need forked workers; in GloGEMflow the frontal ablation does not yet change the flow model's geometry. The scheme is experimental, like the calving parameterizations it extends.

Contributing

Bug reports, questions and pull requests are welcome through the issue tracker of this repository. Three rules keep the package portable:

• nothing outside src/tidewater/hosts/ imports a glacier model (a test enforces it);
• every parameter is an argument with a documented default, never a global;
• a change to a law comes with updated reference vectors (python -m tidewater.spec.make_vectors) and a test.

A change that a user can notice gets a line under "Unreleased" in CHANGELOG.md.

A release is two steps: the "Unreleased" heading of CHANGELOG.md becomes the version and its date, and a GitHub release is published with the tag vX.Y.Z. The package version, the upload to PyPI, the documentation and the Zenodo archive follow from the tag.

A new host adapter goes in src/tidewater/hosts/<host>/ with its tests in tests/hosts/<host>/ and a page in docs/.

Citing

Please cite the software using CITATION.cff. The releases are archived on Zenodo: the DOI 10.5281/zenodo.23296214 stands for all versions and resolves to the latest one, and each release has a DOI of its own on that page.

References

The works this package builds on are in one list, the bibliography of the documentation; the same page gives the source of every equation and constant in the code.

Licence and acknowledgements

BSD-3-Clause, see LICENSE.

tidewater builds on the k-calving parameterization that OGGM, PyGEM and GloGEM each provide. It is an independent project and is not developed or endorsed by the teams of those models.
