A simple line based serial terminal GUI.
A simple line based serial terminal GUI written in Python. This is a tool that’s useful for talking to a variety of serial based hardware that can involve custom protocols or just a standard command line interface. It runs on anything that supports Python and Qt.
TinyCom is inspired by the original CuteCom.
Line oriented input and output, with configurable line ending.
Customizeable serial port configuration.
Automatically enumerates platform serial ports.
History of input lines, to easily regenerate them with a click.
Log the session to a file.
This is just an overview of runtime requirements. All major versions of both the Python interpreter and QT API are supported.
For simplicity, instructions for only PyQt4 and Python2 are listed here. However, you can adjust to use any combination of Python2/Python3 and PyQt4/PyQt5/Pyside if you prefer when it comes to runtime dependencies.
On Ubuntu, first install dependencies using the system package manager.
sudo apt-get install python python-qt4 python-serial python-pip
Then, use pip to install tinycom.
pip install [--user] tinycom
Or, if you’re installing from source:
pip install [--user] tinycom-<version>.tar.bz2
The –user option causes tinycom to be installed in your home directory under ~/.local.
Then, if you somehow get fed up with TinyCom’s awesomeness, uninstall it.
pip uninstall tinycom
Just execute tinycom.

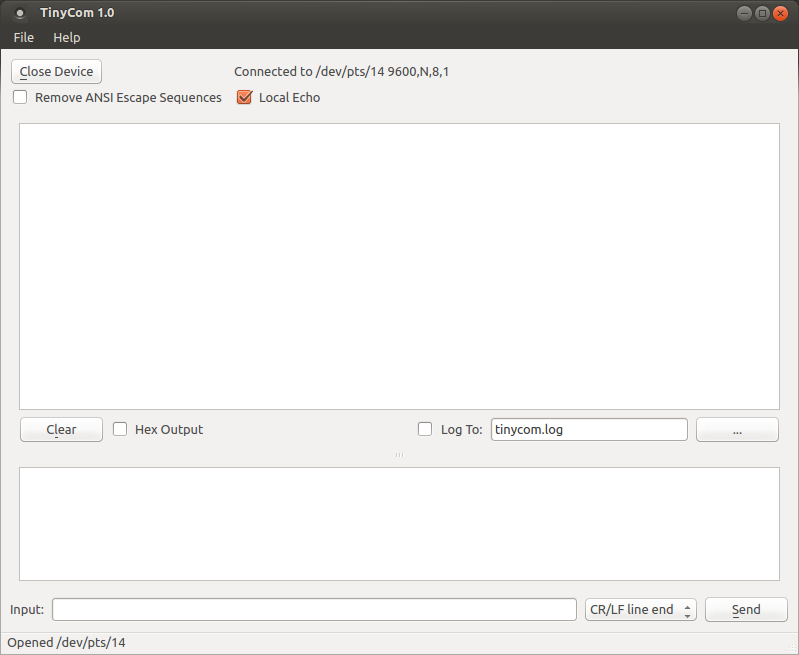

Main Window</figcaption> </figure>
TinyCom can use PyQt4, PyQt5, or PySide for its Qt API. As long as you have one installed, it will be automatically detected and used at runtime. However, if you wish to force a specific Qt API, you can set the QT_API environment variable to one of the following values when running.
QT_API=pyqt4 tinycom QT_API=pyqt5 tinycom QT_API=pyside tinycom
TinyCom is licensed under GPL Version 3. See the LICENSE.txt file. qt.py is licensed under 3-clause BSD. pyside_dyanmic.py is MIT licensed.
TinyCom Release Notes
Version 1.1 22 Feb 2017
Ignore pylint wrong-import-position warning
Convert README.md to rst long_description for PyPi
Switch sdist to gztar by default
Full support for PyQt4, PyQt5, and Pyside at runtime
Remove dead code comment
Enable universal package support by default
Version 1.0 20 Feb 2017
Initial alpha release.
