A Python library to simulate Raspberry Pi GPIO devices in TkInter

Project description

tkgpio

A Python library to simulate electronic devices connected to the GPIO on a Raspberry Pi, using TkInter.

About

Due to the Coronavirus outbreak in 2020, students enrolled in my Microcontroller course could not use the laboratory. So I decided to build a Raspberry Pi circuit simulator, to make remote class activities possible. And it works pretty well!

The main goal here is to enable students to use the same APIs that control physical devices connected to the GPIO, but interacting with a GUI instead. I'm not worried about creating a realistic electronic simulation.

Since we were already using Python to program on Raspberry Pi, I've built the interface with TkInter. Some libraries (like gpiozero) allowed me to easily mock the devices in the GUI. In other cases, I had to reimplement the API inside the library – but since I can temporaraly add folders to Python's PATH, import commands keep working exactly as the original ones.

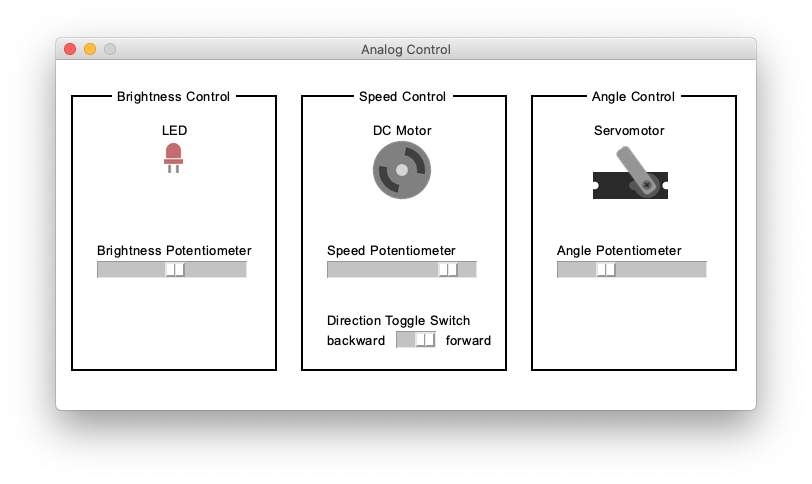

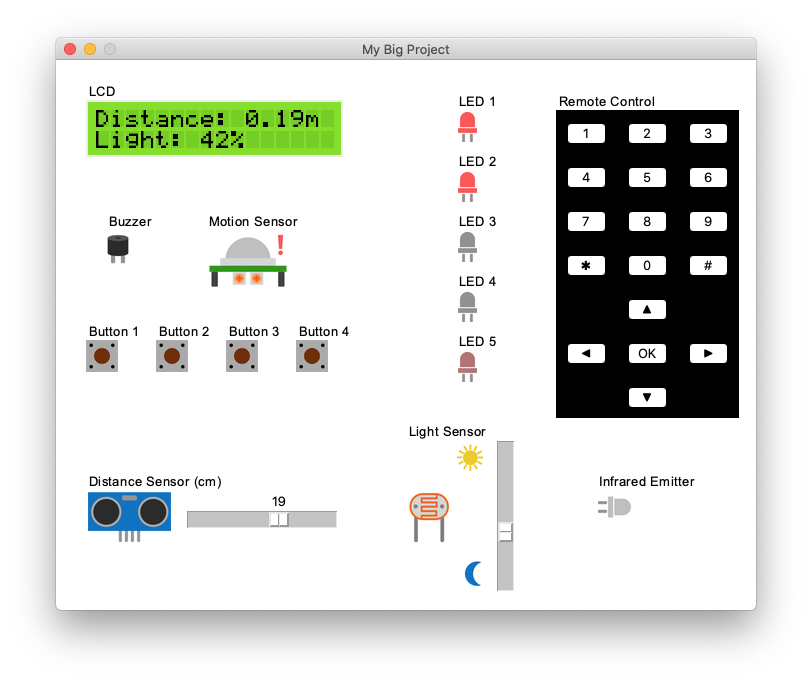

TkGPIO currently supports the following devices:

  • Some gpiozero components (more coming soon)
    • LED / PWMLED
    • (Active) Buzzer
    • DC Motor
    • Servomotor
    • Push Button
    • Toggle Switch
    • Distance Sensor (HC-SR04)
    • Light Sensor (LDR)
    • Motion Sensor (HC-SR501)
    • Potentiometer (via MCP3xxx chip)
  • LCD display (reimplementing Adafruit_CharLCD API)
    • Only message and clear methods are supported for now (more coming soon)
  • Infrared emmitter (reimplementing py_irsend API)
  • Infrared receiver (reimplementing python-lirc API)

TkGPIO also supports labels with text, border and background color.

Usage

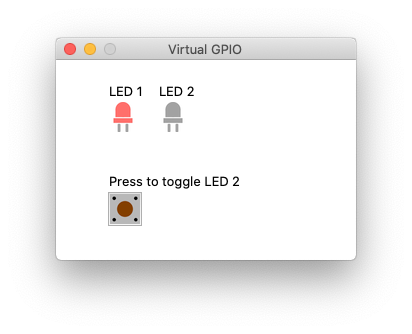

This is a simple example to create and control 2 LEDs and 1 Button.

from tkgpio import TkCircuit

# initialize the circuit inside the GUI

configuration = {
    "width": 300,
    "height": 200,
    "leds": [
        {"x": 50, "y": 40, "name": "LED 1", "pin": 21},
        {"x": 100, "y": 40, "name": "LED 2", "pin": 22}
    ],
    "buttons": [
        {"x": 50, "y": 130, "name": "Press to toggle LED 2", "pin": 11},
    ]
}

circuit = TkCircuit(configuration)
@circuit.run
def main ():

    # now just write the code you would use on a real Raspberry Pi

    from gpiozero import LED, Button
    from time import sleep

    led1 = LED(21)
    led1.blink()

    def button_pressed():
        print("button pressed!")
        led2.toggle()

    led2 = LED(22)
    button = Button(11)
    button.when_pressed = button_pressed

    while True:
        sleep(0.1)

You could also initialize the circuit in a function inside a separate Python file, to hide it from students.

Check more sample code files in docs/examples.

Instalation

Use PyPI to install TkGPIO in your computer.

pip install tkgpio

By default, buzzers will flash on the window but will not play any sound. To enable that, install numpy and sounddevice, or install tkgpio using the command

pip install 'tkgpio[sound]'
