tmap2 0.1.0

Tree-based visualization for high-dimensional data

TMAP2

Tree-based visualization for high-dimensional data. Organizes similar items into interactive tree structures — ideal for chemical space, protein embeddings, single-cell data, or any high-dimensional dataset.

A modernized reimplementation of the original TMAP with an sklearn-style API, multiple distance metrics, and interactive visualization.

Your Data
   ├─→ MinHash → LSHForest        (Jaccard)
   └─→ USearch                    (Cosine / Euclidean / other metrics)
                ↓
             k-NN Graph → MST → OGDF Tree Layout → Interactive Visualization

Installation

pip install tmap2

Optional extras:

pip install rdkit          # chemistry helpers (fingerprints_from_smiles, molecular_properties)
pip install jupyter-scatter # notebook interactive widgets

Note: The import name is tmap, not tmap2.

Quick Start

import numpy as np
from tmap import TMAP

# Binary fingerprints (Jaccard)
X = np.random.randint(0, 2, (1000, 2048), dtype=np.uint8)
model = TMAP(metric="jaccard", n_neighbors=20, seed=42).fit(X)
model.to_html("map.html")

# Dense embeddings (cosine / euclidean)
X = np.random.random((1000, 128)).astype(np.float32)
model = TMAP(metric="cosine", n_neighbors=20).fit(X)
new_coords = model.transform(X[:10])

Visualization

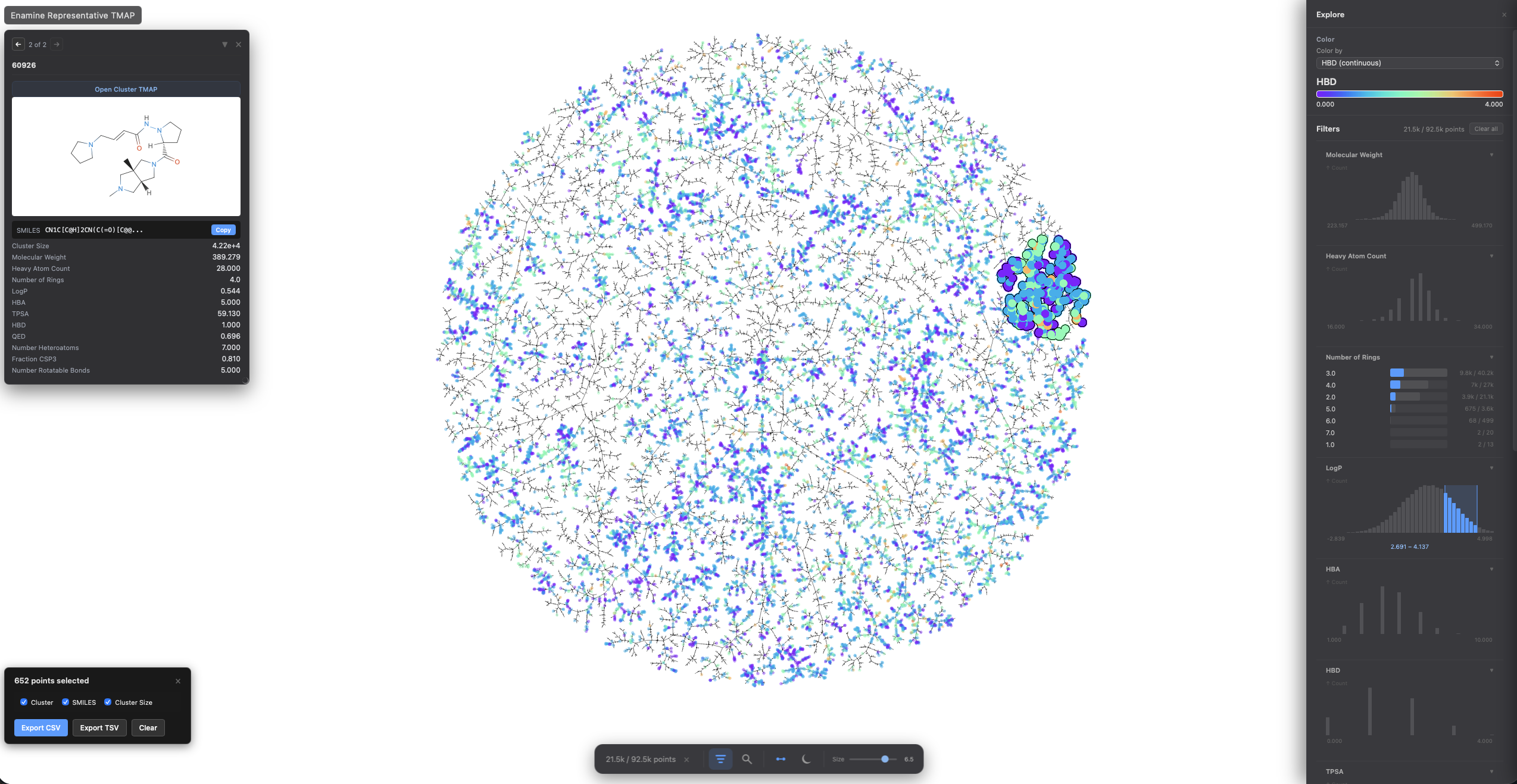

Interactive HTML Export

• Lasso selection (Shift + drag)
• Light / dark theme toggle
• Filter and search side panels
• Pinned cards for metadata, structures, and links
• Binary mode for large datasets

Notebook Widgets

Color switching, categorical filtering, and lasso selection with pandas-backed metadata:

viz = model.to_tmapviz()
viz.add_color_layout("Molecular Weight", mw.tolist(), categorical=False)
viz.add_color_layout("Scaffold", scaffolds, categorical=True, color="tab10")
viz.add_label("SMILES", smiles_list)
viz.show(width=1000, height=620, controls=True)

Lasso Selection + DataFrame Integration

Domain Utilities

Built-in helpers for common scientific workflows:

from tmap.utils.chemistry import fingerprints_from_smiles, molecular_properties
from tmap.utils.proteins import fetch_uniprot, sequence_properties
from tmap.utils.singlecell import from_anndata

Domain	Metric	Utilities
Chemoinformatics	jaccard	fingerprints_from_smiles, molecular_properties, murcko_scaffolds
Proteins	cosine / euclidean	fetch_uniprot, fetch_alphafold, read_pdb, sequence_properties
Single-cell	cosine / euclidean	from_anndata, cell_metadata, marker_scores
Generic embeddings	cosine / euclidean / precomputed	No domain utils needed

Lower-Level Pipeline

For direct control over MinHash, LSH Forest, and layout stages:

from tmap import MinHash, LSHForest
from tmap.layout import LayoutConfig, layout_from_lsh_forest

mh = MinHash(num_perm=128, seed=42)
signatures = mh.batch_from_binary_array(X)

lsh = LSHForest(d=128, l=64)
lsh.batch_add(signatures)
lsh.index()

cfg = LayoutConfig(k=20, kc=50, deterministic=True, seed=42)
x, y, s, t = layout_from_lsh_forest(lsh, cfg)
# x, y = coordinates; s, t = tree edge indices

Key Features

• Deterministic: same input + seed = same output
• Multiple metrics: jaccard, cosine, euclidean, precomputed
• Incremental: add_points() and transform() for new data
• Model persistence: save() / load()
• Three viz backends: interactive HTML, jupyter-scatter, matplotlib

Development

git clone https://github.com/afloresep/TMAP.git
cd TMAP
pip install ".[dev]"
pytest -v

License

MIT License - see LICENSE for details.

Based on the original TMAP by Daniel Probst and Jean-Louis Reymond.
