tmin 1.0.0

A comprehensive pipe thickness analysis tool for mechanical integrity engineering

TMIN: The Fast Pipe Thickness Analysis Tool

TMIN is an open source software designed to help engineers determine if corroded process piping in refineries and pertrochemical plants are safe and API-compliant — in seconds.

Many oil and gas companies are faced with maintaining thousands of miles of 100+ year old piping networks supporting multi-million dollar/year processing operations. There is rarely a simple solution to immediately shutdown a process pipe - as these shutdowns more often than not impact other units and cost companies millions in time and resources.

This is more than a python package, it is a comprehensive engineering decision support system for critical infrastructure safety and operational continuity.

---

Getting Started

Installation:

pip install tmin

Basic Example:

from tmin.core import PIPE

# Create pipe instance
pipe = PIPE(
    nps="2",
    schedule="40",
    pressure=50.0,
    pressure_class=150,
    metallurgy="Intermediate/Low CS",
    corrosion_rate=10.0
)

# Analyze thickness and generate report
results = pipe.analysis(measured_thickness=0.188)
report = pipe.report("TXT")  # Options: "CSV", "JSON", "TXT", "IPYNB"

print(f"Flag: {results['flag']}")
print(f"Status: {results['status']}")
print(f"Report saved: {report['file_path']}")

Suppose the following scenario:

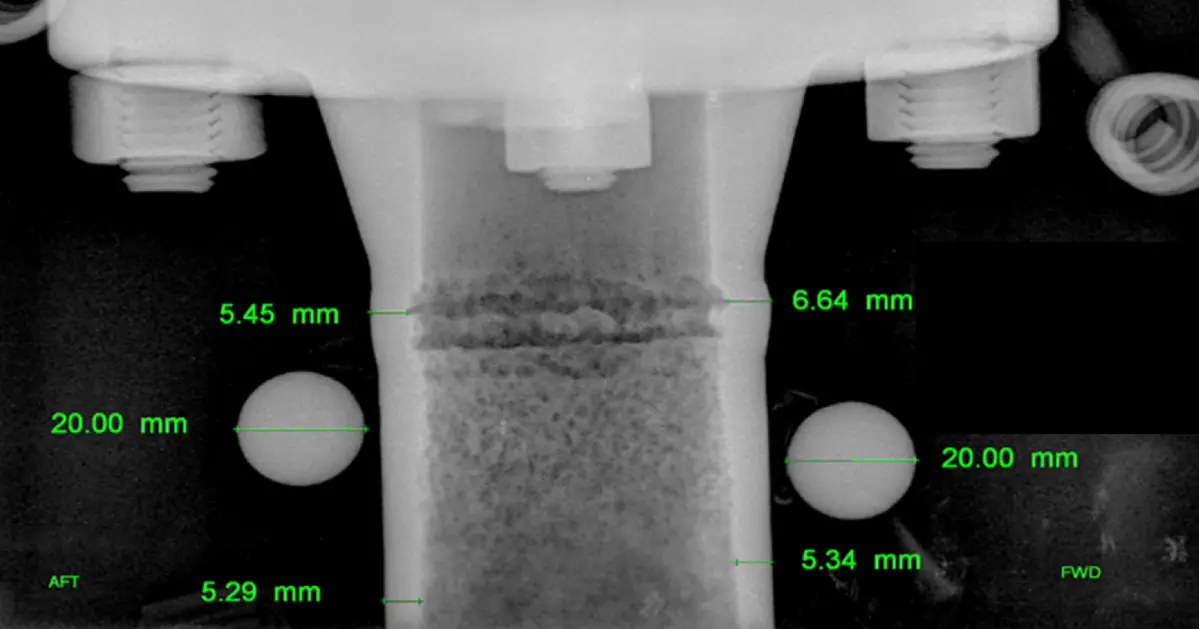

RT findings show your 2" Schedule 40 pipe has 0.060" wall thickness. You need to know if it's safe to operate and how much time remains before pipe retirement.

The Previous Way: time consuming handwritten calculations, tedious code book lookups, and hours of typing full assessment reports

With TMIN: One Python script, instant answers.

import tmin

# Create pipe instance
pipe = tmin.PIPE(
    schedule="40",
    nps="2",
    pressure=50.0,
    pressure_class=150,
    metallurgy="Intermediate/Low CS",
    allowable_stress=23333.0
)

# Analyze thickness
results = pipe.analysis(measured_thickness=0.060)
print(f"Safe to operate: {results['actual_thickness'] > results['governing_thickness']}")
print(f"Remaining life: {results['life_span']} years")

Result: Professional report with compliance status, remaining life, and visual analysis in under 30 seconds.

Why TMIN

Speed 30 seconds from inspection data to compliance report. No manual calculations or code book lookups. Instant visual analysis.

Accuracy Built on ASME B31.1 and API 574 standards. Automatic governing factor determination. Time-based corrosion adjustment.

Professional Output Auto-generated reports with timestamps. Visual thickness analysis charts. Compliance documentation for audits.

Real-World Ready Handles corrosion rates and inspection dates. Supports multiple metallurgies and pipe schedules. TOML configuration for batch analysis.

---

What TMIN Analyzes

Pressure Design (ASME B31.1) Minimum wall thickness for pressure containment. Temperature effects and material properties. Y-coefficient calculations.

Structural Requirements (API 574) Minimum thickness for structural integrity. Pipe deflection and weight loading. Table D.2 compliance.

Corrosion Analysis Time-based thickness adjustment. Remaining life prediction. Corrosion allowance calculations.

Compliance Reporting Governing factor identification. Safety margin analysis. Professional documentation.

---

Supported Specifications

Schedules	NPS Sizes	Pressure Classes	Metallurgies
10, 40, 80, 120, 160	0.5" to 24"	150, 300, 600, 900, 1500, 2500	Carbon Steel, Stainless Steel, Nickel Alloys

Command Line Interface

Basic Analysis

tmin -s 40 -n "2" -p 50 -c 150 -m "Intermediate/Low CS" -a 23333 -t 0.060

With Corrosion Rate

tmin -s 40 -n "2" -p 50 -c 150 -m "Intermediate/Low CS" -a 23333 -t 0.060 -r 10 -y 2023

Using Configuration File

# Create pipe_config.toml with your parameters
tmin -f pipe_config.toml -t 0.060

Custom Output Directory

tmin -s 40 -n "2" -p 50 -c 150 -m "Intermediate/Low CS" -a 23333 -t 0.060 -o ./my_reports

---

Test It Yourself

# Install and test
pip install tmin
python -m pytest tests/test_core.py -v

---

Need Help?

Documentation: Built-in help with tmin --help Examples: See tutorials/python_scripts/basic_example.py Contact: andrew[dot]trepagnier[at]icloud[dot]com

---

Disclaimer

TMIN is a decision support tool for qualified engineers. Always use professional judgment and follow applicable codes and standards.

License: MIT
