Network Topology Scanner

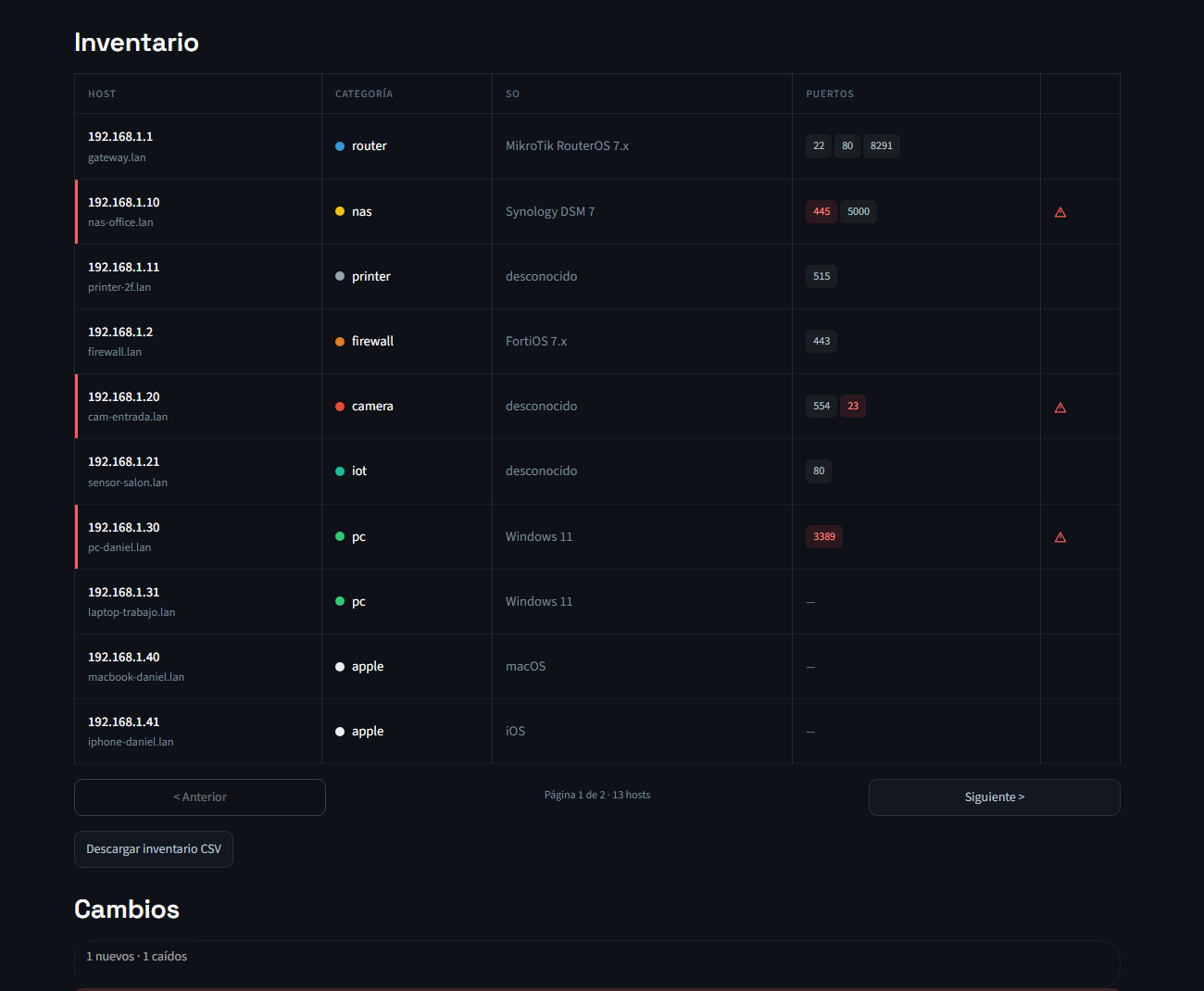

Scans a network range, discovers active hosts, their open ports/services, vendor (via MAC) and device type, and generates an interactive HTML topology graph with icons per category (router, PC, NAS, printer, etc). Flags hosts with sensitive open ports in red (Telnet, SMB, RDP, FTP, VNC), stores every scan in SQLite to diff against the previous one (new/dropped hosts, ports that changed), and can export the inventory to CSV. Optionally queries your routers/switches over SNMP to draw the real topology (which host hangs from which switch port or access point) instead of an approximate star. Available as a CLI or as a local web interface (Streamlit, optional).

Screenshots use fictional demo data — no real network is exposed here.

⚠️ Legal notice

Only use this tool on networks you own or have explicit authorization to scan (your homelab, or your workplace's network if you have permission). Scanning networks without consent is illegal in most countries.

Project structure

network-topology-scanner/
├── src/topology_scanner/
│   ├── scanner.py        # nmap scanning (discovery + ports)
│   ├── classifier.py      # Device classification by MAC/vendor
│   ├── graph.py            # Graph construction (networkx)
│   ├── export.py           # HTML export (pyvis), text and CSV
│   ├── history.py          # Scan history in SQLite (diff vs. the previous scan)
│   ├── snmp.py             # Real topology via SNMP (ARP, routes, MAC table, neighbors)
│   ├── cli.py               # Command-line interface
│   └── webapp.py            # Web interface (Streamlit, optional)
├── scripts/demo_arbol.py    # Fictional SNMP tree for the README screenshot
├── tests/                   # pytest, with nmap mocks (no real network needed)
└── pyproject.toml           # single source of dependencies (pip install -e ".[dev,web,snmp]")

Installation

Requires Python 3.10+.

# System dependency
sudo apt install nmap        # Linux
# On Windows: download the installer from nmap.org

# Virtual environment
python3 -m venv venv
source venv/bin/activate      # Linux/Mac
# venv\Scripts\Activate.ps1   # Windows PowerShell

# From PyPI
pip install topology-scanner
pip install "topology-scanner[web,snmp]"   # optional: web interface and real topology via SNMP

For development, from a clone of the repo:

pip install -e ".[dev,web,snmp]"

Usage

sudo topology-scanner 192.168.1.0/24
sudo topology-scanner 192.168.1.0/24 --rapido
sudo topology-scanner 192.168.1.0/24 --con-so --output my_network.html

# Several ranges at once (e.g. your LAN and a homelab subnet behind another router)
sudo topology-scanner 192.168.1.0/24 10.0.10.0/24

# Real topology: query the router(s) over SNMP (see below)
export TOPOLOGY_SNMP_COMMUNITY='your-read-only-community'
sudo -E topology-scanner 192.168.1.0/24 --snmp 192.168.1.1

# Alternative without the installed entry point:
sudo python3 -m topology_scanner 192.168.1.0/24

Web interface

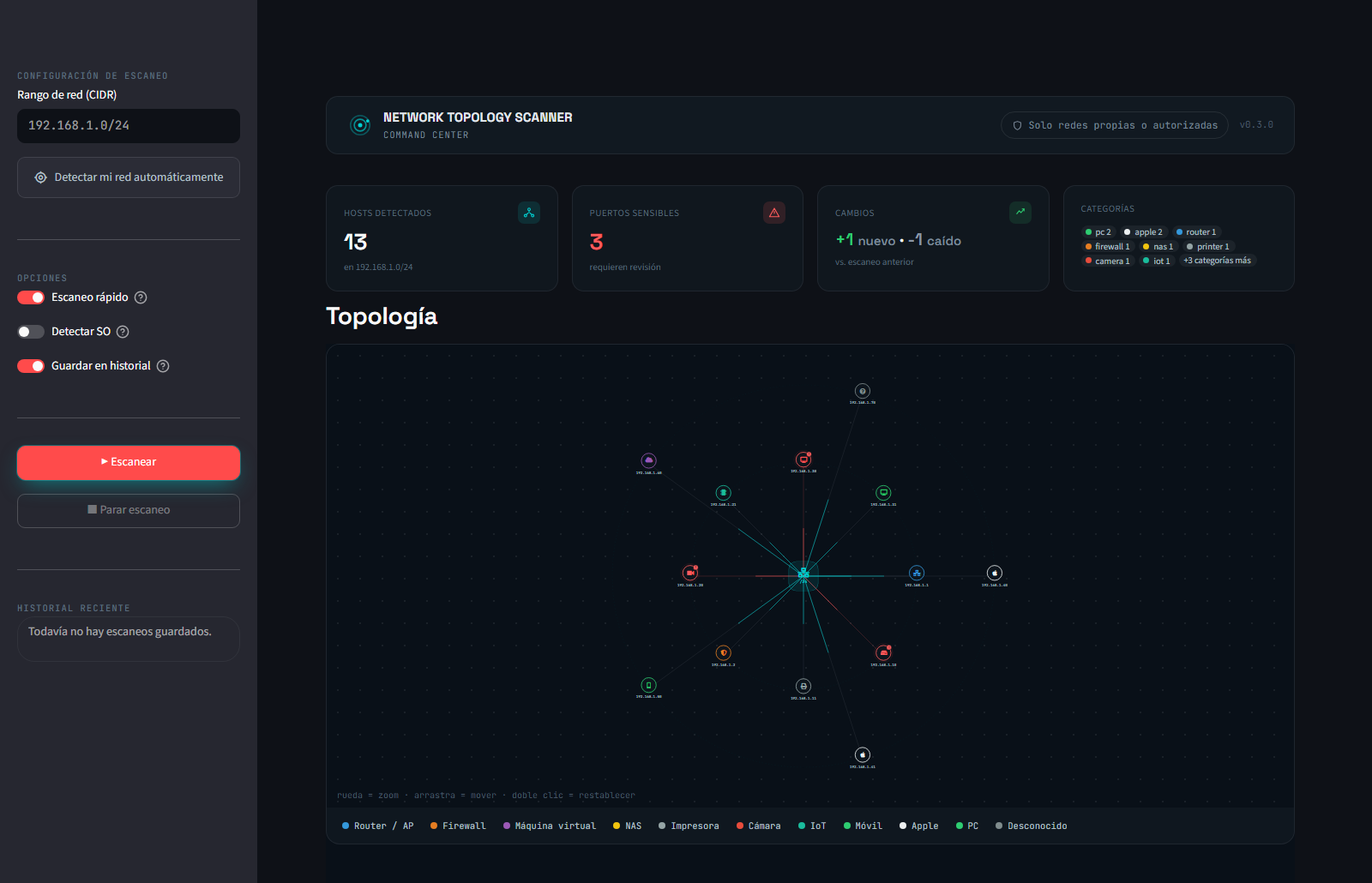

Requires the [web] extra (see Installation). Form with automatic detection of your local network, real cancellable scanning (kills the actual nmap process, not just the UI), results table, CSV download and the embedded graph. Several ranges can be scanned at once by separating them with spaces in the range field. The "Real topology via SNMP" switch in the sidebar draws the tree described below, over SNMP v2c or v3 (community and keys are password inputs; leave them empty to use the TOPOLOGY_SNMP_* environment variables).

topology-scanner-web
# or, without the installed entry point:
streamlit run src/topology_scanner/webapp.py

Real topology via SNMP

By default the graph is an approximate star: nmap knows which hosts are alive, not how they are connected. With --snmp, the scanner reads a few standard tables from your routers/switches and builds a tree instead:

Hosts seen on a port that leads to another network device hang from that device; hosts that only SNMP sees (not detected by nmap) are shown too — an unknown device on a switch port is exactly what you want to notice. If no device answers, the scan still finishes with the star layout.

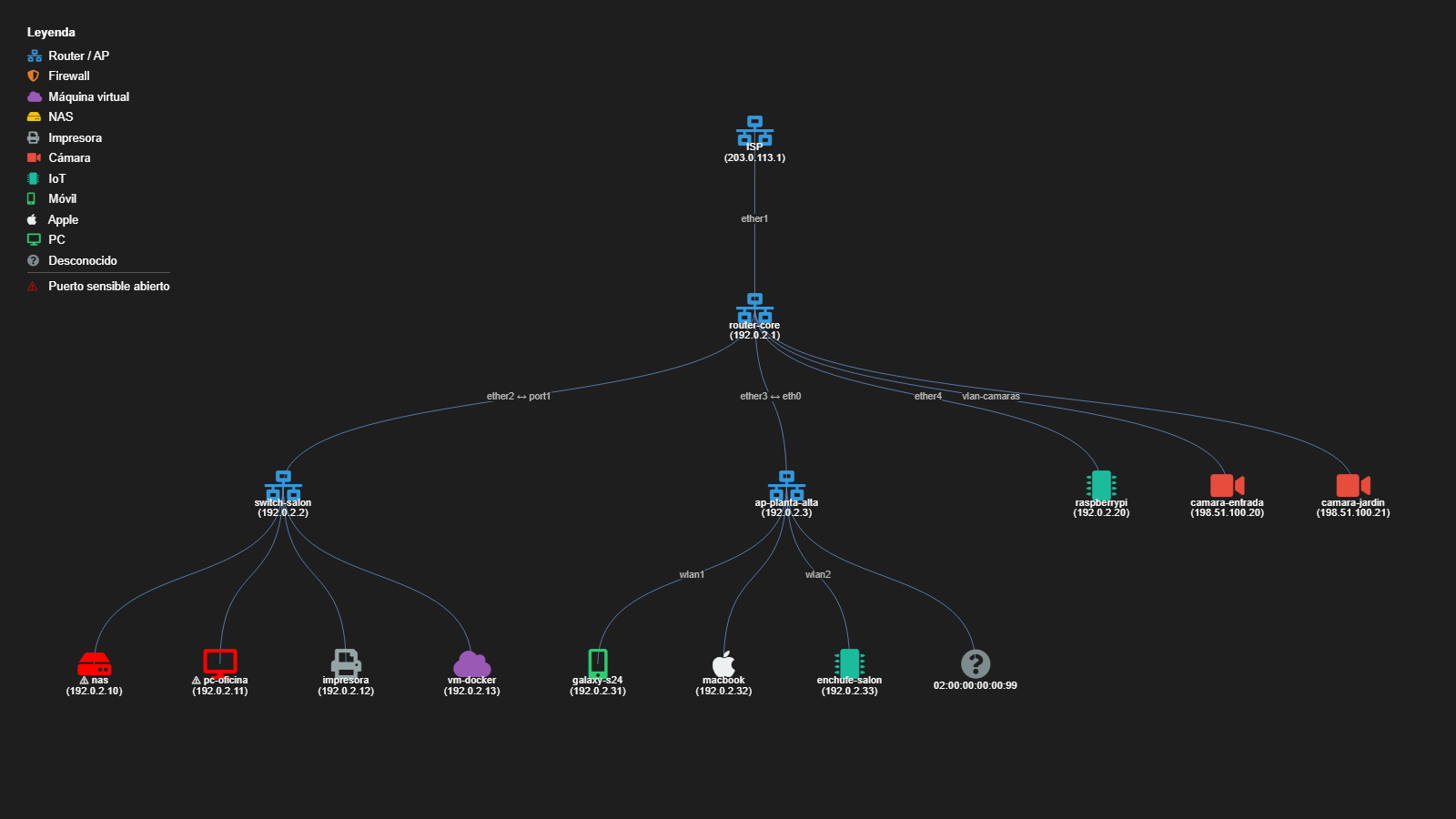

Fictional demo data, generated with python scripts/demo_arbol.py (no scan involved).

Setup (MikroTik RouterOS example — read-only, restricted to the scanning machine):

/snmp community add name=<long-random-string> addresses=<scanner-ip>/32 read-access=yes write-access=no
/snmp community set [find name=public] disabled=yes
/snmp set enabled=yes

The community is read from the TOPOLOGY_SNMP_COMMUNITY environment variable, never from a command-line argument (arguments show up in ps and in your shell history). On Windows PowerShell: $env:TOPOLOGY_SNMP_COMMUNITY = "...".

SNMPv3 (recommended: v2c sends the community in clear text). In RouterOS v6 the community name is the v3 user, and security=private means authentication + encryption:

/snmp community add name=<user> addresses=<scanner-ip>/32 security=private \
    authentication-protocol=SHA1 authentication-password=<8+ chars> \
    encryption-protocol=AES encryption-password=<8+ chars> read-access=yes write-access=no

Current limitations: links between network devices come from MikroTik's neighbor table and from the standard LLDP-MIB, so devices that don't run LLDP (or don't expose it over SNMP) are only placed by routes, ARP and the MAC table.

Device classification

Each host's MAC address is used to look up its vendor (via nmap's built-in database), which is then heuristically mapped to a category with its own icon: router, firewall, VM, NAS, printer, camera, IoT, mobile, Apple, PC.

Limitation: MAC resolution only works if the scanning machine is on the same L2 segment as the target host (ARP doesn't cross routers/VLANs). Hosts on other subnets will show up as category "unknown".

Tests

pytest tests/ -v
pytest tests/ --cov=topology_scanner   # with coverage

scanner.py tests use unittest.mock to simulate nmap's responses, so they run without a real network or the nmap binary installed.

Roadmap

• Visual alerts for sensitive open ports (RDP, Telnet, SMB, FTP, VNC)
• Scan history in SQLite (new/dropped hosts, ports that change)
• CSV export for audits/inventory
• Visual icon/color legend in the HTML
• Web interface with Streamlit
• CI: run tests + ruff on every push
• Real topology via SNMP against routers/switches, CLI (instead of the approximate star layout)
• SNMP in the web interface
• Standard LLDP-MIB (links between devices from any vendor, with the port on both ends)
• SNMPv3 (authentication and encryption)
• v1.0 on PyPI, published by GitHub Actions from a tag (trusted publishing, no tokens)

See CHANGELOG.md for release notes.
