⚙️ torch-diffsim

Documentation is hosted at: https://rishit-dagli.github.io/torch-diffsim/

Checkout the Deepwiki: torch-diffsim for an in-depth conceptual description.

torch-diffsim is an extremely minimal parallelizable differentiable finite element (FEM) simulator written entirely in PyTorch. It uses a semi-implicit (symplectic Euler) integrator, a stable Neo-Hookean material model, and smooth barrier-based contact. All operations preserve gradients to enable optimization of materials and states.

Install

pip install torch-diffsim

# IPC backend
pip install "torch-diffsim[ipc]"

# or from source
git clone https://github.com/Rishit-dagli/torch-diffsim
cd torch-diffsim
pip install -e .

Quick start: suspend a soft bunny

from pathlib import Path

import torch
from diffsim import SemiImplicitSolver, Simulator, StableNeoHookean, TetrahedralMesh

device = "cuda" if torch.cuda.is_available() else "cpu"
source = TetrahedralMesh.from_file(
    Path("assets/tetmesh/stanford_bunny.msh"), device=device
)
mesh = TetrahedralMesh(
    source.vertices + source.vertices.new_tensor([0.0, 0.60, 0.0]),
    source.tetrahedra,
    device=device,
)
sim = Simulator(
    mesh,
    StableNeoHookean(youngs_modulus=2e5, poissons_ratio=0.4),
    SemiImplicitSolver(dt=0.002, damping=0.996, substeps=6),
    density=1000.0,
    device=device,
)
support = torch.where(
    mesh.vertices[:, 1] >= torch.quantile(mesh.vertices[:, 1], 0.96)
)[0]
sim.set_fixed_vertices(support)

for _ in range(500):
    sim.step()

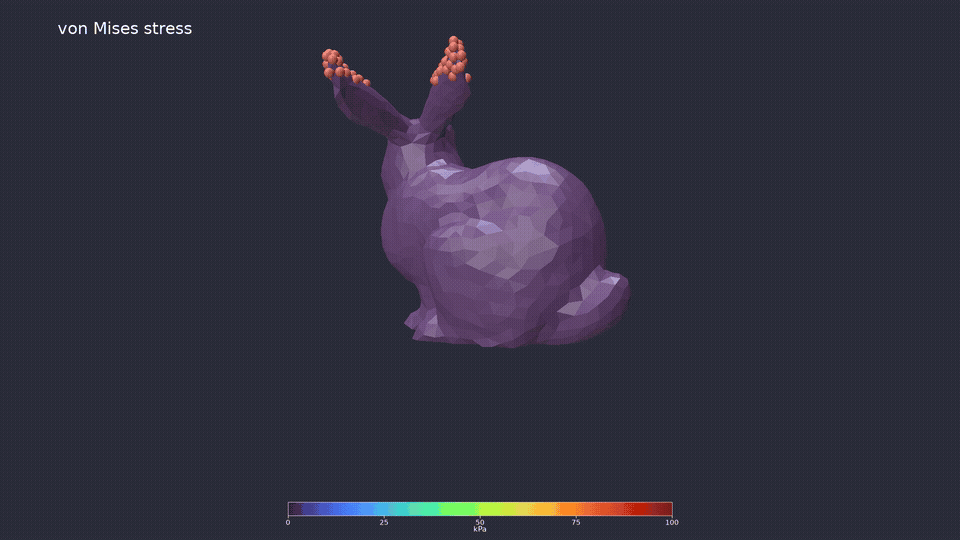

Run python examples/suspended_bunny.py to see the fixed points, rest pose, deformation, von Mises stress, and equivalent Green strain.

Quick start: train through the simulator

Here one torch.nn.Module learns feedback across four combinations of ear-tip target and initial impulse. Adam differentiates the exact mean loss through all 48 FEM steps in every condition.

import torch
from examples.train_neural_controller import (
    EarController,
    build_problem,
    rollout,
)

device = "cuda" if torch.cuda.is_available() else "cpu"
torch.manual_seed(8)
if torch.cuda.is_available():
    torch.cuda.manual_seed_all(8)
problem = build_problem(device)
controller = EarController().to(device)
optimizer = torch.optim.Adam(controller.parameters(), lr=0.018)

for _ in range(12):
    optimizer.zero_grad()
    for target_distance, initial_velocity in problem["training_conditions"]:
        result = rollout(
            problem,
            controller,
            steps=48,
            target_distance=target_distance,
            initial_tip_velocity=initial_velocity,
        )
        (result["loss"] / len(problem["training_conditions"])).backward()
    torch.nn.utils.clip_grad_norm_(controller.parameters(), 1.0)
    optimizer.step()

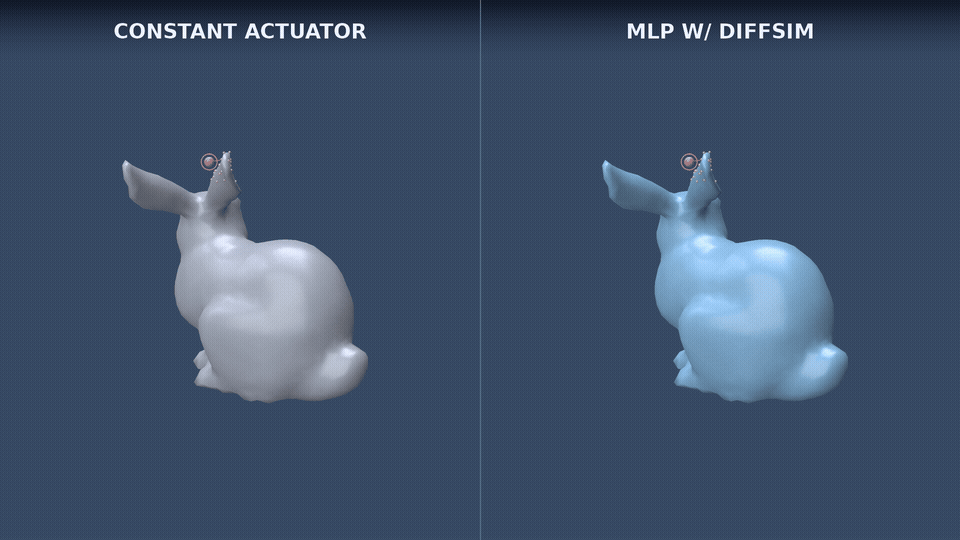

The example retains the best policy, fits the constant baseline on the same training set, and records both held-out trajectories:

python examples/train_neural_controller.py --plot neural_bunny.png

Learn more

• User Guide and API: https://torch-diffsim.github.io
• Examples: see the examples/ directory
• How it works: simulation and differentiation details in the docs

Citation

If you use torch-diffsim in academic work, please include a citation or link to the project repository.

@misc{torch-diffsim,
  title  = {torch-diffsim},
  author = {Rishit Dagli},
  year   = {2025},
  howpublished = {\url{https://github.com/Rishit-dagli/torch-diffsim}}
}
