torch-np-classifier 0.0.2

PyTorch/Lightning reimplementation of NP-Classifier.

torch-np-classifier

A PyTorch/Lightning implementation of the NP-Classifier — a deep neural network for classifying natural products into pathway, superclass, and class levels of the biosynthetic hierarchy.

The library ships pretrained models and provides a single high-level object, NPClassifierPipeline, for prediction, embedding extraction, and SHAP-based explainability.

---

Table of contents

• Installation
• Quick start
• Predictions
• Molecular embeddings
• Explainability
• Training your own model
• Benchmark on CocoNut
• Acknowledgements

---

Installation

From PyPI

pip install torch-np-classifier

From GitHub (latest development version)

pip install git+https://github.com/jcapels/torch_np_classifier.git

Optional dependencies

SHAP explainability and visualisation require two extra packages:

pip install shap matplotlib Pillow

---

Quick start

from torch_np_classifier import NPClassifierPipeline

# Pretrained checkpoints are downloaded automatically on first prediction (~300 MB), cached afterwards
pipeline = NPClassifierPipeline()

result = pipeline.predict("O=c1c(O)c(-c2ccc(O)c(O)c2)oc2cc(O)cc(O)c12")  # quercetin
print(result["pathway"])     # ['Shikimates and Phenylpropanoids']
print(result["superclass"])  # ['Flavonoids']
print(result["class"])       # ['Flavonols']
print(result["isglycoside"]) # False

---

Predictions

Single molecule

from torch_np_classifier import NPClassifierPipeline

pipeline = NPClassifierPipeline()

result = pipeline.predict("Cn1cnc2c1c(=O)n(c(=O)n2C)C")  # caffeine
print(result)
# {
#   'pathway':    ['Alkaloids'],
#   'superclass': ['Purine alkaloids'],
#   'class':      ['Xanthines'],
#   'isglycoside': False
# }

Batch prediction

Pass a list of SMILES to get a list of result dicts in the same order:

smiles_list = [
    "Cn1cnc2c1c(=O)n(c(=O)n2C)C",                          # caffeine
    "O=c1c(O)c(-c2ccc(O)c(O)c2)oc2cc(O)cc(O)c12",          # quercetin
    "CN1CC[C@]23c4c5ccc(O)c4O[C@H]2[C@@H](O)C=C[C@@H]3[C@@H]1C5",  # morphine
]

results = pipeline.predict(smiles_list)

for smi, res in zip(smiles_list, results):
    print(res["pathway"], res["superclass"], res["class"])

Level-specific shortcuts

When you only need one level of the hierarchy:

pipeline.predict_pathway("Cn1cnc2c1c(=O)n(c(=O)n2C)C")
# ['Alkaloids']

pipeline.predict_superclass("Cn1cnc2c1c(=O)n(c(=O)n2C)C")
# ['Purine alkaloids']

pipeline.predict_class("Cn1cnc2c1c(=O)n(c(=O)n2C)C")
# ['Xanthines']

Each method accepts a single SMILES string or a list and returns the corresponding type.

---

Molecular embeddings

predict_embeddings extracts the penultimate-layer activations from any of the three hierarchical models. The default architecture produces a (N, 1536) float32 array.

smiles_list = [
    "Cn1cnc2c1c(=O)n(c(=O)n2C)C",
    "O=c1c(O)c(-c2ccc(O)c(O)c2)oc2cc(O)cc(O)c12",
    "CC(=O)Oc1ccccc1C(=O)O",
]

embeddings = pipeline.predict_embeddings(smiles_list, level="class")
print(embeddings.shape)  # (3, 1536)

The level argument selects which model to extract from: "pathway", "superclass", or "class".

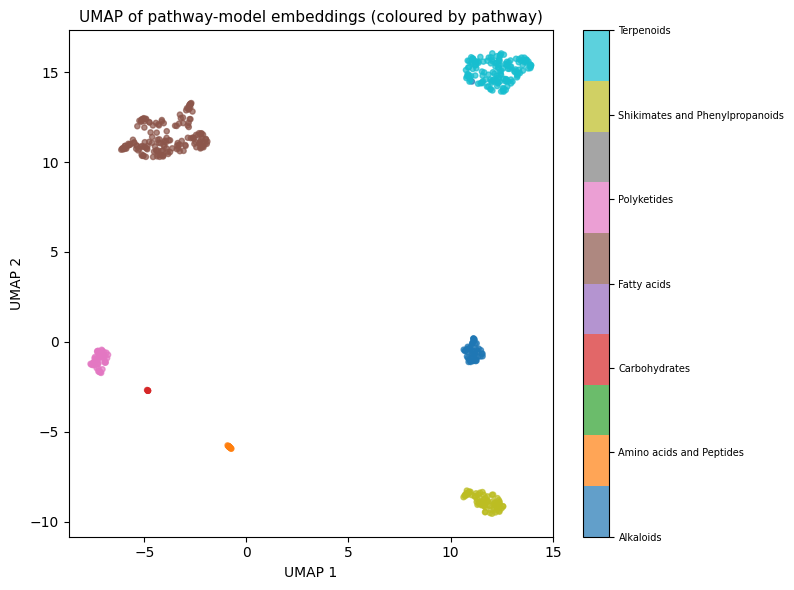

Visualising with UMAP

import umap
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

df = pd.read_csv("train.csv")
smiles = df["SMILES"].tolist()
pathway_labels = df.columns[2:9].tolist()

emb = pipeline.predict_embeddings(smiles[:500], level="pathway")

reducer = umap.UMAP(n_components=2, random_state=42)
coords = reducer.fit_transform(emb)

colour_idx = np.argmax(df[pathway_labels].values[:500], axis=1)

fig, ax = plt.subplots(figsize=(8, 6))
sc = ax.scatter(coords[:, 0], coords[:, 1], c=colour_idx, cmap="tab10", s=14, alpha=0.7)
cbar = plt.colorbar(sc, ax=ax, ticks=range(len(pathway_labels)))
cbar.ax.set_yticklabels(pathway_labels, fontsize=7)
ax.set_title("UMAP of pathway-model embeddings")
plt.tight_layout()
plt.show()

---

Explainability

NPClassifierPipeline integrates shap.GradientExplainer to explain any prediction in terms of Morgan fingerprint bits. All SHAP computation runs on CPU regardless of where the model lives.

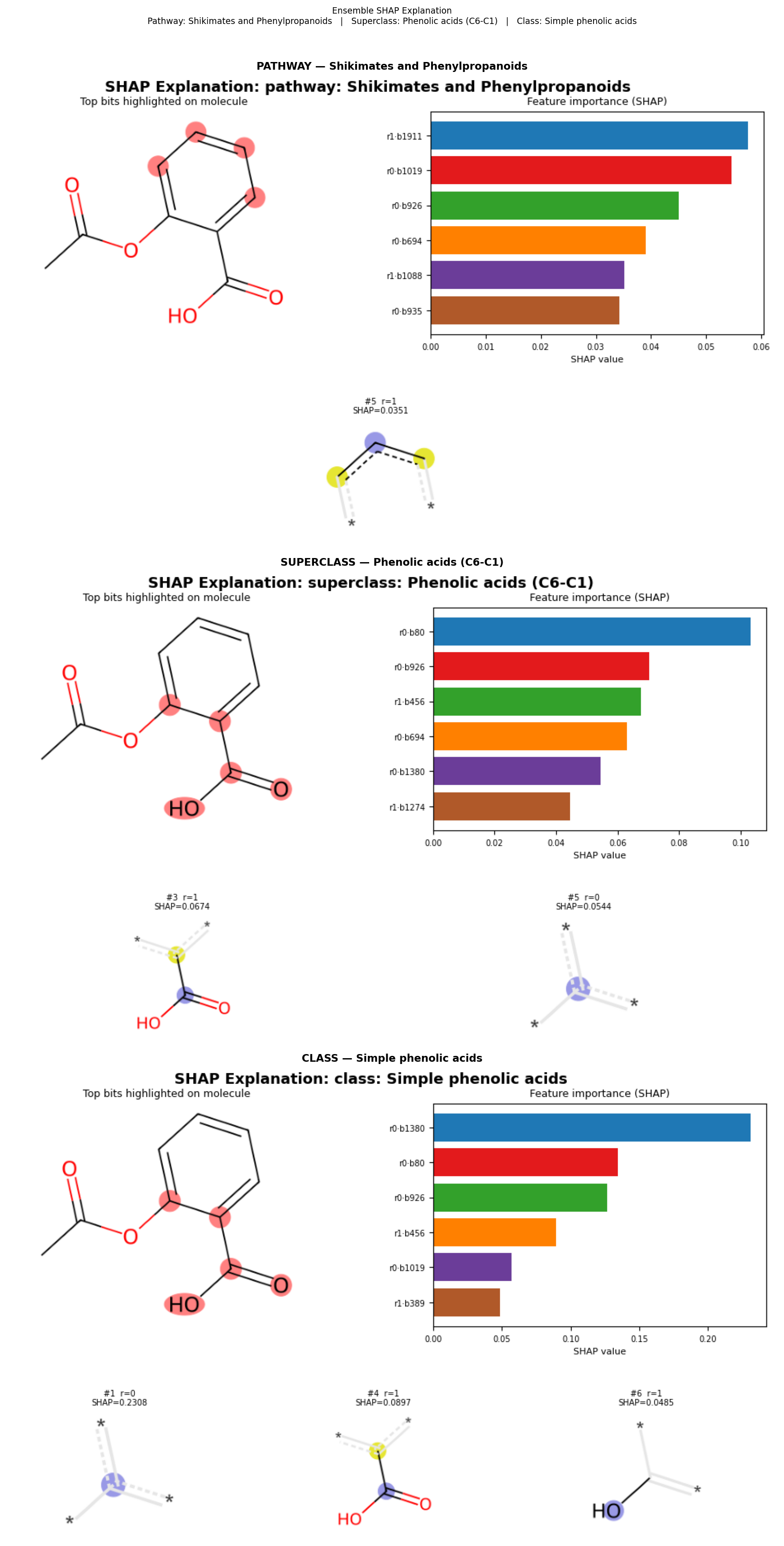

Three-level explanation

.explain() runs the full ensemble voting, computes SHAP values for each predicted level, and returns a combined matplotlib figure with one panel per level. Each panel shows the molecule with the most important bits highlighted, a SHAP bar chart, and a grid of the corresponding Morgan-environment fragments.

A bundled 200-molecule stratified background is used by default — no setup required:

fig = pipeline.explain("CC(=O)Oc1ccccc1C(=O)O")  # aspirin
fig.savefig("aspirin_explain.png", dpi=150, bbox_inches="tight")

You can supply your own background (SMILES list or pre-computed feature array) for a domain-specific reference distribution:

import pandas as pd

bg_smiles = pd.read_csv("train.csv")["SMILES"].sample(100, random_state=42).tolist()

fig = pipeline.explain(
    "CC(=O)Oc1ccccc1C(=O)O",
    background=bg_smiles,
    k=6,
)

Single-level explanation

.explain_bits() focuses on one hierarchy level and returns one explanation panel per predicted label at that level:

# Class-level explanation
fig = pipeline.explain_bits(
    "O=c1c(O)c(-c2ccc(O)c(O)c2)oc2cc(O)cc(O)c12",  # quercetin
    level="class",
    k=6,
)

# Superclass-level explanation
fig = pipeline.explain_bits(
    "CN1CC[C@]23c4c5ccc(O)c4O[C@H]2[C@@H](O)C=C[C@@H]3[C@@H]1C5",  # morphine
    level="superclass",
    k=6,
)

Pre-computing the background

When explaining many molecules, featurize the background once to avoid redundant computation:

bg_features = pipeline.featurizer.transform(bg_smiles)  # (N, 6144) float32

for smi in smiles_list:
    fig = pipeline.explain(smi, background=bg_features, k=6)
    fig.savefig(f"{smi[:10]}_explain.png", dpi=150, bbox_inches="tight")

---

Training your own model

High-level: NPClassifierPipeline.fit()

The pipeline can train all three hierarchical models from a CSV file and build the ensemble in one call:

from torch_np_classifier import NPClassifierPipeline

pipeline = NPClassifierPipeline(
    lr=1e-5,
    max_epochs=150,
    batch_size=128,
    pathway_threshold=0.5,
    superclass_threshold=0.3,
    class_threshold=0.1,
)

pipeline.fit(
    smiles_or_csv="train.csv",
    val_smiles_or_csv="val.csv",
    smiles_col="SMILES",
    label_start=2,          # columns to skip before label columns
    checkpoint_dir="checkpoints/",
    early_stopping=True,
    patience=5,
)

# Save and reload
pipeline.fit(...)
# Later:
pipeline = NPClassifierPipeline.from_checkpoints(
    pathway_ckpt="checkpoints/pathway/...",
    superclass_ckpt="checkpoints/superclass/...",
    class_ckpt="checkpoints/class/...",
)

Expected CSV format — first two columns are ignored (key + SMILES), the remaining 730 columns are binary label indicators:

key,SMILES,Alkaloids,Amino acids and Peptides,...
ABC123,Cn1cnc2c1c(=O)n(c(=O)n2C)C,1,0,...

Low-level: NPClassifierLightning + Lightning Trainer

For full control over training loop, callbacks, and logging:

import lightning
from lightning.pytorch.callbacks import EarlyStopping, ModelCheckpoint

from torch_np_classifier import NPClassifierDataModule, NPClassifierLightning

dm = NPClassifierDataModule(
    train_csv="train.csv",
    val_csv="val.csv",
    smiles_col="SMILES",
    label_slice=slice(2, None),
    batch_size=128,
    num_workers=4,
)

model = NPClassifierLightning(num_categories=730, lr=1e-5, scheduler=True)

trainer = lightning.Trainer(
    max_epochs=150,
    callbacks=[
        EarlyStopping(monitor="val_loss", patience=5),
        ModelCheckpoint(dirpath="checkpoints/", monitor="val_loss", save_top_k=1),
    ],
    accelerator="auto",
)

trainer.fit(model, datamodule=dm)

See the examples/ directory and notebooks/ for complete end-to-end walkthroughs including hierarchical training, ensemble construction, and evaluation.

---

Benchmark on CocoNut

The pretrained models were evaluated on the CocoNut database of natural products. Molecules without a ground-truth label for a given level are counted as correct when the model also predicts nothing (no_gt column).

Level	n	no_gt	Hit rate	Mean precision	Empty rate
pathway	686,556	52,271	0.9287 (637,612 / 686,556)	0.9517	0.0242 (16,595 molecules)
superclass	588,670	150,157	0.8442 (496,959 / 588,670)	0.9301	0.0923 (54,357 molecules)
class	556,164	182,663	0.8238 (458,168 / 556,164)	0.8890	0.0733 (40,762 molecules)
is_glycoside	738,728	—	0.9533 accuracy (704,217 / 738,728)	—	—

• Hit rate — fraction of molecules where the true label appears in the predicted set (or both are empty).
• Mean precision — average fraction of predicted labels that are correct.
• Empty rate — fraction of molecules for which the model produced no prediction.

---

Acknowledgements

This library is inspired by and builds upon:

• NP-Classifier publication: Kim, H. W. et al. "NPClassifier: A Deep Neural Network-Based Structural Classification Tool for Natural Products." J. Nat. Prod. 2021, 84, 2795–2807. https://doi.org/10.1021/acs.jnatprod.1c00399
• NP-Classifier repository (original Keras model and training data): https://github.com/mwang87/NP-Classifier — the architecture, label hierarchy, and dataset used in this reimplementation were derived from that repository.
