torch2coreml 0.2.0

Convert Torch7 models into Apple CoreML format.

This tool helps convert Torch7 models into Apple CoreML format which can then be run on Apple devices.

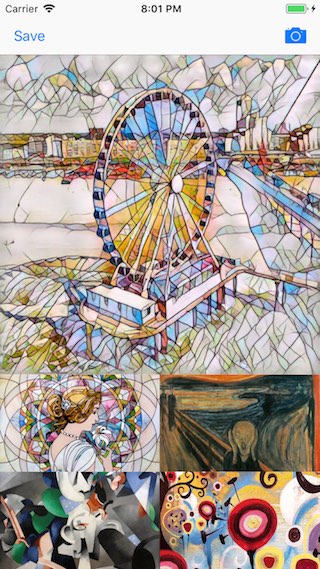

fast-neural-style example app screenshot

Installation

pip install -U torch2coreml

In order to use this tool you need to have these installed: * Xcode 9 * python 2.7

If you want to run tests, you need MacOS High Sierra 10.13 installed.

Dependencies

• coremltools (0.6.2+)

• PyTorch

How to use

Using this library you can implement converter for your own model types. An example of such a converter is located at “example/fast-neural-style/convert-fast-neural-style.py”. To implement converters you should use single function “convert” from torch2coreml:

from torch2coreml import convert

This function is simple enough to be self-describing:

def convert(model,
            input_shapes,
            input_names=['input'],
            output_names=['output'],
            mode=None,
            image_input_names=[],
            preprocessing_args={},
            image_output_names=[],
            deprocessing_args={},
            class_labels=None,
            predicted_feature_name='classLabel',
            unknown_layer_converter_fn=None)

Parameters

model: Torch7 model (loaded with PyTorch) | str

A trained Torch7 model loaded in python using PyTorch or path to file with model (*.t7).

input_shapes: list of tuples Shapes of the input tensors.

mode: str (‘classifier’, ‘regressor’ or None)

Mode of the converted coreml model:

‘classifier’, a NeuralNetworkClassifier spec will be constructed.

‘regressor’, a NeuralNetworkRegressor spec will be constructed.

preprocessing_args: dict

‘is_bgr’, ‘red_bias’, ‘green_bias’, ‘blue_bias’, ‘gray_bias’, ‘image_scale’ keys with the same meaning as https://apple.github.io/coremltools/generated/coremltools.models.neural_network.html#coremltools.models.neural_network.NeuralNetworkBuilder.set_pre_processing_parameters

deprocessing_args: dict

Same as ‘preprocessing_args’ but for deprocessing.

class_labels: A string or list of strings.

As a string it represents the name of the file which contains the classification labels (one per line). As a list of strings it represents a list of categories that map the index of the output of a neural network to labels in a classifier.

predicted_feature_name: str

Name of the output feature for the class labels exposed in the Core ML model (applies to classifiers only). Defaults to ‘classLabel’

unknown_layer_converter_fn: function with signature:

(builder, name, layer, input_names, output_names)

builder: object - instance of NeuralNetworkBuilder class

name: str - generated layer name

layer: object - PyTorch (python) object for corresponding layer

input_names: list of strings

output_names: list of strings

Returns: list of strings for layer output names

Callback function to handle unknown for torch2coreml layers

Returns

model: A coreml model.

Currently supported

Models

Only Torch7 “nn” module is supported now.

Layers

List of Torch7 layers that can be converted into their CoreML equivalent:

1. Sequential

2. ConcatTable

3. SpatialConvolution

4. ELU

5. ReLU

6. SpatialBatchNormalization

7. Identity

8. CAddTable

9. SpatialFullConvolution

10. SpatialSoftMax

11. SpatialMaxPooling

12. SpatialAveragePooling

13. View

14. Linear

15. Tanh

16. MulConstant

17. SpatialZeroPadding

18. SpatialReflectionPadding

19. Narrow

20. SpatialUpSamplingNearest

21. SplitTable

License

Copyright (c) 2017 Prisma Labs, Inc. All rights reserved.

Use of this source code is governed by the MIT License that can be found in the LICENSE.txt file.
