torchfuzzy 0.0.2

Experiments with fuzzy layers and neural networks

pytorch-fuzzy

Experiments with fuzzy layers and neural nerworks

Goals

• Get more fine-grained features from autoencoders
• Semi-supervised learning
• Anomaly detections

Installation

Package requirements:

torch>=1.8

Installation via pip:

 pip install torchfuzzy

Fuzzy layer

Membership function for layer FuzzyLayer have form $\mu(x, A) = e^{ -|| [A . ~x]_{1 \cdots m} ||^2}$ where $m$ is task dimension, $A$ is transformation matrix in form

A_{(m+1) \times (m+1)} =
  \left[ {\begin{array}{cccc}
    s_{1} & a_{12} & \cdots & a_{1m} & c_{1}\\
    a_{21} & s_{2} & \cdots & a_{2m} & c_{2}\\
    \vdots & \vdots & \ddots & \vdots & c_{3}\\
    a_{m1} & a_{m2} & \cdots & s_{m} & c_{m}\\
    0 & 0 & \cdots & 0 & 1\\
  \end{array} } \right]

with $c_{1\cdots m}$ - centroid, $s_{1\cdots m}$ - scaling factor, $a_{1\cdots m, 1\cdots m}$ - alignment coefficients and $x$ is an extended with $1$ vector $x = [x_1, x_2, \cdots, x_m, 1]$.

FuzzyLayer stores and tunes set of matricies $A^{n}, n = 1 \dots N$ where $N$ is layer's output dimension.

How it works

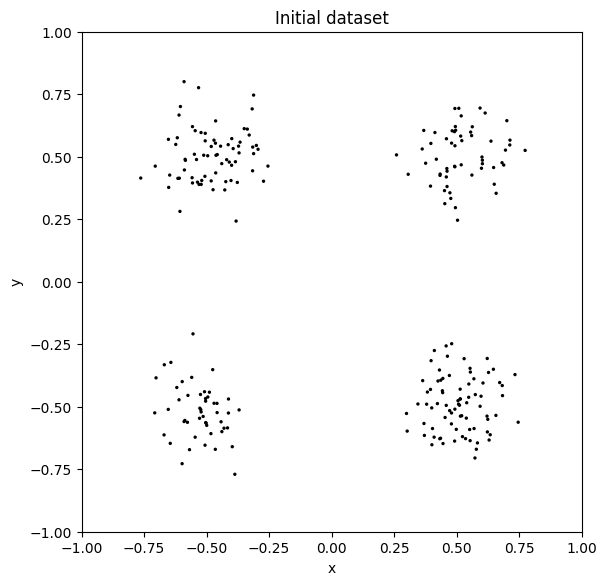

Let's demonstrate how FuzzyLayer works on simple 2D case generating dataset with four centroids. This dataset consists of 2D point coordinates and centroid belongingness as label. To each coordinate scaled noise component is added. Resulting clustered structures are shown on picture below.

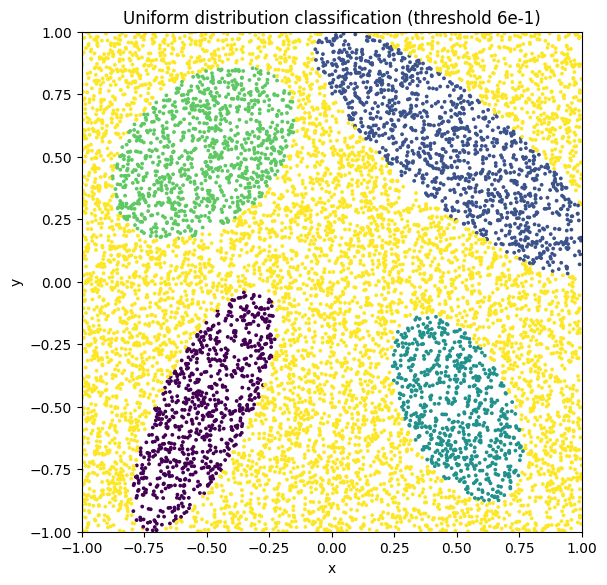

After training procedure completed (full code see here) and correct points labeling is achieved uniform distribution classification performed. On picture below yellow points are not passed through threshold of any centroid belonginess.

On this primitive example we can see that FuzzyLayer is able to learn clustered structure of underlying manifold. In such a way FuzzyLayer can be used as anomaly detection algorithm if we interpret yellow points as outliers. But more interesting application of FuzzyLayer is clusterization of another model outputs to get more fine-grained results.

Usage

Basic

from torchfuzzy import FuzzyLayer

x = torch.rand((10,2))

fuzzy_layer = FuzzyLayer.from_dimensions(2, 4)

inference = fuzzy_layer.forward(x)

Mamdani-like inference

Full example see here.

Mamdani fuzzy model can be represented as a ruleset:

    \begin{array}{lcll}
        \text{Rule}_{i-1} & : &\mathbf{IF}\ x\; is\; A_{i-1}\ &\mathbf{THEN}\ y_{i-1},\\
        \text{Rule}_{i}   & : &\mathbf{IF}\ x\; is\; A_{i  }\ &\mathbf{THEN}\ y_{i},\\
        \text{Rule}_{i+1} & : &\mathbf{IF}\ x\; is\; A_{i+1}\ &\mathbf{THEN}\ y_{i+1},\\
    \end{array}

where $y_{i}$ is an scalar. Mamdani inference is denoted as:

Output = \frac{\sum \mu(x, A_{i})*y_{i}}{\sum \mu(x, A_{i})}

Straightforward implementation with FuzzyLayer:

mamdani_fis = nn.Sequential(
    FuzzyLayer.from_dimensions(input_dimention, fuzzy_rules_count, trainable=True),
    nn.Softmax(1),
    nn.Linear(fuzzy_rules_count, output_dimention, bias=False)
    )

A more correct implementation is implemented in the DefuzzyLinearLayer, the network structure takes the following form

mamdani_fis = nn.Sequential(
            FuzzyLayer.from_dimensions(input_dimention, fuzzy_rules_count, trainable=True),
            DefuzzyLinearLayer.from_dimensions(fuzzy_rules_count, output_dimention)
        )

Publications

Variational Autoencoders with Fuzzy Inference (Russian)
