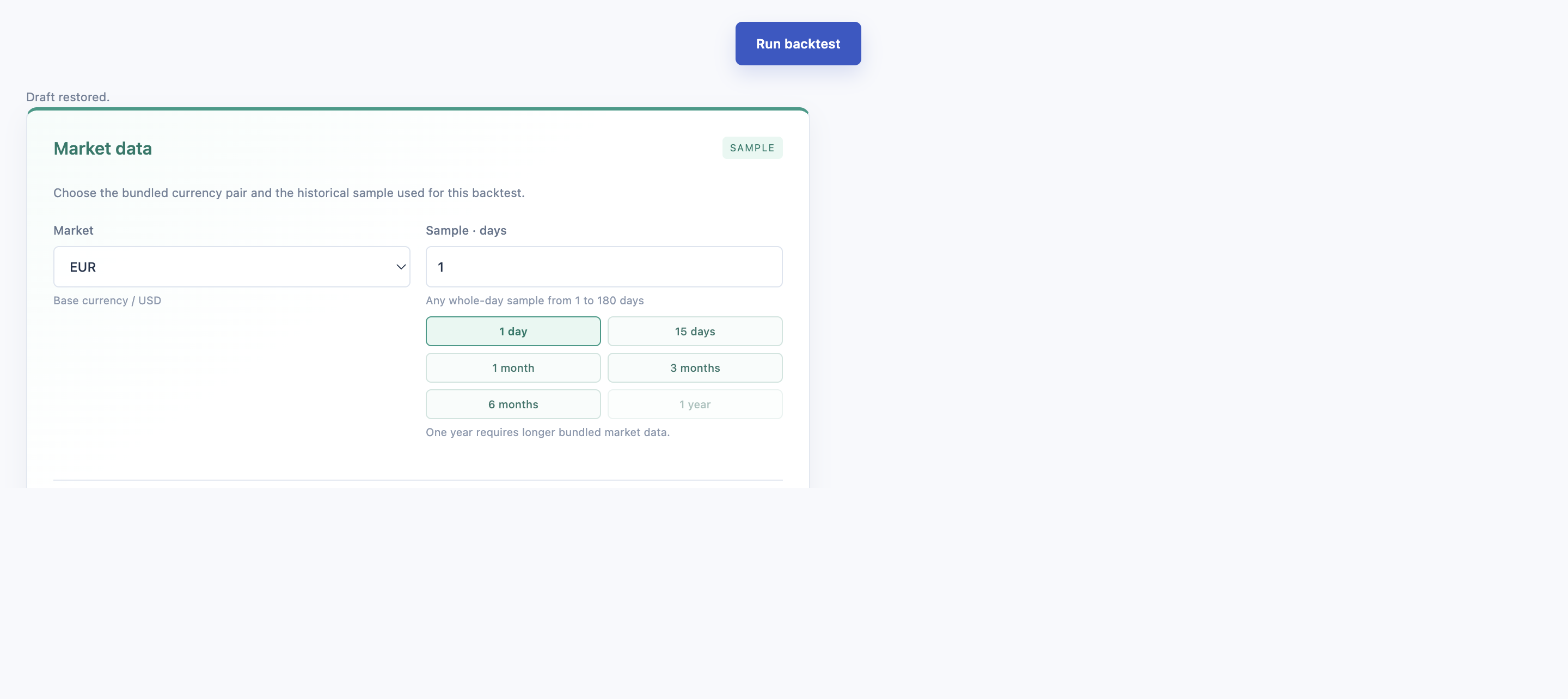

Market data

Choose the bundled currency pair and historical sample independently from the strategy configuration. Samples are available from 1 to 180 days, with one-click presets for 1 day, 15 days, 1 month, 3 months, and 6 months. The 1-year option is visible but disabled until longer bundled market data is available.

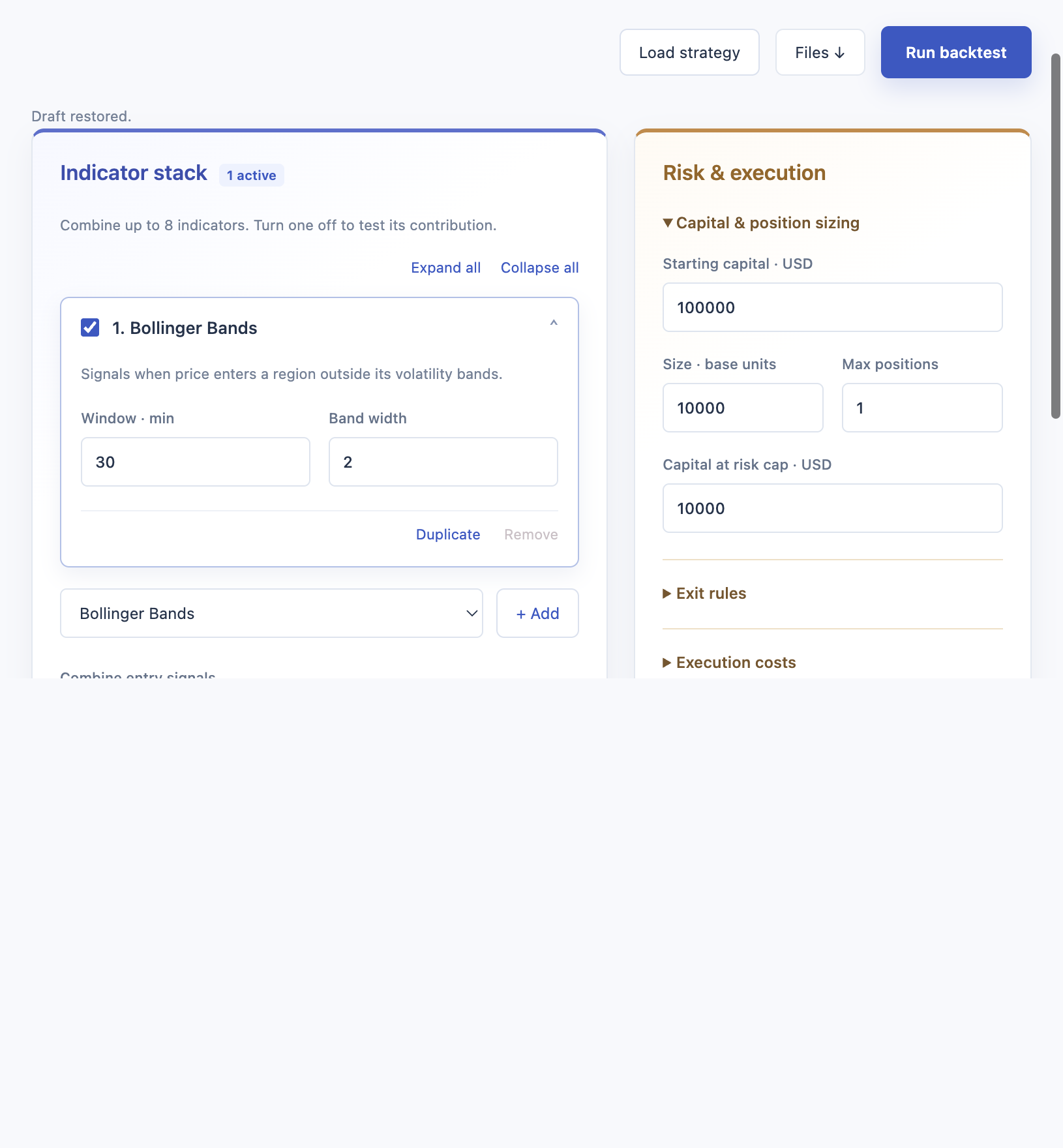

Strategy and saved configurations

Build a stack of up to eight independently configured Bollinger Bands, moving-average crossings, RSI, RMI, and MACD indicators. Enable or disable each indicator and combine its entry events using unanimous agreement, any non-conflicting agreement, or weighted voting with a configurable threshold.

Tune fixed position size, concurrent positions, capital at risk, fixed, trailing, or break-even exits, commission, slippage, and additional spread. Use Load strategy in the Strategy tab to replace the current draft with a saved configuration. Save strategy at the bottom of the tab opens a name dialog and stores a reusable strategy in the local browser library.

Analysis and research

Inspect equity, drawdown, market entry markers, individual indicator curves, simulated entry requests (executed or skipped), and a searchable trade ledger with costs and position sizes. Open any trade to see its cost breakdown and highlight its entry and exit on the market chart. Filter trades by side or outcome, sort by P&L, and export the filtered ledger as CSV. Chart range sliders and keyboard inspection make individual periods easier to examine.

Compare any two completed runs to inspect metric changes and exact parameter differences. Normalized equity curves are overlaid only for matching markets and observation times; metric comparisons remain available for different samples. The Research tab ranks every retained experiment by return, risk, or Sharpe ratio, overlays matching normalized equity curves, and exports a standalone HTML experiment report.

Drafts and up to 20 named strategies are saved locally. The last 30 runs are stored in the browser and restored after a refresh, using the same browser profile and server address/port. Import strategy JSON or the settings from an exported run; undo restores the replaced draft. Export JSON to keep portable copies independent of browser storage. Ctrl+Enter or Cmd+Enter runs the current draft from any workspace tab.

Samples begin at each dataset’s first observation. The selected duration is calendar time and may include market closures; displayed dates show the actual simulation period. During each run, the workspace reports genuine progress through data loading, indicator calculation, signal combination, portfolio simulation, and performance reporting. Bollinger, moving-average, and RMI windows use minutes; RSI and MACD windows use bars. Signal rules combine entry events on the same bar, not persistent indicator regions. Simulated entries use the native engine’s bid/ask closing prices. Skipped requests reflect portfolio constraints or the end of the sample; they are not broker orders. Costs adjust reported equity and P&L after simulation, without changing position sizing. Editing settings leaves the previous result visible until a new run succeeds. The Results tab identifies when the current draft differs from the selected run.

Use python -m TradeTide.gui --port 8766 --no-browser to choose a port or open the displayed URL yourself. Stop the server with Ctrl+C. The server binds only to 127.0.0.1 and is intended for a local research session.
