Trio Retina

The state layer of the world-model stack — bring any perception model on top, get one standard, model-agnostic WorldState, build any dynamics underneath. Swap the model or the dynamics; Retina is the constant in the middle.

docs · quickstart · the world-model stack · benchmark · examples · notebooks

A lightweight, model-agnostic computer-vision pipeline for object detection & tracking that emits structured events — zone intrusion, line-crossing, dwell, people-counting — from YOLO, VLM, or Grounding DINO detectors over video, files, or RTSP. Runs on CPU at the edge; feeds digital twins, dynamics models, and LLMs.

Just want camera events (zone intrusion, line-crossing) pushed to a webhook? → jump to the 5-line quickstart, or copy examples/rtsp_to_webhook.py.

👋 hello

Trio Retina (Retina for short) turns raw signals — video, sensor — into a queryable world-state: readable events (zone.enter, dwell, line.cross) plus a standardized latent vec channel on the same records, on one small model-agnostic standard. The latent channel is a real, serializable interface (attach your own embedding — see examples/latent_vec.py), and the automatic producers now ship: DinoV2Embedder fills per-object entity.vec and VJepa2Embedder fills the scene latent ws.scene. Bring any model (YOLO, V-JEPA, DINO, a VLM, or none); Retina assembles its output into state a dynamics model, rule engine, or LLM can consume — and a small example dynamics model imagines the future off that state.

Think OpenTelemetry for perception — it doesn't build the sensors, it normalizes any of them into one state. In world-model terms it's the encoder (s = Enc(x)), and only the encoder; dynamics and policy build on top. → see DESIGN.md.

💻 install

pip install trio-retina            # core: numpy only
pip install 'trio-retina[yolo]'    # + Ultralytics YOLO adapter
pip install 'trio-retina[video]'   # + OpenCV frame source (files / RTSP / webcam)
pip install 'trio-retina[all]'     # everything

Then try the CLI — retina demo runs a synthetic dock scene and prints the retina.event stream (numpy only, no model/GPU/video):

pip install trio-retina && retina demo        # instant event stream, no model
retina validate events.jsonl                  # check a JSONL stream against the spec
retina --version                              # also: retina run / retina bench

🔥 quickstart

Runs on a bare pip install trio-retina (numpy only) — no model, no GPU, no video file. A stand-in detector walks one "person" across a dock zone; Retina emits the real retina.event stream:

import numpy as np

from retina import CountRule, IoUTracker, Retina, Zone, ZoneRule
from retina.detect import Detection


class ScriptedDetector:
    """A stand-in model: one 'person' walking across a dock zone."""

    def __init__(self):
        self._xs = list(range(0, 102, 6))

    def __call__(self, frame):
        x = self._xs.pop(0) if self._xs else 100
        return [Detection(label="person", bbox=(x - 10, 40, x + 10, 60), confidence=0.9)]


dock = Zone("dock", [(40, 0), (60, 0), (60, 100), (40, 100)])

cam = Retina(
    source_id="cam_01",
    detector=ScriptedDetector(),
    tracker=IoUTracker(min_hits=2),
    rules=[
        ZoneRule(dock, classes={"person"}, dwell_s=2.0),
        CountRule(1, classes={"person"}),
    ],
)

frames = [(np.zeros((100, 100, 3), dtype=np.uint8), float(i)) for i in range(18)]
for event in cam.run(frames):
    print(event.to_json())
    # {"type":"count.threshold","t":1.0,"src":"cam_01","n":1,"frame":1,...}
    # {"type":"zone.enter","t":7.0,"src":"cam_01","id":1,"label":"person",...}
    # {"type":"zone.dwell","t":7.0,...,"zone":"dock","dur":2.0,...}
    # {"type":"zone.exit","t":7.0,...,"zone":"dock","dur":3.0,...}

▶ with a real model + video — pip install 'trio-retina[yolo]' (add [video] for the frame source), then point it at your clip:

from retina import Retina, Zone, ZoneRule, YoloDetector
from retina.sources import video_frames

dock = Zone("dock", [(0.3, 0.2), (0.7, 0.2), (0.7, 0.9), (0.3, 0.9)], normalized=True)

cam = Retina(
    source_id="cam_01",
    detector=YoloDetector("yolo11n.pt", classes={"person"}),
    rules=[ZoneRule(dock, classes={"person"}, dwell_s=30)],
)
for event in cam.run(video_frames("your.mp4")):
    print(event.to_json())
    # {"type":"zone.dwell","t":1718254799.8,"src":"cam_01","id":42,
    #  "label":"person","zone":"dock","dur":31.0,"conf":0.91}

More no-model examples ship with the source (not the wheel) — git clone the repo and run python examples/quickstart.py (the forecast / video demos need [video] + a clip).

▶️ Or run it in your browser — no install:

notebook	what it shows
	quickstart — detector → zone / line / count / dwell events + validate()
	camera → webhook — a restricted-zone alert pushed to your endpoint
	from Supervision — pipe your existing sv.Detections straight in

compose models with |

Wire models like n8n / LangChain, no GUI. Add a cheap gate and a VLM enricher anywhere in the chain:

from retina import MotionGate, GateNode, YoloDetector, IoUTracker, EnricherNode, ZoneRule, JsonlSink

pipe = (
    GateNode(MotionGate())                 # skip static frames (cut model calls)
    | YoloDetector("yolo11n.pt", classes={"person", "forklift"})
    | IoUTracker()
    | EnricherNode(my_vlm_describe)        # attach a VLM read to frame.user
    | ZoneRule(dock, dwell_s=30)
    | JsonlSink("events.jsonl")
)

Two more ways to wire it (explicit list · declarative JSON) + the node catalog

# explicit node list
from retina import Pipeline, DetectorNode, TrackerNode, RuleNode
pipe = Pipeline([DetectorNode(yolo), TrackerNode(), RuleNode(ZoneRule(dock))])

# declarative workflow file (shareable, no code)
pipe = Pipeline.from_json("workflow.json")   # see examples/workflow.json

node	what it does	wraps
DetectorNode	image → detections	any callable(image)->[Detection]
TrackerNode	detections → tracks	IoUTracker / NorfairTracker
RuleNode	tracks → events	ZoneRule / LineRule / CountRule
GateNode	drop uninteresting frames	any callable(image,t)->bool (e.g. MotionGate)
EnricherNode	attach context to frame.user	any callable(frame)->dict (VLM / V-JEPA)
SinkNode	emit events	JsonlSink / WebhookSink

Register your own for from_json with register_node("my_type", builder).

🎛️ supported models

Retina imports no model — any detector plugs in, and out comes one standard event stream. That seam is the point:

plug in any detector…	→	…out comes one retina.event stream
YOLO (Ultralytics: v5–v12, RT-DETR)	→	{"type":"zone.enter", "id":42, "label":"person", …}
any VLM (GPT-4o · Qwen-VL · Gemini · Claude)	→	{"type":"line.cross", "dir":"a_to_b", …}
Grounding DINO (open-vocab, no training)	→	{"type":"zone.dwell", "dur":31.0, …}
your existing sv.Detections (Supervision)	→	{"type":"count.threshold", "n":12, …}
any callable(image) -> [Detection]	→	…+ an optional latent vec on the same record

Supervision gives you boxes on a screen; Retina turns any of those into a serializable state + event stream the next layer (dynamics, twin, agent) can consume. Batteries-included adapters:

• YOLO family — YoloDetector("<weights>.pt") (Ultralytics): YOLOv5/8/9/10/11/12, RT-DETR. Open-vocab via YOLO-World.
• Open-vocab from text — GroundingDinoDetector(["forklift", "hard hat"]), no training.
• Any VLM — VlmDetector(client, prompt) (Qwen-VL / Gemini / GPT-4o / Claude / local), as a detector or an event-source enricher.
• Supervision interop — Detection.from_supervision(sv_detections) ingests a Roboflow sv.Detections, so anything that already converts to Supervision pipes straight into Retina's event layer.
• Latent producers (shipped) — DinoV2Embedder() fills per-object entity.vec (frozen DINOv2, pip install 'trio-retina[dino]'); VJepa2Embedder() fills the scene latent ws.scene from a rolling clip (frozen V-JEPA 2 video encoder, pip install 'trio-retina[vjepa]'). Swap either underneath the same fixed state schema — see examples/world_model/multi_encoder.py.

Trackers are pluggable too: IoUTracker (pure-Python default) or NorfairTracker.

📦 the event format

The retina.event standard is tiny, like a JWT — three required fields, everything else optional and omitted when absent. Full spec in SPEC.md.

{"type":"zone.dwell","t":1718254799.8,"src":"cam_01","id":42,"label":"person","zone":"dock","dur":31.0}

from retina import validate
validate(event)   # -> [] if valid, else a list of problems  (pure-Python, ships a JSON Schema)

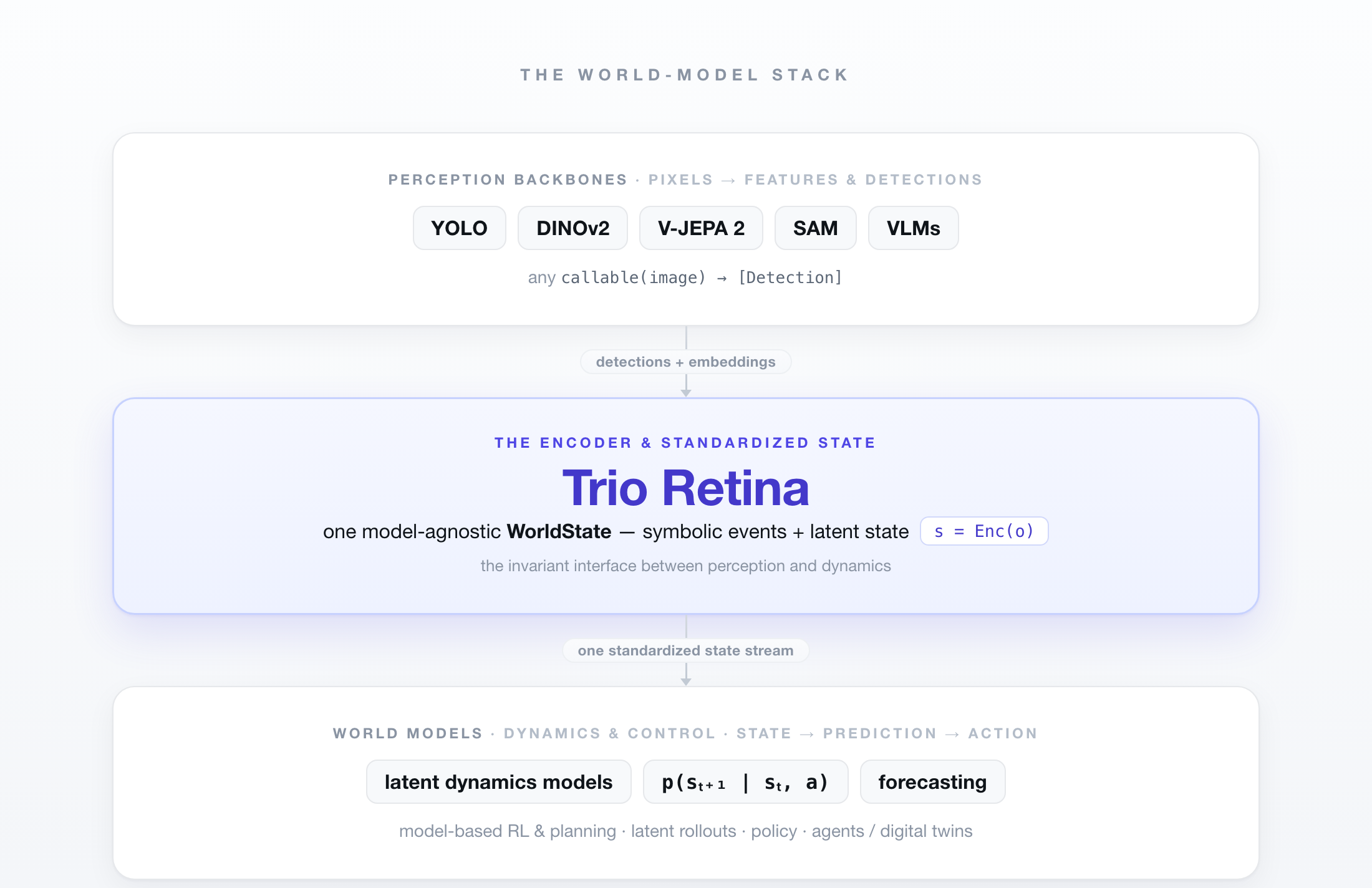

🌍 the world-model stack

Retina is the encoder (s = Enc(x)) in a world model. With the latent producers shipped, the whole front-to-back seam is now demonstrable end to end — on a synthetic scene, as a small but honest proof of concept (examples/world_model/):

1 · swap the encoder, the state is constant. The same pipeline, run three ways — symbolic-only, + DinoV2Embedder (per-object entity.vec), and + VJepa2Embedder (scene-level ws.scene) — yields the identical WorldState schema; only which model filled the latent changes. → multi_encoder.py

2 · a dynamics model imagines the future off that state. A small transformer trained offline on recorded WorldState sequences predicts where each entity is headed, and rolls out imagination trajectories inside the learned model. The honest ablation — does Retina's appearance latent actually help? — on held-out data with real DINOv2 vecs (Mac Studio, MPS), mean held-out 7-step position error (px, lower is better):

dynamics input	7-step error
constant-velocity baseline	7.68 px
learned, pos-only	1.45 px
learned, pos + appearance latent	1.33 px

The latent channel measurably improves prediction: +83% over constant-velocity, +8% over pos-only at horizon 7 — and the edge widens with the horizon, because that's where local velocity runs out and object type (legible only from appearance) decides the future. → dynamics.py, full grid in BENCHMARK.md

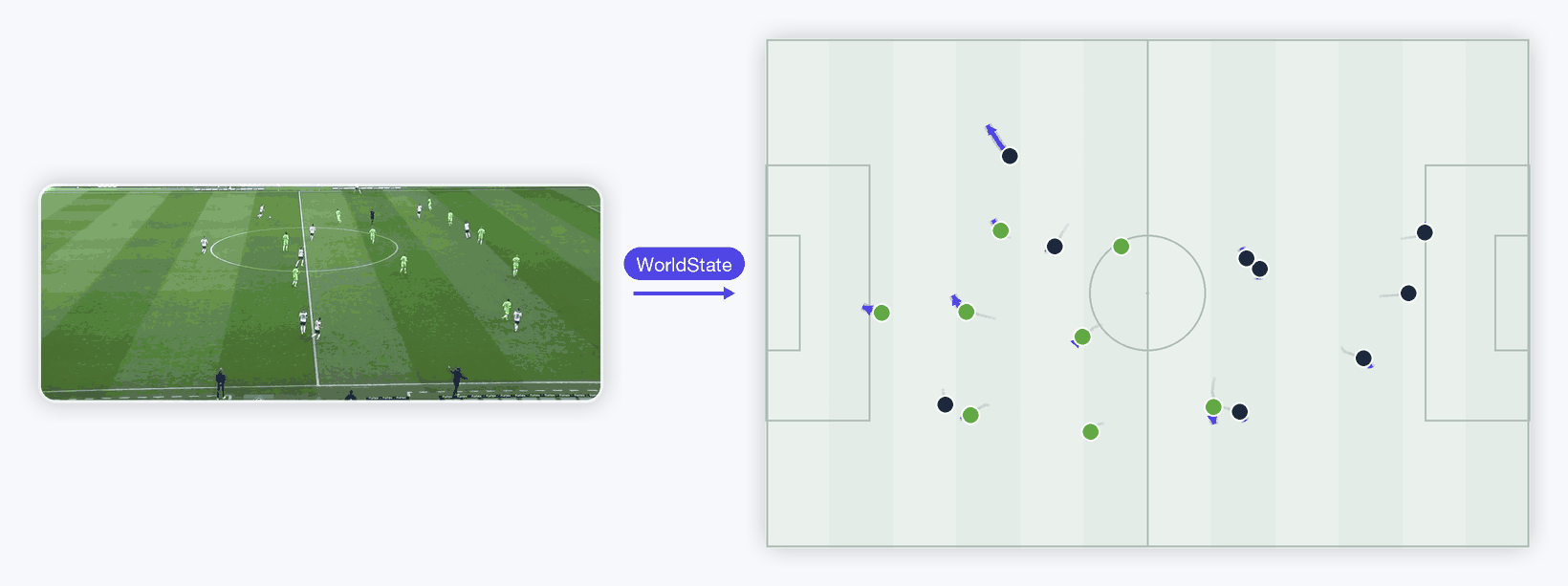

Raw video → one standardized Retina WorldState → predicted player runs. Left is a real broadcast clip (Roboflow's MIT-licensed sports sample, originally DFL Bundesliga). It goes through a real YOLO detector + tracker and a frozen DINOv2-small appearance encoder, and comes out as one model-agnostic WorldState; the right panel renders that state as a top-down tactical radar, and the small dynamics transformer — trained offline on those sequences — draws each player's predicted next run ahead in brand indigo (faint gray = where they came from). Teams are coloured by clustering the players' DINOv2 appearance vectors into two groups — the latent knows who's who. The radar is a stylized perspective top-down (no Roboflow pitch-keypoint weights on this host, so a fixed homography from the clip's pitch landmarks, not per-frame). Honest by design: player motion is stochastic, so at this short horizon the learned model roughly ties a constant-velocity baseline on held-out error — the appearance latent's measurable win lives in the cleaner synthetic ablation above, not on free-running humans. Real pipeline, end to end — examples/world_model/soccer/. The synthetic car rollout (held-out, where the latent earns its keep) lives in make_demo_gif.py · media/rollout.png.

3 · front + back compose through one standard. Any encoder in front, any dynamics behind, meeting on one serializable state — a pip-installable world-model seam you can run in one script. → end_to_end.py

pip install 'trio-retina[dynamics,dino]'
python examples/world_model/dataset.py --n 12 --len 24 --out examples/world_model/data/sequences.json
python examples/world_model/end_to_end.py   # encoder → WorldState → dynamics → imagined rollout

Honest scope: a synthetic scene, a tiny model, reproducible on MPS with run-to-run variance. The producers ship; the trained dynamics is a small example, not a product. The point is the seam — that front and back compose through one standardized state.

🎬 demos

Two more ways Retina's state feeds the next layer — same standard, different consumers:

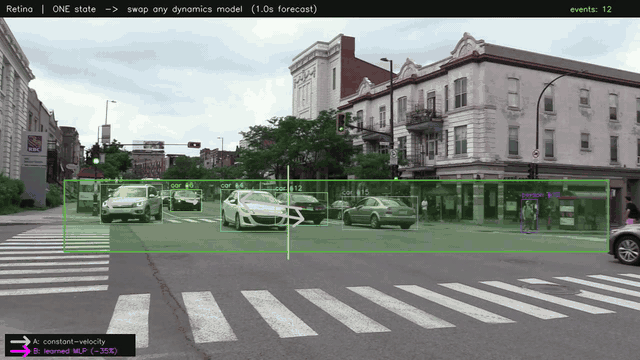

Forecast — the dynamics layer on Retina One world-state → two dynamics models forecast where each entity is headed off the same state (gray = constant-velocity, magenta = learned). A dynamics model eats structured state, not pixels. → examples/forecast/

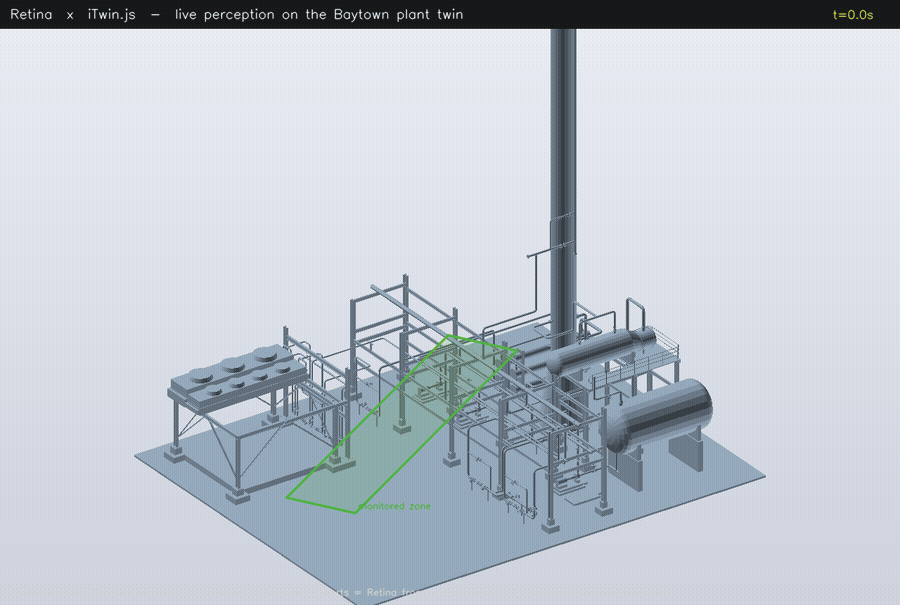

iTwin.js — a live, predictive digital twin Retina's entities, forecast arrows, and retina.event alerts on a real Bentley iTwin.js iModel (Baytown), one neutral JSON contract, fully headless — it gives the twin live eyes. → examples/itwin/

All examples

The examples live in this repo (not in the installed wheel) — git clone to run them. The top-level quickstarts run with no model and no GPU (synthetic detections):

python examples/quickstart.py          # zone / line / count / dwell events
python examples/three_apps.py          # one stream -> security, retail, safety
python examples/any_model.py           # swap the detector, rest unchanged
python examples/gate_savings.py        # a cheap gate cuts detector calls 100 -> 23
python examples/pipeline_compose.py    # compose with | (n8n without a GUI)
python examples/rtsp_to_webhook.py     # camera -> restricted-zone alert -> webhook
python examples/from_supervision.py    # ingest a Roboflow sv.Detections pipeline
python examples/latent_vec.py          # populate the latent vec channel by hand
python examples/dino_embeddings.py     # REAL DINOv2 per-object vecs (needs [dino])

Real-footage / dynamics demos need a clip and the extras — pip install 'trio-retina[all]':

python examples/yolo_video.py v.mp4    # YOLO on a video file
examples/forecast/                     # dynamics layer on the WorldState stream (needs [video] + a clip)
examples/itwin/                        # events + forecasts on a Bentley iTwin.js iModel

The world-model stack lives in examples/world_model/ (needs [dynamics], plus [dino]/[vjepa] for real encoders):

python examples/world_model/multi_encoder.py   # swap encoder, state schema stays constant
python examples/world_model/dynamics.py        # train + the honest appearance ablation
python examples/world_model/benchmark.py       # the front/back-end benchmark grid → BENCHMARK.md
python examples/world_model/end_to_end.py      # encoder → WorldState → dynamics → imagined rollout

Send events anywhere. WebhookSink(url) POSTs each event as JSON (stdlib urllib, no requests); JsonlSink(path) streams to a file. For a live camera, video_frames(src, live=True) reads RTSP / HLS / webcam with wall-clock timestamps — see examples/rtsp_to_webhook.py.

🎯 use cases

One state layer, many domains — the same retina.event stream, read differently above:

• Security & intrusion detection — zone.enter / line.cross on cameras and RTSP feeds.
• Retail analytics & people-counting — footfall, queue dwell, zone occupancy from any detector.
• Workplace safety — PPE, forklift, and restricted-zone alerts via open-vocab detectors.
• Smart city & traffic monitoring — vehicle/pedestrian counting and crossings at the edge.
• Industrial digital twins — feed live entities + forecasts into a twin (iTwin.js demo).

🧠 how it works

Everything flows through one append-only data unit, the Frame. Each stage enriches it and never overwrites upstream fields:

                      ┌──────────────── Frame (append-only) ───────────────┐
 frame ─► Detector ─► │ .detections ─► Tracker ─► .tracks ─► Rule ─► .events │ ─► Sink
   ▲        ▲         │                  ▲                    ▲              │     ▲
 source   any model   │   Gate (skip?)   tracker     zone/line/count/dwell  │  jsonl/
                      │   Enricher (VLM / V-JEPA → .user)                    │  webhook
                      └─────────────────────────────────────────────────────┘

• The detector is the model-agnostic seam: any callable(image) -> [Detection].
• The tracker gives objects identity over time; rules turn tracks into events; enrichers attach context; gates skip work; sinks push out.
• Output is dual: a readable symbolic stream and an optional model-tagged latent channel — never collapsed.

Why "encoder", the dual state, and how it compares to DeepStream / Supervision

Two senses of "encoder." Foundation backbones (V-JEPA, DINO, SAM, YOLO) turn pixels into features — that race is theirs, and Retina rides it. Retina is the encoder layer on top: it fuses many models into one record, gives objects persistent identity, structures it into entities + relations + events, carries the dual symbolic + latent channels, as an event-sourced stream — one small, serializable, model-agnostic standard.

Dual state. The same entities on two linked channels: symbolic (readable events / entity records, for rules / LLMs / dashboards) and latent (optional model-tagged embeddings, for a downstream dynamics model). Symbols you can read; vectors a model can predict on. The latent channel is a standardized, serializable interface — populate entity.vec with your own embedding (examples/latent_vec.py), or let a built-in producer fill it: DinoV2Embedder (per-object) and VJepa2Embedder (scene-level) both ship today.

vs DeepStream / Holoscan — same good ideas (event semantics, metadata model, composable graph), none of the weight:

	DeepStream / Holoscan	Retina
Install	CUDA + TensorRT + containers	pip install trio-retina
Hardware	NVIDIA / Jetson locked	any machine — CPU is fine
Model	tied to the NV stack	bring any model (or none)
Shape	a platform you build inside	a library you import
Core deps	a lot	numpy

vs Supervision — Supervision turns a model's output into detections + overlays (great toolbox, ends at the screen). Retina is a level up: it emits a serializable state + event stream that the next layer (dynamics, twin, agent) consumes. We compose Supervision / detectors, not compete with them.

Full rationale, references, and the world-model stack: DESIGN.md.

🗺️ roadmap

Early but real (v0.3.0). Stable: the event layer + JSON Schema/validator, the composable pipeline (| / list / JSON), YOLO + open-vocab + VLM detectors (plus from_supervision interop), IoU + Norfair trackers, and jitter-robust rules (exit_grace_s · anchor · min_frames).

Next: ByteTrack / OC-SORT · proximity / anomaly events · VLM-as-event-source · Kafka / MQTT sinks · more encoders behind the latent channel · model-based RL / latent-rollout imagination on the learned state · growing the front/back-end benchmark. See CHANGELOG.md.

Retina is the open perception encoder extracted from Trio; the layers above (dynamics, policy / judgment) are Trio's commercial platform. Retina is, and stays, model-agnostic and free.

🤝 contributing

Contributions that keep Retina small and beautiful are very welcome — see CONTRIBUTING.md for dev setup and how to add a detector / tracker / rule / sink. By participating you agree to the Code of Conduct; to report a vulnerability see SECURITY.md.

license

Apache-2.0.
