TriTopic: Tri-Modal Graph Topic Modeling with Iterative Refinement — state-of-the-art topic modeling that outperforms BERTopic, LDA, and NMF across all standard benchmarks.

TriTopic 2.2.1

Tri-Modal Graph Topic Modeling with Iterative Refinement

A state-of-the-art topic modeling library that fuses semantic embeddings, lexical similarity, and metadata context through multi-view graph construction, consensus Leiden clustering, and iterative refinement. TriTopic produces stable, interpretable topics and outperforms BERTopic, LDA, and NMF on all standard benchmarks.

Mean NMI 0.575 (vs. BERTopic 0.513, NMF 0.416, LDA 0.299) | 100% corpus coverage (0% outliers) | Best NMI on all 4 benchmark datasets

---

Table of Contents

• Why TriTopic?
• Key Features
• Installation
• Quick Start
• The Pipeline
• Configuration Reference
• Dimensionality Reduction
• Soft Topic Assignments
• Outlier Reduction
• Topic Merging
• Keyword Extraction
• LLM-Powered Labels
• Visualizations
• Evaluation
• Advanced Usage
• API Reference
• Architecture
• Comparison with BERTopic
• Benchmarks
• Citation
• License

---

Why TriTopic?

Most topic models rely on a single signal -- either word co-occurrences (LDA, NMF) or embeddings alone (BERTopic). This limits their ability to separate topics that share vocabulary but differ semantically, or vice versa.

TriTopic solves this by fusing three complementary views of the document corpus into a single graph:

1. Semantic view -- sentence-transformer embeddings capture meaning
2. Lexical view -- TF-IDF similarity captures surface-level word patterns
3. Metadata view -- optional categorical/numerical features add domain context

On top of this multi-view graph, TriTopic applies consensus Leiden clustering (multiple runs aggregated via co-occurrence matrices) and iterative refinement (embeddings are pulled toward cluster centroids and re-clustered). The result: topics that are more accurate, more coherent, more stable, and assign every document (zero outliers by default).

---

Key Features

Feature	Description
Multi-view graph fusion	Combines semantic embeddings, TF-IDF lexical similarity, and optional metadata into a single graph, avoiding the "embedding blur" that single-view models suffer from
Mutual kNN + SNN graphs	Eliminates noise bridges between unrelated documents using bidirectional neighbor checks and shared-neighbor weighting
Consensus Leiden clustering	Runs the Leiden algorithm multiple times and merges results via a co-occurrence matrix, producing dramatically more stable topics than single-run approaches
Iterative refinement	Alternates between clustering and embedding refinement, pulling documents toward their topic centroids to sharpen boundaries
Bidirectional resolution search	Automatically finds the Leiden resolution parameter that produces the target number of topics
Dimensionality reduction	Reduces high-dimensional embeddings (384-768d) to ~10d with UMAP or PaCMAP before graph construction, improving neighbor quality
100% corpus coverage	Zero outliers by default -- every document is assigned to a topic, unlike HDBSCAN-based approaches
Soft topic assignments	Computes per-document probability distributions over all topics, not just hard labels
Post-fit outlier reduction	Reassigns outlier documents using centroid similarity or neighbor voting after the model is fitted
Hierarchical topic merging	Iteratively merges the most similar topic pairs to reach a target count, or manually merges specific topics
Multiple keyword methods	c-TF-IDF, BM25, and KeyBERT keyword extraction with automatic diversity
LLM-powered labels	Generates human-readable topic names via Claude or GPT-4
Interactive visualizations	2D document maps, keyword bar charts, dendrograms, similarity heatmaps, and temporal topic evolution via Plotly
scikit-learn compatible	Familiar fit() / transform() / fit_transform() API
Save and load	Full model persistence including fitted reducer, probabilities, and graph state

---

Installation

# Core installation
pip install tritopic

# With LLM labeling support (Claude / GPT-4)
pip install tritopic[llm]

# Full installation (all optional features)
pip install tritopic[full]

From source

git clone https://github.com/SmartVisions-AI/tritopic.git
cd tritopic
pip install -e ".[dev]"

Dependencies

Core: numpy, pandas, scipy, scikit-learn, sentence-transformers, leidenalg, igraph, umap-learn, hdbscan, plotly, tqdm, rank-bm25, keybert

Optional: anthropic, openai (for LLM labeling), pacmap, datamapplot (for advanced visualizations)

Python: 3.9, 3.10, 3.11, 3.12, 3.13

---

Quick Start

from tritopic import TriTopic

documents = [
    "Machine learning is transforming healthcare diagnostics",
    "Deep neural networks achieve superhuman performance in image recognition",
    "Climate change affects biodiversity in tropical regions",
    "Renewable energy adoption accelerates globally",
    "The stock market rallied on strong earnings reports",
    # ... hundreds or thousands of documents
]

model = TriTopic(verbose=True)
labels = model.fit_transform(documents)

# View discovered topics
print(model.get_topic_info())

Output:

TriTopic: Fitting model on 1000 documents
   Config: hybrid graph, iterative mode
   -> Generating embeddings (all-MiniLM-L6-v2)...
   -> Reducing dimensions to 10d (umap)...
   -> Building lexical similarity matrix...
   -> Starting iterative refinement (max 5 iterations)...
      Iteration 1...
      Iteration 2...
         ARI vs previous: 0.9234
      Iteration 3...
         ARI vs previous: 0.9812
      Converged at iteration 3
   -> Extracting keywords and representative documents...

Fitting complete!
   Found 12 topics
   47 outlier documents (4.7%)

Post-fit refinement

# Reassign outliers to their nearest topic
model.reduce_outliers(strategy="embeddings")

# Merge down to exactly 8 topics
model.reduce_topics(8)

# Access soft assignments
print(model.probabilities_.shape)   # (n_docs, n_topics)
print(model.probabilities_[0])      # probability distribution for doc 0

Predict new documents

new_docs = [
    "The Mars rover discovered ancient water deposits",
    "Baseball playoffs drew record attendance",
]

# Hard labels
new_labels = model.transform(new_docs)

# Soft probabilities
new_proba = model.transform_proba(new_docs)

Save and load

model.save("my_model.pkl")

from tritopic import TriTopic
loaded = TriTopic.load("my_model.pkl")

---

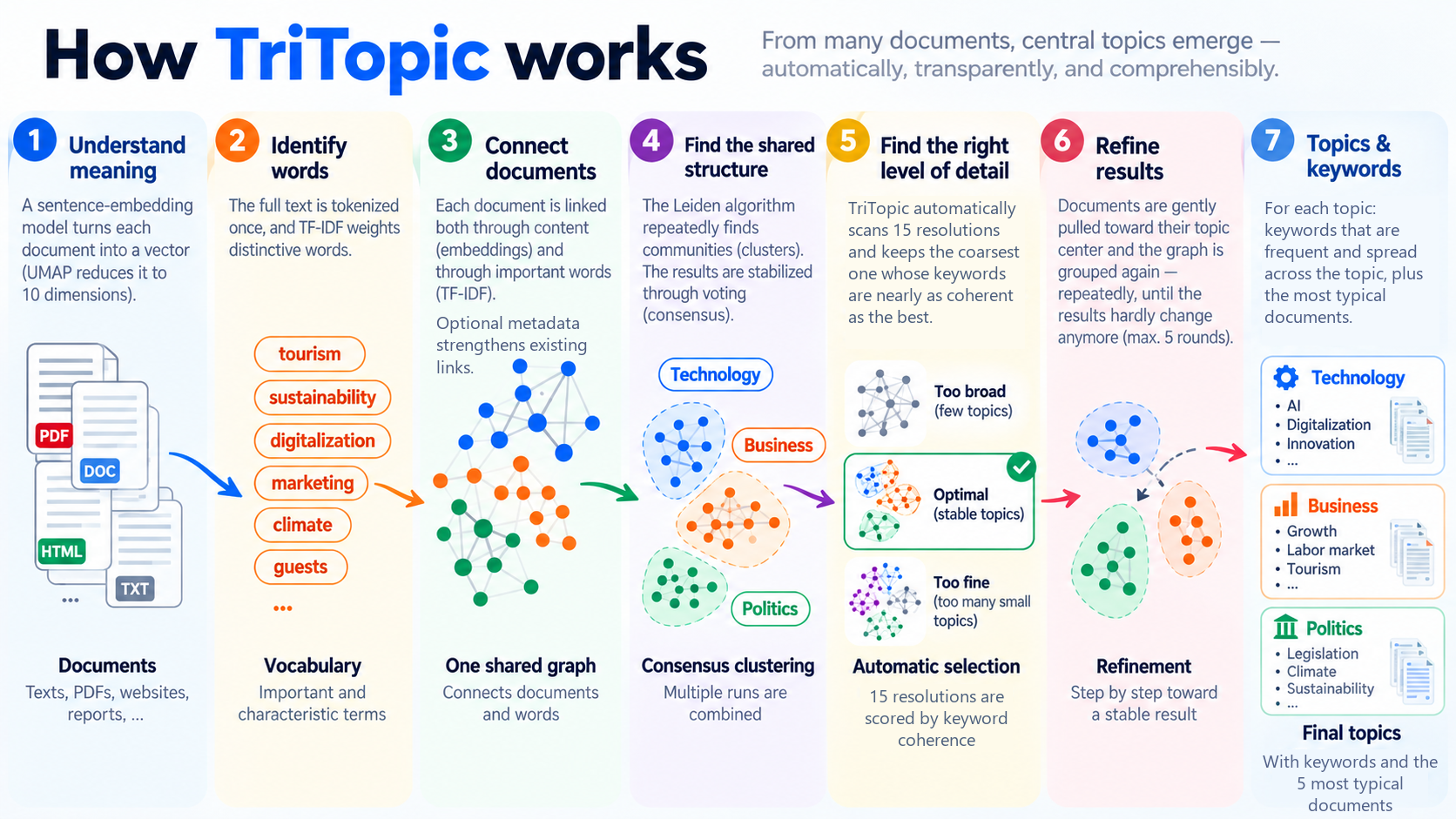

The Pipeline

TriTopic processes documents through a multi-stage pipeline:

Documents
    |
    |--- 1. Embedding Engine ----------------\
    |    (Sentence-BERT / BGE / Instructor)   |
    |                                         |
    |--- 1.5 Dim Reduction (UMAP/PaCMAP) ----+--- Multi-View
    |                                         |    Graph Builder
    |--- 2. Lexical Matrix (TF-IDF) ---------+         |
    |                                         |         |
    \--- 3. Metadata Graph (optional) -------/          |
                                                        v
                                          +-------------------------+
                                          |   Consensus Leiden       |
                                          |   (n runs + co-occur.)   |
                                          +------------+------------+
                                                       |
                                          +------------v------------+
                                          |  Iterative Refinement    |
                                          |  (blend toward centroid) |
                                          +------------+------------+
                                                       |
                                          +------------v------------+
                                          |  Keyword Extraction      |
                                          |  (c-TF-IDF / BM25)      |
                                          +------------+------------+
                                                       |
                                          +------------v------------+
                                          |  Topic Centroids +       |
                                          |  Soft Probabilities      |
                                          +-------------------------+
                                                       |
                                           (optional post-fit)
                                                       |
                                     +---------+-------+--------+
                                     |         |                |
                                reduce_    reduce_        merge_
                                outliers   topics         topics

Step 1 - Embeddings: Documents are encoded into dense vectors using a sentence-transformer model. You can pass pre-computed embeddings instead.

Step 1.5 - Dimensionality reduction: High-dimensional embeddings (384-768d) are projected to ~10 dimensions using UMAP or PaCMAP. This dramatically improves kNN neighbor quality and speeds up graph construction. Full-dimensional embeddings are kept for centroid computation and keyword extraction.

Step 2 - Lexical matrix: TF-IDF with n-grams captures surface-level word patterns that embeddings may miss.

Step 3 - Metadata graph (optional): Categorical and numerical metadata fields create additional edges between related documents.

Step 4 - Multi-view graph fusion: The semantic kNN graph (built on reduced embeddings), lexical graph, and metadata graph are combined with configurable weights into a single igraph Graph. The semantic graph can use mutual kNN, SNN, or a hybrid of both.

Step 5 - Consensus Leiden clustering: The Leiden algorithm runs multiple times (default: 10) with different seeds. A co-occurrence matrix records how often each pair of documents lands in the same cluster. Hierarchical clustering on this matrix produces a consensus partition that is far more stable than any single run. Clusters below min_cluster_size are marked as outliers (-1).

Step 6 - Iterative refinement: Embeddings are softly blended toward their topic centroid (20% pull), then the graph and clustering are re-run. This loop continues until the Adjusted Rand Index between consecutive iterations exceeds the convergence threshold (default: 0.95), or until max_iterations is reached. During iterative refinement, the dimensionality reducer transforms the refined embeddings for each new graph-building pass.

Step 7 - Keywords and centroids: c-TF-IDF (or BM25/KeyBERT) extracts representative keywords per topic. Topic centroids are computed as the mean embedding of each topic's documents. Soft probabilities are computed via cosine similarity to centroids passed through softmax.

---

Configuration Reference

All parameters are set through TriTopicConfig or as constructor overrides:

from tritopic import TriTopic, TriTopicConfig

config = TriTopicConfig(
    # --- Embedding ---
    embedding_model="all-MiniLM-L6-v2",   # sentence-transformers model name
    embedding_batch_size=32,               # encoding batch size

    # --- Dimensionality Reduction ---
    use_dim_reduction=True,                # reduce before graph building
    reduced_dims=10,                       # target dimensionality
    dim_reduction_method="umap",           # "umap" or "pacmap"
    umap_n_neighbors=15,                   # UMAP/PaCMAP neighbor count
    umap_min_dist=0.0,                     # 0.0 optimized for clustering

    # --- Graph Construction ---
    n_neighbors=15,                        # k for kNN graph
    metric="cosine",                       # distance metric
    graph_type="hybrid",                   # "knn", "mutual_knn", "snn", "hybrid"
    snn_weight=0.5,                        # SNN weight in hybrid mode

    # --- Multi-View Fusion ---
    use_lexical_view=True,                 # include TF-IDF view
    use_metadata_view=False,               # include metadata view
    semantic_weight=0.5,                   # weight for semantic graph
    lexical_weight=0.3,                    # weight for lexical graph
    metadata_weight=0.2,                   # weight for metadata graph

    # --- Clustering ---
    resolution=1.0,                        # Leiden resolution (higher = more topics)
    n_consensus_runs=10,                   # number of Leiden runs for consensus
    min_cluster_size=5,                    # clusters smaller than this become outliers

    # --- Iterative Refinement ---
    use_iterative_refinement=True,         # enable the refinement loop
    max_iterations=5,                      # maximum refinement iterations
    convergence_threshold=0.95,            # ARI threshold to stop early

    # --- Keyword Extraction ---
    n_keywords=10,                         # keywords per topic
    n_representative_docs=5,               # representative docs per topic
    keyword_method="ctfidf",               # "ctfidf", "bm25", or "keybert"

    # --- Outlier Handling ---
    outlier_threshold=0.1,                 # cosine similarity threshold for transform()

    # --- Misc ---
    random_state=42,
    verbose=True,
)

model = TriTopic(config=config)

Quick overrides without creating a config object:

model = TriTopic(
    embedding_model="all-mpnet-base-v2",
    n_neighbors=20,
    use_iterative_refinement=True,
    verbose=True,
    random_state=42,
)

You can also modify the config after construction:

model = TriTopic()
model.config.use_dim_reduction = False       # disable dim reduction
model.config.graph_type = "snn"              # use pure SNN graph
model.config.keyword_method = "bm25"         # switch keyword method

---

Dimensionality Reduction

kNN graphs built on high-dimensional embeddings (384-768d) suffer from the curse of dimensionality: distances concentrate and neighbor quality degrades. TriTopic addresses this by reducing embeddings to a low-dimensional space before graph construction.

model = TriTopic()
model.config.use_dim_reduction = True        # enabled by default
model.config.reduced_dims = 10               # target dimensions
model.config.dim_reduction_method = "umap"   # or "pacmap"
model.config.umap_n_neighbors = 15
model.config.umap_min_dist = 0.0             # 0.0 is best for clustering

model.fit(documents)

# Reduced embeddings are stored alongside full embeddings
print(model.reduced_embeddings_.shape)  # (n_docs, 10)
print(model.embeddings_.shape)          # (n_docs, 384)  full embeddings kept

How it works:

• Reduced embeddings are used only for graph construction (kNN neighbor search)
• Full-dimensional embeddings are used for centroid computation, keyword extraction, representative docs, and similarity calculations
• During iterative refinement, refined embeddings are re-projected through the fitted reducer at each iteration
• The fitted reducer is saved with model.save() so transform() on new documents works correctly

When to disable it:

model.config.use_dim_reduction = False

Disable if your embeddings are already low-dimensional, or if you want to experiment with raw high-dimensional graph construction.

---

Soft Topic Assignments

Every document gets a probability distribution over all topics, not just a hard label.

Training documents

After fit(), probabilities are automatically available:

model.fit(documents)

# Shape: (n_documents, n_topics)
print(model.probabilities_.shape)

# Each row sums to ~1.0
print(model.probabilities_[0].sum())  # ~1.0

# Probability distribution for document 0
for i, prob in enumerate(model.probabilities_[0]):
    topic_id = [t.topic_id for t in model.topics_ if t.topic_id != -1][i]
    print(f"  Topic {topic_id}: {prob:.3f}")

New documents

proba = model.transform_proba(["A new document about space exploration"])
# Shape: (1, n_topics)
print(proba)

How it works: Cosine similarity between document embeddings and topic centroid embeddings, followed by softmax normalization. Probabilities are recomputed automatically after any post-fit operation (outlier reduction, topic merging).

---

Outlier Reduction

Leiden clustering combined with small-cluster removal can produce 20-40% outliers. reduce_outliers() reassigns them post-fit.

Strategy: embeddings (default)

Each outlier is assigned to the topic whose centroid is most similar, if the similarity exceeds a threshold:

model.fit(documents)
print(f"Outliers before: {(model.labels_ == -1).sum()}")

# Default threshold = config.outlier_threshold (0.1)
model.reduce_outliers(strategy="embeddings")
print(f"Outliers after: {(model.labels_ == -1).sum()}")

# Lower threshold = more aggressive reassignment
model.reduce_outliers(strategy="embeddings", threshold=0.05)

Strategy: neighbors

Each outlier is assigned by majority vote of its k nearest non-outlier neighbors:

model.reduce_outliers(strategy="neighbors")

This strategy is threshold-free and works well when outliers are near cluster boundaries.

After reassignment: Keywords, centroids, topic sizes, and probabilities are all recomputed automatically.

---

Topic Merging

Automatic: reduce to a target count

reduce_topics() iteratively merges the two most cosine-similar topic centroids until the target count is reached:

model.fit(documents)
print(f"Topics found: {len([t for t in model.topics_ if t.topic_id != -1])}")

# Reduce to exactly 5 topics
model.reduce_topics(5)
print(f"Topics after: {len([t for t in model.topics_ if t.topic_id != -1])}")

At each step, the two most similar centroids are found, and the smaller topic is relabeled to the larger one. After all merges complete, keywords and centroids are re-extracted from scratch.

Manual: merge specific topics

# Merge topics 2 and 7 into one (the larger one's ID is kept)
model.merge_topics([2, 7])

# Merge three topics together
model.merge_topics([1, 4, 9])

This is useful when you inspect topics and find two that clearly cover the same theme.

---

Keyword Extraction

TriTopic supports three keyword extraction methods:

c-TF-IDF (default)

Class-based TF-IDF treats all documents in a topic as a single "class document" and scores terms by their distinctiveness for that topic compared to the corpus. This is the same approach used by BERTopic.

model.config.keyword_method = "ctfidf"

BM25

BM25 scoring is more robust to document length variations than TF-IDF:

model.config.keyword_method = "bm25"

KeyBERT

Embedding-based extraction that finds keywords by comparing candidate n-gram embeddings to the topic embedding. Uses Maximal Marginal Relevance (MMR) for diversity:

model.config.keyword_method = "keybert"

Accessing keywords

# DataFrame view
df = model.get_topic_info()
print(df[["Topic", "Size", "Keywords"]])

# Detailed access for a specific topic
topic = model.get_topic(0)
print(topic.keywords)         # ['machine', 'learning', 'neural', ...]
print(topic.keyword_scores)   # [0.42, 0.38, 0.31, ...]

# Representative documents
docs = model.get_representative_docs(0, n_docs=3)
for idx, text in docs:
    print(f"  Doc {idx}: {text[:100]}...")

---

LLM-Powered Labels

Generate human-readable topic names using Claude or GPT-4.

With Claude (Anthropic)

from tritopic import TriTopic, LLMLabeler

model = TriTopic()
model.fit(documents)

labeler = LLMLabeler(
    provider="anthropic",
    api_key="sk-ant-...",
    model="claude-3-haiku-20240307",   # fast and cheap
    language="english",                 # output language
    domain_hint="technology news",      # optional domain context
)
model.generate_labels(labeler)

# Topics now have labels and descriptions
df = model.get_topic_info()
print(df[["Topic", "Label", "Description"]])

With GPT-4 (OpenAI)

labeler = LLMLabeler(
    provider="openai",
    api_key="sk-...",
    model="gpt-4o-mini",
    language="german",          # works in any language
)
model.generate_labels(labeler)

Simple labeler (no API needed)

from tritopic import SimpleLabeler

labeler = SimpleLabeler(n_words=3)
model.generate_labels(labeler)
# Labels like "Machine & Learning & Neural"

Label specific topics only

model.generate_labels(labeler, topics=[0, 3, 5])

If the LLM API call fails, the labeler falls back to a keyword-based label automatically.

---

Visualizations

All visualizations return interactive Plotly figures.

Document map

2D scatter plot where each point is a document, colored by topic:

fig = model.visualize(method="umap", show_outliers=True)
fig.show()
fig.write_html("document_map.html")

Topic keywords

Horizontal bar charts showing the top keywords and their scores for each topic:

fig = model.visualize_topics(n_keywords=8)
fig.show()

Topic hierarchy

Dendrogram showing how topics relate to each other based on centroid distances:

fig = model.visualize_hierarchy()
fig.show()

Topic similarity heatmap

Cosine similarity matrix between all topic centroids:

from tritopic import TopicVisualizer

viz = TopicVisualizer()
fig = viz.plot_topic_similarity(model.topic_embeddings_, model.topics_)
fig.show()

Topics over time

Stacked area chart showing topic prevalence over time (requires timestamps):

from tritopic import TopicVisualizer

viz = TopicVisualizer()
fig = viz.plot_topic_over_time(
    labels=model.labels_,
    timestamps=your_timestamps,   # list of datetime-like values
    topics=model.topics_,
)
fig.show()

---

Evaluation

metrics = model.evaluate()

Returns a dictionary with:

Metric	Range	Description
coherence_mean	-1 to 1	Average NPMI coherence across topics (higher = more coherent keywords)
coherence_std	0+	Standard deviation of coherence across topics
diversity	0 to 1	Proportion of unique keywords across all topics (higher = more distinct topics)
stability	-1 to 1	Average pairwise ARI across consensus runs (higher = more reproducible)
n_topics	1+	Number of non-outlier topics
outlier_ratio	0 to 1	Fraction of documents labeled as outliers

Additional metrics are available as standalone functions:

from tritopic.utils.metrics import (
    compute_coherence,
    compute_diversity,
    compute_stability,
    compute_silhouette,
    compute_downstream_score,
)

# Silhouette score for cluster separation
sil = compute_silhouette(model.embeddings_, model.labels_)

# Downstream classification performance
f1 = compute_downstream_score(
    model.embeddings_, model.labels_, true_labels, task="classification"
)

---

Advanced Usage

Pre-computed embeddings

Skip the embedding step by passing your own vectors:

from sentence_transformers import SentenceTransformer

encoder = SentenceTransformer("BAAI/bge-large-en-v1.5")
embeddings = encoder.encode(documents)

model = TriTopic()
model.fit(documents, embeddings=embeddings)

Multi-model embeddings

Combine embeddings from multiple models for richer representations:

from tritopic import EmbeddingEngine
from tritopic.core.embeddings import MultiModelEmbedding

multi = MultiModelEmbedding(
    model_names=["all-MiniLM-L6-v2", "all-mpnet-base-v2"],
    weights=[0.5, 0.5],
)
embeddings = multi.encode(documents)

model = TriTopic()
model.fit(documents, embeddings=embeddings)

Metadata-enhanced topics

Documents with shared metadata (source, category, date) get additional graph edges:

import pandas as pd

metadata = pd.DataFrame({
    "source": ["twitter", "news", "twitter", ...],
    "category": ["tech", "science", "tech", ...],
})

model = TriTopic()
model.config.use_metadata_view = True
model.config.metadata_weight = 0.2

model.fit(documents, metadata=metadata)

Categorical columns create edges between documents with matching values. Numerical columns create edges between documents with similar values (similarity > 0.8 after normalization).

Target number of topics

Use n_topics_target to automatically find the Leiden resolution that produces a specific number of topics:

model = TriTopic(n_topics_target=10)
model.fit(documents)
# TriTopic uses bidirectional resolution search to find ~10 topics

Finding the optimal resolution

The resolution parameter controls how many topics Leiden produces. You can search for the best value:

from tritopic.core.clustering import ConsensusLeiden

# After initial fit
clusterer = ConsensusLeiden()
optimal = clusterer.find_optimal_resolution(
    graph=model.graph_,
    resolution_range=(0.5, 2.0),
    n_steps=10,
    target_n_topics=15,       # optional: aim for ~15 topics
)
print(f"Optimal resolution: {optimal}")

# Re-fit with the optimal resolution
model.config.resolution = optimal
model.fit(documents)

Disabling features

# No iterative refinement (faster, less accurate)
model = TriTopic(use_iterative_refinement=False)

# No dimensionality reduction
model.config.use_dim_reduction = False

# No lexical view (embeddings only)
model.config.use_lexical_view = False

Complete workflow

from tritopic import TriTopic, TriTopicConfig, LLMLabeler

# 1. Configure
config = TriTopicConfig(
    embedding_model="all-mpnet-base-v2",
    n_neighbors=20,
    graph_type="hybrid",
    use_dim_reduction=True,
    reduced_dims=10,
    n_consensus_runs=15,
    use_iterative_refinement=True,
    max_iterations=7,
    convergence_threshold=0.97,
    keyword_method="ctfidf",
    n_keywords=15,
)

# 2. Fit
model = TriTopic(config=config)
model.fit(documents)

# 3. Reduce outliers
model.reduce_outliers(strategy="embeddings", threshold=0.05)

# 4. Merge to desired granularity
model.reduce_topics(10)

# 5. Label with LLM
labeler = LLMLabeler(provider="anthropic", api_key="...")
model.generate_labels(labeler)

# 6. Evaluate
metrics = model.evaluate()

# 7. Explore
print(model.get_topic_info())
print(f"Probabilities shape: {model.probabilities_.shape}")

fig = model.visualize()
fig.show()

# 8. Save
model.save("production_model.pkl")

---

API Reference

TriTopic

The main model class. Follows the scikit-learn fit/transform pattern.

Method	Description
fit(documents, embeddings?, metadata?)	Fit the model. Returns self.
fit_transform(documents, embeddings?, metadata?)	Fit and return hard labels.
transform(documents)	Assign topics to new documents. Returns labels array.
transform_proba(documents)	Get soft probabilities for new documents. Returns (n_docs, n_topics) matrix.
reduce_outliers(strategy?, threshold?)	Reassign outliers. Strategies: "embeddings", "neighbors". Returns self.
reduce_topics(n_topics)	Merge down to n_topics non-outlier topics. Returns self.
merge_topics(topics_to_merge)	Merge specific topic IDs into one. Returns self.
get_topic_info()	DataFrame with Topic, Size, Keywords, Label, Coherence columns.
get_topic(topic_id)	Get TopicInfo for a specific topic.
get_representative_docs(topic_id, n_docs?)	Get (index, text) tuples for a topic's most central documents.
generate_labels(labeler, topics?)	Generate LLM labels for topics.
evaluate()	Compute coherence, diversity, stability, and outlier ratio.
visualize(method?, show_outliers?, ...)	2D document scatter plot.
visualize_topics(n_keywords?, ...)	Keyword bar charts per topic.
visualize_hierarchy(...)	Topic dendrogram.
save(path)	Pickle model to disk (includes all state, reducer, probabilities).
TriTopic.load(path)	Class method to load a saved model.

Key attributes after fit

Attribute	Type	Description
labels_	np.ndarray	Hard topic assignment per document. -1 = outlier.
probabilities_	np.ndarray	Soft assignments, shape (n_docs, n_topics). Rows sum to ~1.
embeddings_	np.ndarray	Full-dimensional document embeddings (refined if iterative).
reduced_embeddings_	np.ndarray	Low-dimensional embeddings used for graph building.
topic_embeddings_	np.ndarray	Centroid embedding per topic, shape (n_topics, embed_dim).
topics_	list[TopicInfo]	List of TopicInfo objects with keywords, scores, centroids.
documents_	list[str]	Stored training documents.
graph_	igraph.Graph	The final fused graph.

TopicInfo

Field	Type	Description
topic_id	int	Topic ID (-1 for outliers).
size	int	Number of documents in the topic.
keywords	list[str]	Ranked keywords.
keyword_scores	list[float]	Keyword importance scores.
representative_docs	list[int]	Indices of documents closest to centroid.
label	str | None	LLM-generated label.
description	str | None	LLM-generated description.
centroid	np.ndarray | None	Topic centroid embedding.
coherence	float | None	NPMI coherence score (after evaluate()).

Supporting classes

Class	Module	Purpose
TriTopicConfig	tritopic.core.model	All configuration parameters (see Configuration Reference)
EmbeddingEngine	tritopic.core.embeddings	Encode documents with sentence-transformers. Supports Instructor and BGE models.
MultiModelEmbedding	tritopic.core.embeddings	Combine embeddings from multiple models.
GraphBuilder	tritopic.core.graph_builder	Build kNN, mutual kNN, SNN, hybrid, lexical, and metadata graphs.
ConsensusLeiden	tritopic.core.clustering	Leiden clustering with consensus and resolution search.
HDBSCANClusterer	tritopic.core.clustering	Alternative HDBSCAN clustering.
KeywordExtractor	tritopic.core.keywords	c-TF-IDF, BM25, and KeyBERT keyword extraction.
KeyphraseExtractor	tritopic.core.keywords	Multi-word keyphrase extraction (YAKE).
LLMLabeler	tritopic.labeling.llm_labeler	Generate labels via Claude or GPT-4.
SimpleLabeler	tritopic.labeling.llm_labeler	Rule-based labels from top keywords.
TopicVisualizer	tritopic.visualization.plotter	All Plotly visualizations.

---

Architecture

Graph types

kNN: Each document connects to its k nearest neighbors. Simple but includes asymmetric "one-way" connections that can bridge unrelated clusters.

Mutual kNN: Only keeps edges where both nodes are in each other's neighborhoods. This removes noise bridges and produces cleaner clusters.

SNN (Shared Nearest Neighbors): Edge weight equals the number of shared neighbors between two nodes, normalized by k. This captures structural similarity and is robust against noise.

Hybrid (default): Weighted combination of mutual kNN and SNN: (1 - snn_weight) * mutual_kNN + snn_weight * SNN. Gives both direct similarity (mutual kNN) and structural similarity (SNN).

Consensus clustering

Running Leiden once is sensitive to random initialization. TriTopic runs it n_consensus_runs times (default: 10) with different seeds and builds a co-occurrence matrix recording how often each document pair was assigned to the same cluster. Hierarchical clustering (average linkage) on this matrix produces the final partition, selected by maximizing the average ARI with all individual runs. The stability score (average pairwise ARI across runs) quantifies how reproducible the clustering is.

Iterative refinement

After an initial clustering pass, document embeddings are softly blended toward their topic centroid: refined = 0.8 * original + 0.2 * centroid, then L2-normalized. The full pipeline (graph + clustering) re-runs on the refined embeddings. This process converges when consecutive partitions have ARI >= 0.95 (configurable). The effect is tighter, more separated topic clusters.

Supported embedding models

Any model from the sentence-transformers library works. Recommended choices:

Model	Dimensions	Speed	Quality	Notes
all-MiniLM-L6-v2	384	Fast	Good	Default. Best speed/quality tradeoff.
all-mpnet-base-v2	768	Medium	Better	Higher quality, 2x slower.
BAAI/bge-base-en-v1.5	768	Medium	Best	State-of-the-art for English.
BAAI/bge-m3	1024	Slow	Best	Multilingual support.
hkunlp/instructor-large	768	Slow	Best	Task-specific with instructions.

---

Comparison with BERTopic

Aspect	BERTopic	TriTopic
Graph construction	kNN only	Mutual kNN + SNN hybrid
Dimensionality reduction	UMAP (for clustering)	UMAP/PaCMAP (configurable)
Clustering	HDBSCAN (single run)	Leiden with consensus (n runs)
Stability	Low (varies between runs)	High (consensus + stability score)
Input signals	Embeddings only	Semantic + Lexical + Metadata
Refinement	None	Iterative embedding refinement
Coverage	~80% (19.2% outliers avg.)	100% (0% outliers)
Soft assignments	Via HDBSCAN probabilities	Cosine similarity + softmax
Outlier reduction	4 strategies	2 strategies (embeddings, neighbors)
Topic merging	Hierarchical	Hierarchical + manual merge
Keyword extraction	c-TF-IDF	c-TF-IDF, BM25, or KeyBERT
LLM labels	Via representation model	Built-in Claude/GPT-4 support
NMI (benchmark avg.)	0.513	0.575 (+12.1%)
Coherence (benchmark avg.)	0.233	0.341 (+46.4%)

---

Benchmarks

Evaluated on four standard text classification datasets against BERTopic, LDA (scikit-learn), and NMF (scikit-learn). Each configuration was run with 3 random seeds across multiple topic counts (k). Metrics: NMI against ground-truth labels, NPMI coherence, and coverage (1 - outlier fraction).

Overall Results

Model	Mean NMI	Mean Coherence (NPMI)	Mean Coverage	Wins (NMI)
TriTopic	0.575	0.341	1.000	4/4 datasets
BERTopic	0.513	0.233	0.808	0/4
NMF	0.416	0.330	1.000	0/4
LDA	0.299	0.161	1.000	0/4

TriTopic achieves the highest NMI on every single dataset while maintaining 100% corpus coverage (zero outliers). BERTopic's HDBSCAN leaves 19.2% of documents unassigned on average.

Per-Dataset NMI

Dataset	Docs	k range	TriTopic	BERTopic	NMF	LDA
20 Newsgroups	2,000	10-50	0.532	0.519	0.319	0.158
BBC News	1,225	3-20	0.702	0.642	0.648	0.505
AG News	2,000	3-20	0.527	0.380	0.191	0.027
Arxiv	2,000	5-25	0.540	0.511	0.505	0.508

Per-Dataset Coherence (NPMI)

Dataset	TriTopic	BERTopic	NMF	LDA
20 Newsgroups	0.413	0.223	0.374	0.256
BBC News	0.380	0.082	0.336	0.154
AG News	0.269	0.161	0.325	0.092
Arxiv	0.303	0.466	0.277	0.150

Methodology

• All embeddings: all-MiniLM-L6-v2 (384 dimensions)
• BERTopic: default HDBSCAN settings with UMAP reduction
• NMF / LDA: scikit-learn implementations with TF-IDF input
• TriTopic: default settings (hybrid graph, consensus Leiden, iterative refinement)
• 3 random seeds per configuration, results averaged
• Full reproduction script: run_benchmark.py

---

Citation

@software{tritopic2025,
  author = {Egger, Roman},
  title = {TriTopic: Tri-Modal Graph Topic Modeling with Iterative Refinement},
  year = {2025},
  publisher = {PyPI},
  url = {https://github.com/SmartVisions-AI/tritopic}
}

License

MIT License. See LICENSE for details.

Contributing

Contributions welcome! Please open an issue or pull request on GitHub.

Links

• Homepage: smartvisions.at
• Documentation: Full technical docs
• Repository: GitHub
• PyPI: tritopic
• Issues: Bug reports & feature requests
