truchet-tiling 0.0.32

A truchet tiles generator

A truchet tiles generator

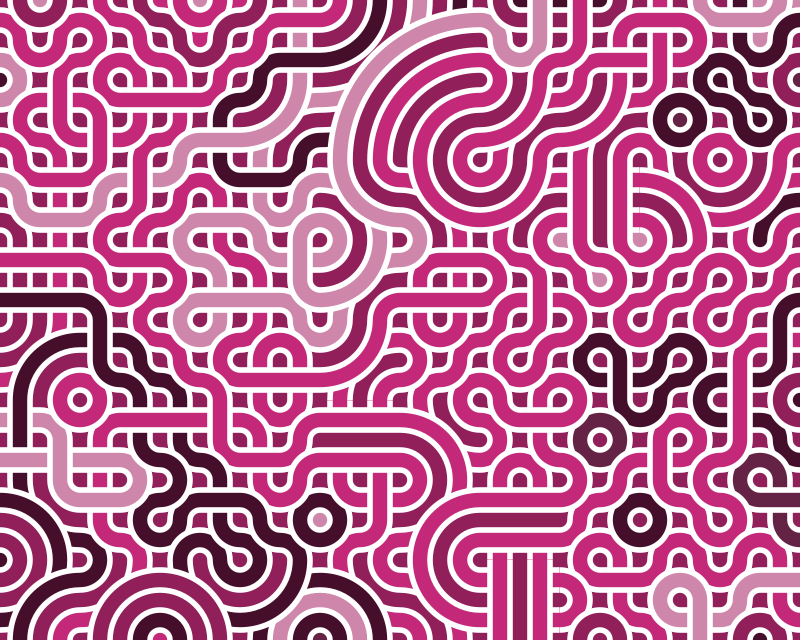

Creates a truchet pattern as a PNG bitmap.

Install

pip install truchet-tiling

Usage

import truchet_tiling.truchet_pattern as tp
from truchet_tiling.themes import RED_FLAMES

image = tp.generate(
    width=700,
    height=500,
    colors = RED_FLAMES,
    directions='mixed',
    arcs_probability=1,
    stroke_color=0xFFFFFF,
    stroke_width=6
)

To try it in Jupyter Notebook:

import truchet_tiling.truchet_pattern as tp

# helper to display bitmap images
def display_image(image_bytes):
  from IPython.display import display, Image as IPImage
  display(IPImage(data=image_bytes.getvalue()))

image = tp.generate(width=800, height=600)
display_image(image)

Parameters:
width (int): Minimal width of the pattern.
height (int): Minimal height of the pattern.
cell_size (int): Size of the cell in the pattern.
arcs_probability (float): Probability of arcs in the pattern. Accepted float values in the range [0, 1].
directions (str): Direction of the pattern. Accepted values are ['mixed', 'horizontal', 'vertical'].
colors (List[int]): List of colors to use in the pattern. With Null a random color set will be used.
stroke_color (int): Color of the strokes.
stroke_width (int): Width of the strokes.
