tuff-rl

Training logs as TensorBoard event files, and a live board that follows them.

English · 简体中文

One call in a training script writes everything about the run into TensorBoard event files under logs/: the metrics, the config, what the script prints, and the CPU, memory and GPU it used. The same call starts a board in your browser that follows those files as they grow. tensorboard --logdir logs opens the same files, and the board opens directories that TensorBoard, tensorboardX or PyTorch wrote. The package has no dependencies.

Install

pip install tuff-rl
pip install "tuff-rl[system]"   # adds CPU and memory metrics, through psutil

Quick start

import tuffrl

run = tuffrl.init(logdir="logs", group="cartpole/lr-0.5", name="seed-0", config={"lr": 0.5, "gamma": 0.99})
for step in range(10_000):
    ...
    run.log({"train": {"loss": loss, "return": episode_return}}, step=step)
run.finish()

The first script to start opens the board at http://127.0.0.1:6066; scripts started later join it, so a sweep of many processes shares one board. A run that ends with an exception is marked failed, and one stopped with Ctrl-C is marked stopped. Under torch.distributed, only rank 0 starts the board.

Code that already uses PyTorch's SummaryWriter changes only its import:

from tuffrl import SummaryWriter

The shim covers add_scalar, add_scalars, add_text, add_hparams, flush and close.

Try the demo

pip install "tuff-rl[system]"
curl -O https://raw.githubusercontent.com/talex-touch/tuff-rl/main/examples/cartpole.py
python cartpole.py

REINFORCE on CartPole in plain Python: two learning rates, three seeds each, six processes in parallel. It takes about 35 seconds.

The board

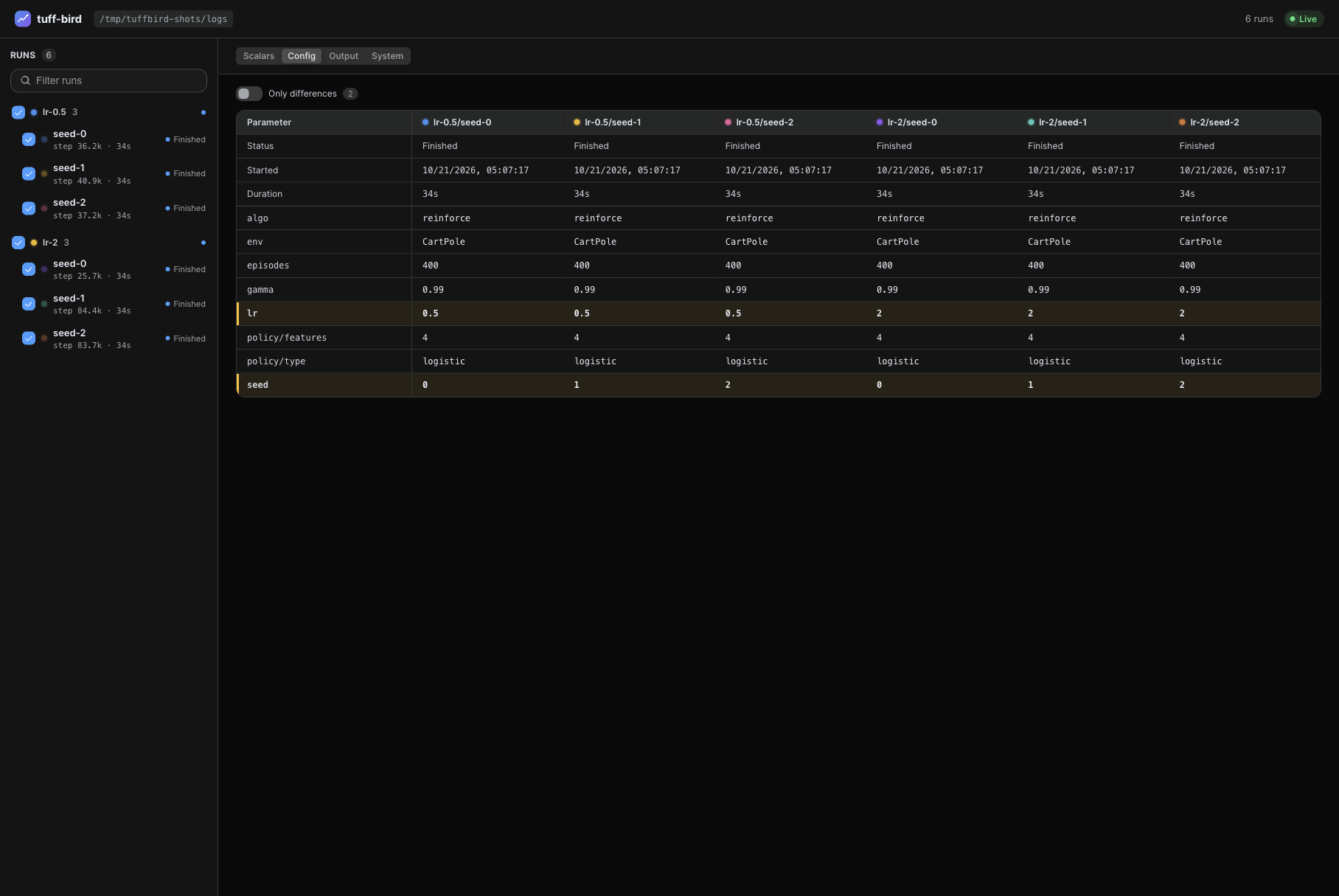

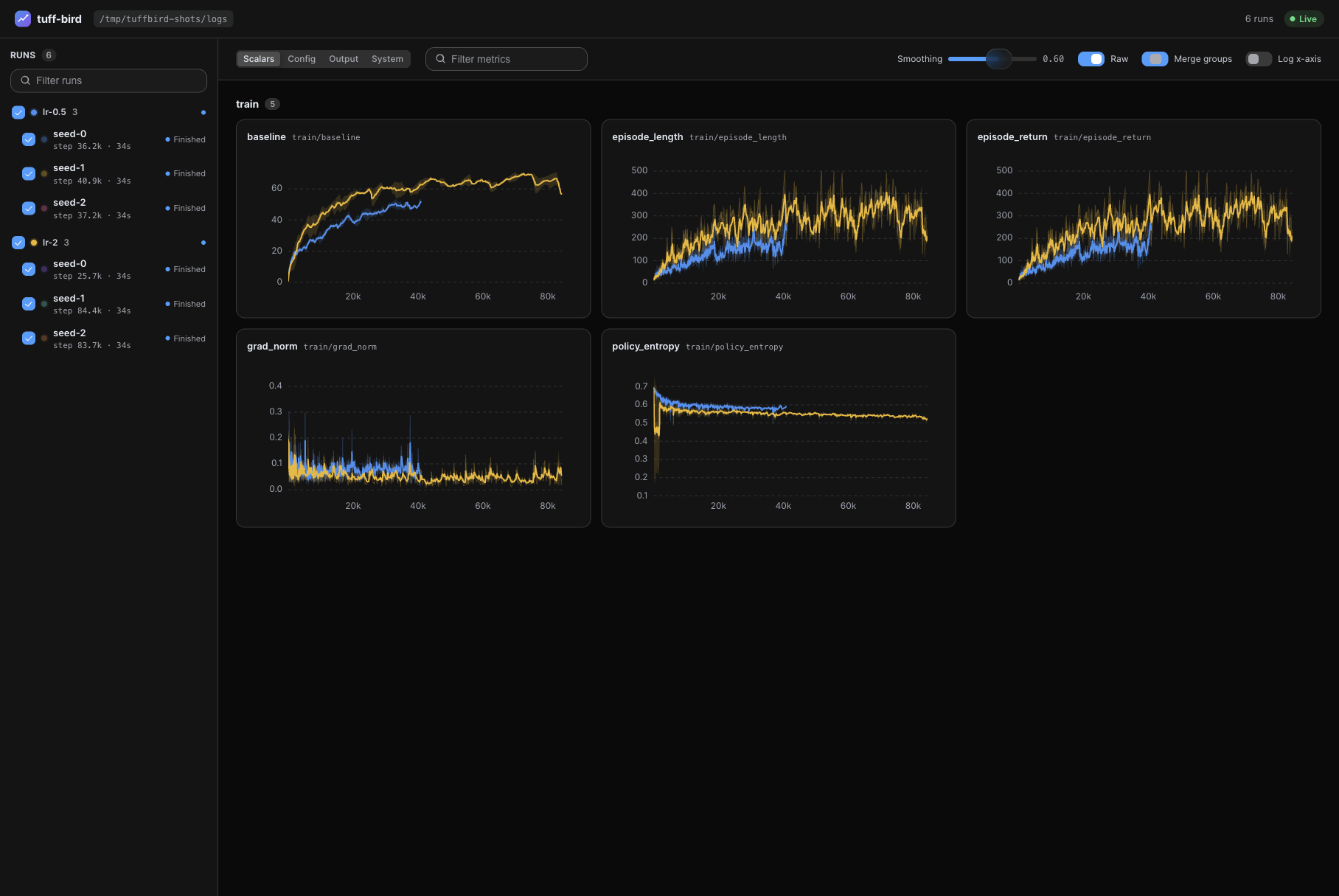

Runs in one directory form a group. Merged, a group is drawn as its mean with a band for the spread of its runs.	The config of every run side by side, with the keys that differ marked.

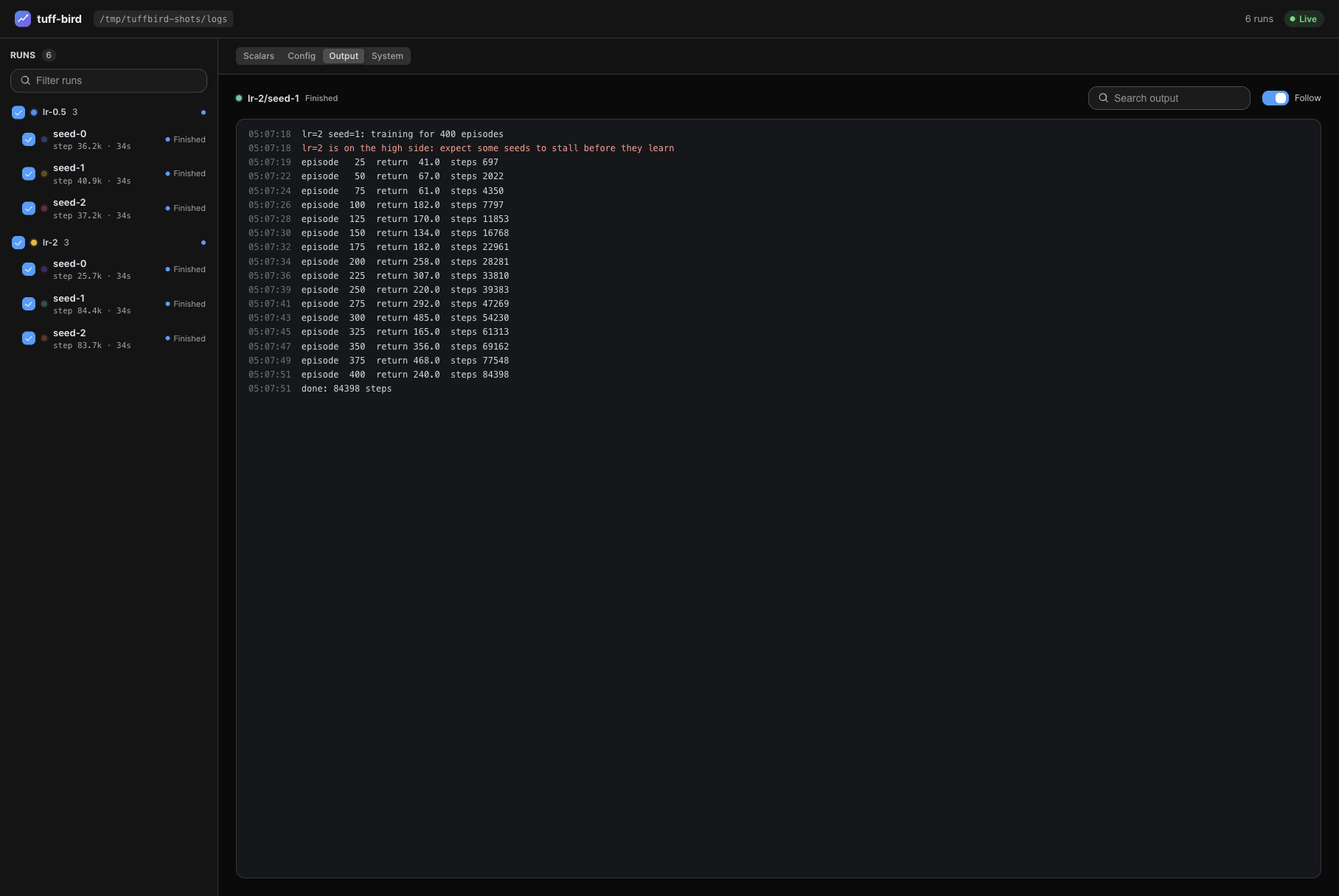

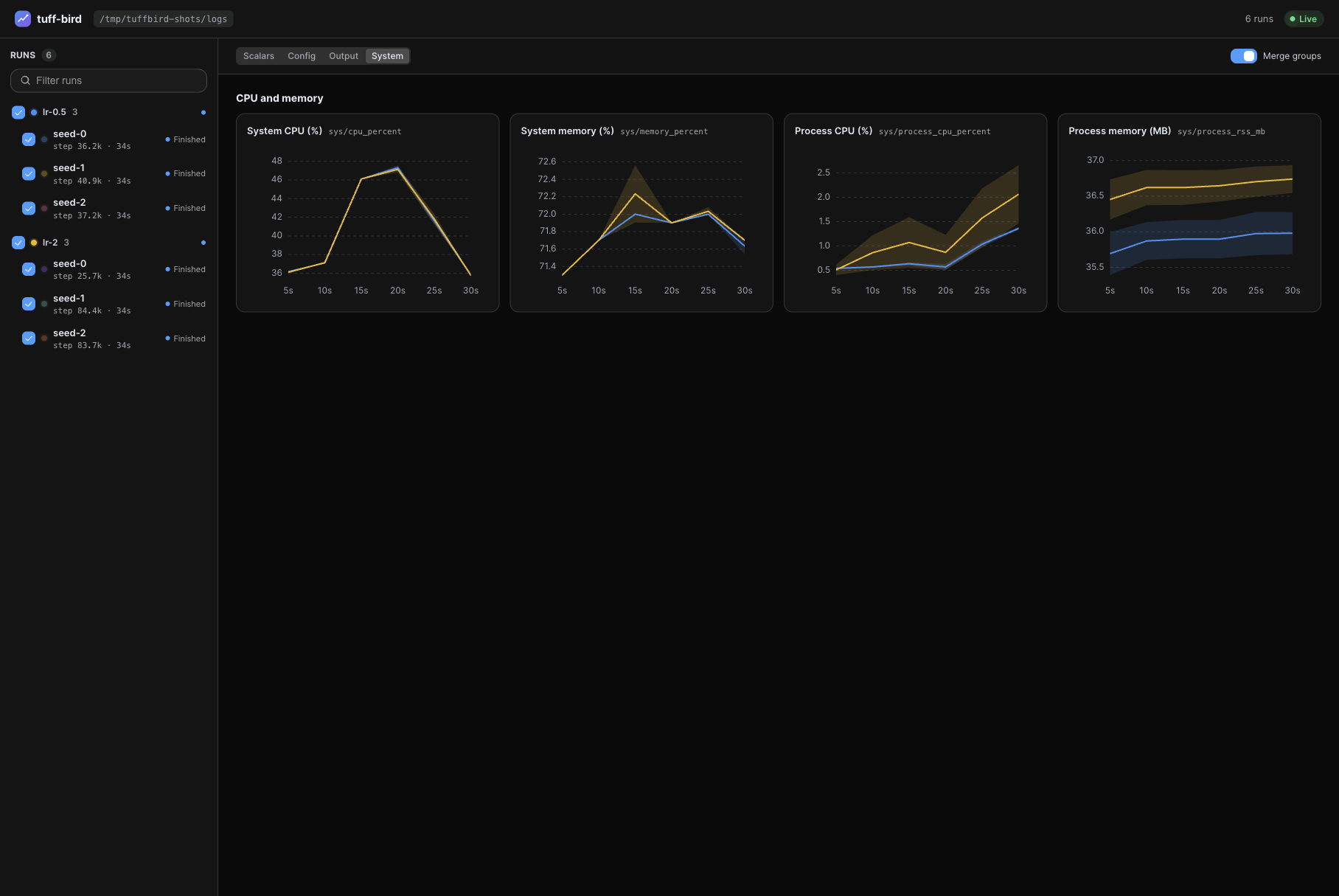

What each run printed, stdout and stderr in order, searchable, following new lines.	CPU and memory of the training machine and process, and the GPUs that nvidia-smi reports.

Charts smooth with an exponential moving average and can also show the raw values and a log x-axis. Drag across a chart to zoom in, and double-click it to zoom back out. The board follows the system's light or dark theme.

Training on another machine

Over SSH the board starts on the training machine and does not open a browser. Instead it prints the command that forwards its port to your own machine:

[tuffrl] board: http://127.0.0.1:6066  (logdir /data/logs)
[tuffrl] from your own machine: ssh -N -L 6066:127.0.0.1:6066 you@gpu-box  then open http://127.0.0.1:6066

The board has no login. It listens on 127.0.0.1 unless TUFFRL_BOARD_HOST says otherwise; listening on another address shows your logs and config to anyone who can reach that port.

Command line and settings

tuff-rl board logs   # serve a log directory, including one TensorBoard wrote
tuff-rl stop logs    # stop the board serving it

How it works

• Event files. The writer frames records the way TFRecord does (length, CRC32C, data, CRC32C) and encodes the Event and Summary protobufs by hand, so neither TensorFlow nor protobuf is needed. Metrics are scalar summaries, printed output uses the text plugin, and the config is an HParams session, so TensorBoard's HParams tab lists the runs and groups them by group.
• The board. A standard-library HTTP server reads each event file from where it stopped, and the page receives a snapshot followed by a stream of new points (server-sent events). The page is a Vue app built on TuffEx and ships inside the wheel.
• One board per log directory. logs/.tuffrl/board.json records which board serves the directory. Scripts starting at the same moment agree on one of them to launch it, and the board keeps running after training ends until tuff-rl stop.

Status

0.1 is an alpha. The board reads images and audio but does not show them yet; that and the rest of the plan are in the roadmap issues.

Development

cd web && pnpm install && pnpm build && cd ..   # builds the board page into src/tuffrl/board/static
pip install -e ".[dev,system]"
python -m pytest
uvx ruff check .

See CONTRIBUTING.md for the rest, including how a release is made.

License

MIT
