Basic Venn Diagram Figures package.

Project description

vennfig

vennfig is a Python package and is a wrapper for matplotlib_venn

You can draw simple Venn diagrams with 2 lines of code.

Installation:

pip install vennfig

On Jupyter:

!pip install vennfig

Examples

See all the examples here.

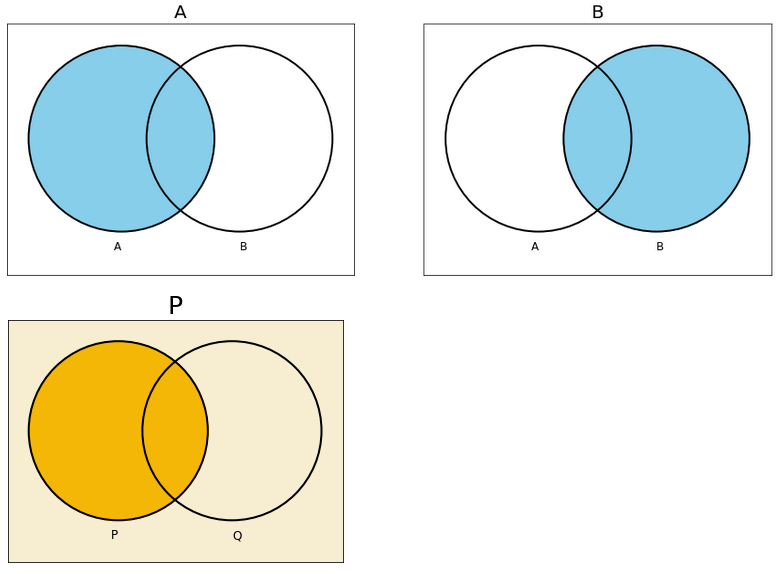

A, B Venn diagram

import vennfig as v
# default
v.a_b()

# using params
v.a_b(subs=2, size=6, fill_color='#f5b705', bg_color='#f7edd0',
    font_size=25, title_a='P', set_a='P', set_b='Q')

A, B

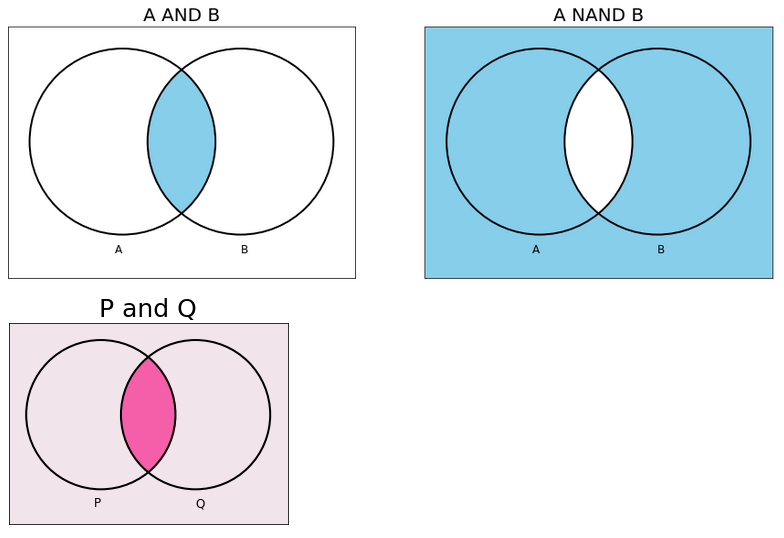

A AND B, A NAND B Venn diagram

import vennfig as v
# default
v.and_nand()

# using params
v.and_nand(subs=2, size=5, fill_color='#f55faa', bg_color='#f2e4eb',
         font_size=25, title_a='P and Q', title_b='a nand b', set_a='P', set_b='Q')

A AND B, A nand B

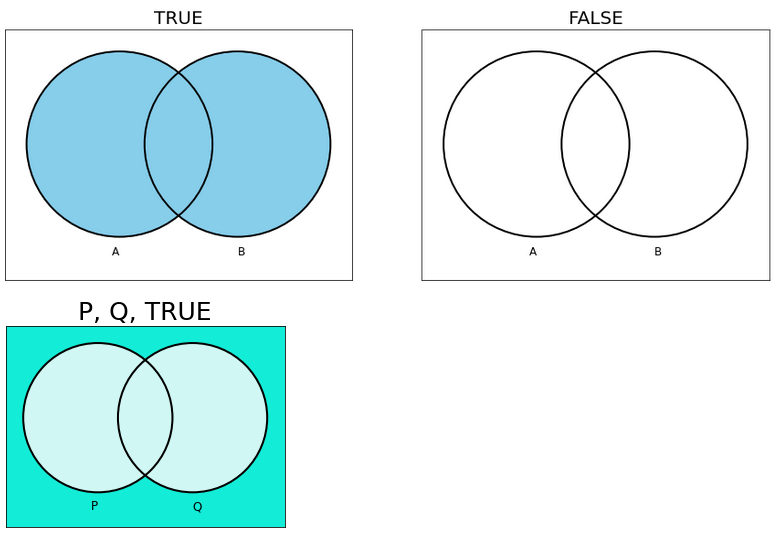

TRUE, FALSE Venn diagram

import vennfig as v
# default
v.true_false()

# using params
v.true_false(subs=2, size=5, fill_color='#d0f7f3', bg_color='#13edd7', title_a='P, Q, TRUE',
           font_size=25, set_a='P', set_b='Q')

TRUE, FALSE

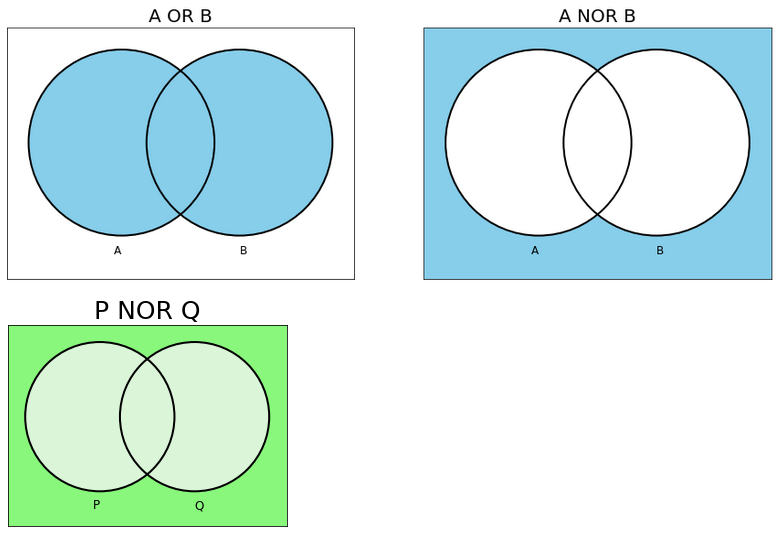

OR, NOR Venn diagram

import vennfig as v
# default
v.or_nor()

# using params
v.or_nor(subs=3, size=5, fill_color='#88f77c', bg_color='#daf5d7', font_size=25,
      title_b='P NOR Q', set_a='P', set_b='Q')

OR, NOR

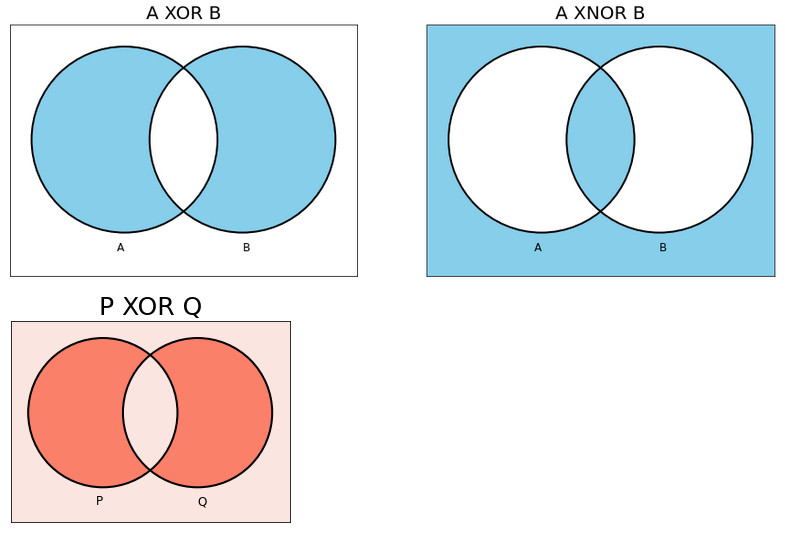

XOR, XNOR Venn diagram

import vennfig as v
# default
v.xor_xnor()

<!-- using params -->
v.xor_xnor(subs=2, size=5, fill_color='#fa8069', bg_color='#fae5e1',
         font_size=25, title_a='P XOR Q', set_a='P', set_b='Q')

XOR, XNOR

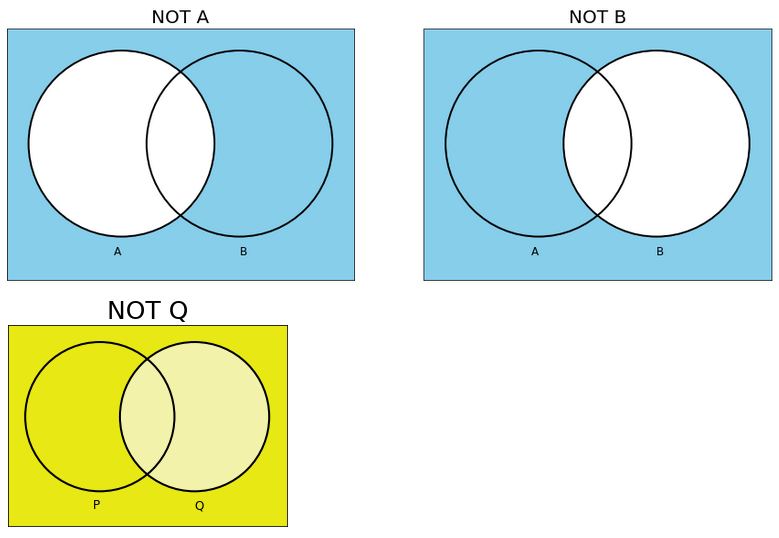

NOT A, NOT B Venn diagram

import vennfig as v
# default
v.not_not()

# using params
v.not_not(subs=3, size=5, fill_color='#e8e815', bg_color='#f2f2aa', font_size=25,
        title_b='NOT Q', set_a='P', set_b='Q')

NOT A, NOT B

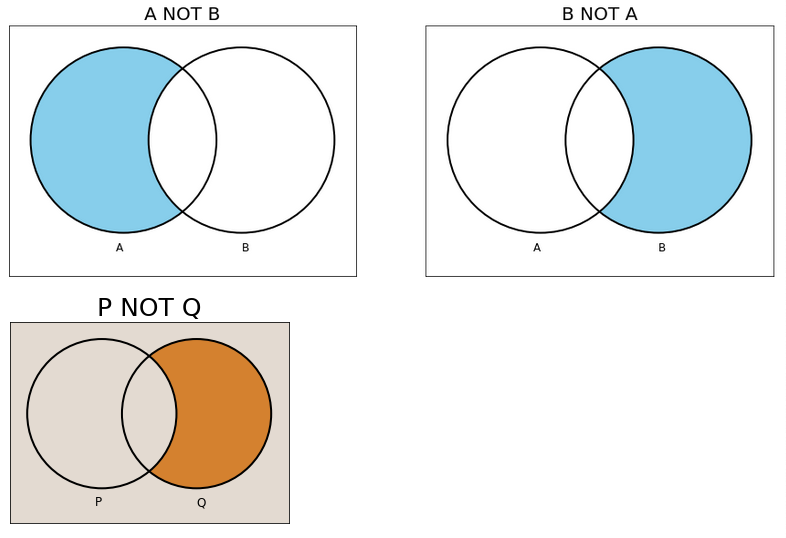

A NOT B, B NOT A Venn diagram

import vennfig as v
# default
v.x_not_y()

# using params
v.x_not_y(subs=3, size=5, fill_color='#d4812f', bg_color='#e3dad1', font_size=25,
        title_b='P NOT Q', set_a='P', set_b='Q')

A NOT B, B NOT A

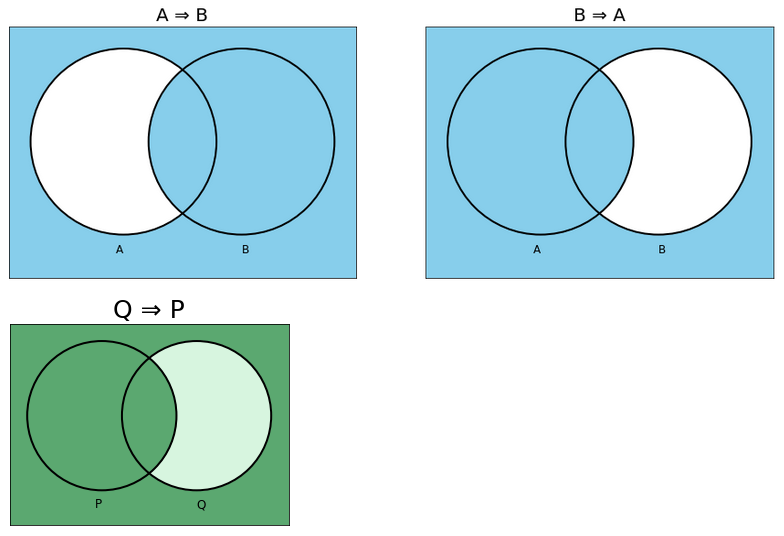

Implication Venn diagram

import vennfig as v
# default
v.implication()

# using params
v.implication(subs=3, size=5, fill_color='#5ba870', bg_color='#d7f5df', font_size=25,
        title_b='Q ⇒ P', set_a='P', set_b='Q')

Implication

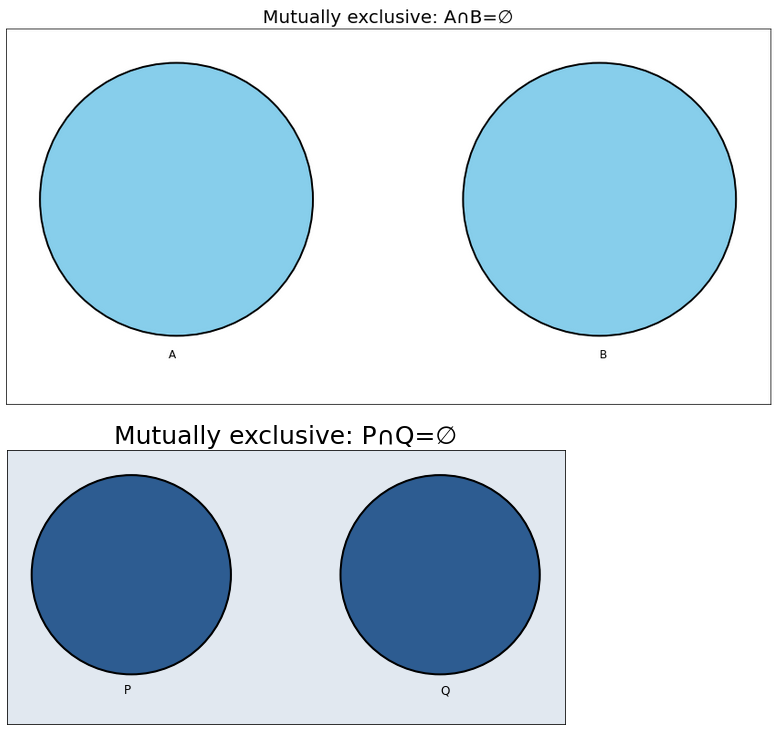

Mutually exclusive Venn diagram

import vennfig as v
# default
v.mut_exclusive()

# using params
v.mut_exclusive(size=10, fill_color='#2d5c91', bg_color='#e1e8f0', font_size=25,
        title='Mutually exclusive: P∩Q=∅', set_a='P', set_b='Q')

Mutually exclusive

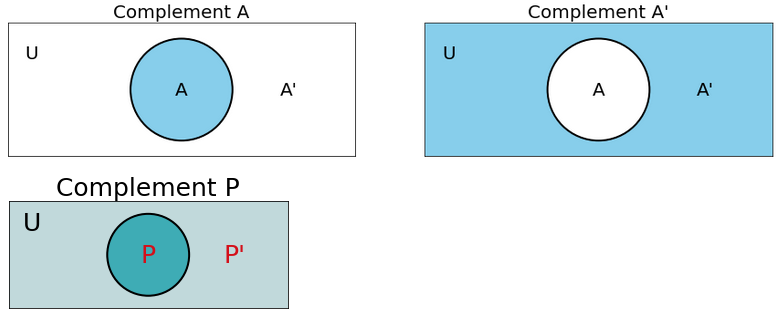

Complement Venn diagram

import vennfig as v
# default
v.complement()

# using params
v.complement(subs=2, size=5, fill_color='#3eacb5', bg_color='#c1d9db', font_color='#d40f19',
           font_size=25, title_a='Complement P', set_a='P', set_b="P'")

Complement

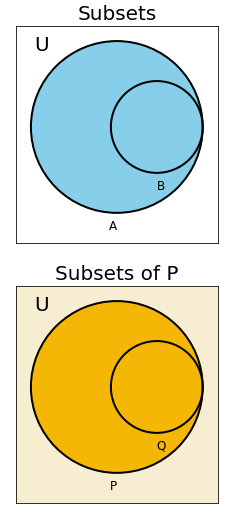

Subsets Venn diagram

import vennfig as v
# default
v.subsets()

# using params
v.subsets(size=5, fill_color='#f5b705', bg_color='#f7edd0', font_size=20,
        title='Subsets of P', set_a='P', set_b='Q')

Subsets
