visionstyle

Beautiful, fully configurable bounding boxes for object detection. Boxes, labels, fills, glow, glass, film grain and tracking trails — described by one Style, tuned live in the Studio, saved as YAML, rendered with one call.

import visionstyle as vs

dets = vs.Detections(xyxy=boxes, class_id=classes, confidence=scores, track_id=ids, names=model.names)
frame = vs.annotate(frame, dets, style="cinematic")

Explore visionstyle on GitHub Pages →

The site deploys through GitHub Actions. Its static source and update notes live in site/README.md.

Install

pip install visionstyle              # core: numpy, opencv-headless, pillow, pydantic, pyyaml
pip install "visionstyle[yolo]"      # + ultralytics for the demos / CLI model support
pip install "visionstyle[studio]"    # + fastapi/uvicorn for the Studio web app
pip install "visionstyle[all]"

Presets

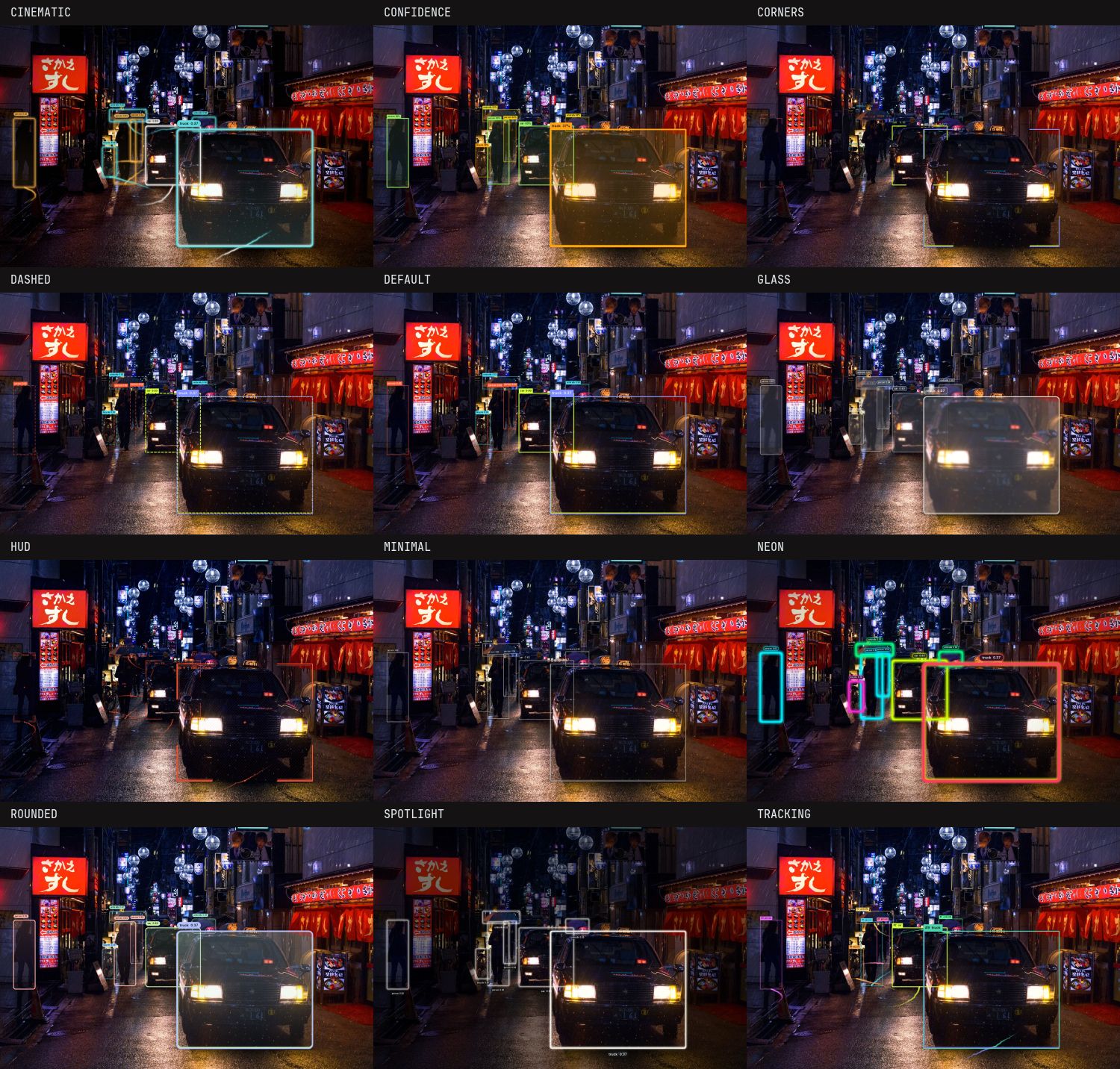

Twelve built-in looks. Every one is a plain YAML file you can copy and edit.

visionstyle presets list
visionstyle presets show cinematic

Python API

import cv2
import visionstyle as vs

frame = cv2.imread("street.jpg")

# 1. detections: boxes in pixels, everything else optional
dets = vs.Detections(
    xyxy=[[590, 650, 720, 1040], [1060, 660, 1520, 1000]],
    class_name=["person", "car"],
    confidence=[0.93, 0.88],
    track_id=[14, 31],
)
# or: dets = vs.Detections.from_ultralytics(model.predict(frame)[0])

# 2. a style: preset name, YAML path, or built in code
style = vs.Style.preset("cinematic")
style.label.components = ["track_id", "text"]   # every option is a typed attribute
style.trail.enabled = True

# 3. render. Keep one Annotator per video stream so trails/animations carry across frames.
annotator = vs.Annotator(style)
out = annotator.annotate(frame, dets)

# one-liner for stills
out = vs.annotate(frame, dets, style="minimal")

Detections accepts lists, NumPy arrays or torch tensors; xyxy is pixel x1, y1, x2, y2 (Detections.from_xywh, from_xywh_topleft, from_dicts also exist). Frames are BGR uint8 like OpenCV; pass rgb=True for RGB arrays.

What you can configure

All sizes are in reference pixels at ~1080p and scale automatically with the frame size (style.scale = "auto"), so one style looks the same on a webcam and a 4K photo. On top of that, strokes and label tags scale with each detected object's size (style.object_scale, on by default): far-away objects get thin outlines and small tags, close-up ones get heavier outlines and larger text. Tune strength, min_factor / max_factor, or restrict it with apply_to: box | label; set enabled: false for constant sizes.

Save and share styles

style.save("my_style.yaml")                 # anywhere
style.save_preset("my-look")                # ~/.visionstyle/presets/my-look.yaml
vs.Style.preset("my-look")                  # found by name from now on
vs.presets.list()                           # built-in + yours

Lookup order: $VISIONSTYLE_PRESETS_DIR → ~/.visionstyle/presets → built-ins → file path.

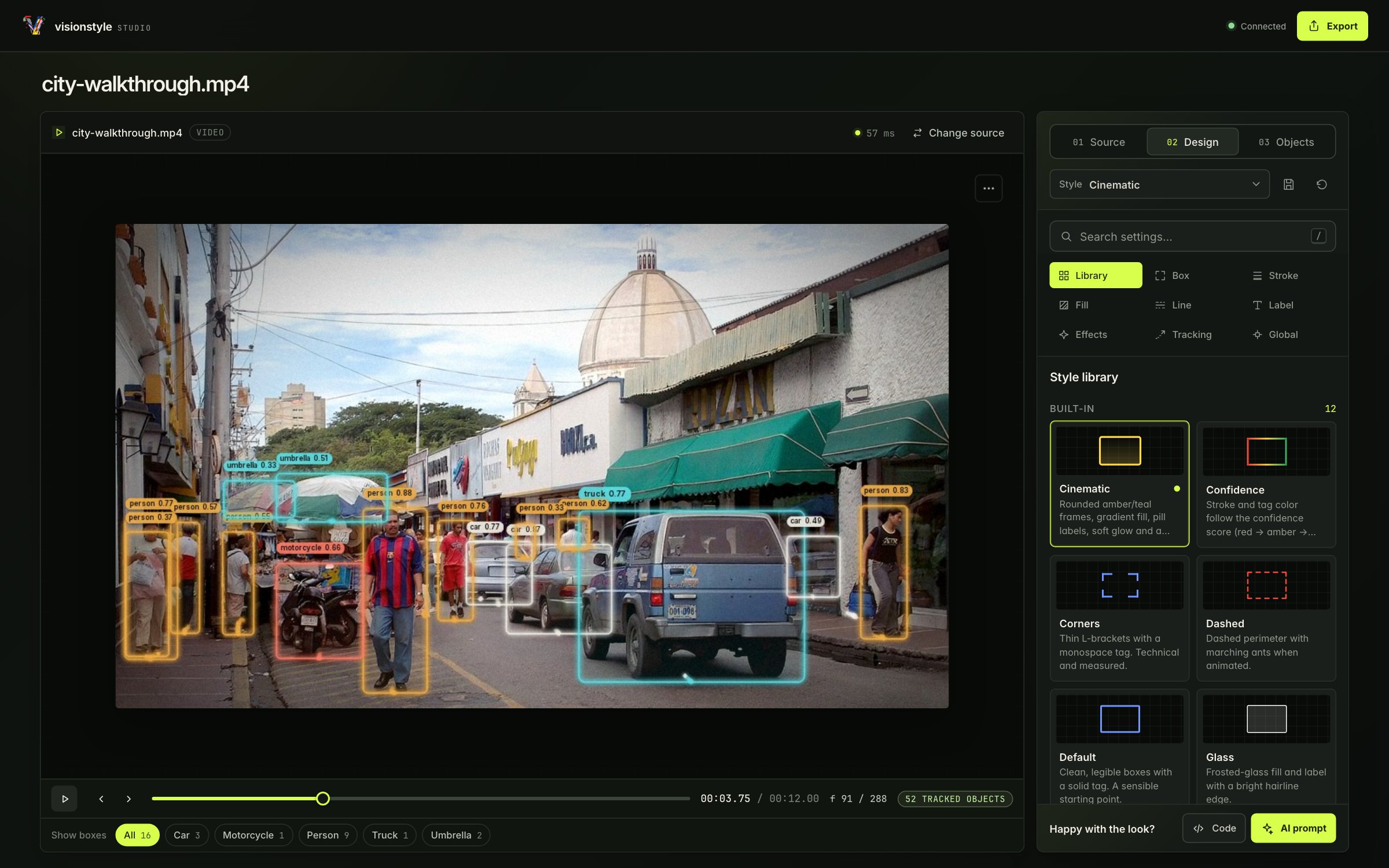

Studio

Design a style visually, on your own image and model, and save it as a preset the package loads by name.

pip install "visionstyle[studio,yolo]"
visionstyle studio          # opens http://127.0.0.1:8420

• Source: choose a bundled scene or upload an image or video, set the confidence threshold, and run detection. The sample video includes tracks; new video tracking requires the YOLO extra.
• Design: start with a preset, then adjust boxes, strokes, labels, effects, and trails beside the preview. The Python package itself renders every change, matching annotate() output. Save (next to the Style menu) stores the look as a named preset with an optional description; the Style menu lists your saved presets, and built-ins stay in the Library.
• Objects: filter by class, hide objects, or isolate a track. Scrub video frames or play the timeline; use the preview menu to save an annotated frame.
• Export: copy or download the YAML, a self-contained Python snippet, or a prompt for AI coding tools.

Presets saved in the Studio go to ~/.visionstyle/presets and load by name anywhere on that machine with vs.Style.preset("my-look"). To keep them with a project instead, start the Studio from the repo with visionstyle studio --presets-dir ./styles; each preset becomes styles/<name>.yaml, which you commit and load with vs.Style.load("styles/my-look.yaml") (or set VISIONSTYLE_PRESETS_DIR=./styles to load them by name).

Keyboard shortcuts: Space plays or pauses, ← / → steps through video frames, Shift + ← / → jumps ten frames, and R resets the style. Focused controls keep their own keyboard behavior.

CLI

visionstyle render photo.jpg -s neon --model yolo11n.pt -o out.jpg
visionstyle render clip.mp4  -s tracking --model yolo11n.pt --track -o out.mp4
visionstyle render 0         -s hud --model yolo11n.pt --track -o webcam.mp4   # webcam index
visionstyle render photo.jpg -d detections.json -s corners                    # no model needed
visionstyle gallery photo.jpg --model yolo11n.pt -o gallery.png               # every preset at once
visionstyle presets list | show NAME | export NAME -o my.yaml
visionstyle schema -o style.schema.json

detections.json is a list of {"xyxy": [...], "class_name": "...", "confidence": 0.9, "track_id": 1}.

Development

uv sync --all-extras --group dev
uv run pytest && uv run ruff check . && uv run mypy src

cd studio && npm install
npm run dev            # Vite dev server on :5173 proxying /api to :8420
npm run build          # -> src/visionstyle/studio/static (bundled into the wheel)

When src/visionstyle/style/schema.py changes, regenerate the frontend schema and types:

uv run visionstyle schema -o studio/schema.json && (cd studio && npm run gen:types)

Releases: bump __version__ in src/visionstyle/__init__.py, update CHANGELOG.md, tag vX.Y.Z and push. release.yml builds the frontend + wheel, publishes to PyPI via trusted publishing (register the pypi environment / publisher once on pypi.org) and creates a GitHub release. For a dry run first, start the TestPyPI workflow from the Actions tab: it publishes the current commit as X.Y.Z.devN to test.pypi.org (environment testpypi), installs it into a clean venv and smoke-tests the CLI and the Studio.

Credits

Sample photos: see src/visionstyle/assets/samples/CREDITS.md. Fonts: Inter and JetBrains Mono, both under the SIL Open Font License.

MIT © Basel Mather
