visu 2025.1

Data visualization

Visu

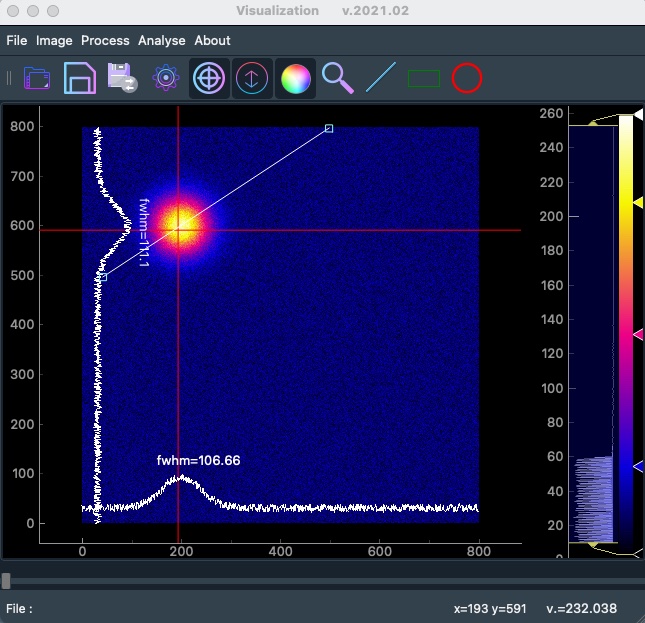

Visu is an user interface library based on pyqtgraph to open and process data image . It can make plot profile and data measurements analysis on live

It can open .spe .SPE, .sif and .TIFF files

https://github.com/julienGautier77/visu

Requirements

• python 3.x
• Numpy
• matplotlib
• scipy
• PyQt6
• pyqtgraph (https://github.com/pyqtgraph/pyqtgraph.git)
  • Pip install pyqtgraph
• qdarkstyle (https://github.com/ColinDuquesnoy/QDarkStyleSheet.git)
  • pip install qdarkstyle
• sifread.py
  • https://github.com/lightingghost/sifreader/tree/master/sifreader
• winspec.py
  • https://github.com/antonl/pyWinSpec

Installation

• from PyPi
  • pip install git+https://github.com/julienGautier77/visu

Usage

to use as it:

import visu
visu.visual.runVisu()

Or :

from PyQt6.QtWidgets import QApplication
import sys
import qdarkstyle
import visu

appli = QApplication(sys.argv)

e = visu.visual.SEE()
e.show()
appli.exec_()

To insert in a code

visu is a QtWidgets it can be use like a widget :
from PyQt6.QtWidgets import QApplication,QWidget
widgetVisu=visu.visual.SEE()

---

---
