visualdl 2.5.3

Visualize Deep Learning

中文

Introduction

VisualDL, a visualization analysis tool of PaddlePaddle, provides a variety of charts to show the trends of parameters, and visualizes model structures, data samples, histograms of tensors, PR curves , ROC curves and high-dimensional data distributions. It enables users to understand the training process and the model structure more clearly and intuitively so as to optimize models efficiently.

VisualDL provides various visualization functions, including tracking metrics in real-time, visualizing the model structure, displaying the data sample, visualizing the relationship between hyperparameters and model metrics, presenting the changes of distributions of tensors, showing the pr curves, projecting high-dimensional data to a lower dimensional space and more. Additionally, VisualDL provides VDL.service, which enables developers easily to save, track and share visualization results of experiments. For specific guidelines of each function, please refer to VisualDL User Guide. For up-to-date experience, please feel free to try our Online Demo. Currently, VisualDL iterates rapidly and new functions will be continuously added.

Browsers supported by VisualDL are:

• Google Chrome ≥ 79
• Firefox ≥ 67
• Microsoft Edge ≥ 79
• Safari ≥ 11.1

VisualDL natively supports the use of Python. Developers can retrieve plentiful visualization results by simply adding a few lines of Python code into the model before training.

Contents

• Key Highlights
• Installation
• Usage Guideline
• Function Preview
• Frequently Asked Questions
• Contribution
• More Details
• Technical Communication

Key Highlights

Easy to Use

The high-level design of API makes it easy to use. Only one click can initiate the visualization of model structures.

Various Functions

The function contains the visualization of training parameters, data samples, graph structures, histograms of tensors, PR curves and high-dimensional data distributions.

High Compatibility

VisualDL provides the visualization of the mainstream model structures such as Paddle, ONNX, Caffe, widely supporting visual analysis for diverse users.

Fully Support

By Integrating into PaddlePaddle and related modules, VisualDL allows developers to use different components without obstructions, and thus to have the best experience in the PaddlePaddle ecosystem.

Installation

Install by PiP

python -m pip install visualdl -i https://mirror.baidu.com/pypi/simple

Install by Code

git clone https://github.com/PaddlePaddle/VisualDL.git
cd VisualDL

python setup.py bdist_wheel
pip install --upgrade dist/visualdl-*.whl

Please note that Python 2 is no longer maintained officially since January 1, 2020. VisualDL now only supports Python 3 in order to ensure the usability of codes.

Usage Guideline

VisualDL stores the data, parameters and other information of the training process in a log file. Users can launch the panel to observe the visualization results.

1. Log

The Python SDK is provided at the back end of VisualDL, and a logger can be customized through LogWriter. The interface description is shown as follows:

class LogWriter(logdir=None,
                max_queue=10,
                flush_secs=120,
                filename_suffix='',
                **kwargs)

Interface Parameters

parameters	type	meaning
logdir	string	The path location of log file. VisualDL will create a log file under this path to record information generated by the training process. If not specified, the path will be runs/${CURRENT_TIME}as default.
max_queue	int	The maximum capacity of the data generated before recording in a log file. Default value is 10. If the capacity is reached, the data are immediately written into the log file.
flush_secs	int	The maximum cache time of the data generated before recording in a log file. Default value is 120. When this time is reached, the data are immediately written to the log file. (When the log message queue reaches the maximum cache time or maximum capacity, it will be written to the log file immediately)
filename_suffix	string	Add a suffix to the default log file name.

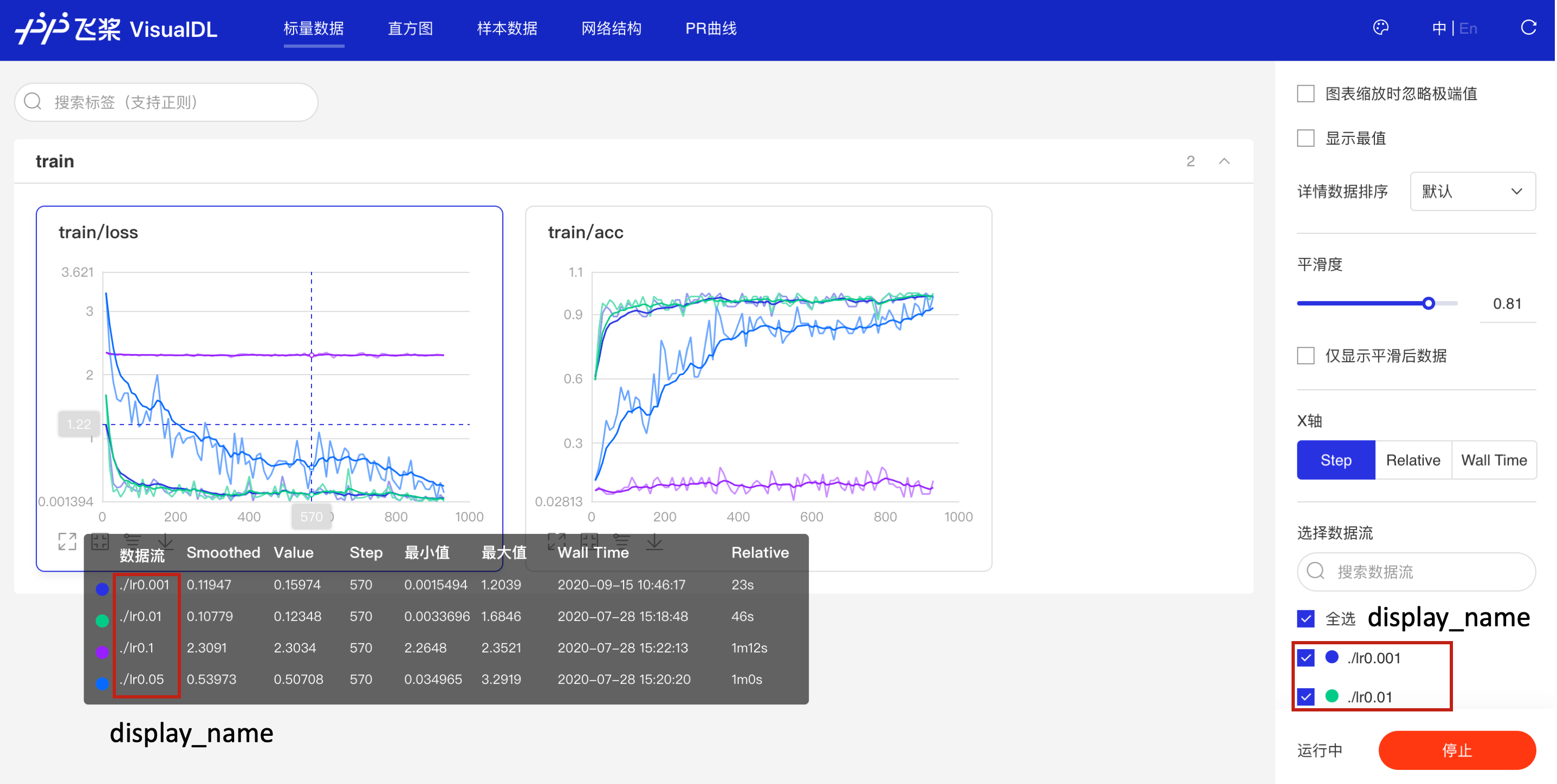

display_name	string	This parameter is displayed in the location of Select Data Stream in the panel. If not set, the default name is logdir.(When logdir is too long or needed to be hidden).

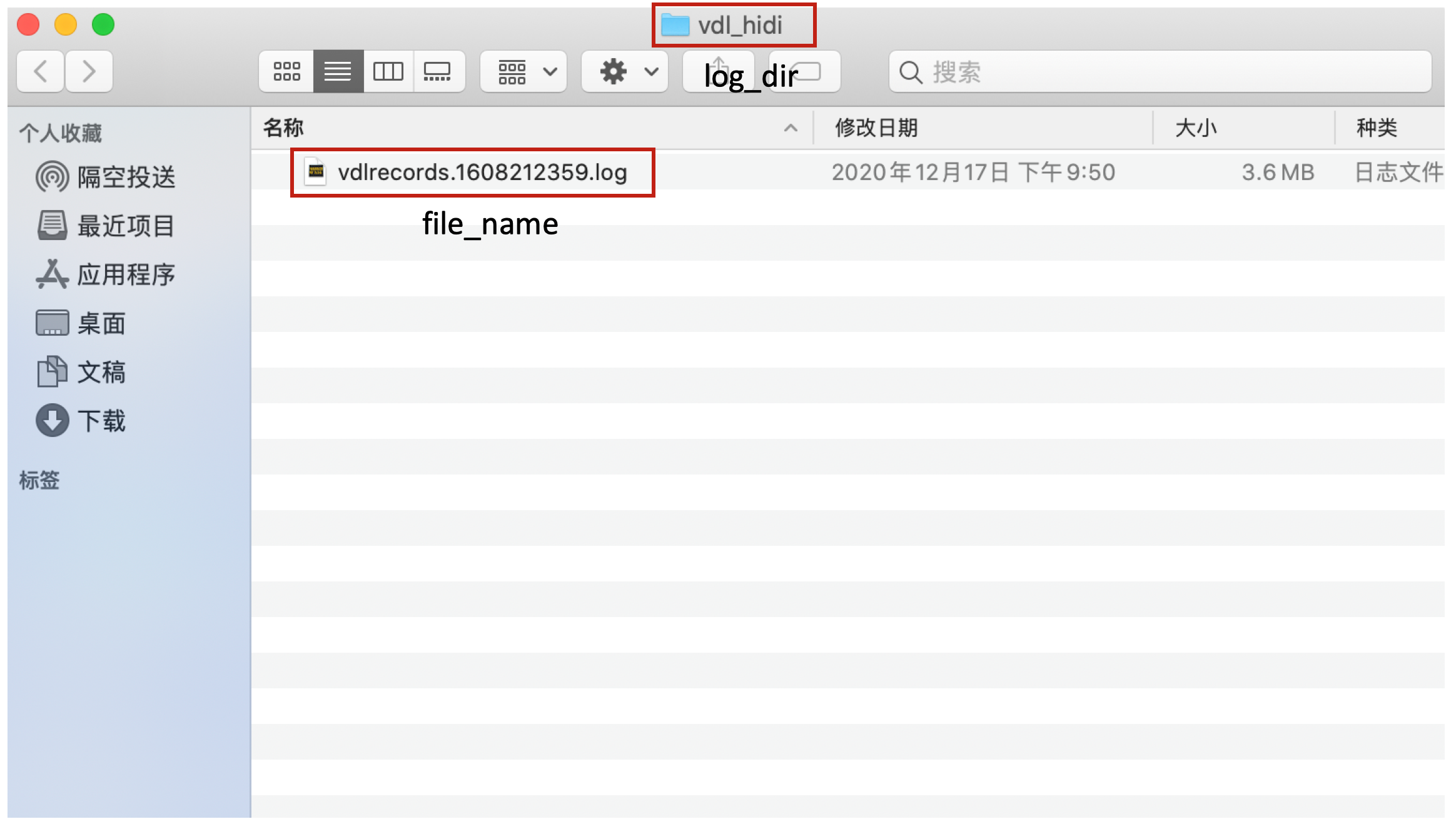

file_name	string	Set the name of the log file. If the file_name already exists, setting the file_name will be new records in the same log file, which will continue to be used. Note that the name should include 'vdlrecords'.

Example

Create a log file and record scalar values:

from visualdl import LogWriter

# create a log file under `./log/scalar_test/train`
with LogWriter(logdir="./log/scalar_test/train") as writer:
    # use `add_scalar` to record scalar values
    writer.add_scalar(tag="acc", step=1, value=0.5678)
    writer.add_scalar(tag="acc", step=2, value=0.6878)
    writer.add_scalar(tag="acc", step=3, value=0.9878)
# you can also use the following method without using context manager `with`:
"""
writer = LogWriter(logdir="./log/scalar_test/train")

writer.add_scalar(tag="acc", step=1, value=0.5678)
writer.add_scalar(tag="acc", step=2, value=0.6878)
writer.add_scalar(tag="acc", step=3, value=0.9878)

writer.close()
"""

2. Launch Panel

In the above example, the log has recorded three sets of scalar values. Developers can view the visualization results of the log file through launching the visualDL panel. There are two ways to launch the log file:

Launch by Command Line

Use the command line to launch the VisualDL panel：

visualdl --logdir <dir_1, dir_2, ... , dir_n> --model <model_file> --host <host> --port <port> --cache-timeout <cache_timeout> --language <language> --public-path <public_path> --api-only --component_tabs <tab_name1, tab_name2, ...>

Parameter details:

parameters	meaning
--logdir	Set one or more directories of the log. All the logs in the paths or subdirectories will be displayed on the VisualDL Board indepentently.
--model	Set a path to the model file (not a directory). VisualDL will visualize the model file in Graph page. PaddlePaddle、ONNX、Keras、Core ML、Caffe and other model formats are supported. Please refer to Graph - Functional Instructions.
--host	Specify IP address. The default value is 127.0.0.1. Specify it as 0.0.0.0 or public IP address so that other machines can visit VisualDL Board.
--port	Set the port. The default value is 8040.
--cache-timeout	Cache time of the backend. During the cache time, the front end requests the same URL multiple times, and then the returned data are obtained from the cache. The default cache time is 20 seconds.
--language	The language of the VisualDL panel. Language can be specified as 'en' or 'zh', and the default is the language used by the browser.
--public-path	The URL path of the VisualDL panel. The default path is '/app', meaning that the access address is 'http://<host>:<port>/app'.
--api-only	Decide whether or not to provide only API. If this parameter is set, VisualDL will only provides API service without displaying the web page, and the API address is 'http://<host>:<port>/<public_path>/api'. Additionally, If the public_path parameter is not specified, the default address is 'http://<host>:<port>/api'.
--component_tabs	Decide which components are presented in page, currently support 15 components, i.e. 'scalar', 'image', 'text', 'embeddings', 'audio', 'histogram', 'hyper_parameters', 'static_graph', 'dynamic_graph', 'pr_curve', 'roc_curve', 'profiler', 'x2paddle', 'fastdeploy_server', 'fastdeploy_client'. If this parameter is set, only specified components will be presented. If not set, and specify --logdir parameter, only components with data in vdlrecords log are presented. If both --component_tabs and --logdir are not set, only present 'static_graph', 'x2paddle', 'fastdeploy_server', 'fastdeploy_client' components by default

To visualize the log file generated in the previous step, developers can launch the panel through the command:

visualdl --logdir ./log

Launch in Python Script

Developers can start the VisualDL panel in Python script as follows:

visualdl.server.app.run(logdir,
                        model="path/to/model",
                        host="127.0.0.1",
                        port=8080,
                        cache_timeout=20,
                        language=None,
                        public_path=None,
                        api_only=False,
                        open_browser=False)

Please note: since all parameters are indefinite except logdir, developers should specify parameter names when using them.

The interface parameters are as follows:

parameters	type	meaning
logdir	string or list[string_1, string_2, ... , string_n]	Set one or more directories of the log. All the logs in the paths or subdirectories will be displayed on the VisualDL Board indepentently.
model	string	Set a path to the model file (not a directory). VisualDL will visualize the model file in Graph page.
host	string	Specify IP address. The default value is 127.0.0.1. Specify it as 0.0.0.0 or public IP address so that other machines can visit VisualDL Board.
port	int	Set the port. The default value is 8040.
cache_timeout	int	Cache time of the backend. During the cache time, the front end requests the same URL multiple times, and then the returned data are obtained from the cache. The default cache time is 20 seconds.
language	string	The language of the VisualDL panel. Language can be specified as 'en' or 'zh', and the default is the language used by the browser.
public_path	string	The URL path of the VisualDL panel. The default path is '/app', meaning that the access address is 'http://<host>:<port>/app'.
api_only	boolean	Decide whether or not to provide only API. If this parameter is set, VisualDL will only provides API service without displaying the web page, and the API address is 'http://<host>:<port>/<public_path>/api'. Additionally, If the parameter public_path is not specified, the default address is 'http://<host>:<port>/api'.
open_browser	boolean	Whether or not to open the browser. If this parameter is set as True, the browser will be opened automatically and VisualDL panel will be launched at the same time. If parameter api_only is specified as True, parameter open_browser can be ignored.
component_tabs	string or list[string_1, string_2, ... , string_n]	Decide which components are presented in page, currently support 15 components, i.e. 'scalar', 'image', 'text', 'embeddings', 'audio', 'histogram', 'hyper_parameters', 'static_graph', 'dynamic_graph', 'pr_curve', 'roc_curve', 'profiler', 'x2paddle', 'fastdeploy_server', 'fastdeploy_client'. If this parameter is set, only specified components will be presented. If not set, and specify --logdir parameter, only components with data in vdlrecords log are presented. If both --component_tabs and --logdir are not set, only present 'static_graph', 'x2paddle', 'fastdeploy_server', 'fastdeploy_client' components by default

To visualize the log file generated in the previous step, developers can launch the panel through the command:

from visualdl.server import app

app.run(logdir="./log")

After launching the panel by one of the above methods, developers can see the visualization results on the browser shown as blow:

3. Read data in log files using LogReader

VisualDL also provides LogReader interface to read any data from log files.

class LogReader(file_path='')

Interface Parameters

parameters	type	meaning
file_path	string	File path of the log file. Required.

Example

If there is a log file named vdlrecords.1605533348.log in the directory of ./log, we can retrieve the data under the 'loss' tag in the scalar by:

from visualdl import LogReader
reader = LogReader(file_path='./vdlrecords.1605533348.log')
data = reader.get_data('scalar', 'loss')
print(data)

The result will be a list shown as below：

...
id: 5
tag: "Metrics/Training(Step): loss"
timestamp: 1605533356039
value: 3.1297709941864014
...

For more information of LogReader, please refer to LogReader.

Function Preview

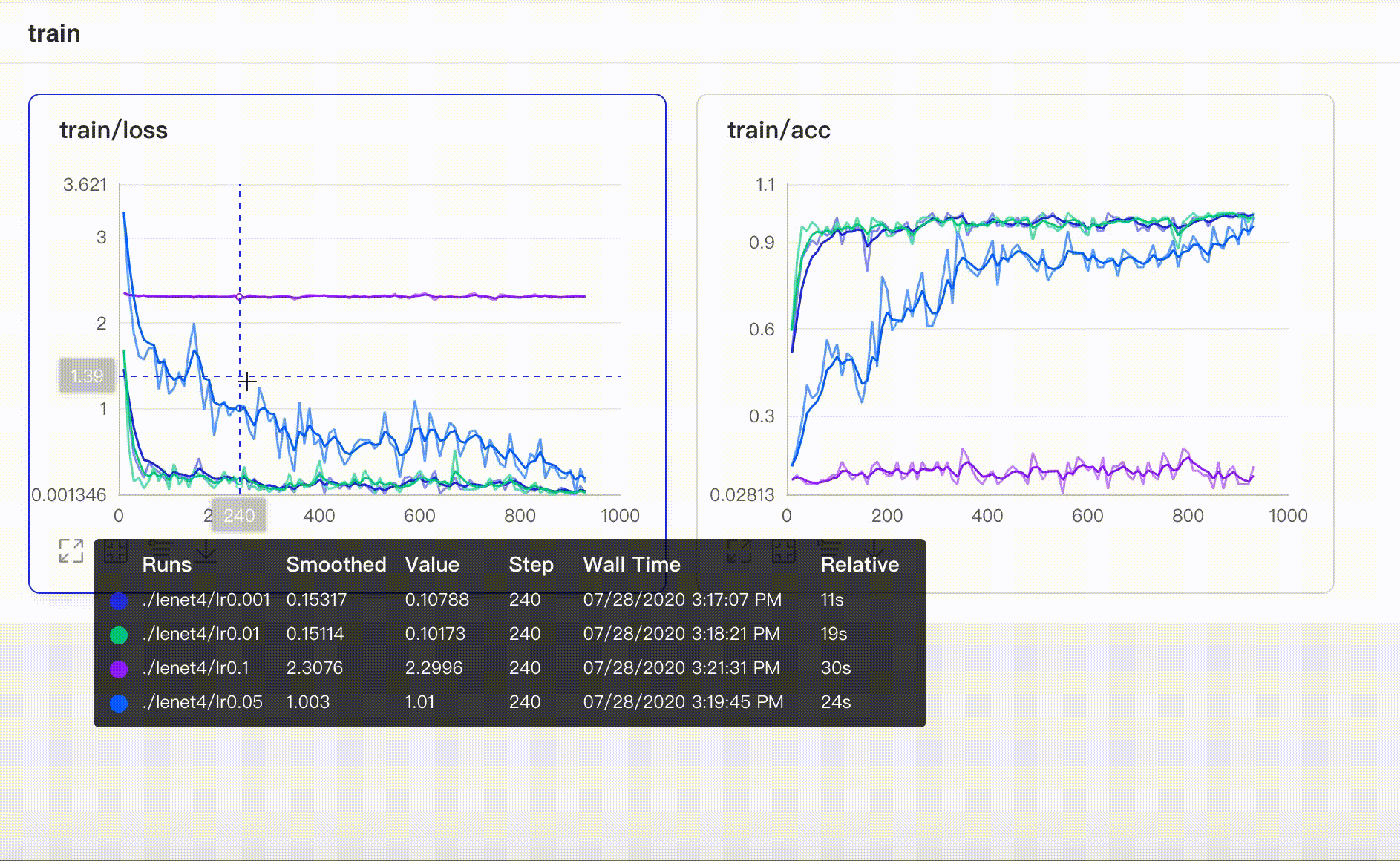

Scalar

Scalar makes use of various charts to display how the parameters, such as accuracy, loss and learning rate, changes during the training process. In this case, developers can observe not only the single but also the multiple groups of parameters in order to understand the training process and thus speed up the process of model tuning.

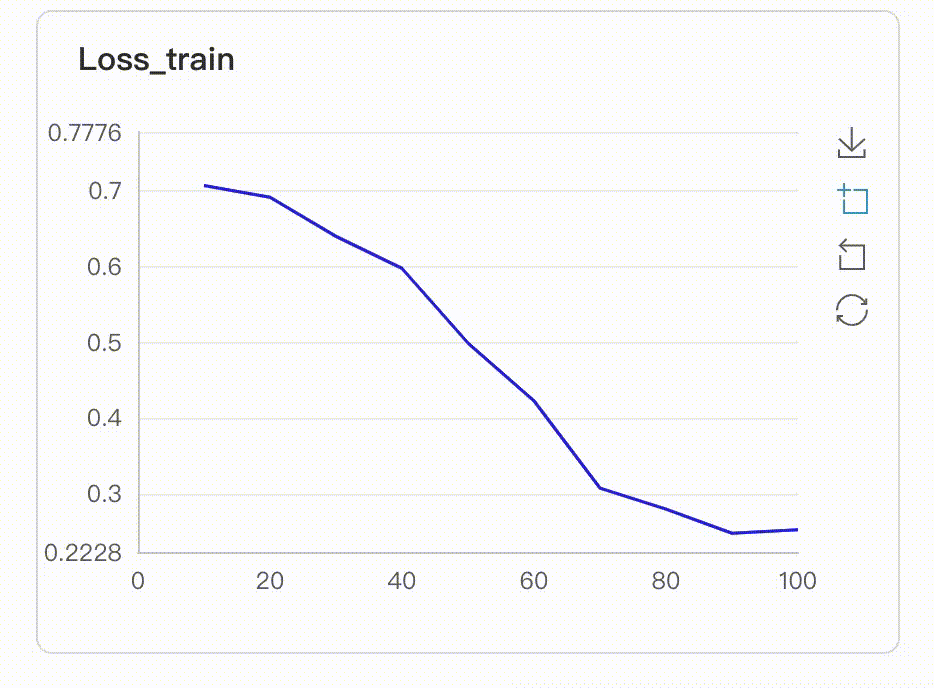

Dynamic Display

After the launch of VisualDL Board, the LogReader will continuously record the data to display in the front-end. Hence, the changes of parameters can be visualized in real-time, as shown below:

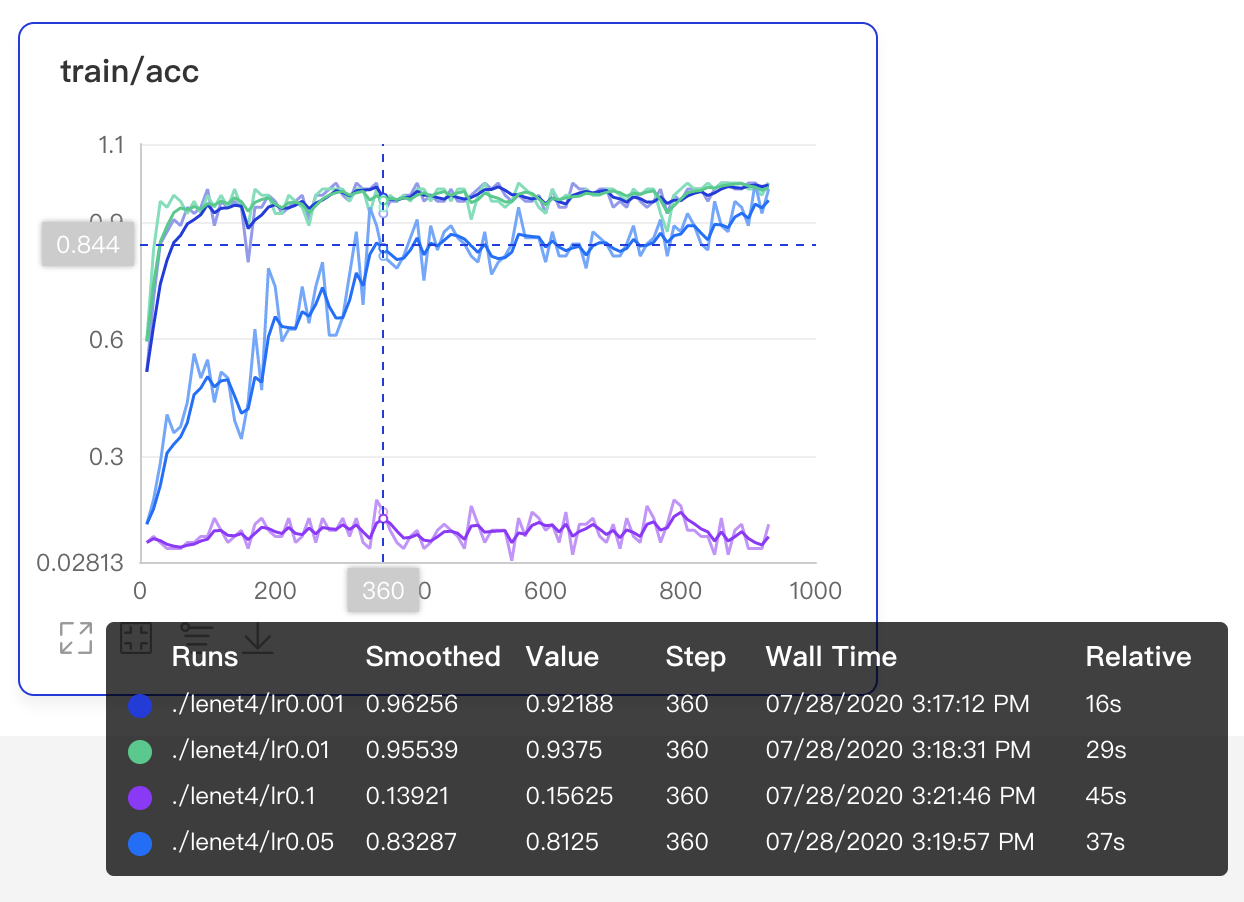

Comparison of Multiple Experiments

Developers can compare multiple experiments by specifying and uploading the path of each experiment at the same time so as to visualize the same parameters in the same chart.

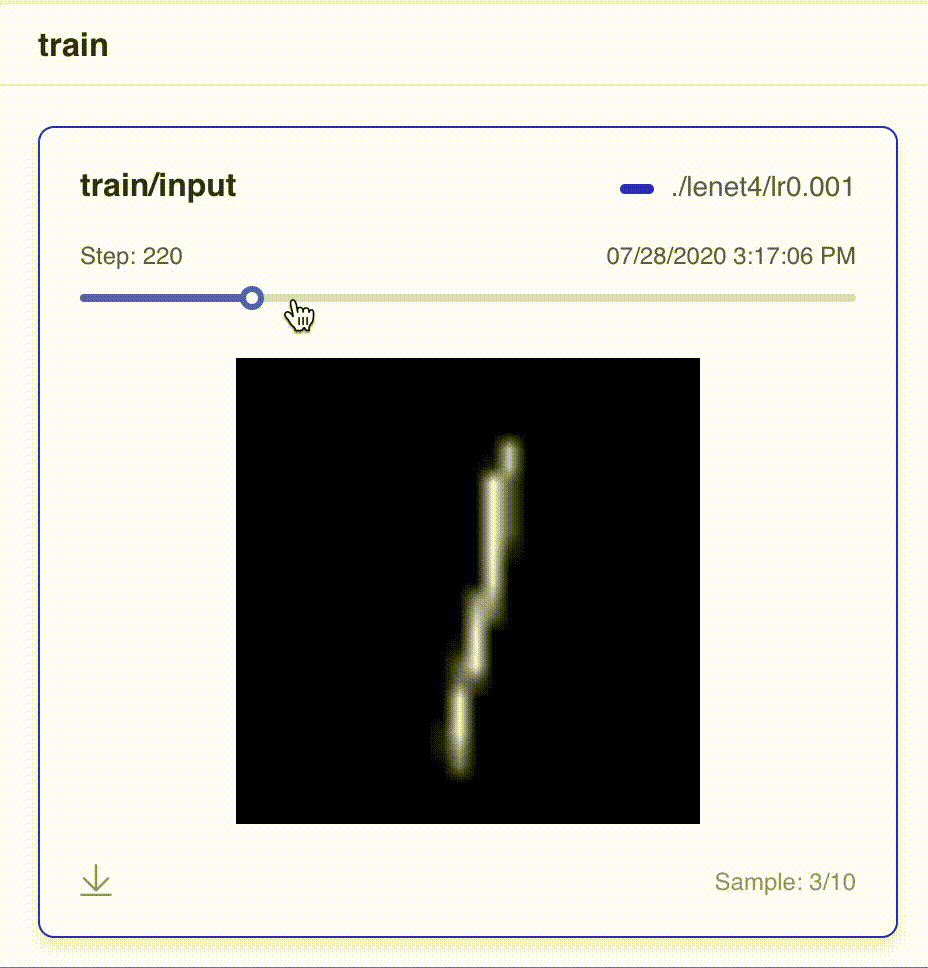

Image provides real-time visualizations of the image data during the training process, allowing developers to observe the changes of images at different training stages and to deeply understand the effects of the training process.

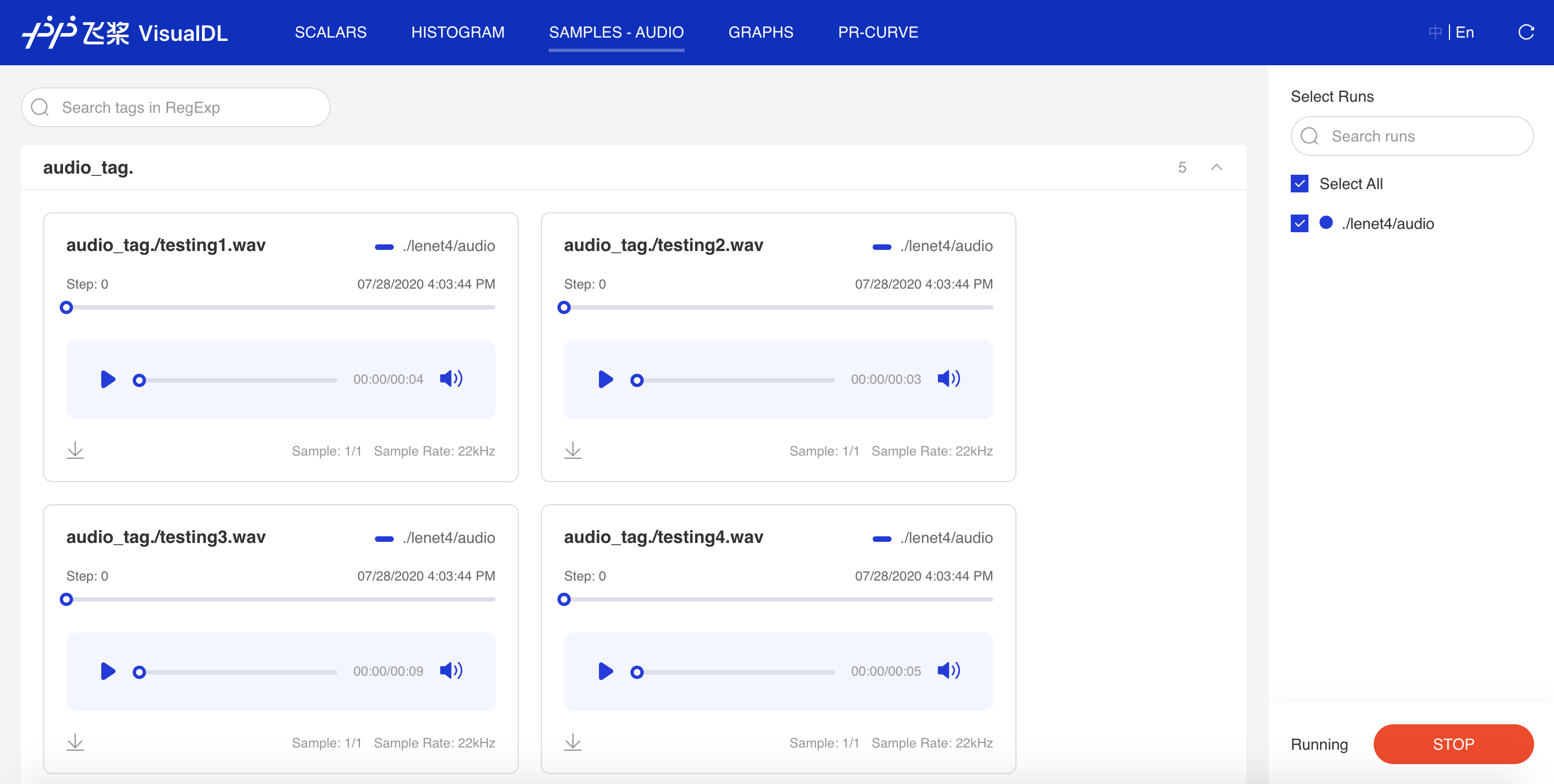

Audio

Audio aims to allow developers to listen to the audio data in real-time during the training process, helping developers to monitor the process of speech recognition and text-to-speech.

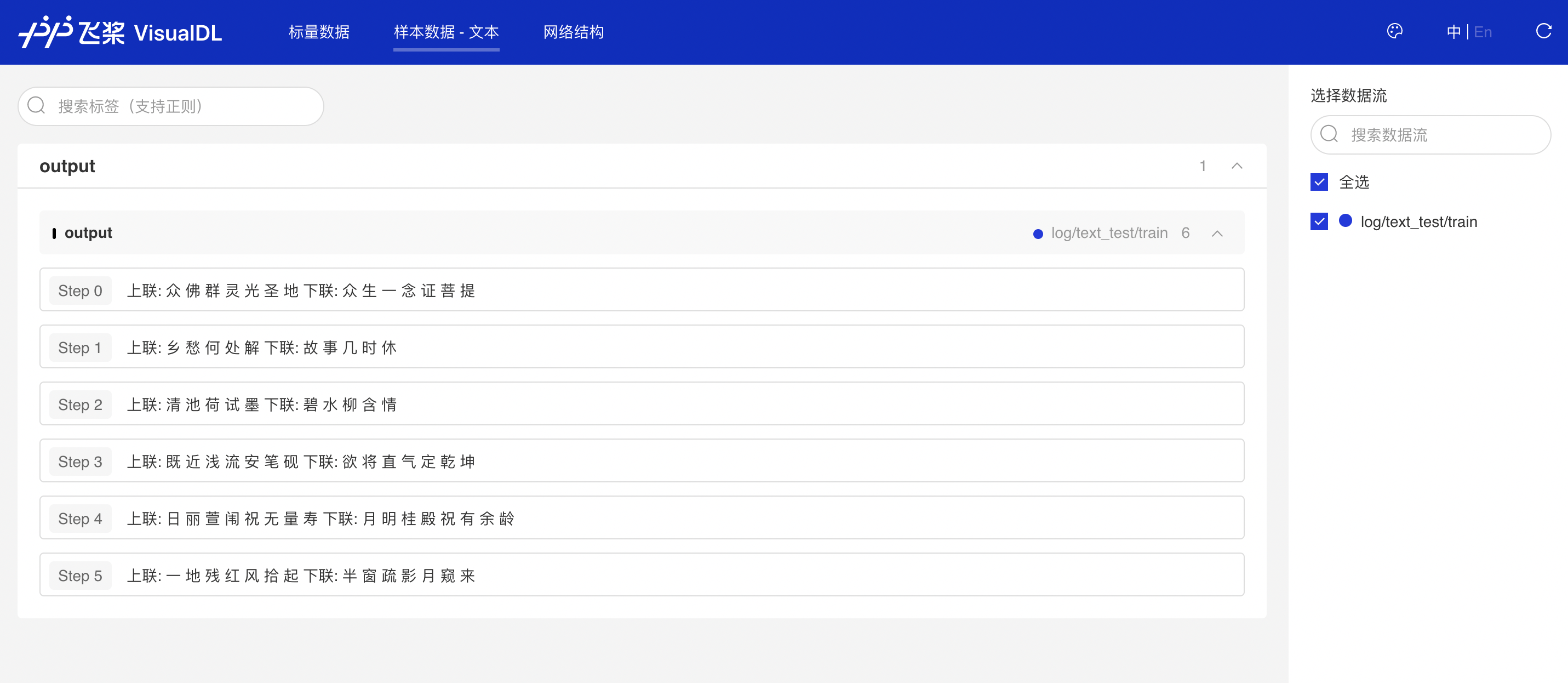

Text

Text visualizes the text output of NLP models within any stage, aiding developers to compare the changes of outputs so as to deeply understand the training process and simply evaluate the performance of the model.

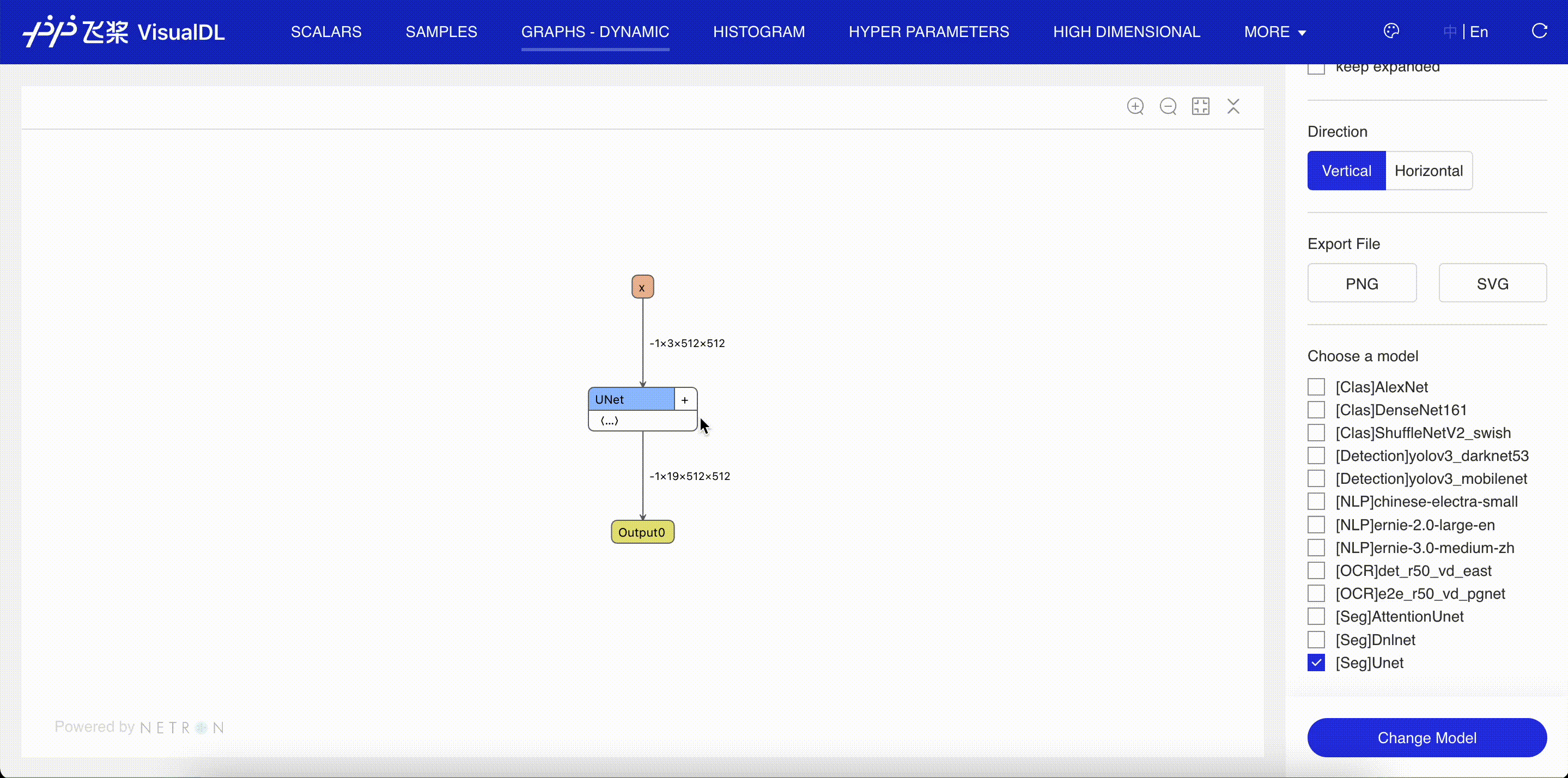

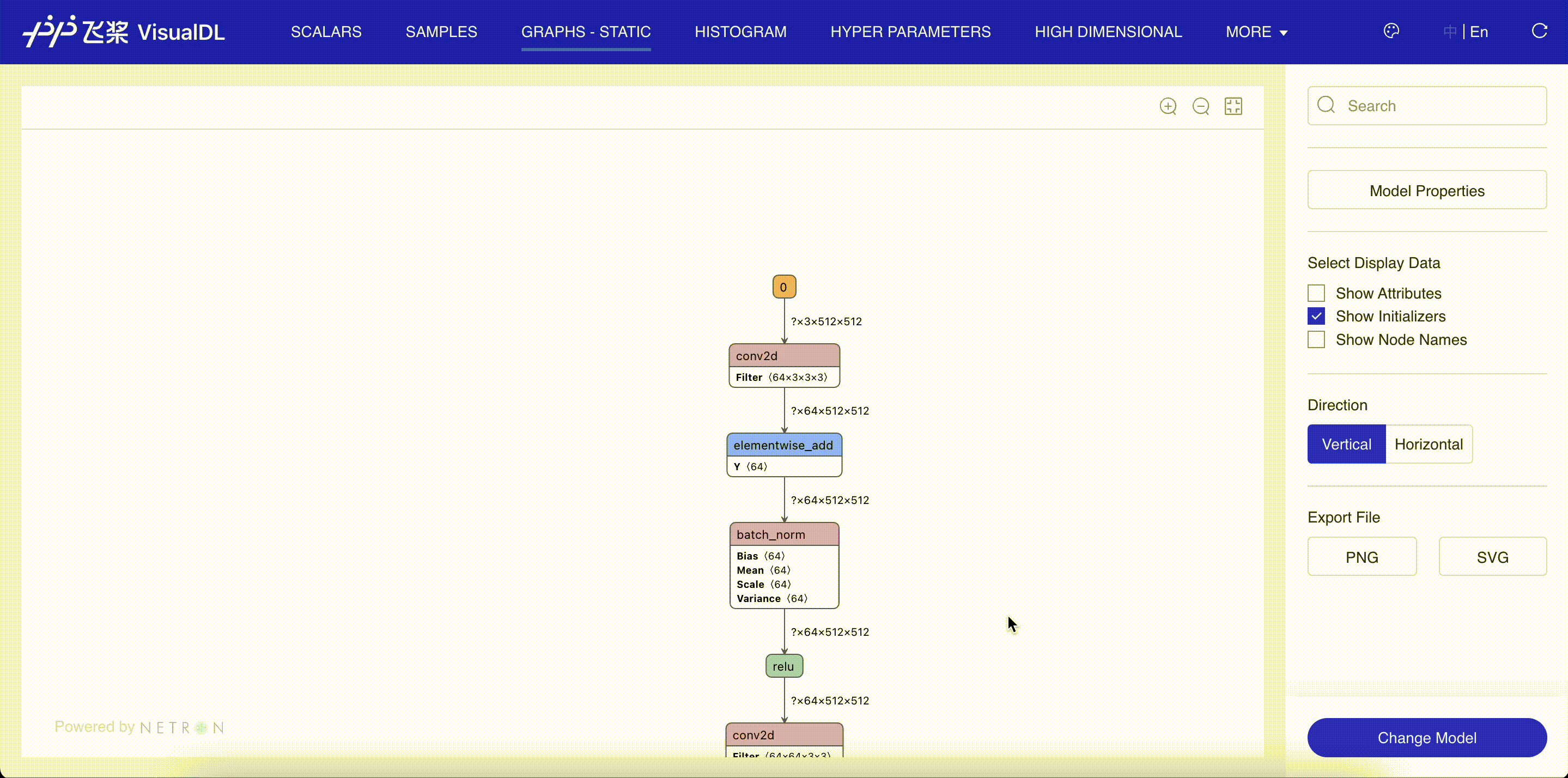

Graph

Graph enables developers to visualize model structures by only one click. Moreover, Graph allows developers to explore model attributes, node information, node input and output. aiding them analyze model structures quickly and understand the direction of data flow easily. Additionally, Graph supports the visualization of dynamic and static model graph respectively.

• dynamic graph

• static graph

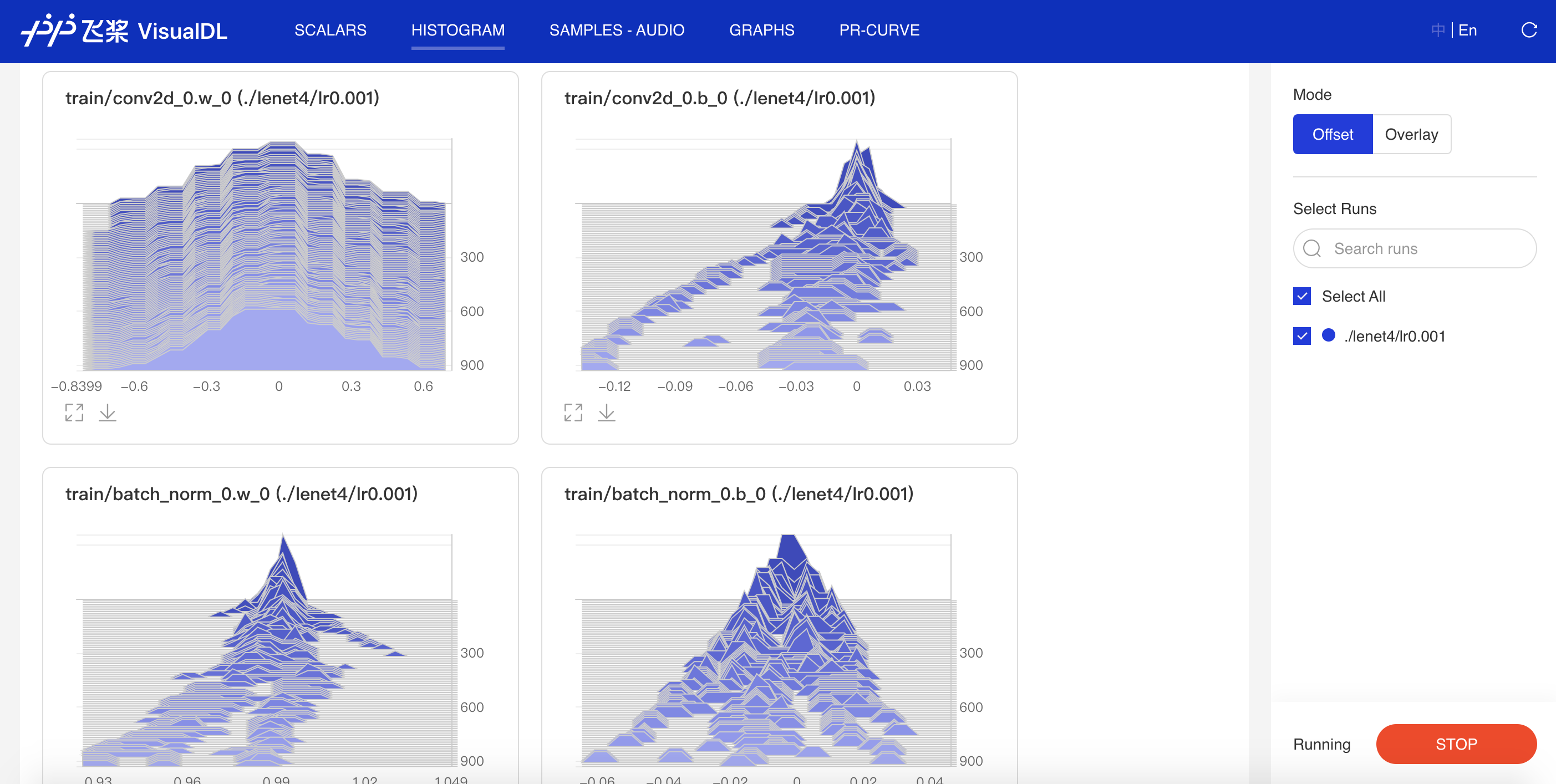

Histogram

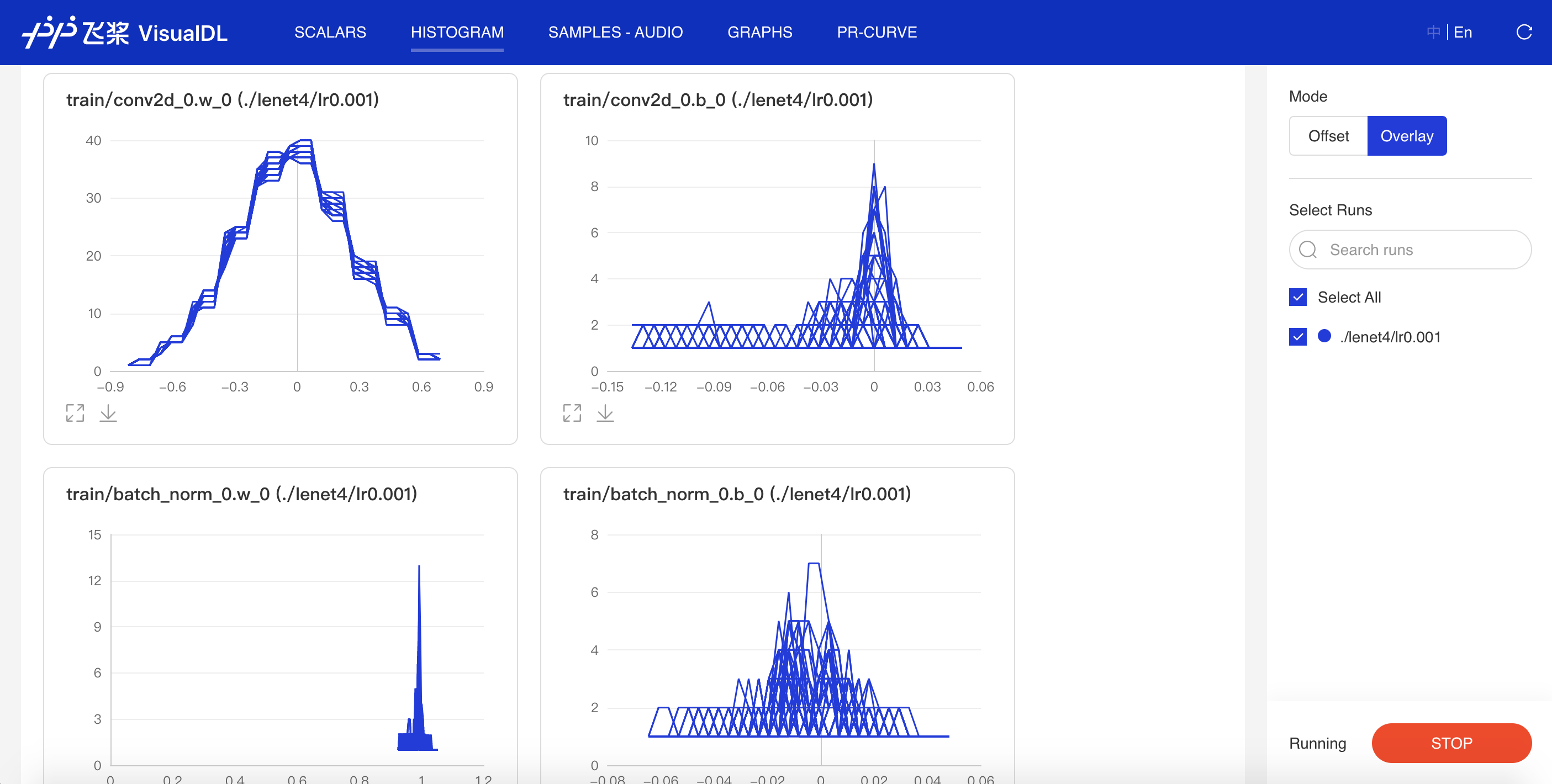

Histogram displays how the trend of tensor (weight, bias, gradient, etc.) changes during the training process in the form of histogram. Developers can adjust the model structures accurately by having an in-depth understanding of the effect of each layer.

• Offset Mode

• Overlay Mode

PR Curve

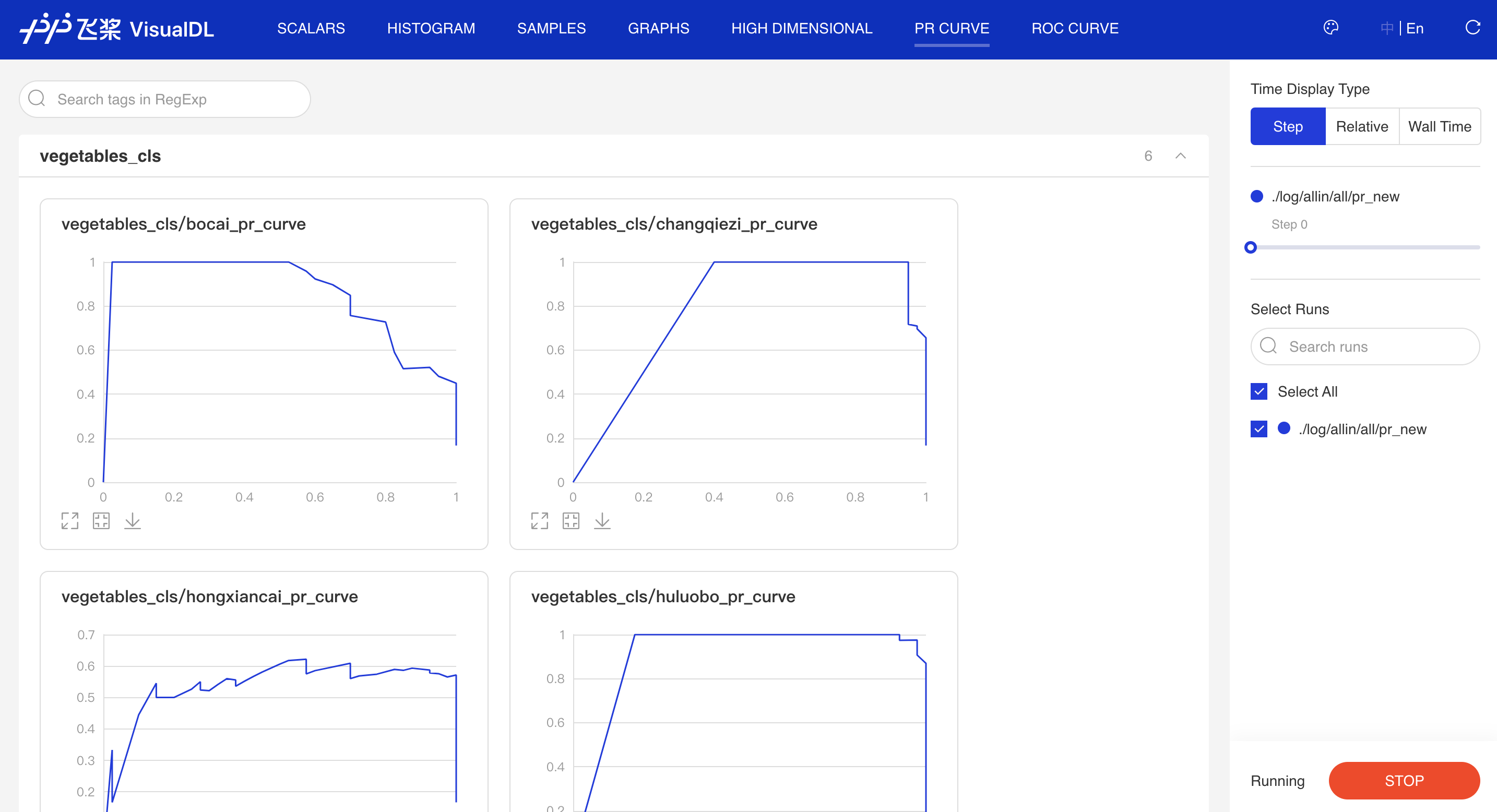

PR Curve displays the precision and recall values under different thresholds, helping developers to find the best threshold efficiently.

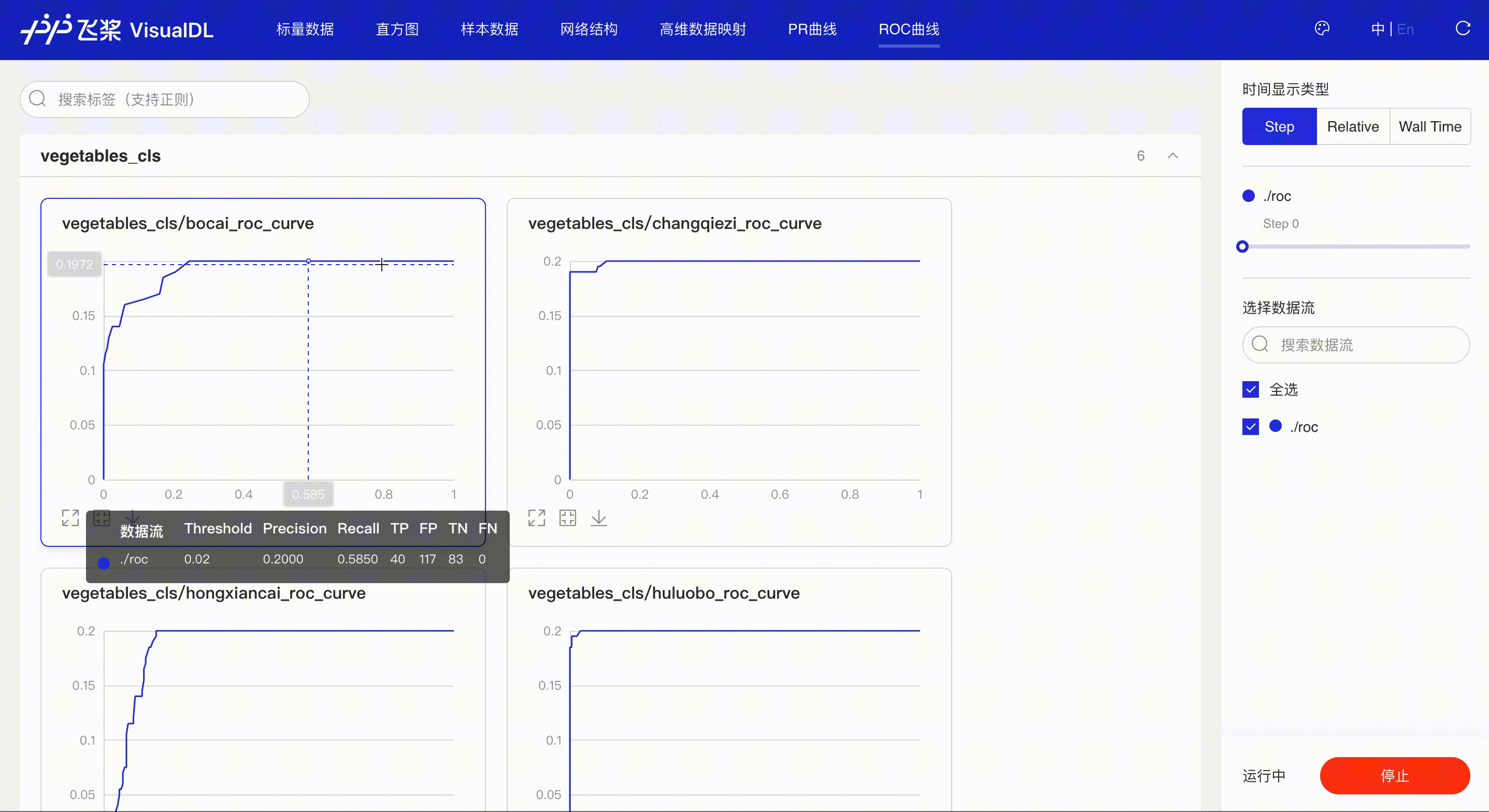

ROC Curve

ROC Curve shows the performance of a classification model at all classification thresholds; the larger the area under the curve, the better the model performs, aiding developers in evaluating the model performance and choosing an appropriate threshold.

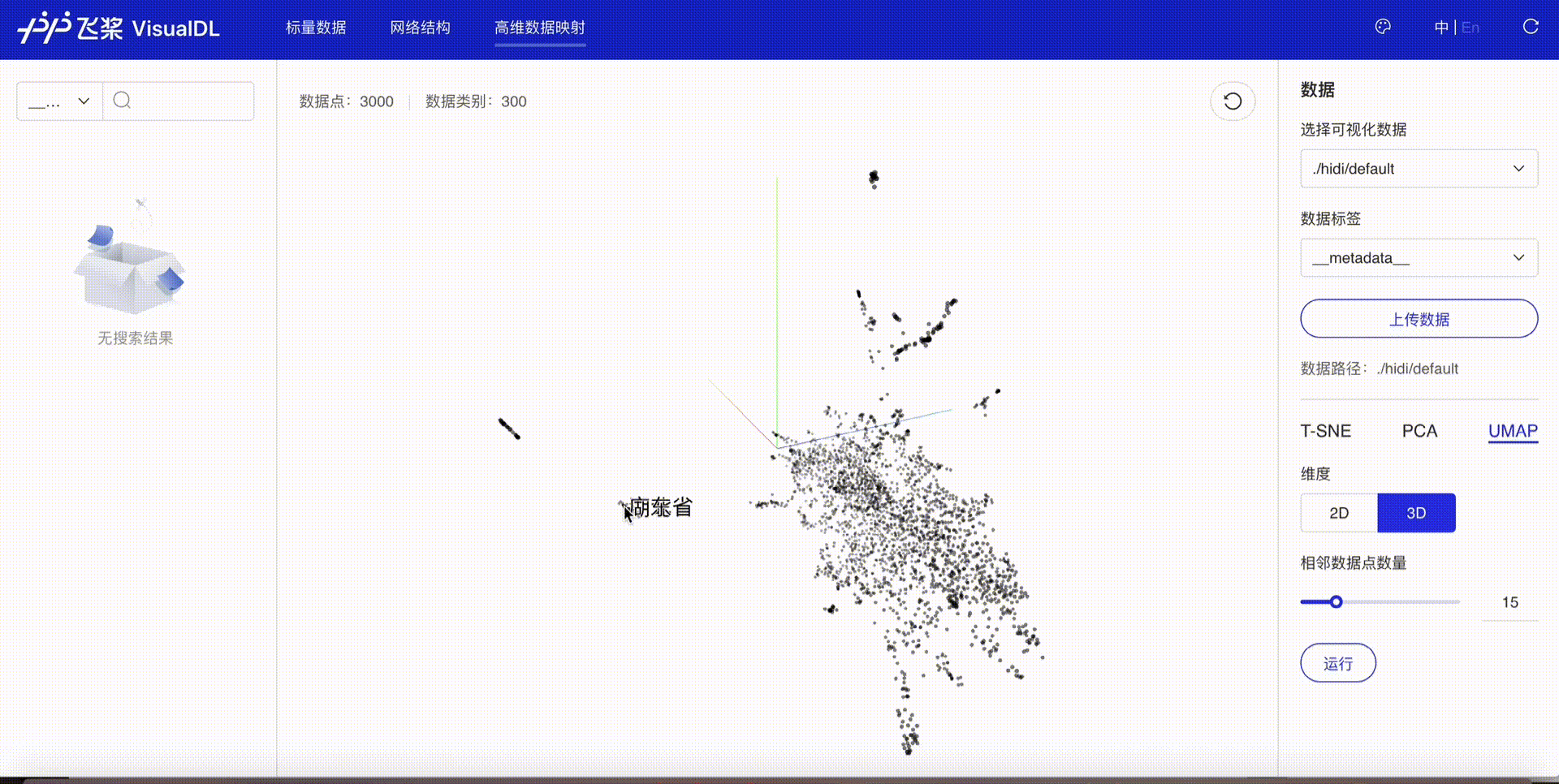

High Dimensional

High Dimensional provides three approaches--T-SNE, PCA and UMAP--to do the dimensionality reduction, allowing developers to have an in-depth analysis of the relationship between high-dimensional data and to optimize algorithms based on the analysis.

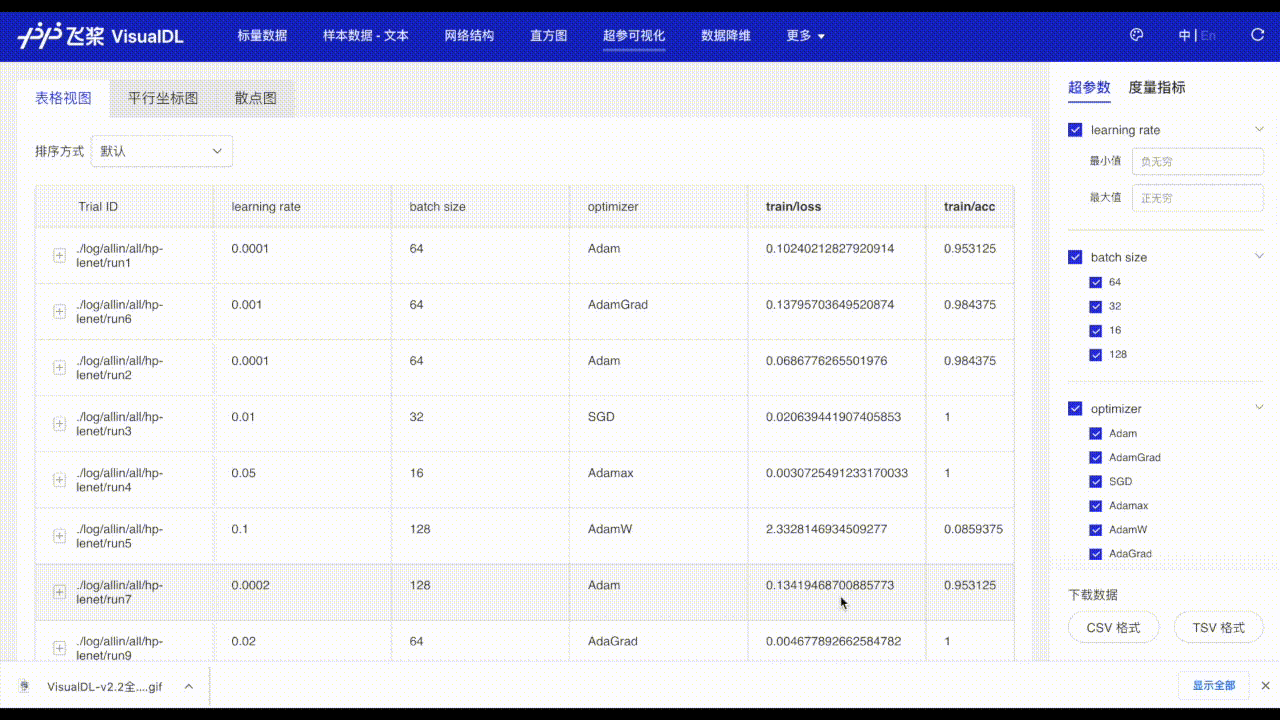

Hyper Parameters

Hyper Parameters visualize the relationship between hyperparameters and model metrics (such as accuracy and loss) in a rich view, helping you identify the best hyperparameters in an efficient way.

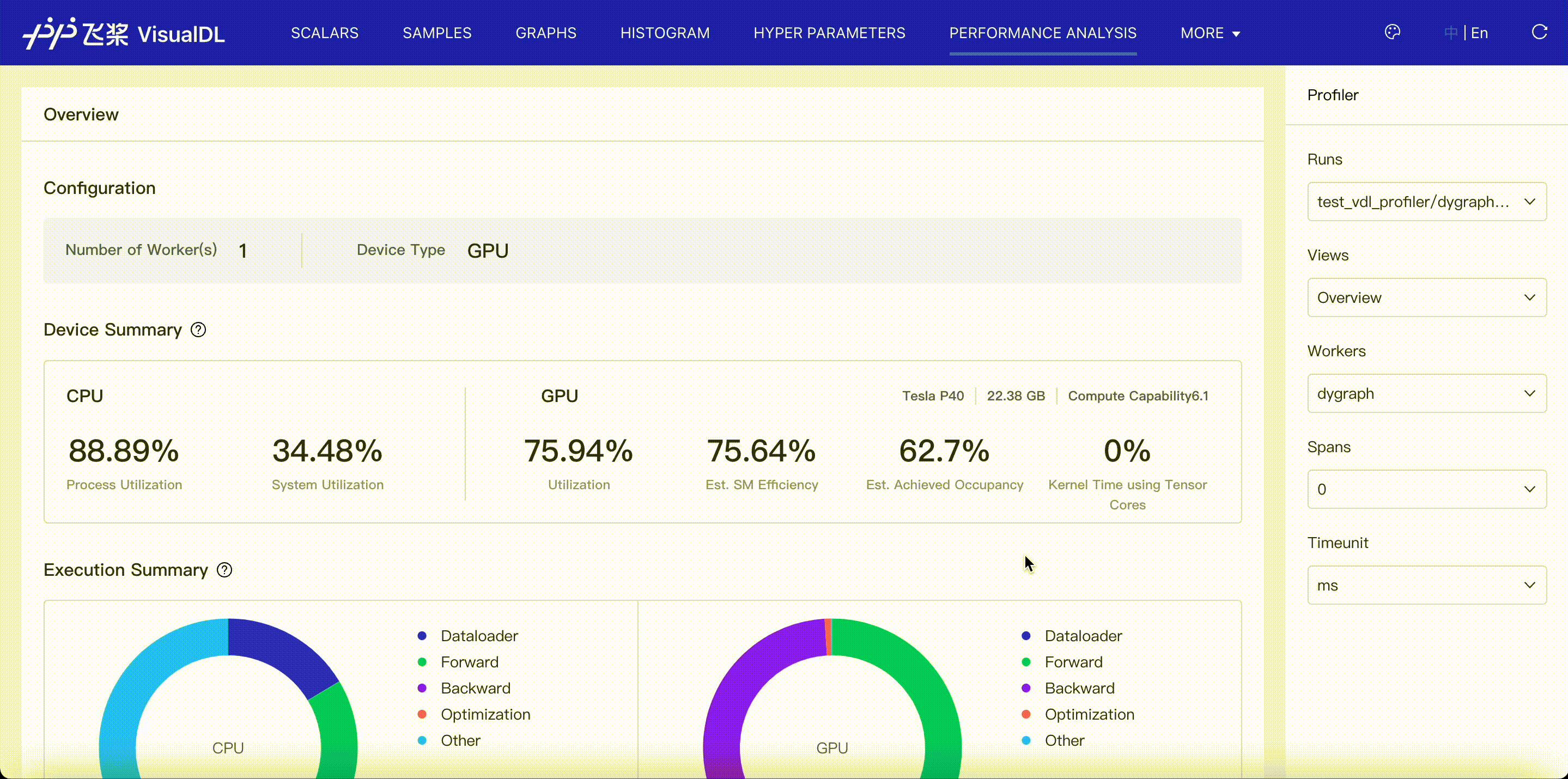

Performance Analysis

Performance Analysis(Profiler) visualize the profiling data collected during your program runs, helping you identify program bottlenecks and optimize performance. Please refer to VisualDL Profiler Guide。

Performance Analysis

Performance Analysis(Profiler) visualize the profiling data collected during your program runs, helping you identify program bottlenecks and optimize performance. Please refer to VisualDL Profiler Guide.

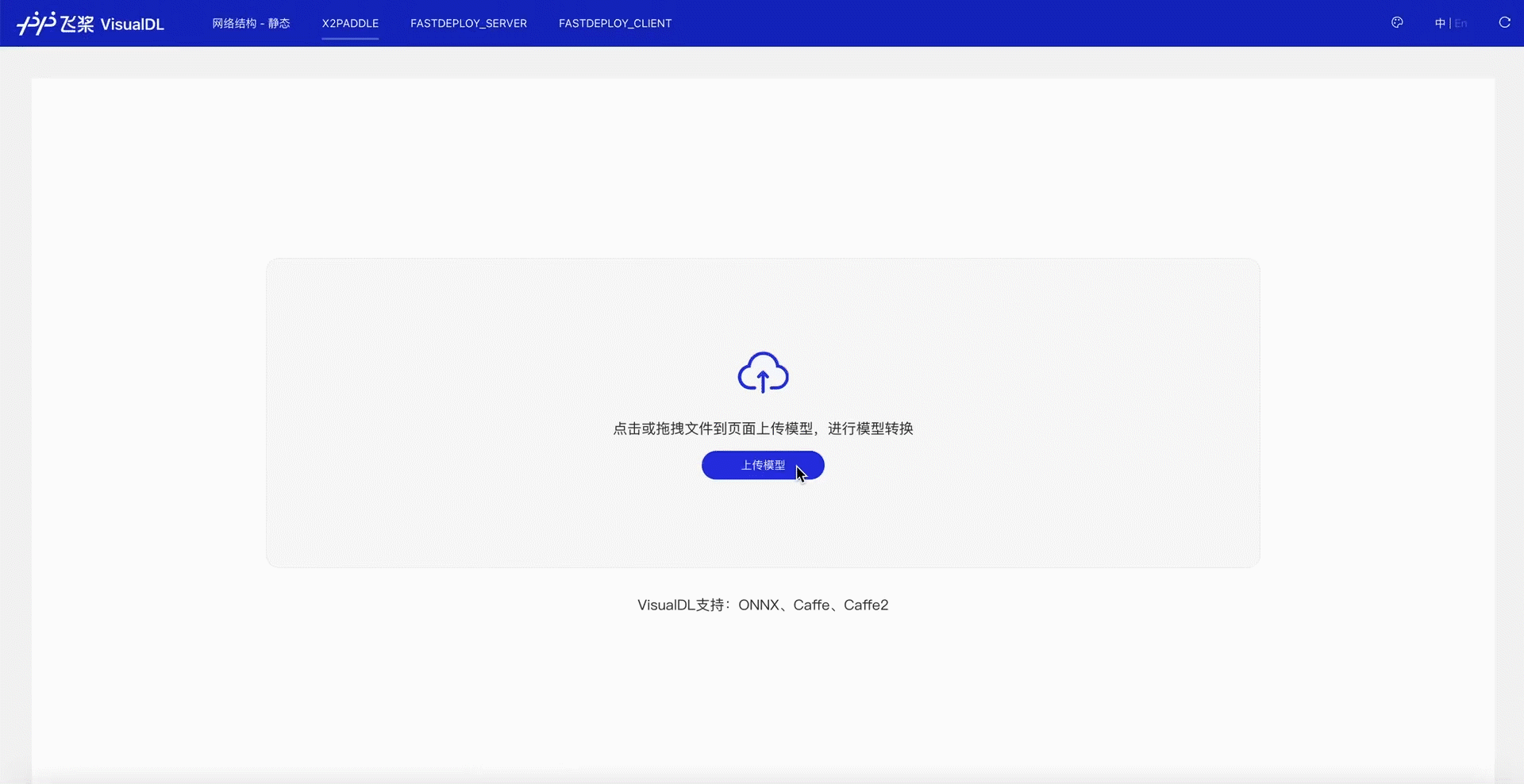

X2Paddle

The X2Paddle component provides the functions of onnx model format visualization and transformation to paddle format.

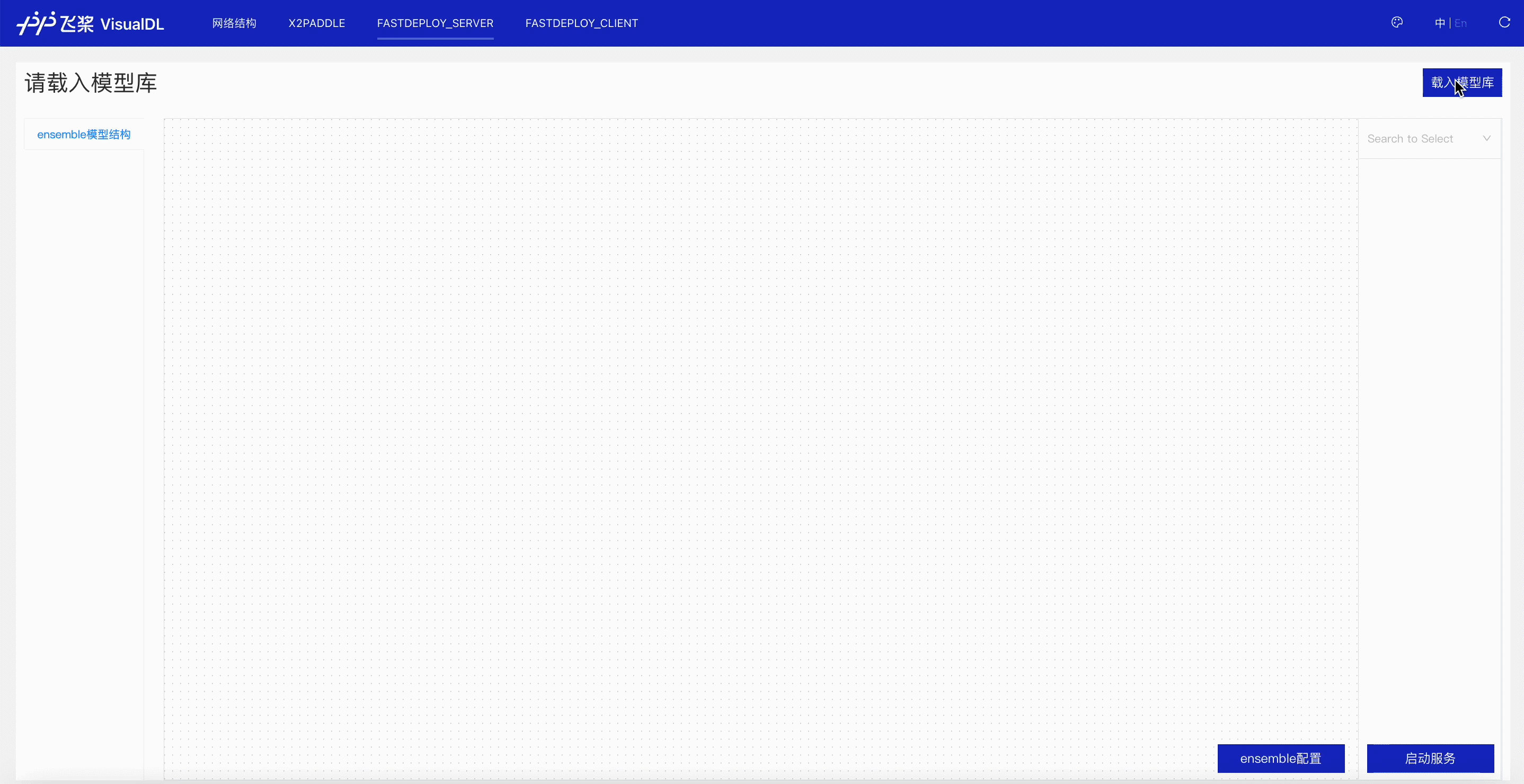

FastDeployServer

The FastDeployServer component provides the functions of loading and editing the model repository, fastdeployserver service management and monitoring, and providing the client to test service. Please refer to use VisualDL for fastdeploy serving deployment visualization.

FastDeployClient

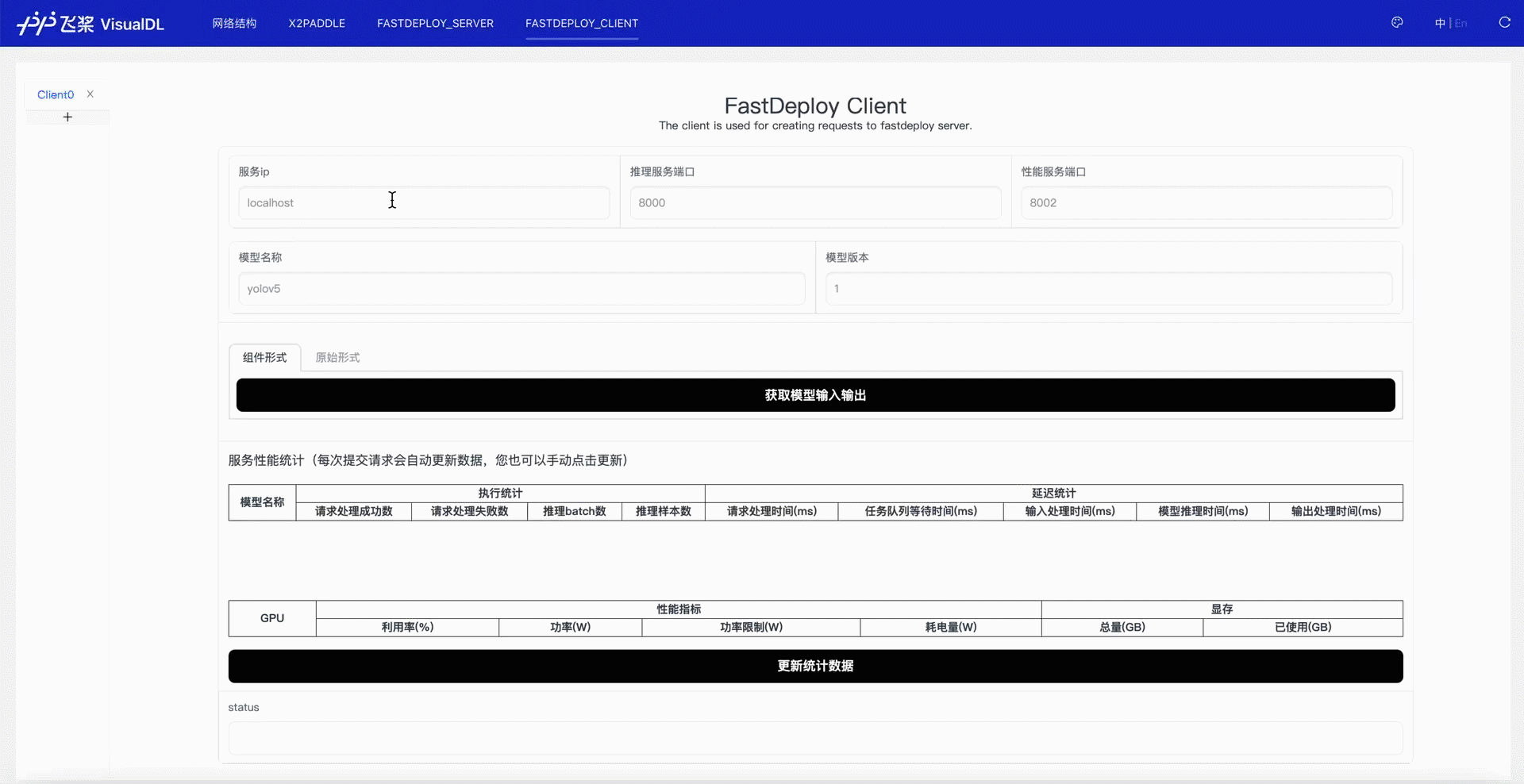

The FastDeployClient component is mainly used to quickly access the fastdeployserver service, to help users visualize prediction requests and results. Please refer to use VisualDL as fastdeploy client for request visualization.

VDL.service

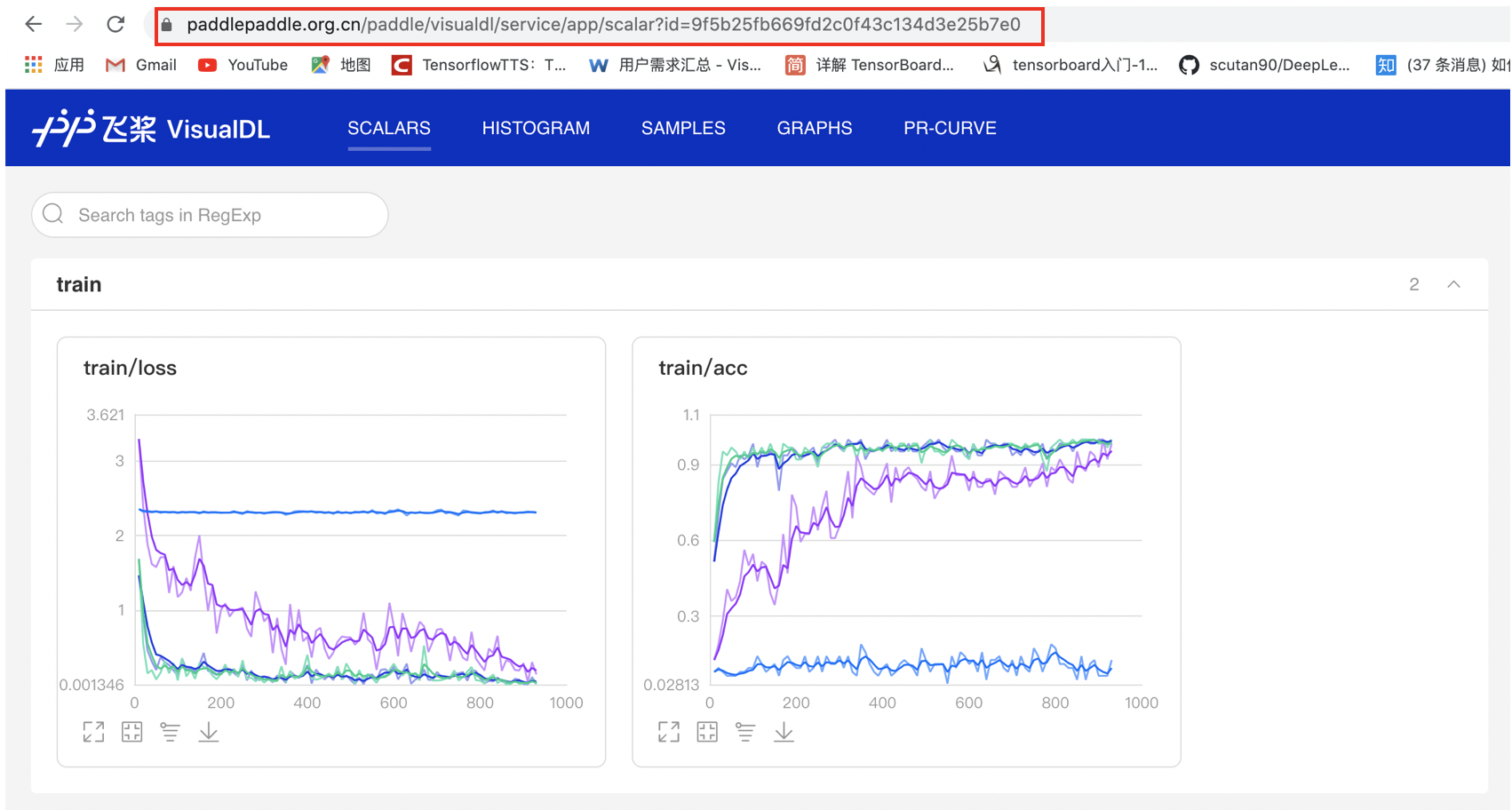

VDL.service enables developers to easily save, track and share visualization results with anyone for free.

Frequently Asked Questions

If you are confronted with some problems when using VisualDL, please refer to our FAQs.

Contribution

VisualDL, in which Graph is powered by Netron, is an open source project supported by PaddlePaddle and ECharts.

Developers are warmly welcomed to use, comment and contribute.

More Details

For more details related to the use of VisualDL, please refer to VisualDL User Guide, VisualDL Profiler Guide, Use VisualDL for fastdeploy serving deployment visualization, Use VisualDL as fastdeploy client for request visualization.

Technical Communication

Welcome to join the official QQ group 1045783368 to communicate with PaddlePaddle team and other developers.
