🎨 vizods
Visualize Data Structures & Algorithms with Python
Transform abstract algorithms into stunning animated visualizations with a single line of code.
Installation • Quick Start • See It in Action • Documentation • Examples • Contributing
🌟 Overview
vizods is a powerful, intuitive Python library designed to bridge the gap between abstract code and visual understanding. Whether you're a student learning algorithms, an educator preparing materials, or a developer explaining concepts, vizods turns your data structures and algorithms into beautiful MP4 videos, GIF animations, and PNG snapshots automatically.
💡 "A picture is worth a thousand lines of code."
See It in Action

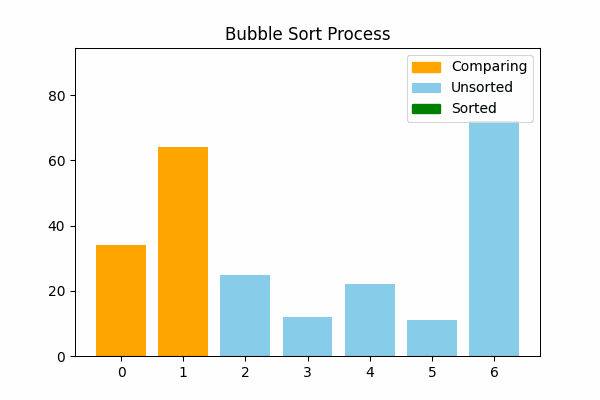

Bubble Sort in motion (GIF):
(Generate your own with sorter.save_gif("bubble_sort.gif", fps=5))
✨ Key Features
| Feature | Description |
|---|---|
| 🎬 Auto Animation (MP4) | Generate .mp4 videos of algorithm execution step-by-step |
| 🌀 GIF Export | Create lightweight .gif animations—perfect for READMEs, docs, and notebooks |
| 📸 Snapshot Export | Save final or intermediate states as .png images |
| 🌳 Tree Visualization | Hierarchical layouts for Binary Search Trees |
| 📊 Sorting Animations | Bar chart visualizations with color-coded states |
| 🔍 Search Animations | Dynamic highlighting of search ranges and target matching |
| 🗺️ Graph Pathfinding | Step-by-step Dijkstra's algorithm tracing with weights |
| 🔗 Linked Lists | Pointer-based node visualization |
| 🎨 Color-Coded States | Universal color scheme for clarity |
| ⚡ Zero Configuration | Works out of the box — just pip install and run |
📦 Installation
Install vizods directly from PyPI:
pip install vizods
Prerequisites
- Python: 3.8 or higher
- FFmpeg (optional): Required only for
.mp4rendering. GIF export works without FFmpeg.
Installing FFmpeg (for MP4)
🪟 Windows
# Using Chocolatey
choco install ffmpeg
# Or download from https://ffmpeg.org/download.html
🍎 macOS
brew install ffmpeg
🐧 Linux (Ubuntu/Debian)
sudo apt update && sudo apt install ffmpeg
Dependencies
vizods automatically installs:
matplotlib >= 3.5.0imageio >= 2.20.0imageio-ffmpeg >= 0.4.7(only needed for MP4)networkx >= 2.8.0numpy >= 1.21.0
🚀 Quick Start
from vizods.bubble_sort import BubbleSort
# Create and visualize a sorting animation in 3 lines
sorter = BubbleSort([64, 25, 12, 22, 11])
sorter.sort()
# Export your animation (choose one or both!)
sorter.save_gif("my_first_animation.gif", fps=5) # ✅ No FFmpeg needed
sorter.save_video("my_first_animation.mp4", fps=5) # Requires FFmpeg
That's it! 🎉 You now have a fully animated visualization.
📚 Supported Modules
| Category | Module | Class | Visual Style |
|---|---|---|---|
| Searching | linear_search |
LinearSearch |
🔍 Highlighted Bars |
binary_search |
BinarySearch |
📉 Range Reduction | |
| Sorting | bubble_sort |
BubbleSort |
📊 Bar Chart |
insertion_sort |
InsertionSort |
📊 Bar Chart | |
selection_sort |
SelectionSort |
📊 Bar Chart | |
merge_sort |
MergeSort |
📊 Bar Chart | |
quick_sort |
QuickSort |
📊 Bar Chart | |
| Data Structures | linked_list |
LinkedList |
🔗 Nodes & Pointers |
bst |
BST |
🌳 Hierarchical Tree | |
stack |
Stack |
📚 Vertical Bar Stack | |
queue |
Queue |
➡️ Horizontal Bar Queue | |
| Graph Algorithms | dijkstra |
Dijkstra |
🗺️ Weighted Graph |
🎯 Examples
1️⃣ Searching Algorithms
Linear Search
from vizods.linear_search import LinearSearch
data = [10, 50, 30, 70, 80, 60, 20, 90, 40]
ls = LinearSearch(data)
ls.search(70)
ls.save_gif("linear_search.gif", fps=2)
ls.save_video("linear_search.mp4", fps=2)
Binary Search
from vizods.binary_search import BinarySearch
# Binary search requires a sorted array
data = [10, 20, 30, 40, 50, 60, 70, 80, 90]
bs = BinarySearch(data)
bs.search(70)
bs.save_gif("binary_search.gif", fps=2)
bs.save_video("binary_search.mp4", fps=2)
2️⃣ Sorting Algorithms
Bubble Sort
from vizods.bubble_sort import BubbleSort
data = [64, 34, 25, 12, 22, 11, 90]
sorter = BubbleSort(data)
sorter.sort(visualize=True)
sorter.save_gif("bubble_sort.gif", fps=5)
sorter.save_video("bubble_sort.mp4", fps=5)
Insertion Sort
from vizods.insertion_sort import InsertionSort
sorter = InsertionSort([12, 11, 13, 5, 6])
sorter.sort()
sorter.save_gif("insertion_sort.gif", fps=4)
sorter.save_video("insertion_sort.mp4", fps=4)
Selection Sort
from vizods.selection_sort import SelectionSort
sorter = SelectionSort([64, 25, 12, 22, 11])
sorter.sort()
sorter.save_gif("selection_sort.gif", fps=3)
sorter.save_video("selection_sort.mp4", fps=3)
Merge Sort
from vizods.merge_sort import MergeSort
sorter = MergeSort([38, 27, 43, 3, 9, 82, 10])
sorter.sort()
sorter.save_gif("merge_sort.gif", fps=3)
sorter.save_video("merge_sort.mp4", fps=3)
Quick Sort
from vizods.quick_sort import QuickSort
sorter = QuickSort([10, 7, 8, 9, 1, 5])
sorter.sort()
sorter.save_gif("quick_sort.gif", fps=5)
sorter.save_video("quick_sort.mp4", fps=5)
3️⃣ Data Structures
Linked List
from vizods.linked_list import LinkedList
ll = LinkedList()
for value in [10, 20, 30, 40, 50]:
ll.add_node(value)
ll.delete_node(30)
ll.save_gif("linked_list.gif", fps=2)
ll.save_video("linked_list.mp4", fps=2)
Binary Search Tree (BST)
from vizods.bst import BST
tree = BST()
for value in [50, 30, 70, 20, 40, 60, 80]:
tree.insert(value)
tree.search(40)
tree.delete(20)
tree.save_gif("bst_animation.gif", fps=1)
tree.save_video("bst_animation.mp4", fps=1)
Stack (LIFO)
from vizods.stack import Stack
stack = Stack()
for value in [10, 20, 30]:
stack.push(value)
stack.pop()
stack.save_gif("stack.gif", fps=2)
stack.save_video("stack.mp4", fps=2)
Queue (FIFO)
from vizods.queue import Queue
queue = Queue()
for value in [10, 20, 30]:
queue.enqueue(value)
queue.dequeue()
queue.save_gif("queue.gif", fps=2)
queue.save_video("queue.mp4", fps=2)
4️⃣ Graph Algorithms
Dijkstra's Shortest Path
from vizods.dijkstra import Dijkstra
graph = Dijkstra()
edges = [
('A', 'B', 4), ('A', 'C', 2),
('B', 'C', 1), ('B', 'D', 5),
('C', 'D', 8), ('D', 'E', 2)
]
for u, v, w in edges:
graph.add_edge(u, v, w)
graph.visualize_search(start_node='A', target_node='E')
graph.save_gif("dijkstra_path.gif", fps=1)
graph.save_video("dijkstra_path.mp4", fps=1)
🎨 Visualization Color Standards
vizods uses a consistent color language across all visualizations:
| Color | Meaning |
|---|---|
| 🟢 Green | Sorted / Visited / Completed |
| 🟠 Orange | Active / Currently Processing |
| 🔴 Red | Critical / Deleting / Shortest Path |
| 🔵 Skyblue | Standard / Unprocessed |
| 🟣 Purple | Pivot (Quick Sort) |
| ⚪ Lightgray | Inactive / Waiting |
📖 API Documentation
🔹 Searching Classes (LinearSearch, BinarySearch)
| Method | Parameters | Description |
|---|---|---|
__init__(data) |
data: list |
Initialize with a list of numbers |
search(target) |
target: int/float |
Start the search process and capture frames |
save_gif(output_name, fps) |
output_name: str, fps: int |
Export search animation as GIF (no FFmpeg required) |
save_video(output_name, fps) |
output_name: str, fps: int |
Export search animation as MP4 (requires FFmpeg) |
save_snapshot(filename) |
Save the current tree structure as PNG |
🔹 Sorting Classes (BubbleSort, QuickSort, MergeSort, InsertionSort, SelectionSort)
| Method | Parameters | Description |
|---|---|---|
__init__(data) |
data: list |
Initialize with a list of numbers |
sort(visualize=True) |
visualize: bool |
Run the sorting algorithm & capture frames |
save_gif(output_name, fps) |
output_name: str, fps: int |
Export sorting animation as GIF |
save_video(output_name, fps) |
output_name: str, fps: int |
Export sorting animation as MP4 |
save_snapshot(filename) |
filename: str |
Save the final sorted state as PNG |
🔹 Stack (LIFO)
| Method | Parameters | Description |
|---|---|---|
push(value) |
value |
Add an element to the top of the stack |
pop() |
- | Remove and return the top element |
peek() |
- | View the top element without removing it |
is_empty() |
- | Check if the stack is empty |
save_gif(output_name, fps) |
output_name: str, fps: int |
Export stack operations as GIF |
save_video(output_name, fps) |
output_name: str, fps: int |
Export stack operations as MP4 |
save_snapshot(filename) |
filename: str |
Save a snapshot of the current stack state |
🔹 Queue (FIFO)
| Method | Parameters | Description |
|---|---|---|
enqueue(value) |
value |
Add an element to the end of the queue |
dequeue() |
- | Remove and return the front element |
front() |
- | View the first element in the queue |
rear() |
- | View the last element in the queue |
save_gif(output_name, fps) |
output_name: str, fps: int |
Export queue operations as GIF |
save_video(output_name, fps) |
output_name: str, fps: int |
Export queue operations as MP4 |
save_snapshot(filename) |
filename: str |
Save a snapshot of the current queue state |
🔹 BST (Binary Search Tree)
| Method | Description |
|---|---|
insert(value) |
Insert a new node into the tree |
search(value) |
Search for a value, animating the traversal path |
delete(value) |
Delete a node (currently supports leaf nodes) |
save_gif(output_name, fps) |
Export full tree operations as GIF |
save_video(output_name, fps) |
Export full tree operations as MP4 |
save_snapshot(filename) |
Save the current tree structure as PNG |
🔹 LinkedList
| Method | Description |
|---|---|
add_node(value) |
Append a new node to the end of the list |
delete_node(value) |
Remove a specific node from the list |
save_gif(output_name, fps) |
Export pointer/node operations as GIF |
save_video(output_name, fps) |
Export pointer/node operations as MP4 |
save_snapshot(filename) |
Save the current tree structure as PNG |
🔹 Dijkstra
| Method | Parameters | Description |
|---|---|---|
add_edge(u, v, weight) |
u, v: nodes, weight: int |
Add a weighted edge between two nodes |
visualize_search(start, target) |
start, target: nodes |
Run and animate the shortest pathfinding process |
save_gif(output_name, fps) |
output_name: str, fps: int |
Export pathfinding animation as GIF |
save_video(output_name, fps) |
output_name: str, fps: int |
Export pathfinding animation as MP4 |
save_snapshot(filename) |
Save the current tree structure as PNG |
🎓 Use Cases
- 🏫 Education: Teach algorithms in classrooms with engaging visuals (GIFs embed perfectly in slides & LMS pages)
- 📹 Content Creation: Produce YouTube tutorials and online courses
- 📝 Documentation: Embed GIFs in blogs, GitHub READMEs, articles, and books
- 🎤 Presentations: Make technical talks more interactive—no video player needed
- 🧪 Debugging: Visually inspect algorithm behavior frame-by-frame
🛠️ Project Structure
vizods/
├── .github/
│ └── .workflows/
│ └── pypi.yml
├── output/ # Sample outputs (MP4, GIF, PNG)
│ ├── bst_animation.mp4
│ ├── bst_animation.gif
│ ├── bst_snapshot.png
│ ├── bubble_sort.mp4
│ ├── bubble_sort.gif
│ ├── bubble_sort_snapshot.png
│ ├── ...
│ └── stack.gif
├── tests/
│ └── test_all_algorithms.py
├── vizods/
│ ├── __init__.py
│ ├── binary_search.py
│ ├── bst.py
│ ├── bubble_sort.py
│ ├── dijkstra.py
│ ├── insertion_sort.py
│ ├── linear_search.py
│ ├── linked_list.py
│ ├── merge_sort.py
│ ├── queue.py
│ ├── quick_sort.py
│ ├── selection_sort.py
│ └── stack.py
├── .gitignore
├── LICENSE
├── README.md
├── requirements.txt
└── setup.py
🤝 Contributing
Contributions make the open-source community such an amazing place to learn and grow. Any contributions are greatly appreciated!
- Fork the project
- Create your feature branch (
git checkout -b feature/AmazingFeature) - Commit your changes (
git commit -m 'Add some AmazingFeature') - Push to the branch (
git push origin feature/AmazingFeature) - Open a Pull Request
Please make sure to update tests as appropriate and follow the PEP 8 style guide.
🐛 Reporting Bugs
Found a bug? Please open an issue with:
- A clear description
- Steps to reproduce
- Expected vs actual behavior
- Your environment (OS, Python version)
📜 License
Distributed under the MIT License. See LICENSE for more information.
👨💻 Author
Abdelrahman Ali (@Mordekai66)
📧 abdelrahman.ali.dev@gmail.com
🌟 Show Your Support
If you find vizods helpful:
- ⭐ Star this repository
- 🍴 Fork it for your projects
- 📢 Share it with fellow developers
- 💬 Tweet about it
🙏 Acknowledgements
- Matplotlib — for plotting
- NetworkX — for graph structures
- ImageIO — for video/GIF encoding
- All contributors and users of this library ❤️
Developed with ❤️ by Mordekai66
If this project helped you, consider giving it a ⭐ on GitHub!
Metadata
Release files for vizods 2.4.0
For a detailed explanation of source distributions (sdists) and built distributions (wheels), please see the package formats documentation.
Source distribution (sdist)
| File | Size | Uploaded | Provenance | Actions |
|---|---|---|---|---|
| vizods-2.4.0.tar.gz | 24.9 kB | Without provenance | Details for vizods-2.4.0.tar.gz |
Built distribution (wheel)
| File | Interpreter | ABI | Platform | Actions Reset |
|---|---|---|---|---|
| vizods-2.4.0-py3-none-any.whl | Python 3 | none | any | Details for vizods-2.4.0-py3-none-any.whl |
Total release size: 49.2 kB
Release files / vizods-2.4.0.tar.gz
| Download URL | vizods-2.4.0.tar.gz |
|---|---|
| Size | 24.9 kB |
| Tags | Source |
|
SHA-256 checksum How to use checksums |
c1335e680d1b2f3027238a2ba9b89a81c6bd45543ced68670d6c1da92517d1e9
|
|
BLAKE2b-256 checksum How to use checksums |
e1ec9878ca808f370f26c93e83a9ea41ffc6bc8d67ecdac6ef31befb7a129b81
|
| Upload date | |
|
Uploaded using Trusted Publishing? What is trusted publishing? |
No |
| Uploaded via |
twine/6.1.0 CPython/3.13.12
|
Release files / vizods-2.4.0-py3-none-any.whl
| Download URL | vizods-2.4.0-py3-none-any.whl |
|---|---|
| Size | 24.3 kB |
| Tags | Python 3 |
|
SHA-256 checksum How to use checksums |
dcf6183741ea10068a565e4956ba5adeca4e43dc0eaf5681b51fbe4c2abde680
|
|
BLAKE2b-256 checksum How to use checksums |
ad67ef37e65bc6644e69f7974f845dc3e145c0d434111634d7c8ea362cd2c38d
|
| Upload date | |
|
Uploaded using Trusted Publishing? What is trusted publishing? |
No |
| Uploaded via |
twine/6.1.0 CPython/3.13.12
|
Security for vizods 2.4.0
Provenance
Provenance describes where a file came from. On PyPI, provenance is shared via attestations, which provide a verifiable record of the build or publishing details. View details, limitations and caveats.
No provenance found
None of the files in this release were uploaded with provenance metadata.
A note on package security
PyPI is a repository for distributing packages, not a service for auditing them. While third-party security researchers and our staff do their best to detect and remove malicious packages, PyPI cannot guarantee the quality, security or suitability of any given package.
To learn more about protecting yourself from malicious actors, visit our package security documentation.
