vllm-mcp-server 0.1.4

MCP server for vLLM - expose vLLM capabilities to AI assistants

vLLM MCP Server

A Model Context Protocol (MCP) server that exposes vLLM capabilities to AI assistants like Claude, Cursor, and other MCP-compatible clients.

Features

• 🚀 Chat & Completion: Send chat messages and text completions to vLLM
• 📋 Model Management: List and inspect available models
• 📊 Server Monitoring: Check server health and performance metrics
• 🐳 Platform-Aware Container Control: Supports both Podman and Docker. Automatically detects your platform (Linux/macOS/Windows) and GPU availability, selecting the appropriate container image and optimal settings (e.g., max_model_len)
• 📈 Benchmarking: Run GuideLLM benchmarks (optional)
• 💬 Pre-defined Prompts: Use curated system prompts for common tasks

Demo

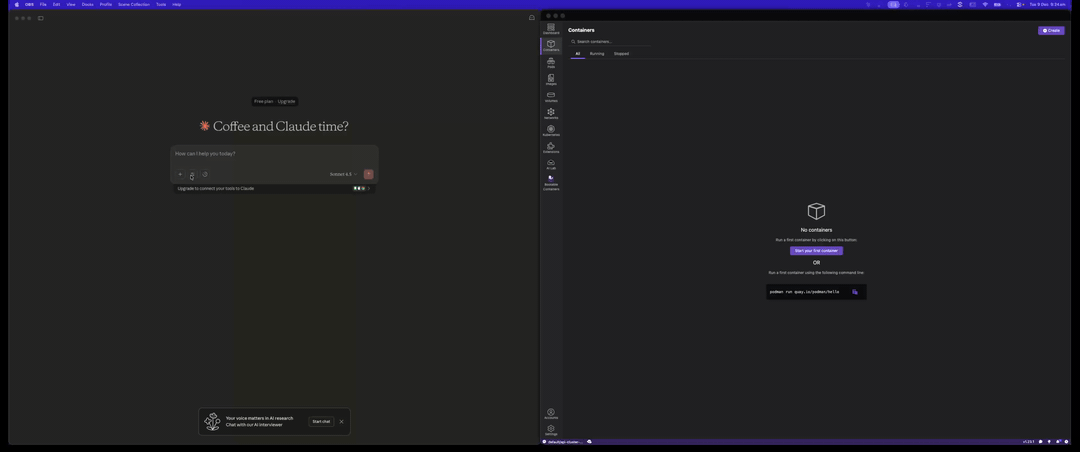

Start vLLM Server

Use the start_vllm tool to launch a vLLM container with automatic platform detection:

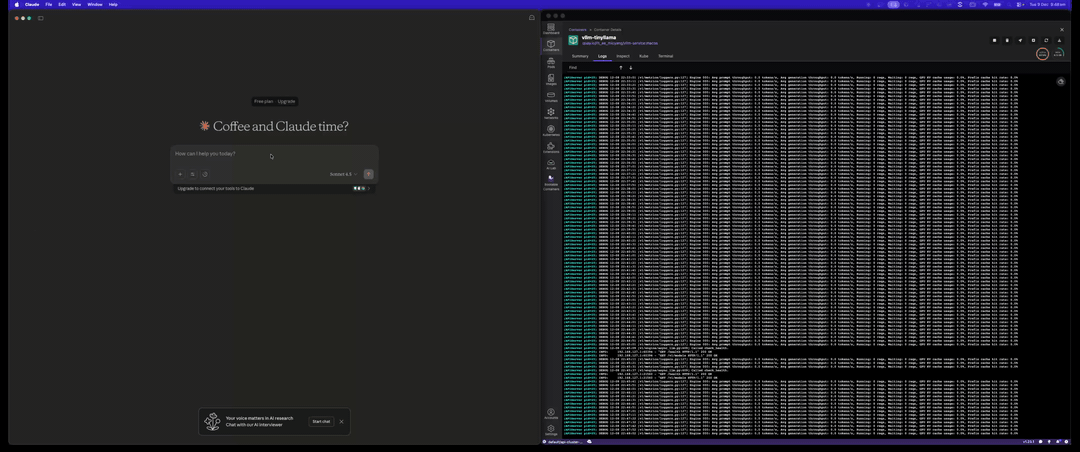

Chat with vLLM

Send chat messages using the vllm_chat tool:

Stop vLLM Server

Clean up with the stop_vllm tool:

Installation

Using uvx (Recommended)

uvx vllm-mcp-server

Using pip

pip install vllm-mcp-server

From Source

git clone https://github.com/micytao/vllm-mcp-server.git
cd vllm-mcp-server
pip install -e .

Quick Start

1. Start a vLLM Server

You can either start a vLLM server manually or let the MCP server manage it via Docker.

Option A: Let MCP Server Manage Docker (Recommended)

The MCP server can automatically start/stop vLLM containers with platform detection. Just configure your MCP client (step 2) and use the start_vllm tool.

Option B: Manual Container Setup (Podman or Docker)

Replace podman with docker if using Docker.

Linux/Windows with NVIDIA GPU:

podman run --device nvidia.com/gpu=all -p 8000:8000 \
  vllm/vllm-openai:latest \
  --model TinyLlama/TinyLlama-1.1B-Chat-v1.0

macOS (Apple Silicon / Intel):

podman run -p 8000:8000 \
  quay.io/rh_ee_micyang/vllm-mac:v0.11.0 \
  --model TinyLlama/TinyLlama-1.1B-Chat-v1.0 \
  --device cpu --dtype bfloat16

Linux/Windows CPU-only:

podman run -p 8000:8000 \
  quay.io/rh_ee_micyang/vllm-cpu:v0.11.0 \
  --model TinyLlama/TinyLlama-1.1B-Chat-v1.0 \
  --device cpu --dtype bfloat16

Option C: Native vLLM Installation

vllm serve TinyLlama/TinyLlama-1.1B-Chat-v1.0

2. Configure Your MCP Client

Cursor

Add to ~/.cursor/mcp.json:

{
  "mcpServers": {
    "vllm": {
      "command": "uvx",
      "args": ["vllm-mcp-server"],
      "env": {
        "VLLM_BASE_URL": "http://localhost:8000",
        "VLLM_MODEL": "TinyLlama/TinyLlama-1.1B-Chat-v1.0",
        "VLLM_HF_TOKEN": "hf_your_token_here"
      }
    }
  }
}

Note: VLLM_HF_TOKEN is required for gated models like Llama. Get your token from HuggingFace Settings.

Claude Desktop

Add to your Claude Desktop configuration:

{
  "mcpServers": {
    "vllm": {
      "command": "uvx",
      "args": ["vllm-mcp-server"],
      "env": {
        "VLLM_BASE_URL": "http://localhost:8000",
        "VLLM_HF_TOKEN": "hf_your_token_here"
      }
    }
  }
}

3. Use the Tools

Once configured, you can use these tools in your AI assistant:

Server Management:

• start_vllm - Start a vLLM container (auto-detects platform & GPU)
• stop_vllm - Stop a running container
• get_platform_status - Check platform, Docker, and GPU status
• vllm_status - Check vLLM server health

Inference:

• vllm_chat - Send chat messages
• vllm_complete - Generate text completions

Model Management:

• list_models - List available models
• get_model_info - Get model details

Configuration

Configure the server using environment variables:

Variable	Description	Default
VLLM_BASE_URL	vLLM server URL	http://localhost:8000
VLLM_API_KEY	API key (if required)	None
VLLM_MODEL	Default model to use	None (auto-detect)
VLLM_HF_TOKEN	HuggingFace token for gated models (e.g., Llama)	None
VLLM_DEFAULT_TEMPERATURE	Default temperature	0.7
VLLM_DEFAULT_MAX_TOKENS	Default max tokens	1024
VLLM_DEFAULT_TIMEOUT	Request timeout (seconds)	60.0
VLLM_CONTAINER_RUNTIME	Container runtime (podman, docker, or auto)	None (auto-detect, prefers Podman)
VLLM_DOCKER_IMAGE	Container image (GPU mode)	vllm/vllm-openai:latest
VLLM_DOCKER_IMAGE_MACOS	Container image (macOS)	quay.io/rh_ee_micyang/vllm-mac:v0.11.0
VLLM_DOCKER_IMAGE_CPU	Container image (CPU mode)	quay.io/rh_ee_micyang/vllm-cpu:v0.11.0
VLLM_CONTAINER_NAME	Container name	vllm-server
VLLM_GPU_MEMORY_UTILIZATION	GPU memory fraction	0.9

Available Tools

P0 (Core)

vllm_chat

Send chat messages to vLLM with multi-turn conversation support.

{
  "messages": [
    {"role": "system", "content": "You are a helpful assistant."},
    {"role": "user", "content": "Hello!"}
  ],
  "temperature": 0.7,
  "max_tokens": 1024
}

vllm_complete

Generate text completions.

{
  "prompt": "def fibonacci(n):",
  "max_tokens": 200,
  "stop": ["\n\n"]
}

P1 (Model Management)

list_models

List all available models on the vLLM server.

get_model_info

Get detailed information about a specific model.

{
  "model_id": "TinyLlama/TinyLlama-1.1B-Chat-v1.0"
}

P2 (Status)

vllm_status

Check the health and status of the vLLM server.

P3 (Server Control - Platform Aware)

The server control tools support both Podman (preferred) and Docker, automatically detecting your platform and GPU availability:

Platform	GPU Support	Container Image	Default max_model_len
Linux (GPU)	✅ NVIDIA	vllm/vllm-openai:latest	8096
Linux (CPU)	❌	quay.io/rh_ee_micyang/vllm-cpu:v0.11.0	2048
macOS (Apple Silicon)	❌	quay.io/rh_ee_micyang/vllm-mac:v0.11.0	2048
macOS (Intel)	❌	quay.io/rh_ee_micyang/vllm-mac:v0.11.0	2048
Windows (GPU)	✅ NVIDIA	vllm/vllm-openai:latest	8096
Windows (CPU)	❌	quay.io/rh_ee_micyang/vllm-cpu:v0.11.0	2048

Note: The max_model_len is automatically set based on the detected mode (CPU vs GPU). CPU mode uses 2048 to match vLLM's max_num_batched_tokens limit, while GPU mode uses 8096 for larger context. You can override this by explicitly passing max_model_len to start_vllm.

start_vllm

Start a vLLM server in a Docker container with automatic platform detection.

{
  "model": "TinyLlama/TinyLlama-1.1B-Chat-v1.0",
  "port": 8000,
  "gpu_memory_utilization": 0.9,
  "cpu_only": false,
  "tensor_parallel_size": 1,
  "max_model_len": null,
  "dtype": "auto"
}

Note: If max_model_len is not specified (or null), it defaults to 2048 for CPU mode or 8096 for GPU mode.

stop_vllm

Stop a running vLLM Docker container.

{
  "container_name": "vllm-server",
  "remove": true,
  "timeout": 10
}

restart_vllm

Restart a vLLM container.

list_vllm_containers

List all vLLM Docker containers.

{
  "all": true
}

get_vllm_logs

Get container logs to monitor loading progress.

{
  "container_name": "vllm-server",
  "tail": 100
}

get_platform_status

Get detailed platform, Docker, and GPU status information.

run_benchmark

Run a GuideLLM benchmark against the server.

{
  "rate": "sweep",
  "max_seconds": 120,
  "data": "emulated"
}

Resources

The server exposes these MCP resources:

• vllm://status - Current server status
• vllm://metrics - Performance metrics
• vllm://config - Current configuration
• vllm://platform - Platform, Docker, and GPU information

Prompts

Pre-defined prompts for common tasks:

• coding_assistant - Expert coding help
• code_reviewer - Code review feedback
• technical_writer - Documentation writing
• debugger - Debugging assistance
• architect - System design help
• data_analyst - Data analysis
• ml_engineer - ML/AI development

Development

Setup

# Clone the repository
git clone https://github.com/micytao/vllm-mcp-server.git
cd vllm-mcp-server

# Install uv if you haven't already
curl -LsSf https://astral.sh/uv/install.sh | sh

# Create virtual environment and install dependencies
uv venv
source .venv/bin/activate  # or `.venv\Scripts\activate` on Windows

# Install with dev dependencies
uv pip install -e ".[dev]"

Local Development with Cursor

For debugging and local development, configure Cursor to run from source using uv run instead of uvx:

Add to ~/.cursor/mcp.json:

{
  "mcpServers": {
    "vllm": {
      "command": "uv",
      "args": [
        "--directory",
        "/path/to/vllm-mcp-server",
        "run",
        "vllm-mcp-server"
      ],
      "env": {
        "VLLM_BASE_URL": "http://localhost:8000",
        "VLLM_HF_TOKEN": "hf_your_token_here",
        "VLLM_CONTAINER_RUNTIME": "podman"
      }
    }
  }
}

This runs the MCP server directly from your local source code, so any changes you make will be reflected immediately after restarting Cursor.

Running Tests

uv run pytest

Code Formatting

uv run ruff check --fix .
uv run ruff format .

Architecture

vllm-mcp-server/
├── src/vllm_mcp_server/
│   ├── server.py              # Main MCP server entry point
│   ├── tools/                 # MCP tool implementations
│   │   ├── chat.py            # Chat/completion tools
│   │   ├── models.py          # Model management tools
│   │   ├── server_control.py  # Docker container control
│   │   └── benchmark.py       # GuideLLM integration
│   ├── resources/             # MCP resource implementations
│   │   ├── server_status.py   # Server health resource
│   │   └── metrics.py         # Prometheus metrics resource
│   ├── prompts/               # Pre-defined prompts
│   │   └── system_prompts.py  # Curated system prompts
│   └── utils/                 # Utilities
│       ├── config.py          # Configuration management
│       └── vllm_client.py     # vLLM API client
├── tests/                     # Test suite
├── examples/                  # Configuration examples
├── pyproject.toml             # Project configuration
└── README.md                  # This file

License

Apache License 2.0 - see LICENSE for details.

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

Acknowledgments

• vLLM - Fast LLM inference engine
• MCP - Model Context Protocol
• GuideLLM - LLM benchmarking tool
