volVIC 1.0.2

VOLume-based Virtual Image Correlation (volVIC) library for Python

volVIC — VOLume-based Virtual Image Correlation

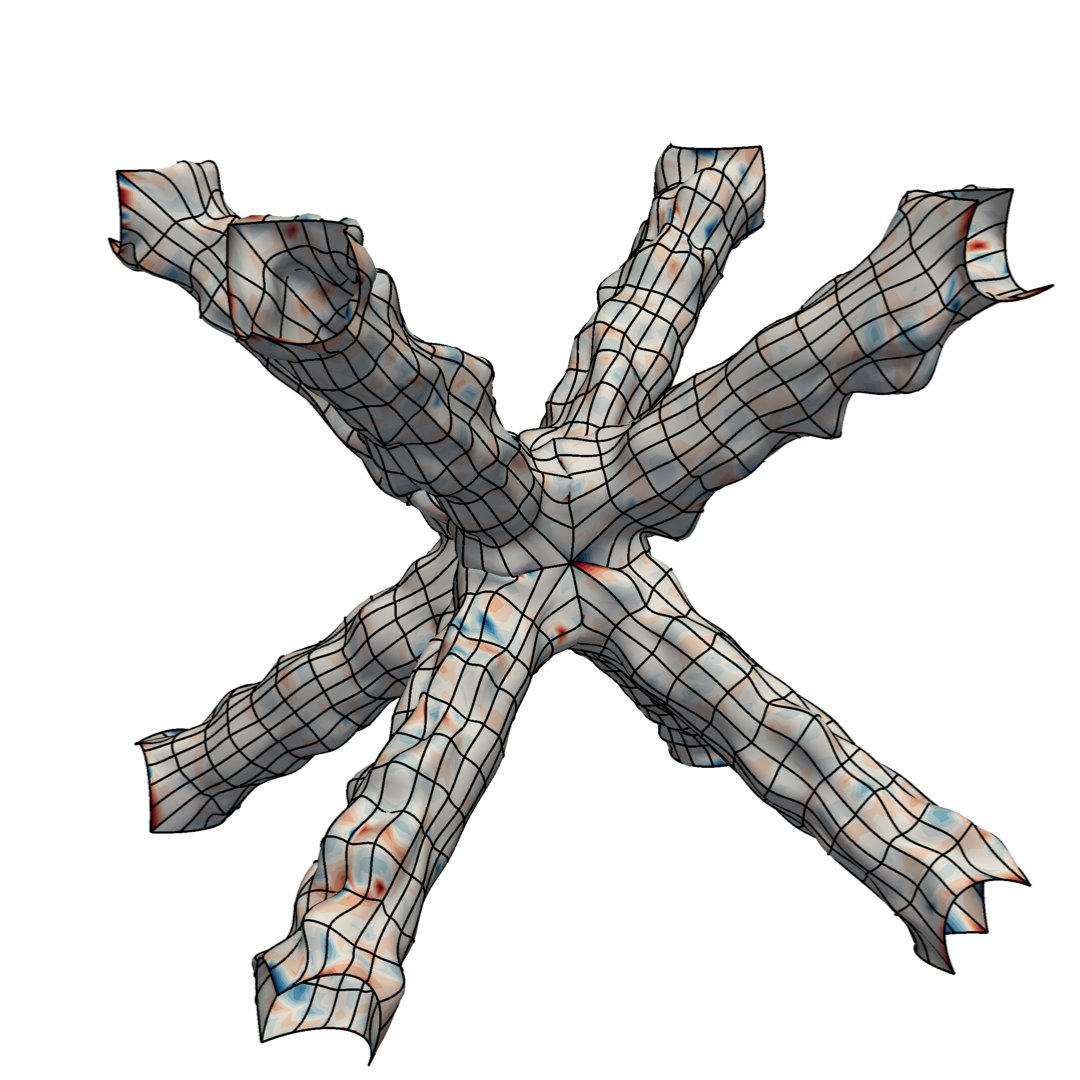

volVIC is a Python library for surface shape measurement from 3D volumetric images (e.g. CT scans) using the Virtual Image Correlation (VIC) method. It fits a parametric B-spline surface mesh to a grayscale volume by minimizing an energy functional that compares a synthetic "virtual image" — built from the surface geometry — to the actual acquired image.

The method is particularly suited to problems in experimental mechanics, where one wants to track the shape or deformation of a material surface from tomographic data.

---

Table of Contents

• Method overview
• Installation
• Quick start
• Module overview
• License

---

Method overview

The VIC approach replaces classical pixel-to-pixel image correlation with a physics-motivated model. Given a B-spline surface mesh and a volumetric image:

1. A virtual image is constructed analytically from the surface geometry. It models the gray-level transition (background ↔ foreground) along the surface normal, parameterized by a scalar distance rho.
2. The VIC energy measures the discrepancy between the virtual image and the actual acquired image, integrated over a normal neighborhood of the surface.
3. A Gauss–Newton solver iteratively minimizes the total energy (VIC + membrane regularization) with respect to the B-spline control point displacements and rho.
4. C¹ continuity constraints across patches and Dirichlet boundary conditions are enforced through a constraint matrix.

---

Installation

1. High-Performance Solvers (Optional but Recommended)

volVIC relies on IGA_for_bsplyne for its linear system solvers. This library can leverage SuiteSparse (via scikit-sparse and sparseqr) for significant speedups on large-scale problems.

• Recommended (Conda):

  conda install -c conda-forge scikit-sparse
  pip install sparseqr


  Note: sparseqr is not on Conda, but it will successfully link to the SuiteSparse libraries installed by scikit-sparse.

• Alternative (system package manager):

  • macOS: brew install suitesparse && pip install scikit-sparse sparseqr
  • Ubuntu/Debian: sudo apt-get install libsuitesparse-dev && pip install scikit-sparse sparseqr

• Fallback: If SuiteSparse is not available, the library automatically falls back to standard scipy.sparse solvers, ensuring full compatibility at the cost of performance.

2. Install volVIC

pip install volVIC

Requirements: Python ≥ 3.9

Key dependencies: numpy, scipy, numba, bsplyne, IGA_for_bsplyne, pyvista, meshio, interpylate, treeIDW, matplotlib, tqdm

---

Quick start

import numpy as np
from volVIC import Mesh, Problem

# Load your B-spline surface mesh and volumetric image
mesh = Mesh.Mesh.load("my_mesh.pkl")
image = np.load("my_ct_scan.npy")   # dtype: uint16, shape: (Z, Y, X)

# Set up and solve the VIC problem
problem = Problem(
    mesh=mesh,
    image=image,
    ICP_init=True,         # Rigid-body alignment before solving
    C1_mode="auto",        # Automatic C¹ continuity between patches
    membrane_weight=None,  # Automatic regularization weight estimation
)
u_field, rho = problem.solve(max_iter=20)

# Visualize results
problem.plot_results(u_field)

# Export to ParaView
problem.save_paraview(u_field, folder="results/", name="vic_output")

---

Module overview

volVIC.Problem — High-level solver

The main entry point. The Problem class encapsulates the full VIC pipeline.

Constructor Problem(mesh, image, ...):

• Estimates foreground/background gray levels from the image histogram (Otsu or interpolation-based).
• Optionally performs a rigid-body ICP alignment of the mesh to the image isosurface.
• Builds the virtual image energy elements, membrane stiffness matrix, and C¹ constraint matrix.
• Calibrates the membrane regularization weight automatically.

Key methods:

Method	Description
solve(max_iter, ...)	Run the Gauss–Newton optimization loop. Returns (u_field, rho).
plot_results(u_field, ...)	Visualize signed distance fields with PyVista.
save_paraview(u_field, folder, name)	Export displacement and distance fields to VTK for ParaView.
propagate_displacement_to_volume_mesh(u_field, volume_mesh)	Propagate the surface displacement to a volumetric B-spline mesh.

---

volVIC.Mesh — B-spline mesh management

Provides the Mesh class wrapping multi-patch B-spline surfaces.

Key features:

• Load/save mesh from .pkl (pickle) files (Mesh.load, Mesh.save).
• Evaluate the mesh geometry and fields at arbitrary parametric points.
• Convert fields between per-patch and unique-node representations.
• Extract border patches, mesh subsets, and orientation fields.
• Visualize with PyVista (plot, plot_in_image, plot_orientation).
• Export time series to ParaView with save_paraview.
• Register mesh to a target triangle surface with ICP_rigid_body_transform.
• Propagate scalar or vector fields from a submesh to a parent mesh.

---

volVIC.virtual_image_correlation_energy — VIC energy

The VirtualImageCorrelationEnergyElem class handles the energy computation for a single B-spline patch. It:

• Builds integration grids in both parametric and normal directions.
• Constructs the sparse small rotation displacement operator mapping control points to integration points in the image.
• Evaluates the VIC energy, gradient, and Gauss-Newton Hessian w.r.t. displacements and rho.

The module also provides utilities:

• make_image_energies(mesh, h, ...) — initialize energy elements for a full mesh.
• compute_image_energy_operators(...) — assemble global gradient and Hessian.
• compute_distance_field(...) — compute the signed distance field on each patch.

---

volVIC.virtual_image — Virtual image model

Defines the virtual image function used in the VIC energy:

from volVIC.virtual_image import g_slide

g, dg_drho = g_slide(xi, eta, gamma, rho, bg=0.0, fg=1.0)

g_slide models a smooth transition from background to foreground gray level along the surface normal (gamma), parameterized by the half-width rho. It returns both the image value g and its derivative w.r.t. rho.

---

volVIC.solve — Gauss–Newton iteration

Low-level function performing one VIC iteration:

from volVIC.solve import iteration

du_field, drho = iteration(u_field, rho, mesh, image_energies, image,
                           membrane_K, membrane_weight, C)

Assembles and solves the linearized system H_tot @ Δu = -grad_tot, with constraint enforcement via the matrix C. The rho increment is computed independently by a Newton step on the scalar energy.

---

volVIC.membrane_stiffness — Regularization

Assembles the membrane (in-plane) stiffness matrix for B-spline surface patches, used as a regularization term in the VIC energy:

from volVIC.membrane_stiffness import make_membrane_stifness, make_membrane_weight

K = make_membrane_stifness(mesh)
w = make_membrane_weight(mesh, image_energies, K, rho=1.5, image_std=5000)

The make_membrane_weight function calibrates the regularization weight by matching the expected membrane energy to the expected VIC energy under a probabilistic displacement model.

---

volVIC.C1_triplets — Smoothness constraints

Generates C¹ continuity constraints between neighboring patches:

from volVIC.C1_triplets import make_C1_eqs

C = make_C1_eqs(mesh, C1_inds="auto", threshold=0.1)

Each constraint takes the form A - 2B + C = 0 for a triplet of control nodes (A, B, C). The "auto" mode selects only geometrically consistent triplets.

---

volVIC.image_utils — Image preprocessing

Utilities for gray-level analysis of CT images:

from volVIC.image_utils import find_fg_bg, find_sigma_hat

fg, bg = find_fg_bg(image, method="otsu")   # or "interp"
sigma  = find_sigma_hat(image, fg, bg)

• find_fg_bg estimates foreground and background gray levels from the image histogram.
• find_sigma_hat estimates the noise standard deviation from single-phase voxels.
• Lower-level functions hist, otsu_threshold, and interp_fg_bg are also exposed.

---

volVIC.marching_cubes — Isosurface extraction

Extracts a triangle isosurface from a 3D scalar field:

from volVIC.marching_cubes import marching_cubes

surface = marching_cubes(volume, threshold=0.5)  # returns meshio.Mesh

Uses a Numba-compiled implementation for performance, with vertex deduplication and zero-area triangle prevention.

---

volVIC.integration_space_image — Parametric integration

Computes integration points and weights in the parametric space of a B-spline surface such that mapped distances between points are approximately uniform:

from volVIC.integration_space_image import linspace_for_VIC_elem

(xi, eta), (dxi, deta) = linspace_for_VIC_elem(spline, ctrl_pts, dist=1.0)

---

Documentation

The full API documentation is available on the Online Portal.

---

License

This project is licensed under the CeCILL-2.1 license — see https://cecill.info for details.

---

Author: Dorian Bichet — [e-mail]
Repository: https://github.com/Dorian210/volVIC
