vorflow

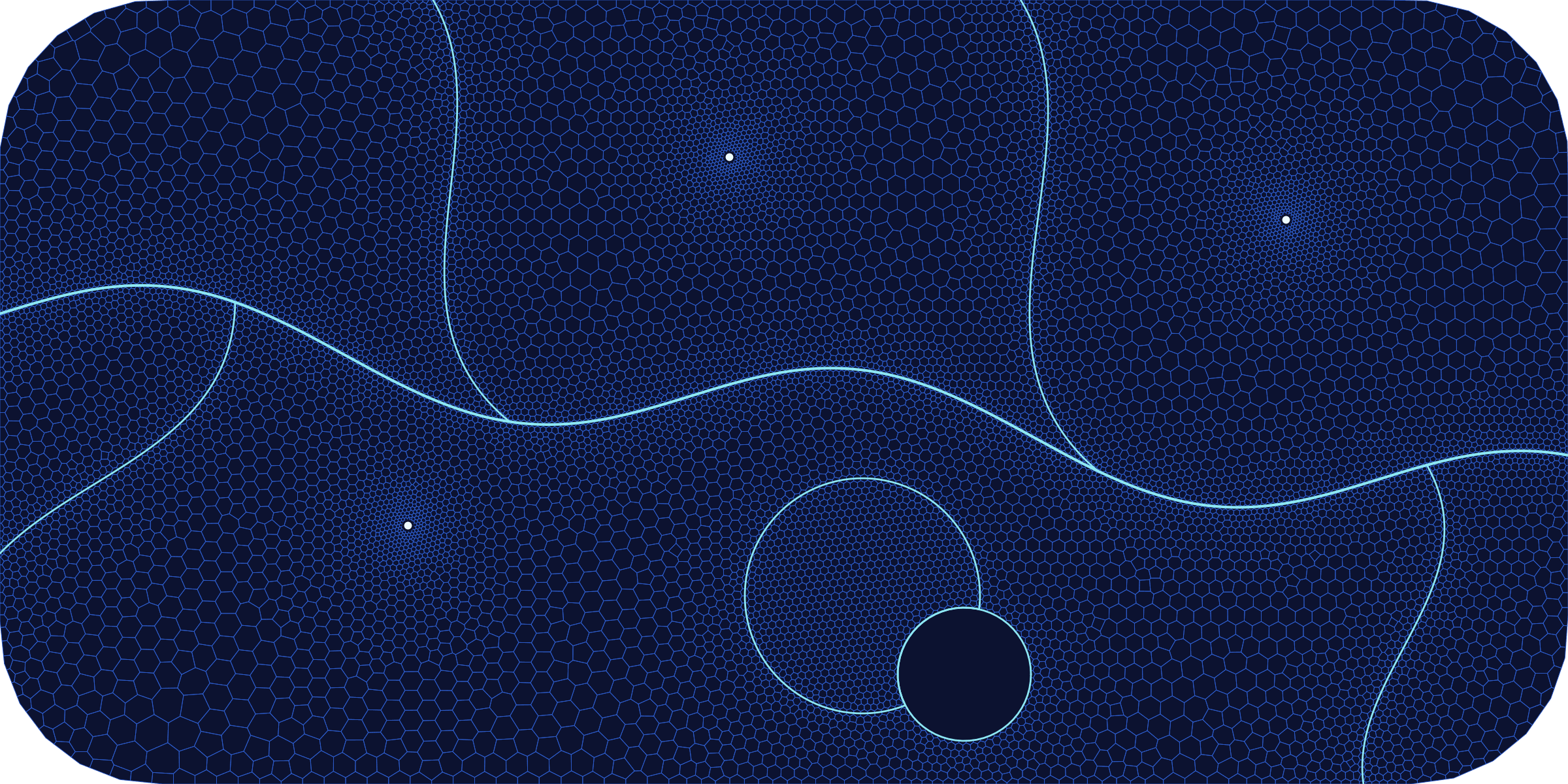

Voronoi mesh generation for MODFLOW 6 using Gmsh and GeoPandas.

vorflow is a Python package for creating 2D unstructured Voronoi cell meshes for groundwater modeling, particularly for MODFLOW 6. It leverages the power of Gmsh for robust triangular meshing and Shapely/GeoPandas for geometric operations.

The process is designed to translate a conceptual model—defined by geometric features like polygons, lines, and points—into a high-quality Voronoi grid suitable for numerical simulation.

Core Components

The library is built around three main classes that work in sequence:

1. ConceptualMesh: A blueprinting tool to define the model domain and its features. You can add polygons (e.g., model boundary, refinement zones), lines (rivers, faults), and points (wells) and specify the desired mesh density and refinement behavior for each.

2. MeshGenerator: This is the engine that generates a triangular mesh based on the blueprint from ConceptualMesh. It uses Gmsh as its backend to create a quality-conforming Delaunay triangulation.

3. VoronoiTessellator: This class takes the triangular mesh from MeshGenerator and computes its dual: the Voronoi diagram. The result is a grid of polygonal cells. It includes logic to clip the grid to the domain boundary and enforce barrier features by cutting through cells.

Workflow

The typical workflow follows these steps:

1. Define Geometry: Create shapely objects for your model features (domain boundary, rivers, wells, etc.).
2. Create a Blueprint: Instantiate ConceptualMesh and add your geometries, specifying parameters like mesh resolution, refinement distances, and feature types (e.g., barriers).
3. Generate Mesh: Instantiate MeshGenerator and call its generate() method with the processed geometries from the blueprint. This produces a triangular mesh.
4. Tessellate to Voronoi: Instantiate VoronoiTessellator with the generated mesh and the blueprint. Calling its generate() method produces the final GeoDataFrame of Voronoi cells.
5. Export: The resulting GeoDataFrame can be easily saved to a shapefile or other formats.

Installation

vorflow requires Python 3.10 or newer. Install it from PyPI:

pip install vorflow

The examples and notebooks also need Matplotlib, which the examples extra installs:

pip install "vorflow[examples]"

On Linux, the gmsh wheel from PyPI needs the system GLU library (for example sudo apt-get install libglu1-mesa on Debian/Ubuntu). Alternatively, install the geospatial stack and Gmsh from conda-forge first, then pip install vorflow into that environment.

To try the latest unreleased changes, install from GitHub:

pip install "git+https://github.com/rhugman/vorflow.git"

Release candidates are published to TestPyPI before each release. To test one (dependencies still come from PyPI):

pip install --pre --index-url https://test.pypi.org/simple/ \
    --extra-index-url https://pypi.org/simple/ vorflow

Development installation

Clone the repository and install it in editable mode:

git clone https://github.com/rhugman/vorflow.git
cd vorflow
pip install -e ".[dev]"

For plotting examples and notebooks without all development tools:

pip install -e ".[examples]"

Alternatively, create the Conda development environment from etc/environment.yml, which installs the package in editable mode with the dev extra:

micromamba env create -f etc/environment.yml

Basic Usage

Here is a simple example of how to generate a non-empty Voronoi grid:

The complete runnable version is examples/basic_usage.py.

from shapely.geometry import LineString, Point, box

from vorflow import ConceptualMesh, MeshGenerator, VoronoiTessellator

domain = box(0, 0, 200, 200)
well_point = Point(25, 25)
fault_line = LineString([(100, 0), (100, 150)])

blueprint = ConceptualMesh(crs="EPSG:3857")
blueprint.add_polygon(domain, zone_id=1)
blueprint.add_point(
    well_point,
    point_id="Well-A",
    resolution=2,
    growth_factor=1.2,
)
blueprint.add_line(
    fault_line,
    line_id="Fault-1",
    resolution=1,
    is_barrier=True,
)

clean_polys, clean_lines, clean_pts = blueprint.generate()

mesher = MeshGenerator(background_lc=100)
mesher.generate(clean_polys, clean_lines, clean_pts)

tessellator = VoronoiTessellator(mesher, blueprint, clip_to_boundary=True)
grid_gdf = tessellator.generate()
if grid_gdf.empty:
    raise RuntimeError("Basic Usage generated an empty Voronoi grid")

Optional file export

GeoPandas writes formats such as Shapefile and GeoPackage through an I/O engine such as Pyogrio or Fiona. Install one of those engines before calling:

grid_gdf.to_file("mf6_grid.gpkg", driver="GPKG")

Mesh gradation

Feature resolutions use GeometricGrowthField by default. Its growth_factor is an upper target for neighboring characteristic edge-length growth, not cell area growth and not an exact guarantee for every generated neighbor pair. The default growth_factor=1.2 uses the transparent spatial law

h(d) = feature_lc + (growth_factor - 1) * d.

For the continuous-metric convention, pass an explicit GeometricGrowthField(growth_model="continuous_metric"); this uses the gentler gradient log(growth_factor). In normal MeshGenerator use, the global background field caps either result at background_lc.

Coordinate systems: always work in a projected CRS (e.g. UTM or a national grid) so mesh sizes are in real length units (meters/feet). Geographic coordinates (lat/lon degrees, e.g. EPSG:4326) produce physically meaningless MODFLOW grids — reproject your data first with GeoDataFrame.to_crs().

Examples

The examples/ folder contains runnable scripts and notebooks covering field-based refinement, mesh quality diagnostics, structured quad buffers, active-domain workflows, and triangular element-grid export.

Roadmap

See ROADMAP.md for planned and completed milestones.

License

MIT — see LICENSE.
