wifikit 0.1.0

Terminal UI + CLI to drive an ESP32 running the Marauder firmware for authorized WiFi security testing.

wifikit

A terminal UI + CLI for driving an ESP32 running the ESP32 Marauder firmware — for authorized WiFi security testing and learning.

wifikit turns the raw Marauder serial command line into a single-screen, target-oriented dashboard. Instead of memorising commands or juggling the multi-terminal aircrack-ng workflow (airodump here, aireplay there, aircrack in a third window), you scan, pick a target from a live table, and act on it from a menu or with hotkeys — then run the host-side crack from the same UI.

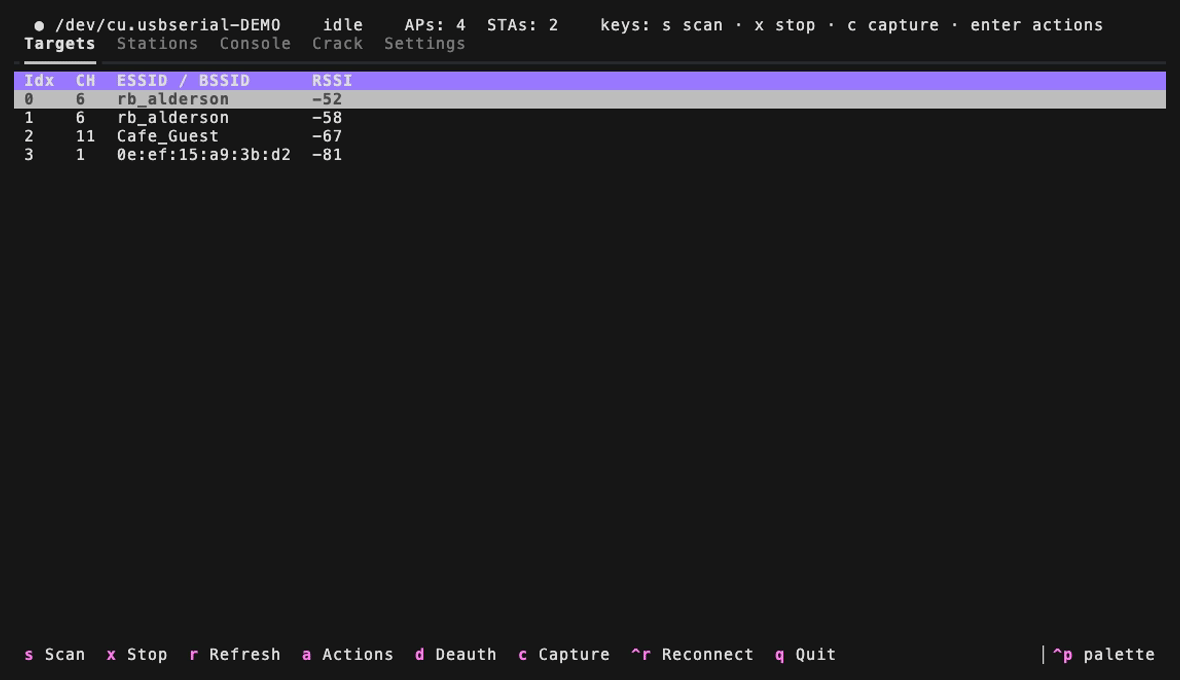

The demo above runs with wifikit --demo (sample data, no board required).

---

⚠️ Legal & authorized-use notice

This is a tool for authorized security testing and education only. Attacking networks you do not own or lack explicit written permission to test is illegal in most jurisdictions.

• Only use wifikit against your own networks/devices or those you are contractually authorized to assess.
• Deauthentication and handshake capture affect real users on a network — never run them against third parties.
• The authors accept no liability for misuse. By using this software you agree you are solely responsible for complying with all applicable laws.

wifikit is a front-end: it drives the already-open-source ESP32 Marauder firmware and standard tools like hashcat/aircrack-ng. It contains no novel attack code.

---

Features

• 🖥️ Textual TUI (default): live AP table, tabbed layout, mouse + keyboard.
• 🎯 Target-oriented: select an AP, then Deauth / Capture PMKID / Capture handshake / set channel — via an Actions menu (Enter or right-click) or hotkeys.
• 👥 Stations tab: clients grouped by AP (via Marauder's list -c), populated live during a scan; select a station to deauth it directly.
• 📥 SD-free capture: wifikit --capture --channel N streams the pcap over USB (Marauder's -serial) into captures/ — no microSD card needed.
• 🔌 Auto-detects the ESP32's serial port (by USB-UART chip), ignoring Bluetooth/debug ports.
• ⌨️ Nice REPL (--cli): local echo, history and tab-completion — a painless replacement for screen, which Marauder's non-echoing CLI makes miserable.
• 🤖 Scriptable one-shot mode (--exec "scanall").
• 🧨 Integrated cracking: run hashcat/aircrack-ng in a Crack tab with live streaming output — scan → deauth → capture → crack in one place.
• ⚡ One-command flashing of the correct classic-ESP32 build (wifikit-flash).

 ● /dev/cu.usbserial-….   |   SCANNING   |   APs: 4   | [s]can [x]stop [r]efresh
┌ Targets ─┬ Console ─┬ Crack ─────────────────────────────────────────────────┐
│ Idx  CH   ESSID / BSSID          RSSI                                          │
│  0    3   rb_alderson            -72   ← cursor; press Enter for Actions       │
│  1    3   8e:86:dd:a0:8b:68      -73                                           │
│  2    3   rb_alderson            -84                                           │
└──────────────────────────────────────────────────────────────────────────────┘
 s Scan  x Stop  r Refresh  a Actions  d Deauth  p PMKID  ^r Reconnect  q Quit

Documentation

Full guides live in docs/:

• Overview & mental model — what wifikit is and how to navigate.
• Architecture — modules, data flow, threading.
• Usage — flashing, the TUI, the CLI/REPL, hotkeys.
• Capture → crack — the SD-free -serial workflow.
• Performance & GPU — measured crack rates, --benchmark.
• Firmware — the Marauder build, -serial, future plans.
• Troubleshooting — ports, baud, captures, and more.

Hardware

• An ESP32 board (developed and tested on a classic ESP32-WROOM-32 DevKit) flashed with ESP32 Marauder.
• A microSD module (SPI) is optional — capture streams over USB via Marauder's -serial, so an SD card is only needed for untethered capture (running the board off the host).

Install

Requires Python 3.10+. Using uv (recommended):

uv tool install wifikit          # once published to PyPI
# or run from a clone:
uv venv && uv pip install -e .

With pipx:

pipx install wifikit

Installing wifikit pulls its Python dependencies automatically (including esptool for flashing). Nothing else is needed to scan, deauth, or capture.

Requirements: external tools (for cracking)

The cracking half of the workflow shells out to native CLI tools that pip cannot install — grab them from your OS package manager. They're optional: everything except cracking works without them.

wifikit --setup     # auto-install the missing tools (brew/apt/dnf/pacman)
wifikit --doctor    # just report what's present + how to install the rest

--setup detects your package manager, shows the exact command, and installs the missing tools; the underlying commands are:

Tool	Needed for	macOS	Debian/Ubuntu
hashcat	crack WPA (Crack tab, --benchmark)	brew install hashcat	sudo apt install hashcat
hcxtools (hcxpcapngtool)	convert .pcap → .hc22000	brew install hcxtools	sudo apt install hcxtools
aircrack-ng	alternative cracker (optional)	brew install aircrack-ng	sudo apt install aircrack-ng

The ESP32 firmware is not a manual dependency — wifikit-flash downloads the correct Marauder build on demand from the official release.

Flash the ESP32

wifikit-flash downloads the correct classic-ESP32 build (the old_hardware app plus the matching bootloader/partition table) and writes it. It does not vendor Marauder's binaries — they are fetched from the official release.

wifikit-flash            # auto-detect port, flash at a safe 115200 baud
wifikit-flash --erase    # wipe flash first

Note: the Marauder flipper build is for the ESP32-S2 and will not run on a classic WROOM-32 (Unexpected chip ID). wifikit-flash picks the right one for you.

Usage

wifikit                       # launch the TUI (auto-detect the board)
wifikit --cli                 # line-based REPL instead of the TUI
wifikit --exec "scanall" --timeout 15   # one-shot, print output, exit
wifikit --capture --channel 3 # stream a pcap over USB into captures/ (no SD)
wifikit --list-ports          # show candidate serial ports
wifikit --demo                # try the TUI with sample data (no board needed)
wifikit --benchmark           # measure this GPU's WPA crack rate + time table
wifikit --doctor              # check external tools (hashcat, hcxtools) + hints
wifikit --setup               # auto-install missing external tools (--yes to skip prompt)

--capture also accepts --seconds S, --mode pmkid|handshake, and --out PATH. It enables Marauder's SavePCAP, sniffs with -serial, and reassembles the streamed .pcap on the host.

TUI hotkeys: s scan · x stop · r refresh list · a/Enter actions · d deauth selected · p PMKID selected · Ctrl-R reconnect · q quit. The Stations tab lists clients grouped by AP and fills live during a scan.

The capture → crack loop (on your own network)

No SD card required — the capture streams over USB straight to your Mac.

1. s to scan, x to stop — the table fills live from Marauder's list -a.
2. Highlight your AP, press Enter → Capture (stream to Mac), or from the CLI run wifikit --capture --channel N (add --seconds S, --mode pmkid|handshake, --out PATH).
3. Deauth briefly to force a client to reconnect (generates a handshake).
4. wifikit enables Marauder's SavePCAP, runs the sniff with -serial, and reassembles the streamed .pcap into captures/ — then converts it via hcxpcapngtool to an hc22000 line.
5. In the Crack tab, run e.g. hashcat -m 22000 capture.hc22000 wordlist.txt — output streams live.

How it works

              ┌────────────── wifikit (Python) ──────────────┐
  ESP32  <──USB serial──>  session.py  ──>  tui.py / cli.py
  Marauder                 (threaded I/O)     (UI + parsing)
                                   │
                              marauder.py  (command set + `list` parser)
                                   │
                              flash.py  (esptool + firmware fetch)

• session.py — port auto-detect + a threaded serial reader/writer.
• marauder.py — the firmware's command set and list parser (APs + stations).
• capture.py — demuxes Marauder's -serial pcap stream into a .pcap and (optionally) converts it to hc22000 via hcxpcapngtool.
• cli.py / tui.py — the two front-ends (REPL and Textual dashboard).
• flash.py — one-command flashing via esptool.

Development

uv sync                       # create venv + install deps (incl. dev group)
uv run ruff check .           # lint
uv run ruff format .          # format
uv run pytest                 # tests (parser/port logic run without hardware)

Please read CONTRIBUTING.md and the Code of Conduct. Security reports: see SECURITY.md.

Acknowledgements & credits

wifikit stands entirely on the shoulders of these projects — please star and support them:

• ESP32 Marauder by justcallmekoko — the firmware that does all the actual WiFi/BLE work. wifikit is only a host-side driver for it; the firmware binaries it flashes are built and distributed by that project.
• Textual & Rich by Textualize — the TUI framework.
• pyserial — serial transport.
• esptool by Espressif — flashing.
• prompt_toolkit — the REPL experience.
• hashcat and aircrack-ng — the cracking tools the Crack tab drives.

License

MIT © 2026 Ravindra Singh. The ESP32 Marauder firmware is the property of its respective authors under its own license.
