About

xlandsat is Python library for loading and analyzing Landsat scenes downloaded from USGS EarthExplorer with the power of xarray. We take care of reading the metadata from the *_MTL.txt files provided by EarthExplorer and organizing the bands into a single xarray.Dataset data structure for easier manipulation, processing, and visualization.

Example

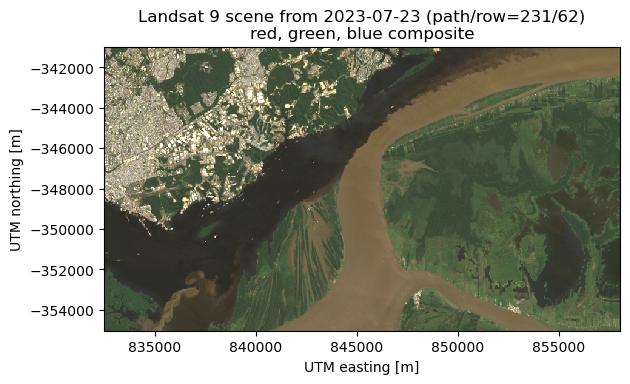

Here's a quick example of loading and plotting this Landsat 9 scene from the city of Manaus, Brazil, which is where the Solimões (brown water) and Negro (black water) rivers merge to form the Amazon river:

import xlandsat as xls
import matplotlib.pyplot as plt

# Download a sample Landsat 9 scene in EarthExplorer format
path_to_scene_file = xls.datasets.fetch_manaus()

# Load the data from the file into an xarray.Dataset
scene = xls.load_scene(path_to_scene_file)

# Make an RGB composite as an xarray.DataArray
rgb = xls.composite(scene, rescale_to=[0.02, 0.2])

# Plot the composite using xarray's plotting machinery
rgb.plot.imshow()

# Annotate the plot with the rich metadata xlandsat adds to the scene
plt.title(f"{rgb.attrs['title']}\n{rgb.attrs['long_name']}")
plt.axis("scaled")
plt.show()

Project goals

• Loading single scenes in the EarthExplorer format.
• Provide some calculation, like composites, but leave most of the rest to the user and xarray.

Our goal is not to provide a solution for large-scale data processing. Instead, our target is smaller scale analysis done on individual computers.

• For cloud-based data processing, see the Pangeo Project.
• For other satellites and more powerful features, use Satpy.

Project status

xlandsat is ready for use but still changing. This means that we sometimes break backwards compatibility as we try to improve the software based on user experience, new ideas, better design decisions, etc. Please keep that in mind before you update xlandsat to a newer version.

We welcome feedback and ideas! This is a great time to bring new ideas on how we can improve the project. Submit issues on GitHub.

License

This is free software: you can redistribute it and/or modify it under the terms of the MIT License. A copy of this license is provided in LICENSE.txt.
