ZenFronts

ZenFronts is a compact facade for asynchronous, noisy, multi-objective population management (Population-Based Training style), built around a Cython-accelerated Monte Carlo Pareto-ranking kernel.

ZenFronts targets the operational regime where:

• objective signals arrive asynchronously (partial metric updates are common),
• objective values are stochastic (noise, heavy tails, drift),
• selection must be reproducible (deterministic under a fixed seed),
• one wants a clear and auditable separation between evaluation, state, and selection.

ZenFronts does not prescribe a particular optimizer. Instead, it provides a rigorously defined, high-throughput selection engine and a small, policy-driven API to manage a population.

Visual intuition

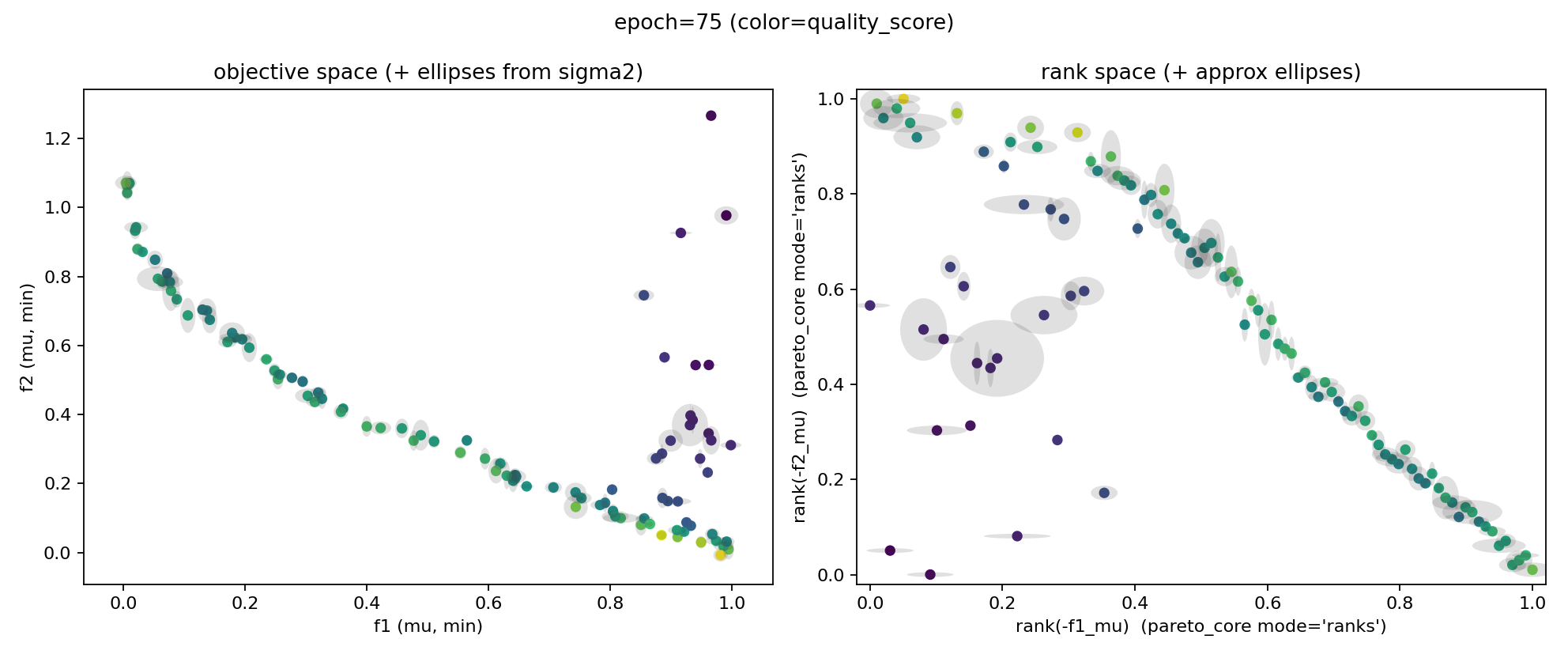

The figure below shows a typical snapshot produced by examples/demo_noisy_zdt1_snapshots.py.

• Left panel (objective space): point means (μ) with semi-transparent uncertainty ellipses derived from per-objective variances (σ²).
• Right panel (rank space): the same population expressed in stable rank coordinates, which is the space in which the Pareto machinery is applied.

Color encodes an aggregate selection-quality scalar (quality_score) computed from Monte Carlo statistics.

Note on reproducibility: for release-tag pinning on PyPI, replace main with your tag (e.g. v1.0.4) in the URL.

At a glance

What ZenFronts provides

• Population state and lifecycle

  • add_point, add_random_point, delete_point (tombstone model)
  • stable point_ids for logging/auditing

• Asynchronous objective/criterion storage

  • per-(point, criterion) statistics: μ, trend, σ², t_last, ready
  • updates from raw samples or external statistics
  • eligibility gate: only fully ready points are considered by selection

• Compiled Monte Carlo Pareto selection core

  • Monte Carlo sampling from (μ, σ²) per objective
  • Pareto ranking in stable rank-space
  • per-point distribution summaries: place/front/within (mean, std, median, quantiles)

• Deterministic selection

  • fixed seed yields stable winners/losers and statistics

• Versioned selection-statistics schema

  • stable contract for downstream pipelines and experiment tracking

What ZenFronts does not provide

• a parameter space DSL (you inject a sampler/mutator)
• a training/evaluation runtime (you call update_crits when metrics arrive)
• a black-box optimizer with hidden heuristics (policies are explicit)

Installation

pip install zen-fronts

For local development with examples and tests:

pip install -e ".[dev,examples]"

Quick start

Runnable demo (produces the snapshot above)

python examples/demo_noisy_zdt1_snapshots.py --out out/demo --epochs 80

Minimal API sketch

from zen_fronts import ZenFronts
from zen_fronts.selection import SelectionConfig

# Define two objectives (minimization in this example)
crits = {"f1": "min", "f2": "min"}

zf = ZenFronts(
    crits=crits,
    selection=SelectionConfig(
        n_samples=256,
        percentile=0.2,
        seed=42,
        collect_stats=True,
        quantiles_mode_i=2,          # 0 exact, 1 P² streaming, 2 auto-by-budget
        quantiles_budget=200_000,    # used when quantiles_mode_i=2
    ),
    sampler=lambda rng: {"x1": rng.random(), "x2": rng.random()},
    # mutator must return (child_params, meta)
    mutator=lambda parent, rng, **kw: (
        {
            "x1": parent["x1"] + rng.normal(0.0, 0.05),
            "x2": parent["x2"] + rng.normal(0.0, 0.05),
        },
        {},
    ),
)

# 1) initialize a population
zf.add_random_point(128)

# 2) repeatedly: ingest metrics -> refresh -> replace
for t in range(1, 101):
    # ingest / compute metrics for active points
    for pid in zf.active_point_ids():
        params = zf.params(pid)
        f1, f2 = evaluate(params)  # user-defined
        zf.update_crits(pid, {"f1": f1, "f2": f2}, t=float(t))

    losers = zf.refresh(now=float(t))

    for loser in losers:
        parent = zf.choose_parent(loser)
        child, _meta = zf.perform_new(parent, looser=loser, remove_looser=True)

        # IMPORTANT: evaluate the child at least once, otherwise it stays invisible
        f1, f2 = evaluate(zf.params(child))
        zf.update_crits(child, {"f1": f1, "f2": f2}, t=float(t) + 0.1)

Conceptual model

Points and tombstones

A point is an individual in the population, identified by an integer point_id.

• delete_point(point_id) marks a point inactive (a tombstone).
• tombstones do not participate in selection.
• params(point_id) raises KeyError for tombstones.
• info(point_id) remains available; its last selection snapshot is preserved.

This supports stable experiment logging: you can keep IDs forever while still maintaining a bounded active population.

Criteria and readiness

Each criterion is defined by a name and a direction ("min" or "max"). Internally, selection operates in a unified maximization convention.

ZenFronts implements an explicit ready gate:

• a point becomes eligible for selection only when it is ready on all criteria,
• partial updates are allowed (typical for asynchronous pipelines),
• refresh() considers only active ∩ fully_ready points.

Selection in rank space

Selection is performed using Monte Carlo sampling from the per-criterion distributions.

For each Monte Carlo sample:

1. sample a synthetic objective vector for each point,
2. transform each objective into stable ranks (per objective),
3. compute Pareto fronts and within-front ranks in this rank space,
4. accumulate per-point statistics across samples.

This rank-space formulation reduces sensitivity to scaling and improves robustness under noise.

How to run an optimization cycle (operational semantics)

A full guide is provided in docs/how_to_run_cycle.md. The essential rules are below.

1) When is a point considered ready?

A point participates in refresh() iff it is:

• active (not a tombstone), and
• ready on every criterion.

Practical consequence: adding a point (or creating a child) does not automatically make it eligible for selection; you must provide at least one update for every criterion.

2) What to do with newly created children

perform_new() creates a child via your mutator and (optionally) removes a loser.

A new child is not ready until you evaluate it and call update_crits(child_id, ...) for all criteria.

A safe pattern per epoch is:

1. ingest updates for existing active points,
2. call losers = refresh(),
3. for each loser: choose a parent, spawn a child, evaluate the child once, update criteria.

This prevents two common pathologies:

• silently shrinking the effective population (many non-ready children),
• delayed “mass activation” of children that suddenly distort selection.

3) Choosing percentile and n_samples

Let N be the number of active-and-ready points. ZenFronts selects:

• k = ceil(percentile · N) losers (and symmetrically winners)

Heuristics:

• percentile (selection pressure)

  • start at 0.2–0.3 for PBT-like loops,
  • for small N, keep k ≥ 2 to reduce jitter.

• n_samples (Monte Carlo stability)

  • low noise: 64–128
  • medium noise: 128–256
  • high noise / heavy tails: 512+

Quantiles (median/q25/q75) can be computed exactly or via streaming P². A strict contract is enforced by tests:

Changing the quantile mode must not change winners/losers, mean/std, or quality_score.

Selection statistics contract (versioned)

After each refresh(), ZenFronts persists a per-point selection snapshot under info(pid)["selection"].

The structure is explicitly versioned:

• schema_name = "zen_fronts.selection_stats"
• schema_version = "1.0.0"

Downstream code can validate and normalize this contract:

from zen_fronts.selection.schema import validate_selection_stats

st = validate_selection_stats(zf.info(pid)["selection"])  # raises on incompatible schema

Compatibility rule:

• newer minor/patch versions are accepted,
• newer major versions are rejected.

This enables additive evolution of telemetry without breaking consumers.

Performance

ZenFronts is engineered so that, at typical population sizes (≈128–256, ≈3 objectives), the dominant cost is the compiled Monte Carlo kernel.

Empirical measurements (AMD Ryzen 5950X, Linux, Python 3.12.12, NumPy 2.4.1)

End-to-end refresh() (median; M=3, percentile=0.2, criteria supplied as external stats; collect_stats=True):

Rule of thumb at M=3 on this hardware:

• refresh_ms ≈ a + b · n_samples

  • for N=128: b ≈ 0.13 ms/sample
  • for N=256: b ≈ 0.38 ms/sample

Scaling intuition

The kernel builds and uses a domination matrix; the dominant term scales approximately as:

• O(n_samples · N² · M)

Consequences:

• doubling n_samples roughly doubles runtime,
• doubling N increases runtime by roughly 3–4× in the measured regime,
• increasing the number of objectives scales sublinearly in some regimes due to early-exit in dominance checks.

Benchmark scripts

• Core kernel only:

  python examples/bench_mc_rank.py --out out/bench_mc_rank.csv


• End-to-end loop (“as in production”):

  python examples/bench_refresh.py --out out/bench_refresh.csv \
    --Ns 128,256 --Ss 64,128,256,512,1024 --epochs 30 --reps 3


Development notes

Cython HTML annotation

To generate Cython HTML annotation (hot-line visualization), enable annotate=True in the cythonize(...) call or guard it behind an environment variable (recommended).

Typical local workflow:

CYTHON_ANNOTATE=1 python setup.py build_ext --inplace

The generated *.html files appear next to the compiled modules.

Repository navigation

• src/zen_fronts/ — library implementation
• src/zen_fronts/selection_core/ — Cython Monte Carlo ranking kernel
• docs/how_to_run_cycle.md — operational semantics and tuning guidelines
• examples/ — runnable demo + benchmarks
• tests/ — unit tests and property-based tests (Hypothesis)

License

MIT (see LICENSE).
