zigon 0.0.1a0

Zigon: Procedural 3D World Builder (formerly Terrain Zigger)

Zigon: Procedural 3D World Builder

A lightweight, cross-platform 3D terrain generator and game engine built in Zig with Python scripting support. Create procedural worlds—from noise-based terrain to wave function collapse dungeons—and bring them to life with dynamic NPCs, pathfinding, and interactive dialogues. Powered by Raylib for high-performance 3D rendering.

Why Zigon?

• Performance-First: Zig's compile-time safety meets runtime speed for smooth real-time 3D
• Scriptable: Python integration via ctypes for AI behaviors, events, and gameplay logic
• Procedural Generation: Perlin/FBM noise terrain, Poisson disk foliage distribution, and wave function collapse dungeons
• Interactive: Built-in raycasting, pathfinding, unit selection, and dialogue system
• Cross-Platform: Runs on macOS, Linux, and Windows with configurable build options

Features

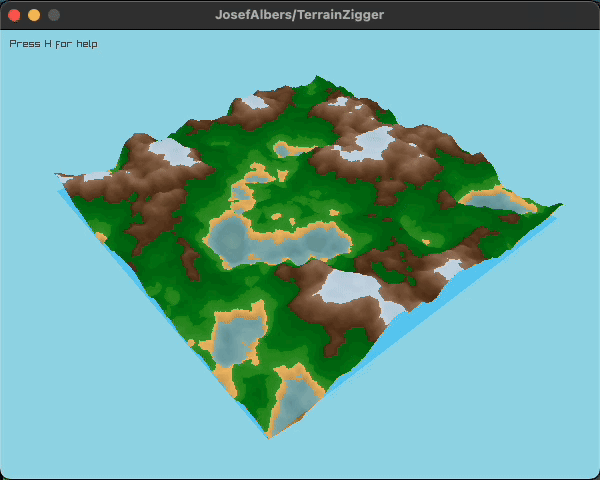

• Terrain Generation: Procedural noise-based terrain with support for custom base maps and biomes
• Dungeon Generation: Six dungeon archetypes (rooms, rogue, cavern, maze, labyrinth, arena) using wave function collapse
• Object System: Spawn and animate humans, birds, particles, and 3D primitives
• Camera Modes: Orbit camera for overview, first-person mode for exploration
• User Interactions: Click-to-select units, drag selection boxes, ground targeting
• Python Hooks: Event callbacks for clicks, chat submissions, and game ticks
• Web Export: WASM-ready for browser-based demos

Quick Start

Prerequisites

• Zig
• Raylib

Installation

# Clone the repository
git clone https://github.com/JosefAlbers/Zigon.git
cd Zigon

# Build and run the main application
zig build run

# For Python scripting support
pip install zigon

Build Commands

Command	Description
zig build run	Main terrain application
zig build run-chat	Standalone chat UI test
zig build run-object	3D object/primitive viewer
zig build run-dungeon	Dungeon generation demo

Generating 30×30 dungeon using labyrinth archetype...
Extracted 140 unique patterns
Success on attempt 1 after 169 steps

      ██  ██  ████████  ██  ██        ██    ██  ████  ██  ██
██        ██  ██        ██████  ████  ████  ██    ██  ██
██  ████████  ██  ██        ██    ██        ████  ██  ██████
██  ██        ██████  ██████████████████      ██  ██  ██  ██
██  ██  ██        ██                  ██  ██████  ██████  ██
██  ██████  ████████████████████████  ██  ██  ██  ██      ██
██      ██    ██                  ██  ██  ██  ██  ██  ██████
██████  ████  ██████████████████████████  ██████  ██████
    ██    ██      ██      ██  ██          ██      ██      ██
████████████████  ██████████  ██████████████  ██████████████
██            ██      ██  ██      ██  ██      ██      ██
██  ████████        ████  ██████████  ██████████████  ██████
██        ████████  ██    ██  ██      ██  ██      ██  ██  ██
████████            ████████  ██████████  ██████  ██  ██
      ██████████              ██  ██      ██  ██  ██  ██████
  ██          ██  ██████████████  ████        ██  ██  ██  ██
  ██████████████  ██      ██  ██    ██  ████████  ██████  ██
        ██        ██████████  ████  ██    ██  ██  ██      ██
██████  ██████        ██  ██    ██  ████████  ██████████████
        ██  ██  ████████  ████  ██            ██
██████████  ██    ██  ██        ████████████████████████████
    ██  ██  ████████  ██████        ██            ██  ██
██████  ██            ██  ██  ████████  ████████████  ██████
██  ██        ██████████  ██████        ██            ██  ██
██  ████████  ██  ██      ██      ██        ████████████
██        ██  ██  ████        ██████  ████████
████████████  ██    ██  ████████  ██    ██      ██████████
      ██  ██  ████████████        ████  ██████████  ██
  ██████  ██                ██          ██  ██      ████
  ██  ██        ██████████████  ██████████  ████      ██  ██

Build Options

Available Options:

• -Dmap-size=<size> - Terrain grid size (default: 128)

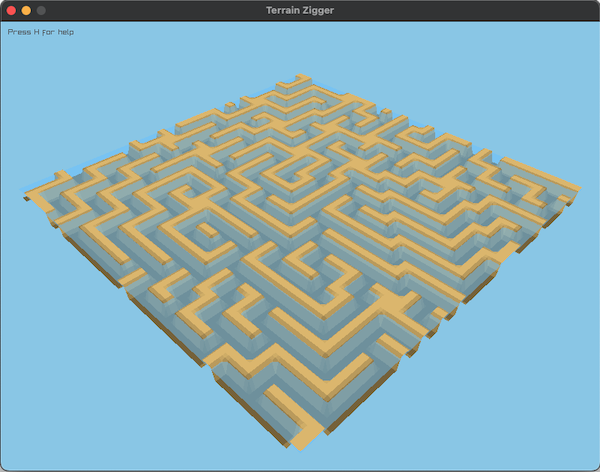

• -Ddungeon-type=<type> - Dungeon archetype: -1=none, 0=rooms, 1=rogue, 2=cavern, 3=maze, 4=labyrinth, 5=arena (default: -1)
• -Ddungeon-magnify=<factor> - Dungeon upscaling factor (default: 4)
• -Dseed=<number> - Initial random seed (0=timestamp, default: 0)
• -Dwindow-width=<pixels> - Window width (default: 800)
• -Dwindow-height=<pixels> - Window height (default: 600)
• -Draylib-include=<path> - Custom raylib include directory
• -Draylib-lib=<path> - Custom raylib library directory

# Random terrain (default)
zig build run

# Rogue dungeon with custom seed
zig build run -Ddungeon-type=1 -Dseed=12345

# Large cavern map with bigger window
zig build run -Ddungeon-type=2 -Dmap-size=256 -Dwindow-width=1920 -Dwindow-height=1080

# Arena with custom magnification
zig build run -Ddungeon-type=5 -Ddungeon-magnify=8

Cross-Platform Setup

macOS (Homebrew):

brew install raylib
zig build run -Draylib-include=/opt/homebrew/include -Draylib-lib=/opt/homebrew/lib

Linux:

sudo apt install libraylib-dev  # Debian/Ubuntu
zig build run -Draylib-include=/usr/include -Draylib-lib=/usr/lib

Windows (MSYS2):

pacman -S mingw-w64-x86_64-raylib
zig build run -Draylib-include=C:/msys64/mingw64/include -Draylib-lib=C:/msys64/mingw64/lib

Python Integration

Use the zigon Python package to script behaviors, load real-world topography, and control the game:

from zigon import Zigon

# Initialize with custom terrain size
game = Zigon(size=128)

# Load procedural or real topographic data
game.load_map(get_base_map(128))

# Spawn objects
game.spawn("House", 100, 100)

# Register event callbacks
@game.set_callback
def on_click(k, v):
    if k == 2:
        print(f"Clicked: {game.get_click_pos()}")

# Start the game loop
game.start()

Controls

• H - Toggle help overlay
• Right Mouse - Regenerate terrain with new seed
• Left Mouse - Rotate camera (or select units with Shift held)
• Mouse Wheel - Zoom in/out
• Middle Mouse - Toggle first-person mode
• WASD - Move in first-person mode
• Z - Reset camera to initial position
• , / . - Decrease/increase water level
• [ / ] - Decrease/increase terrain roughness
• F / C - Increase/decrease texture scale
• D / N - Lighter/darker sky

Project Structure

Zigon/
├── walk.zig          # Main application and game state
├── terrain.zig       # Procedural terrain generation
├── dungeon.zig       # Wave function collapse dungeon generator
├── object.zig        # 3D object rendering and animation
├── chat.zig          # Dialogue system UI
└── build.zig         # Build configuration

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

License

This project is licensed under the Apache License 2.0.

Acknowledgments

• Terrain generation inspired by Perlin Noise and FastNoiseLite
• Dungeon generation using Wave Function Collapse
• 3D rendering powered by Raylib
• Zig programming language by Zig Software Foundation
