zooplankton-image-tool 0.1.7

ZIT, the premier zooplankton imaging tool

ZIT (Zooplankton Image Tool)

ZIT is a tool designed to enhance and composite plankton photos from video frames. It uses computer vision techniques (OpenCV MOG2 background subtraction and contour filtering) to create clean, high-quality composites showing the locomotion of zooplankton.

Features

• Frame Capture: Extract frames from videos at specified intervals.
• Motion-Based Composition: Create composites by overlaying moving entities on a stable background.
• Entity Recognition: Uses MOG2 background subtraction to isolate animals from noise and artifacts.
• Parameter Sweeping: Find optimal threshold values for different video conditions.

Installation

Ensure you have Poetry installed.

poetry install

Usage

CLI

Capture frames and create a composite in one command:

# Using poetry
poetry run zit --input samples/limo.mp4 --composite --entities

# If installed
zit --input samples/limo.mp4 --composite --entities

Parameters

• --input, -i: Path to the input video.
• --interval: Interval in seconds for frame capture (default: 1).
• --composite: Enable composition after frame capture.
• --entities: Use entity recognition for cleaner composites (recommended).
• --epsilon: Difference threshold for entity detection (default: 20.0). Also referred to as Thresh in sweep grids.
• --noise: Minimum pixel area for a detected entity (default: 50.0). Also referred to as MinArea in sweep grids.
• --skip START END: Process only a specific frame range.
• --out-file: Name of the output composite image (default: composited.png).

Parameter Sweep

To find the optimal threshold values for your video, use the parameter sweep script. It generates a 5x5 grid of composites sweeping across MinArea (noise) and Thresh (epsilon).

python sweep_grid.py

Gallery

Parameter Grids

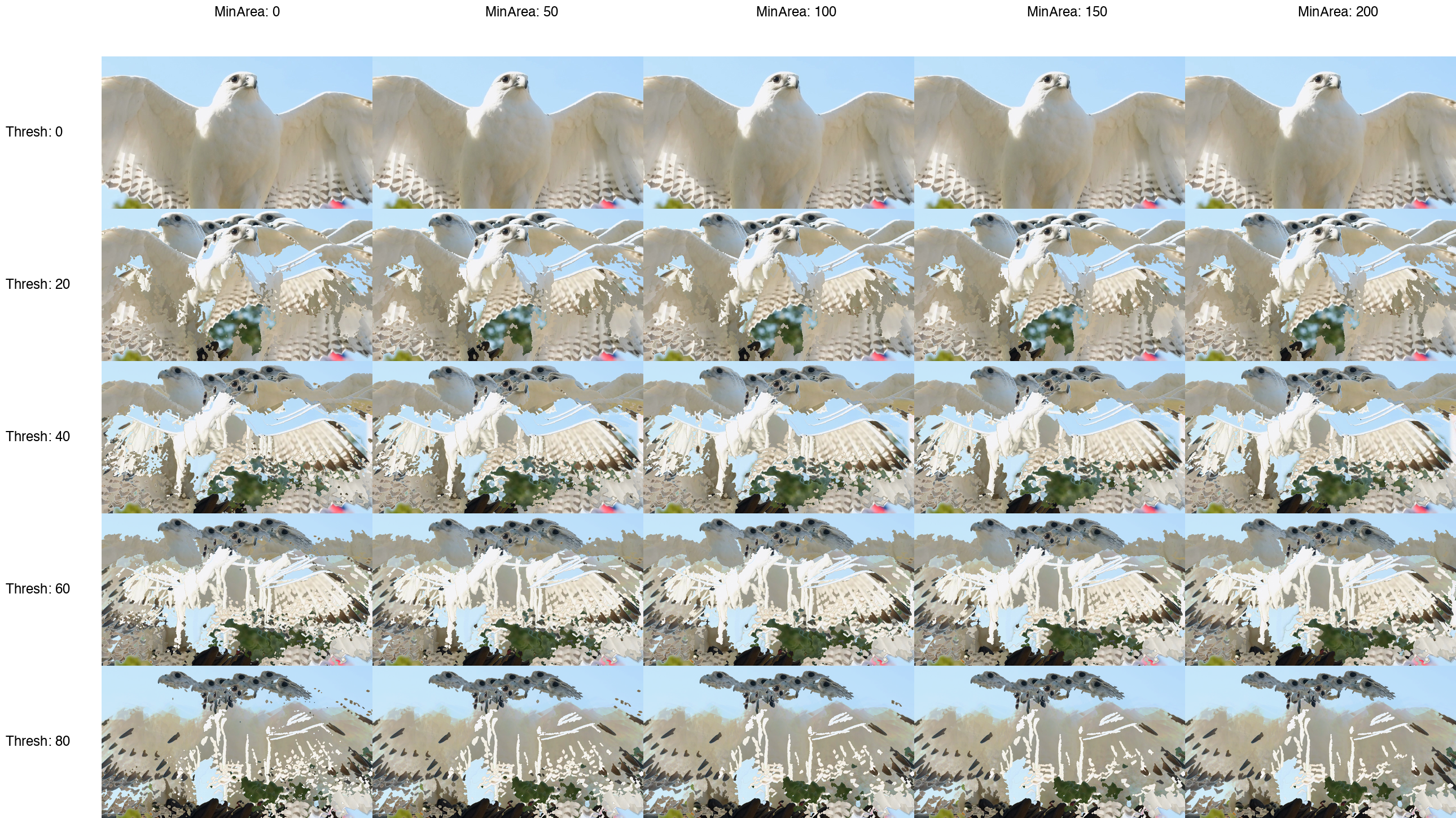

Find the optimal thresholds for different conditions. These grids show variations in MinArea and Thresh.

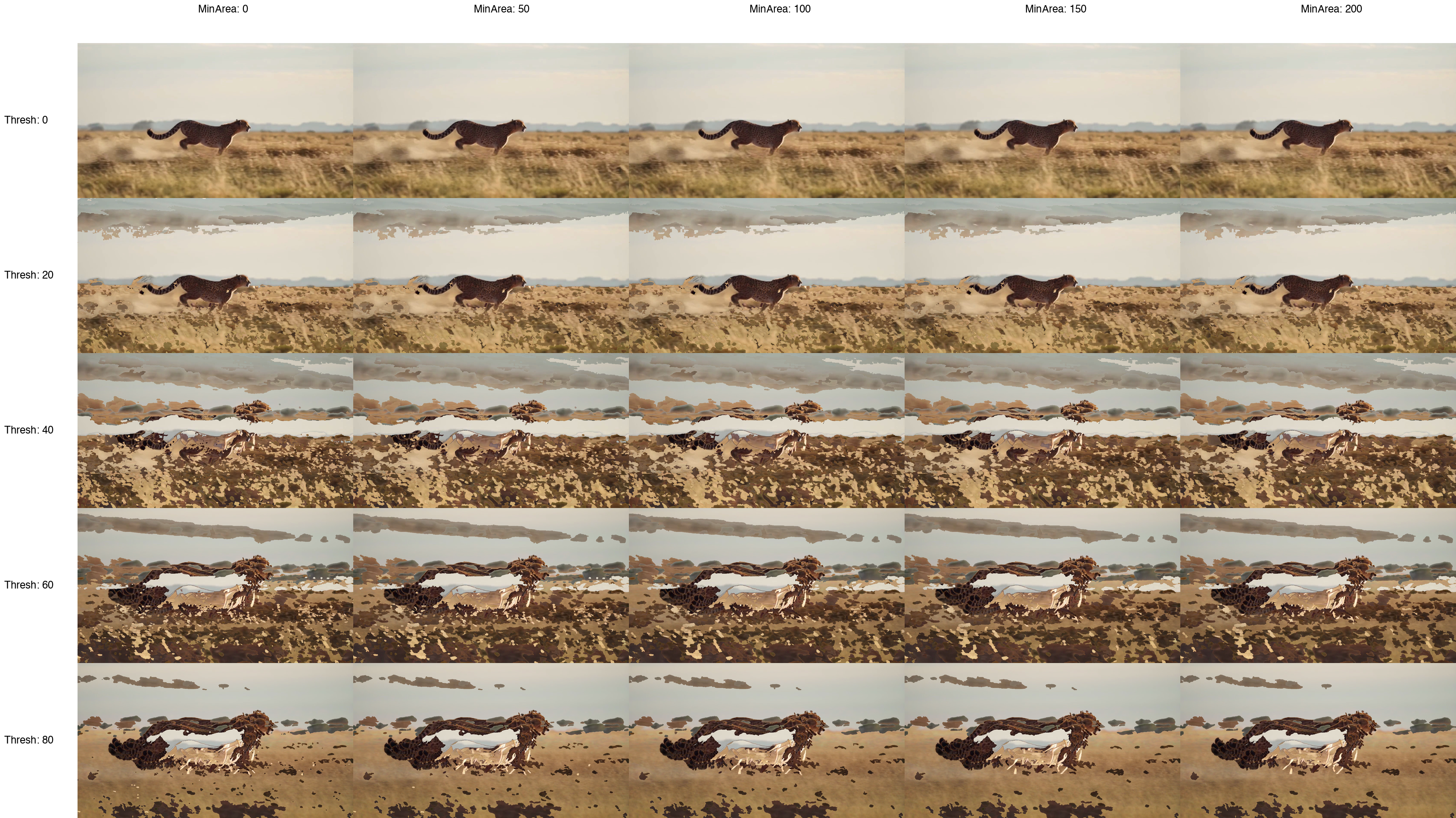

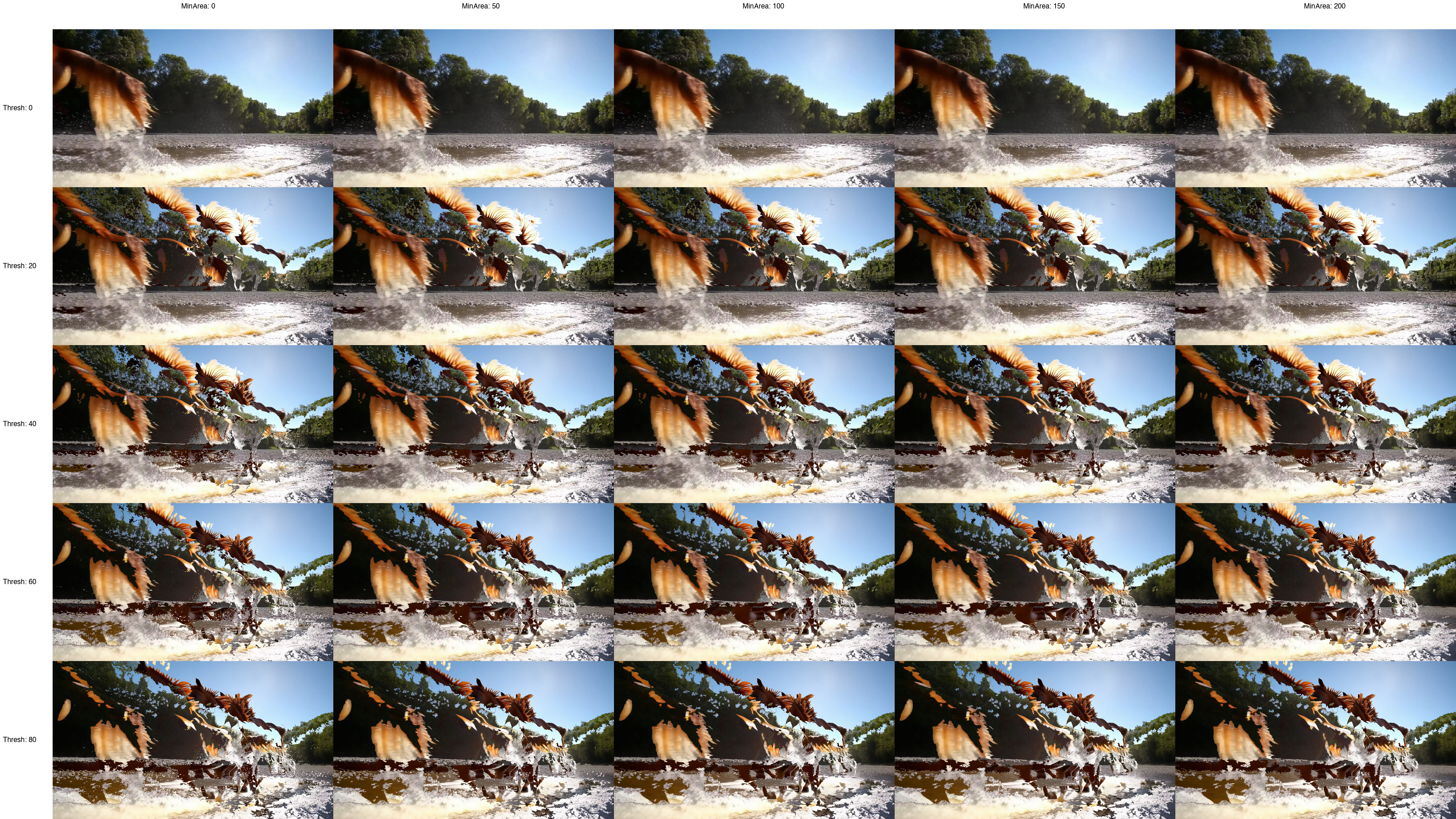

Video 184368 Sweep	Video 230717 Sweep	Video 307555 Sweep

Entity Recognition Results

Clean composites generated using OpenCV MOG2 and contour filtering.

Video 184368	Video 230717	Video 307555

Examples

Cleanup

To remove temporary files and generated frames:

rm -rf temp_sweep_* frames/
